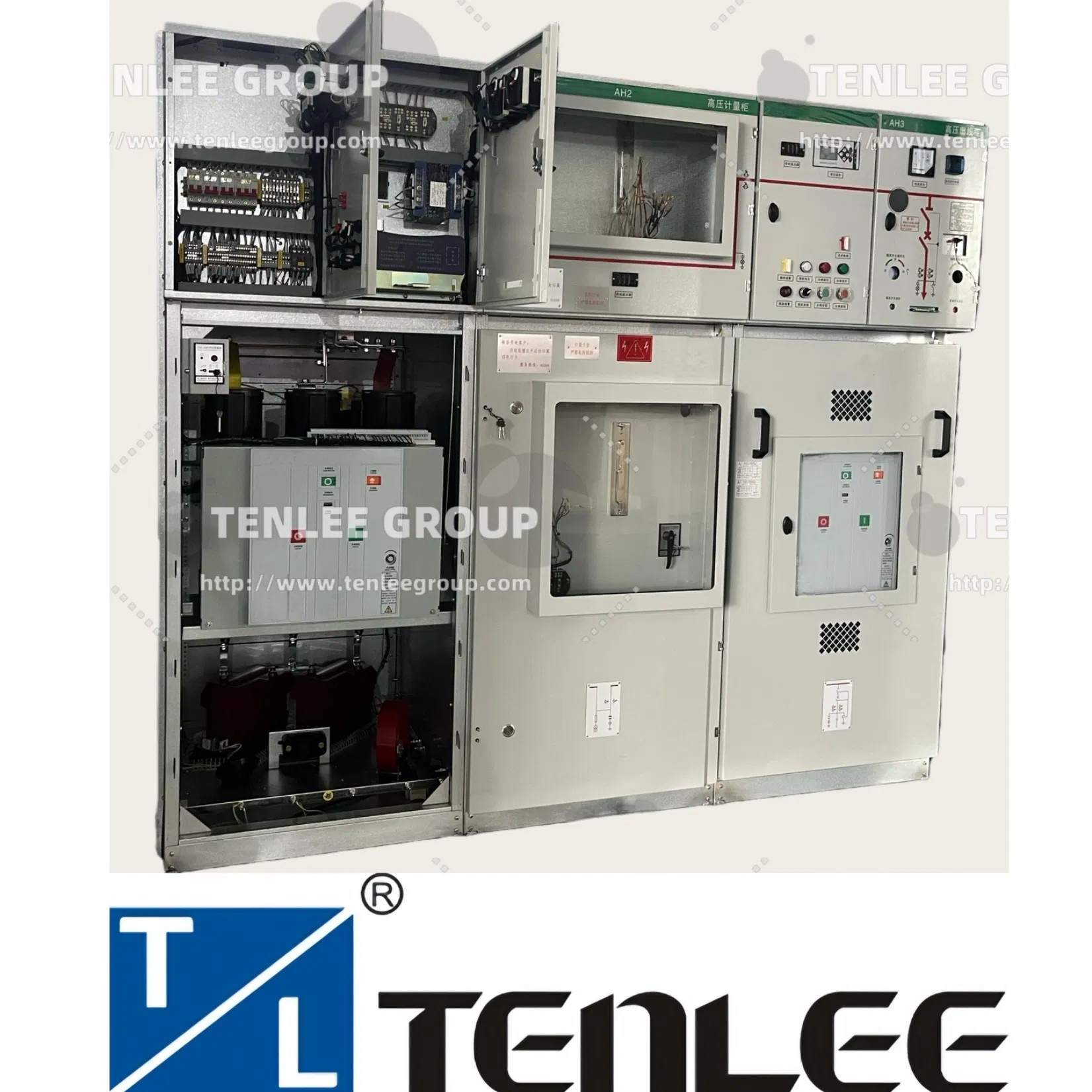

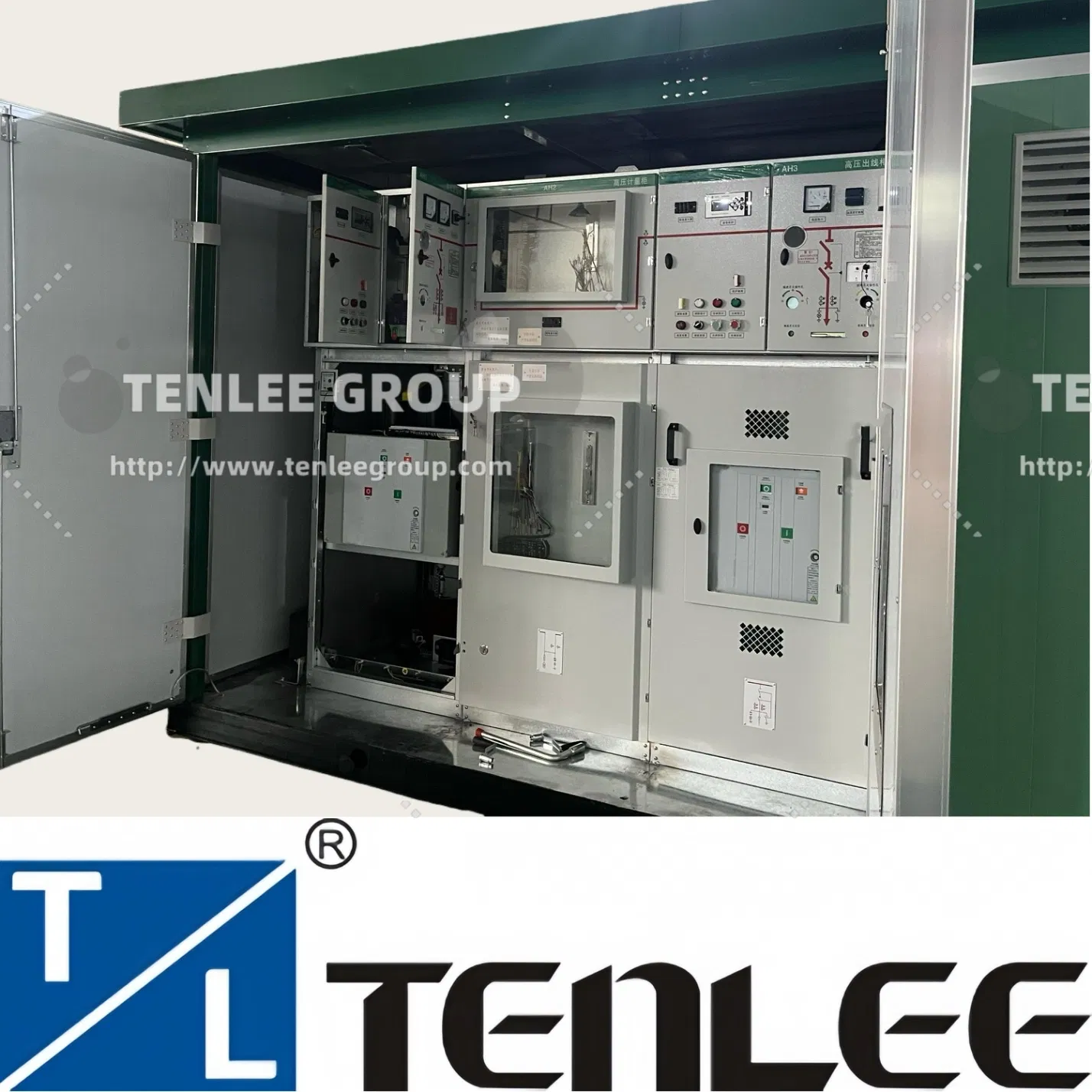

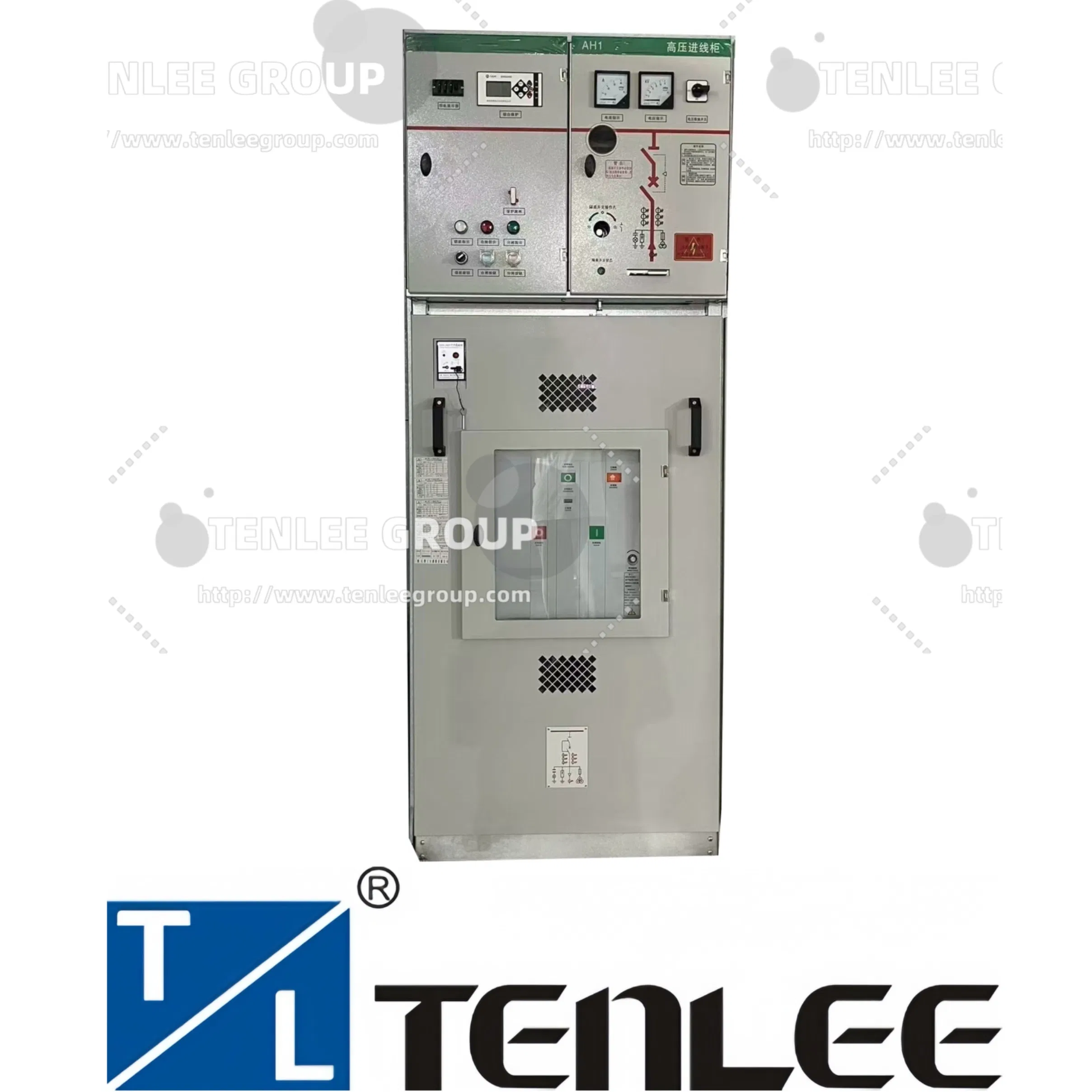

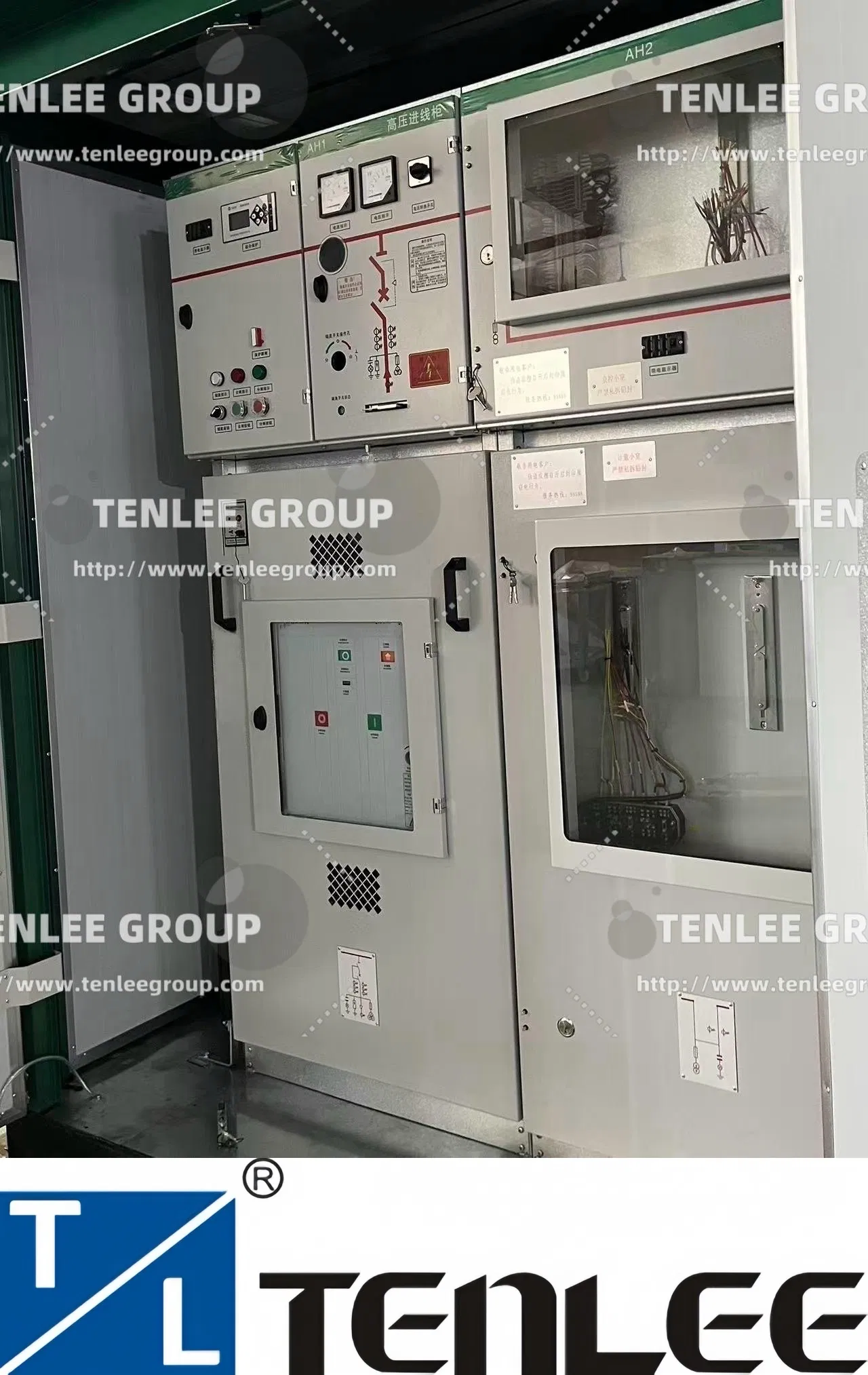

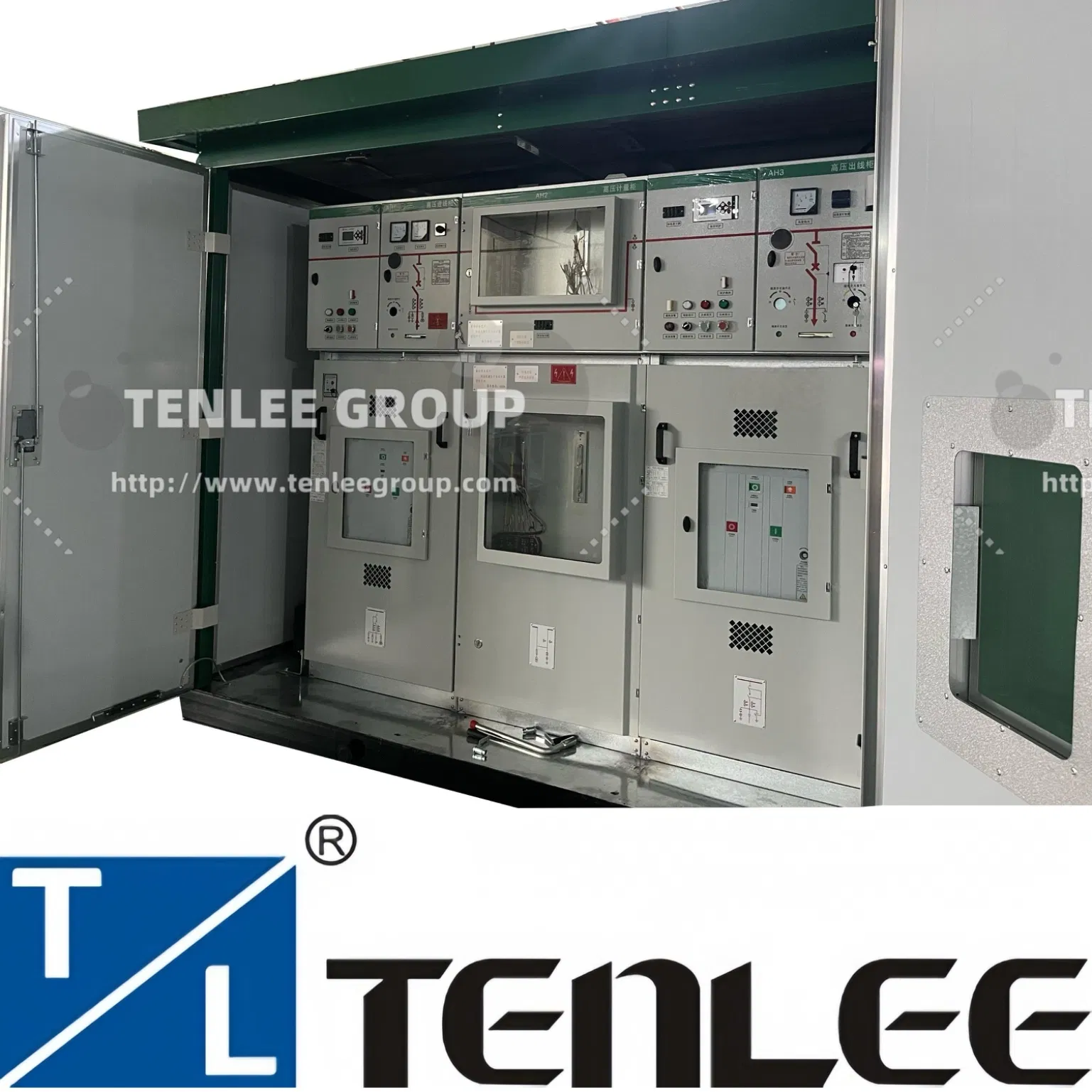

The XGN15-24 indoor metal-enclosed switchgear is an air-insulated, fixed high-voltage switchgear. This version is configured with a vacuum circuit breaker and is primarily used in three-phase AC 50Hz, rated voltage 24kV power distribution systems. It is suitable for industrial and mining enterprises, high-voltage distribution rooms, switching stations, and new energy substations for receiving and distributing electrical energy, as well as for the control and protection of lines and transformers.

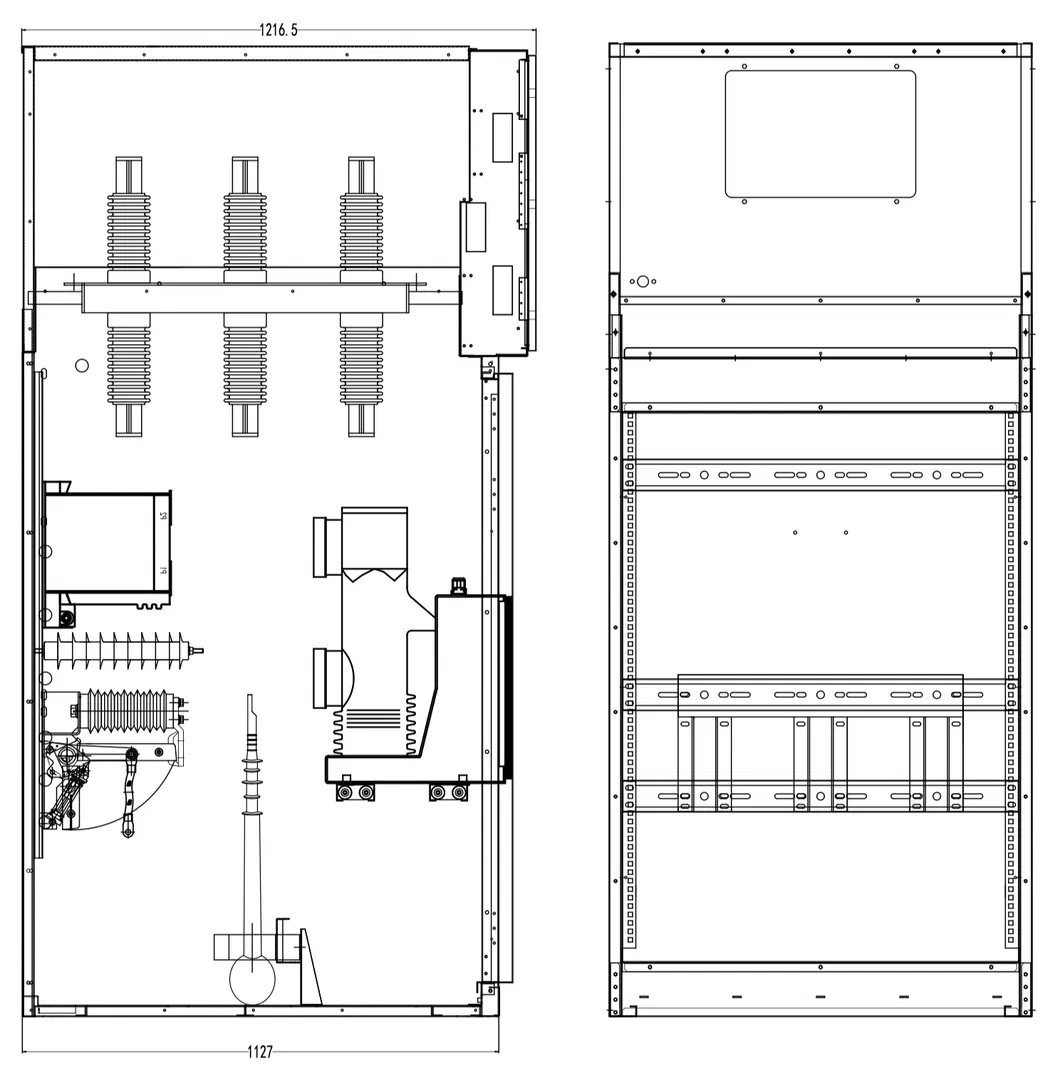

This cabinet features a complete mechanical "five-prevention" interlock, a robust structure, simple operation, and reliable performance. It utilizes a fully enclosed metal cabinet body with a high insulation safety margin, effectively preventing personnel from accidentally touching live parts and meeting high-voltage distribution safety specifications.
| NO. | Items | Parameters |
|---|---|---|
| 1 | Rated voltage | 24kv |
| 2 | Rated frequency | 50Hz |
| 3 | Rated current | 630A, 1250A |
| 4 | Rated short circuit breaking current | 25kA, 31.5KA |
| 5 | Rated thermal stability current 4s | 25kA, 31.5KA |
| 6 | Rated thermal stability current (peak) | 63KA, 80KA |
| 7 | Power frequency withstand voltage (to earth) | 65KV/1min |
| 8 | Lightning impulse withstand voltage | 125KV |
| 9 | Protection degree | IP 4X |
| 10 | Mechanical life | VCB 10000 |
* 36kv is available on request.
Standard Packaging: Professional wooden case protection.
Delivery Time: Within 30 days after order confirmation.
