Product Description

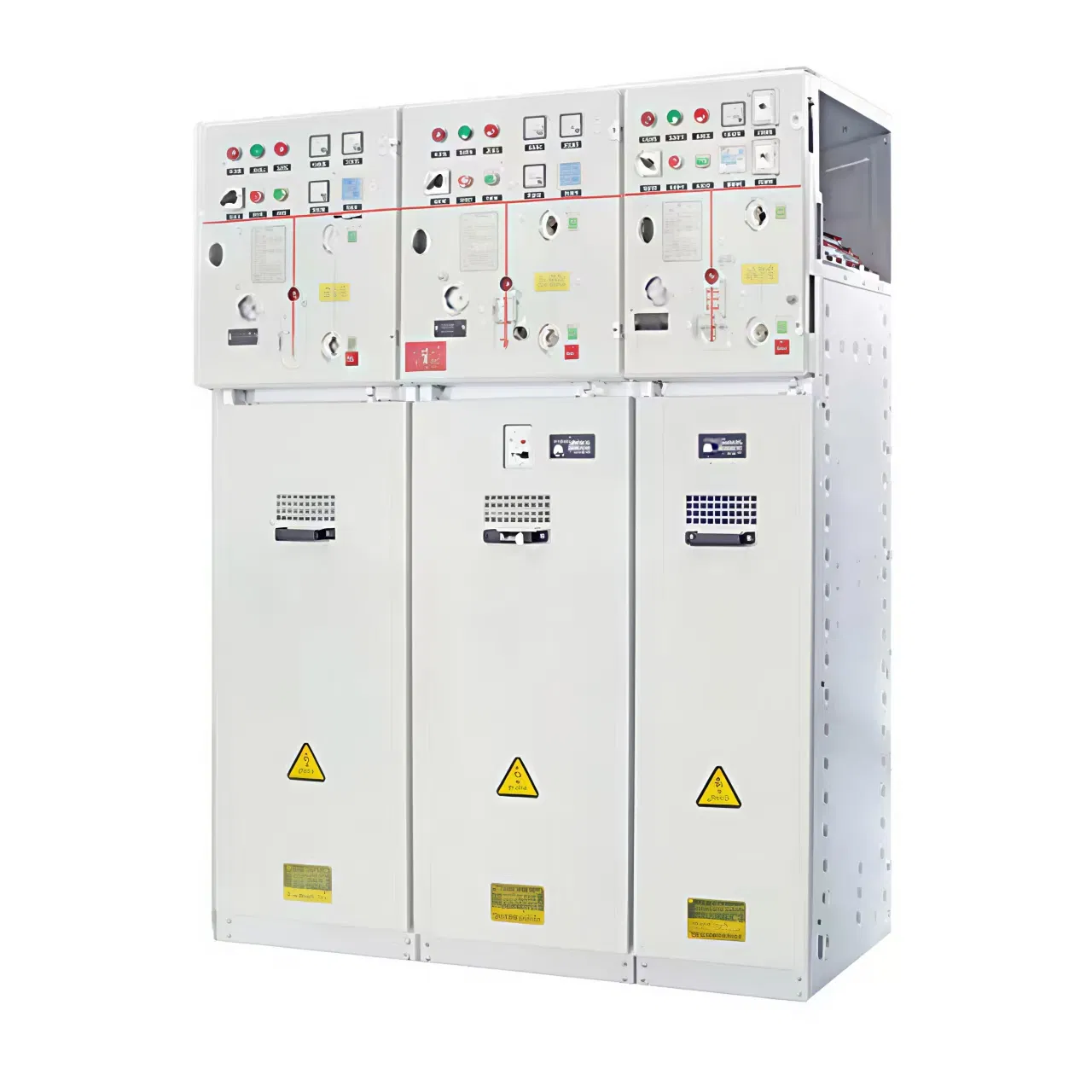

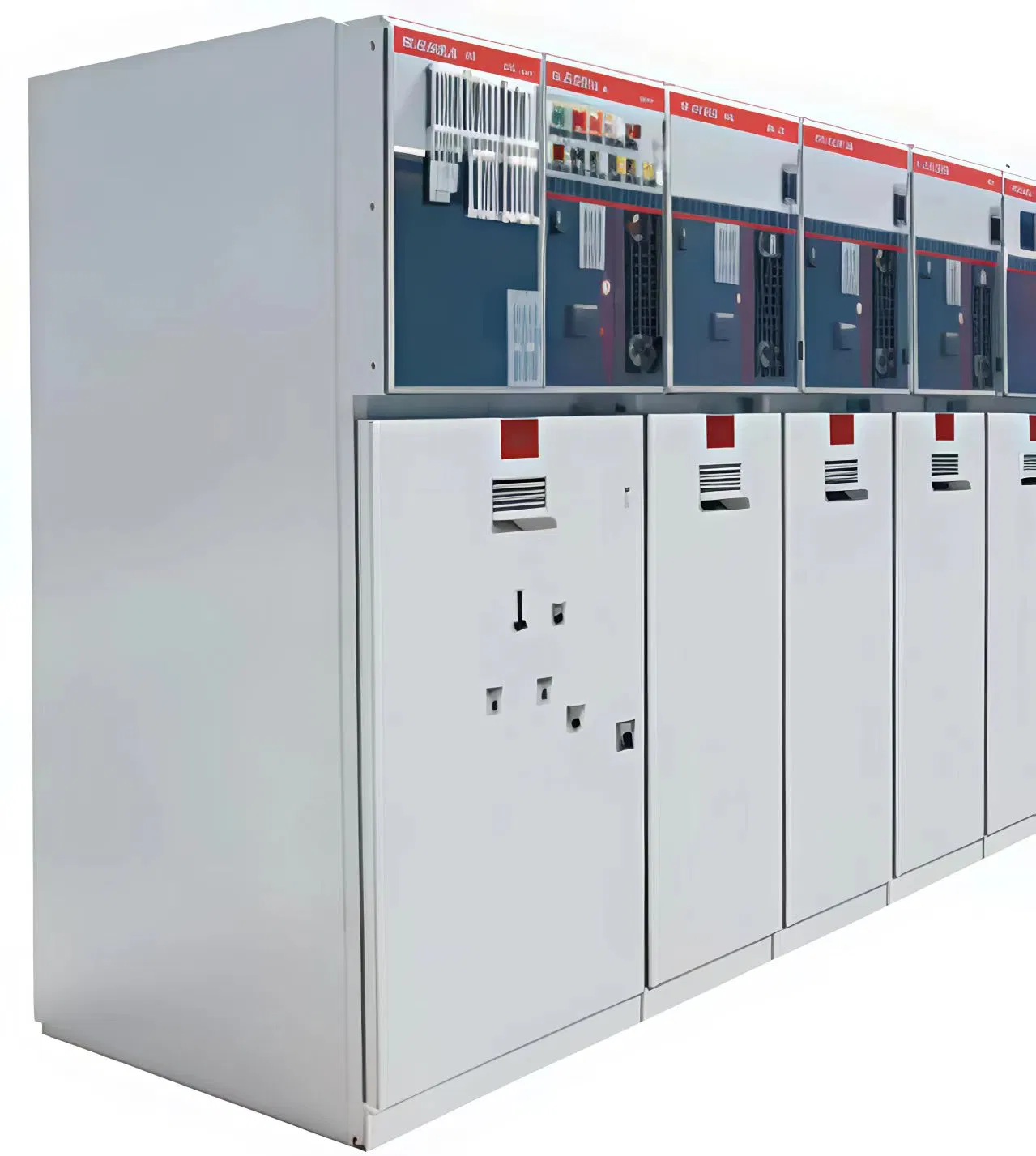

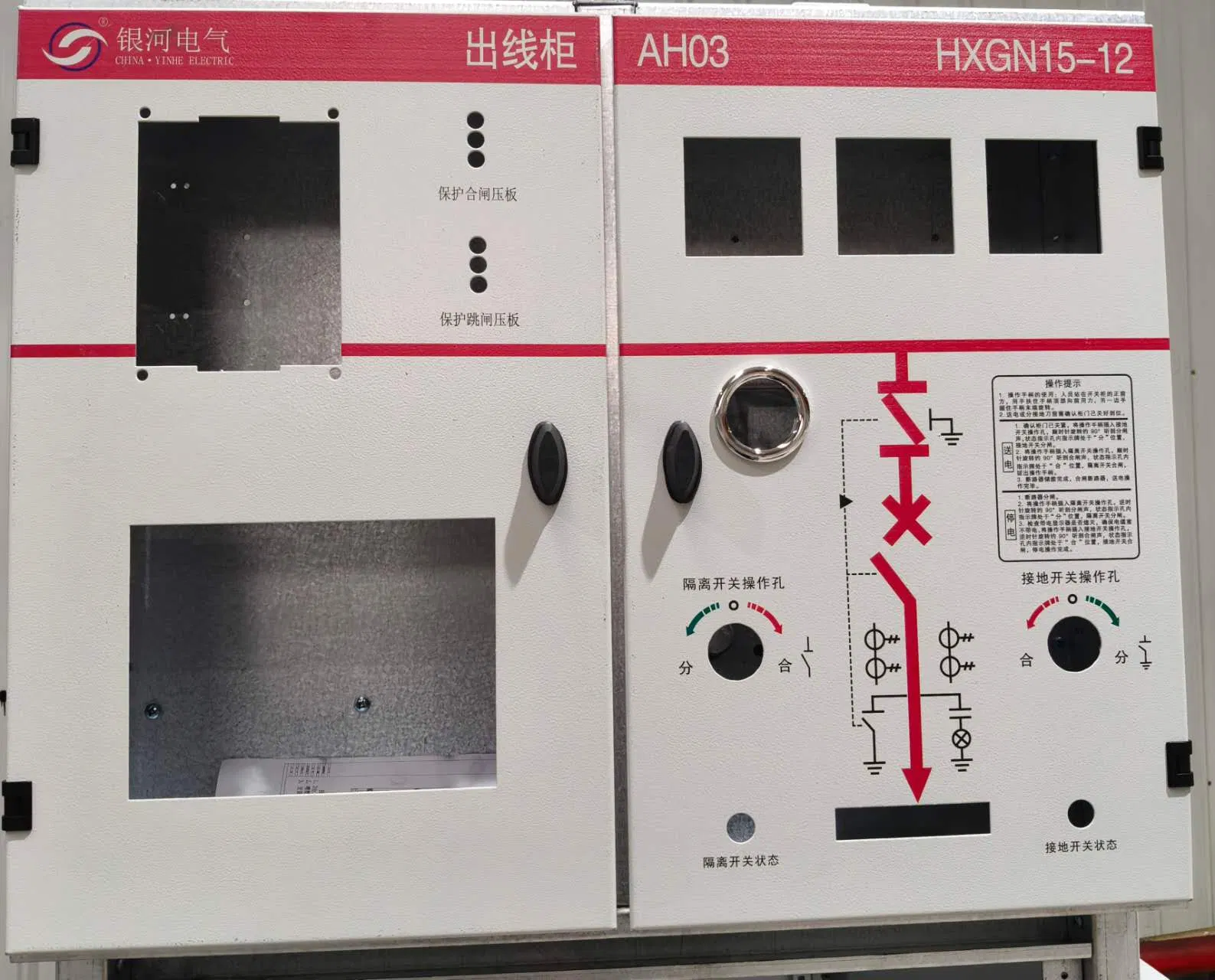

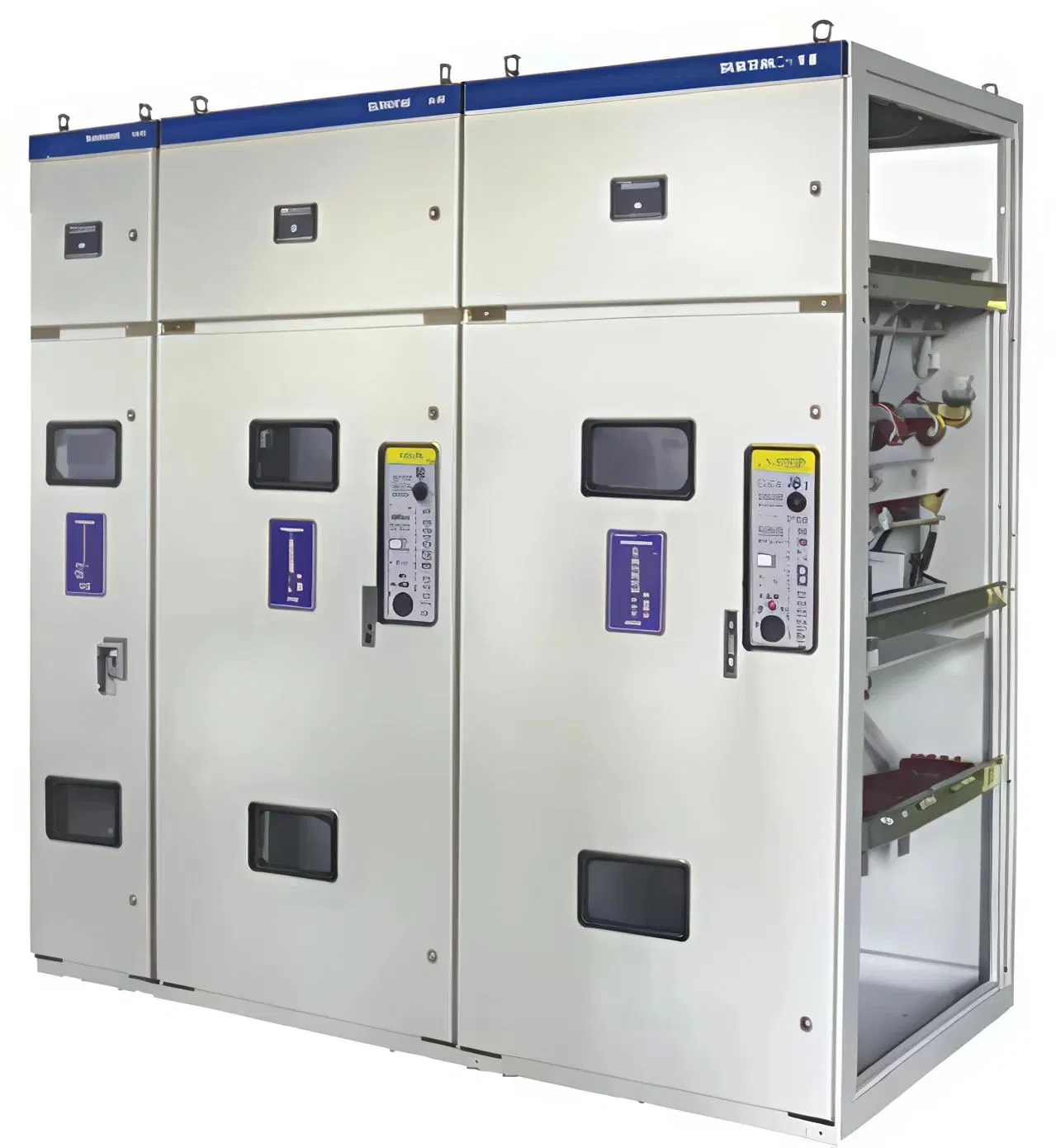

HXGN15-12 Box Type Fixed AC Metal Enclosed Switchgear
The HXGN15-12 Unitized AC Metal-Enclosed Ring Network Switchgear (Ring Main Unit) is a new-generation high-voltage electrical product. It incorporates advanced technologies and meets the rigorous requirements for rural and urban power grid upgrades. All technical performance indicators comply with international IEC62271-2003 and GB3906 standards.
- Equipped with original ABB parts or high-quality domestically assembled SFL-12/24-type switchgear.
- Options for SF6 circuit breakers or VD4-S type vacuum circuit breakers.
- CNC machined cabinet with IP3X protection rating and reliable mechanical interlocks.
- Compact, lightweight, and pollution-free operation with minimal maintenance.
Designed for 50Hz, 12kV power networks, this system excels in electricity reception and distribution, utilizing SF6 gas for efficient switching.

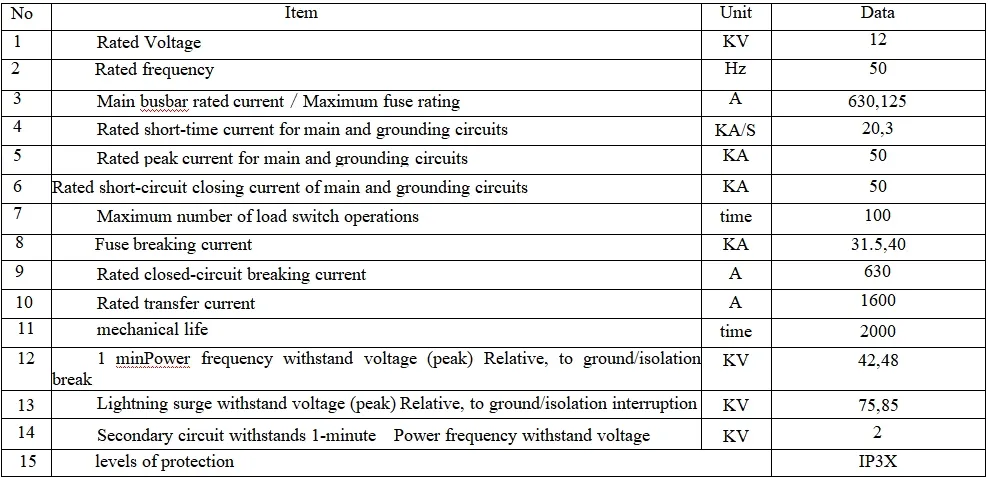

Technical Data
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements, ensuring perfect integration into your existing infrastructure.
Support & Service
We provide comprehensive support for product quality, spare parts replacement, and technical guidance. Our commitment includes:
- 24-hour response time for technical feedback.
- Assistance with troubleshooting through photo and video evidence.
- Long-term maintenance guidance and operational training.
Frequently Asked Questions
Q: What is the lead time for switchgear orders?
A: Standard models typically ship within 15–30 days, while customized units require approximately 30–45 days depending on complexity.
Q: Do you offer international after-sales support?
A: Yes, we provide comprehensive technical guidance and have partnered service centers in key global regions to assist with maintenance and parts.
Q: Can the HXGN15-12 be customized for specific dimensions?
A: Absolutely. We offer tailored designs and adjustable configurations to fit specific site constraints and project technical requirements.
Q: What export documentation is provided with the shipment?
A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Compliance (COC).
Q: How do I initiate a formal quote or order?
A: Please reach out via our official communication channels to request a quote. Once terms are agreed upon, the order is confirmed with a Purchase Order (PO).
Q: Does this switchgear comply with international safety standards?
A: Yes, the HXGN15-12 is fully compliant with IEC62271-2003 and GB3906 standards, ensuring high safety and reliability for power networks.
