Product Description

🔹 Overview
Model NO.
HV withdrawable switchgear 12kV/24kV/40.5kV
Voltage Level
High Voltage
Installation
Removable
Structure
Withdrawable
Current
630A/1250A/2000A/3150A
OEM Service
Available
Frequency
50Hz (60Hz Optional)
Protection Degree
IP4X (with Door Closed) / IP2X (with Door Open)
Number of Phases
Three-Phase
HS Code
8537209000
Production Capacity
500/Months
Indoor Metal-Clad Withdrawable Switchgear
⚙️ Product Description

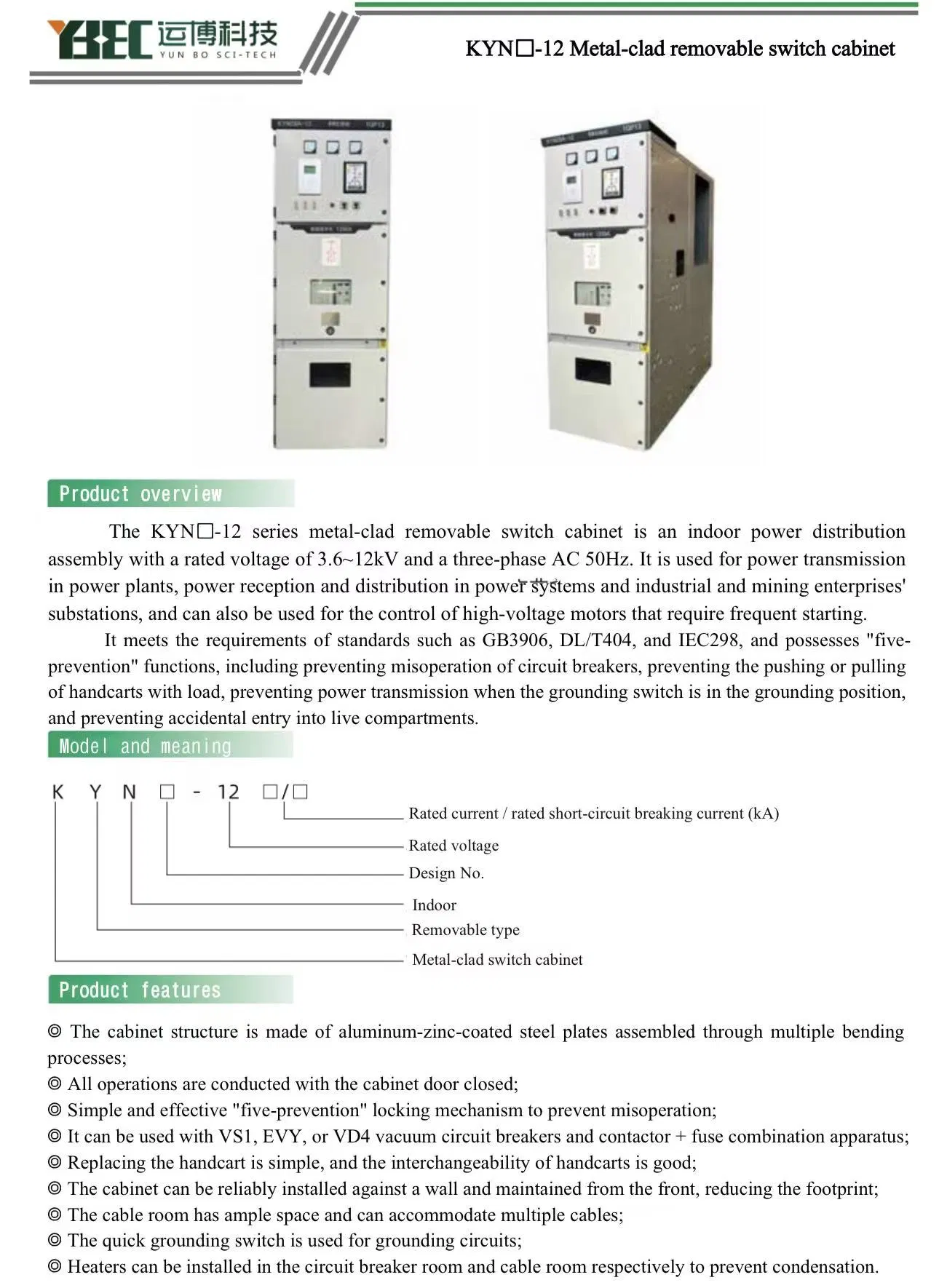

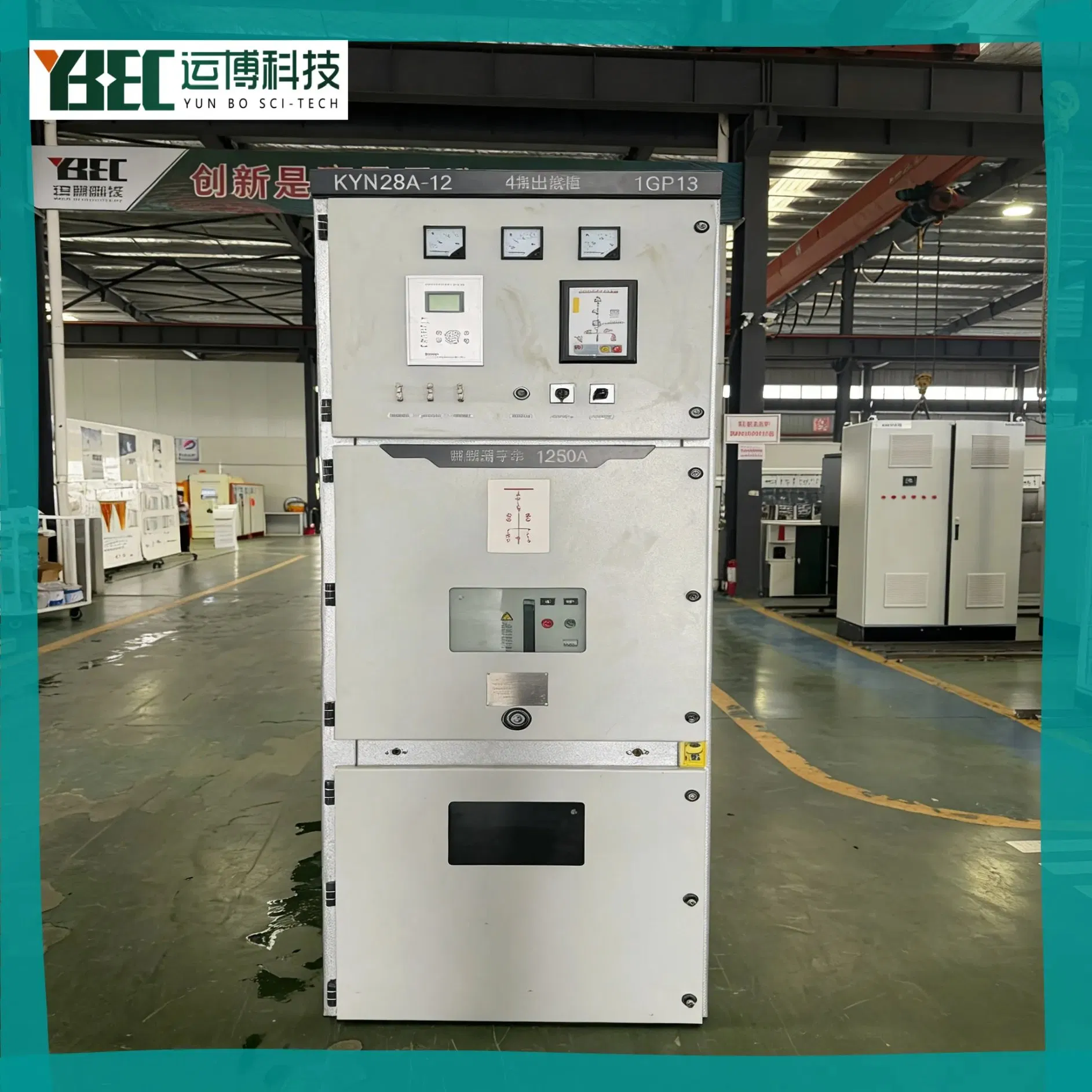

Indoor Withdrawable Metal-Clad Switchgear Cabinet

This 12–35kV indoor metal-clad mid-mounted switchgear (KYN28A-12 / KYN61-40.5) is designed for industrial & commercial power distribution. It is widely applied in mining, industrial plants, new energy projects and municipal power grids, serving as an ideal matching device for transformers ranging from 100kVA to 2500kVA.

🛡️ Outstanding Safety & Multi-level Protection
  • Complete mechanical & electrical five-prevention interlock system, eliminating misoperation risks.
  • Enclosure protection degree up to IP4X, with independent compartment design to prevent fault spreading.
  • Standard arc flash protection, fast tripping within 10ms. Core components adopt epoxy solid insulation with Class 3 insulation level.
  • Partial discharge ≤ 5pC (35kV type); peak withstand current up to 130kA (12kV type).
📈 High Compatibility & Stable Operation
  • Rated current covers 630A – 3150A, customizable breaking capacity.
  • Wide temperature tolerance from -40°C to +55°C, anti-vibration and anti-corrosion.
  • Vacuum arc extinction without SF6 gas, eco-friendly and low loss. Distribution loss reduced by 8%.
📱 Intelligent Performance & Easy Maintenance
  • Mid-mounted truck structure, all operations completed from front side.
  • Maintenance time shortened to 1.5 hours with direct module replacement.
  • Equipped with intelligent temperature monitoring and partial discharge sensors; supports remote operation & maintenance (IEC 61850).
  • Cabinet service life exceeds 20 years.

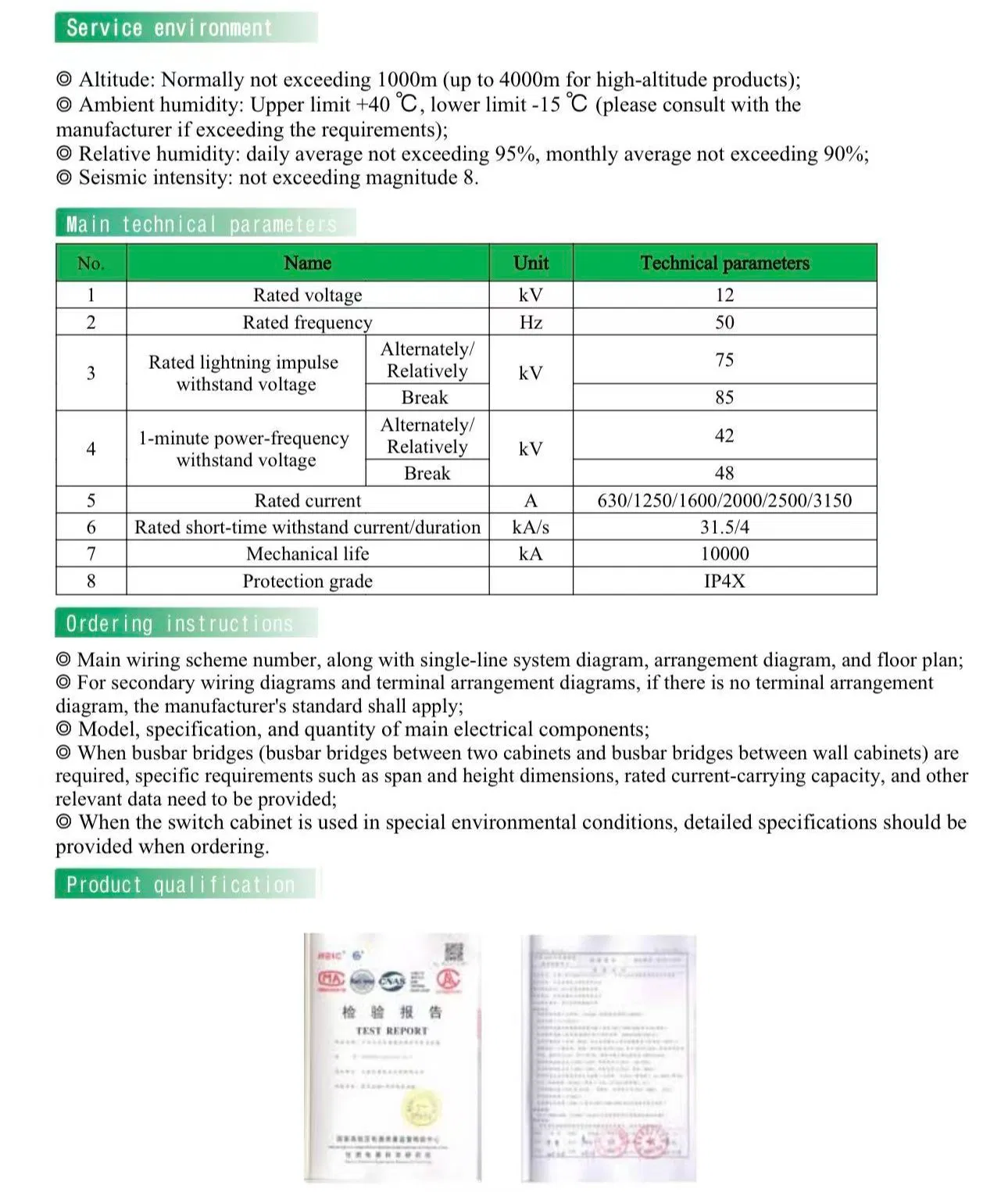

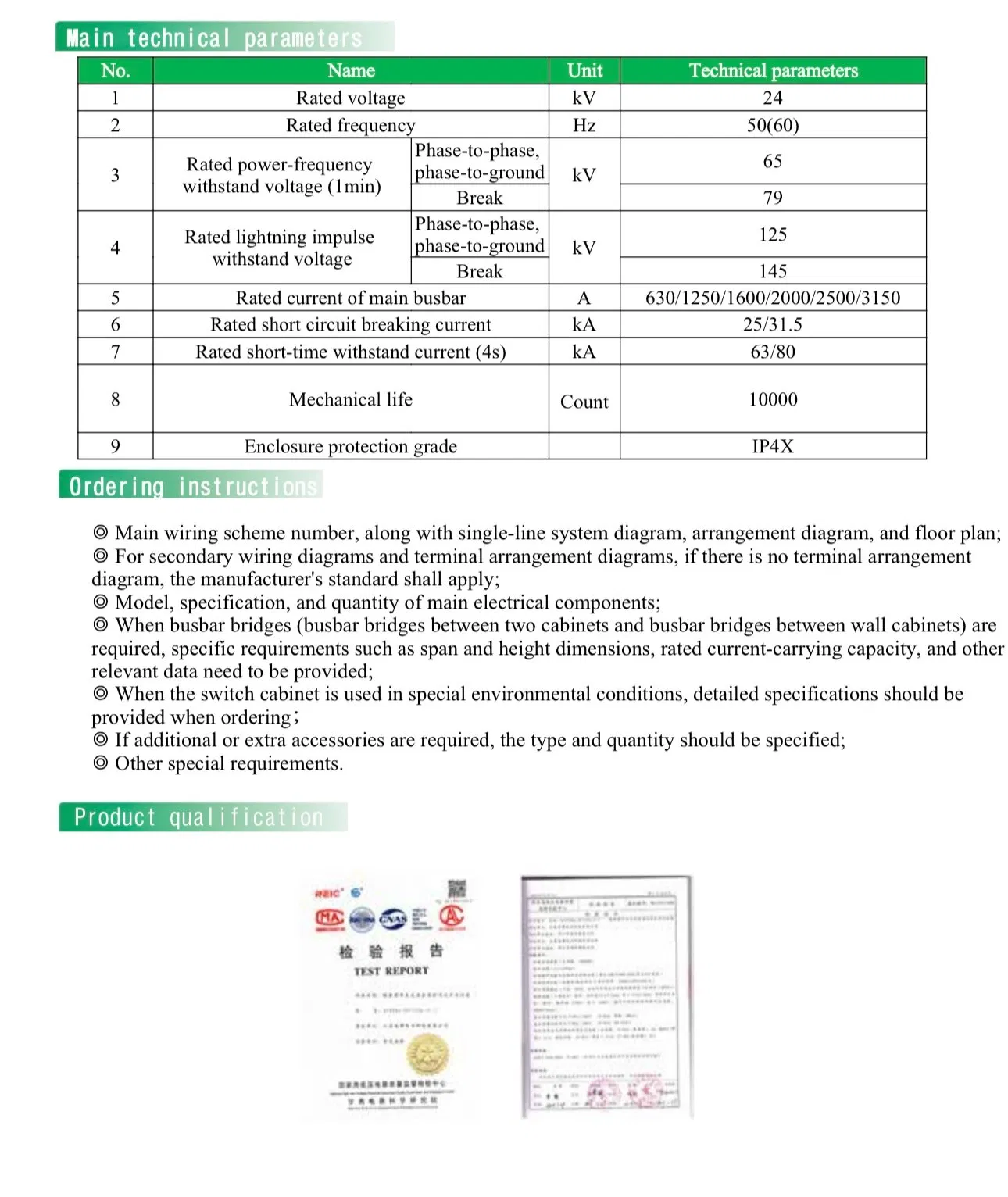

Item Details Item Details
Product Model KYN28A-12kV Voltage Class 12kV
Installation Type Indoor Metal-Clad Withdrawable Structure Metal-Clad Enclosed
Rated Current 630A - 3150A Frequency 50Hz / 60Hz
Protection Degree IP4X / IP2X Insulation Air Insulation
Dimensions Customizable (Standard 800/1000x1500x2300mm) Origin China

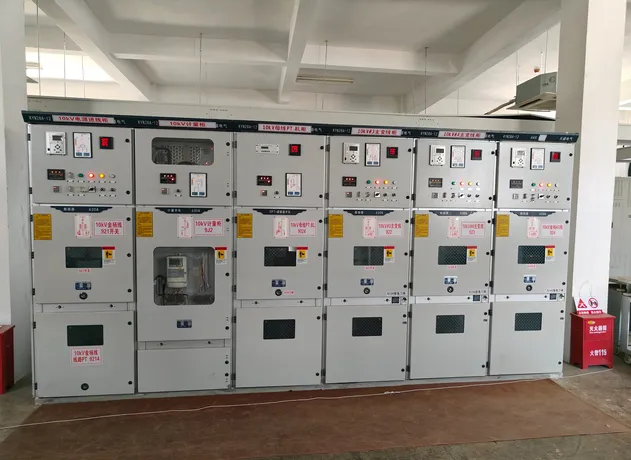

Switchgear Detail 1 Switchgear Detail 2 Switchgear Detail 3
Feature 1
Feature 2
Feature 3
Feature 4

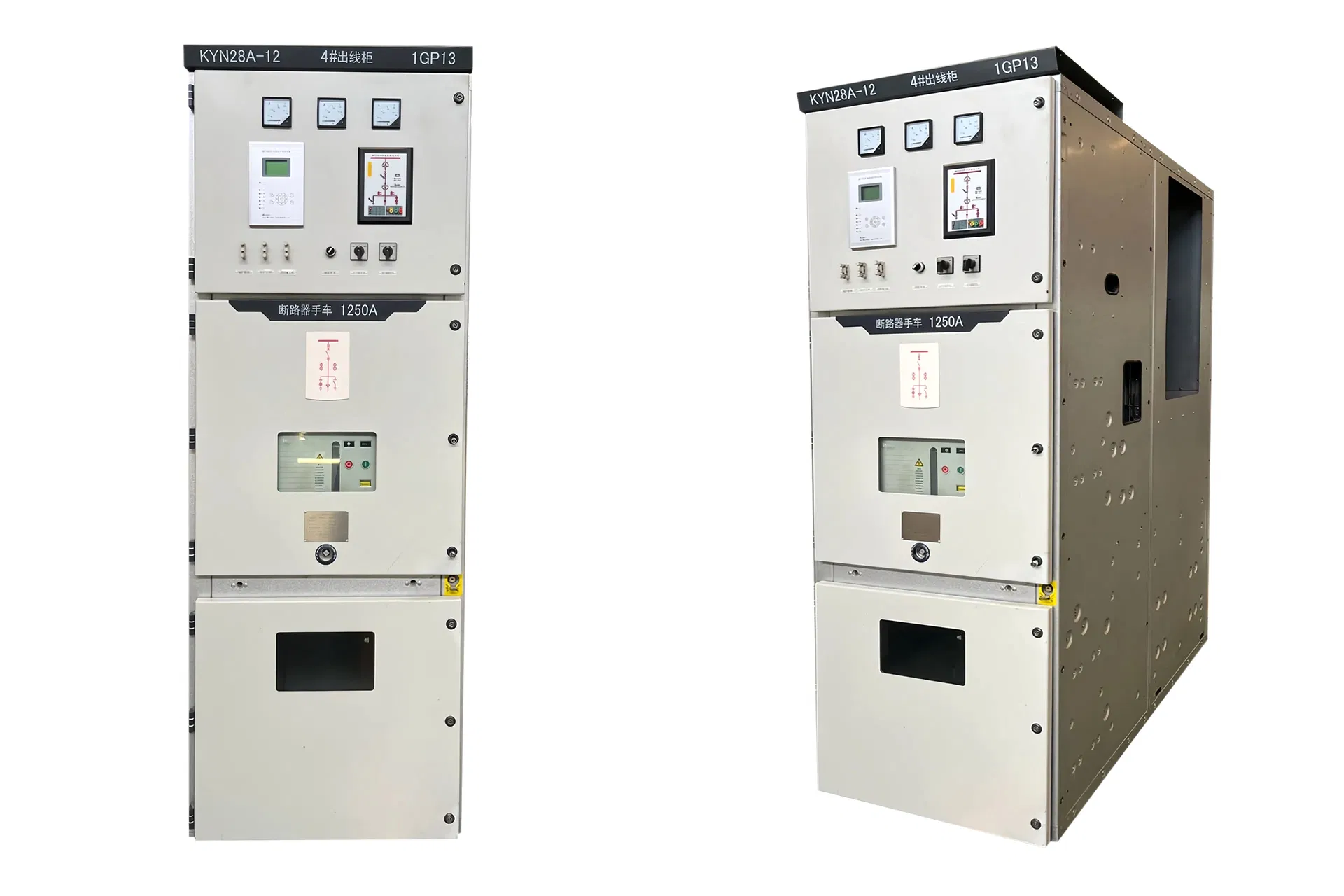

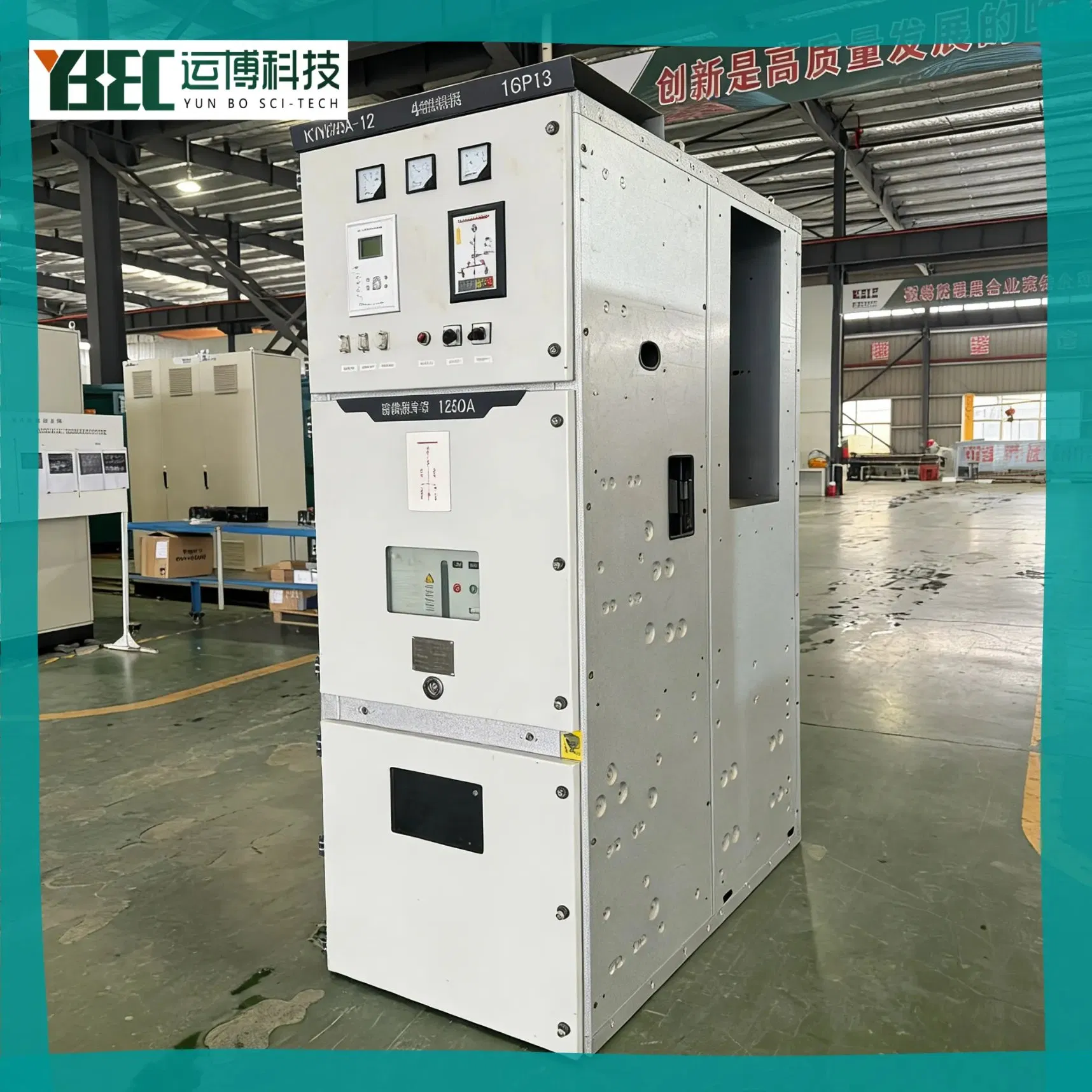

Internal View
📦 Main Product

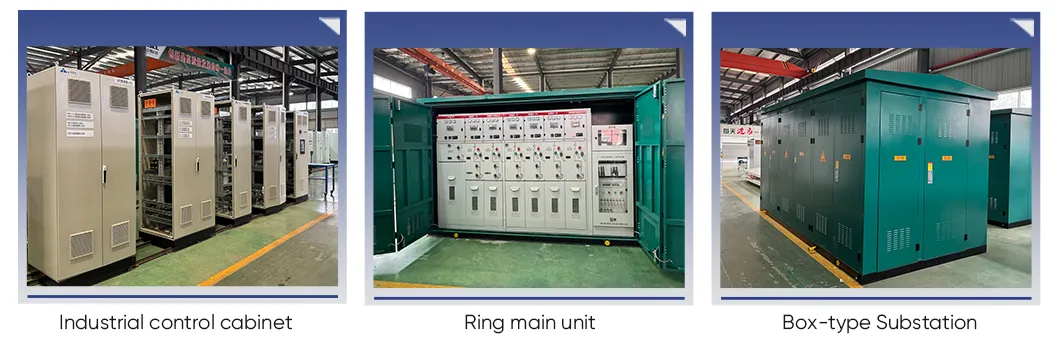

Main Product Range
🏢 Company Profile & Advantage
Manufacturing Facility
Production Line
Advantages
📜 Certifications & Exhibition
Industry Certifications
Global Exhibition
🚢 Packaging & Shipping
Package Size
800.00cm * 1500.00cm * 2000.00cm
Gross Weight
500.000kg
Package Type
Export Standard Wooden Case
Shipping Preparation
❓ Frequently Asked Questions
Q1: What is the rated voltage range for this switchgear?
A1: Our metal-clad withdrawable switchgear supports high voltage levels ranging from 12kV and 24kV up to 40.5kV, suitable for various industrial power distribution needs.
Q2: How does the "five-prevention" interlock system work?
A2: It is a complete mechanical and electrical safety system designed to prevent misoperation, such as entering live compartments or moving the circuit breaker under load, ensuring maximum operator safety.
Q3: Is the switchgear suitable for harsh environments?
A3: Yes, it features a wide temperature tolerance from -40°C to +55°C and is designed to be anti-vibration and anti-corrosion, making it ideal for coastal or high-altitude applications.
Q4: What are the benefits of the mid-mounted truck structure?
A4: This structure allows all maintenance and operations to be completed from the front side. Faulty modules can be quickly pulled out and replaced, reducing shutdown time to approximately 1.5 hours.
Q5: Does this equipment support smart grid integration?
A5: Yes, it is equipped with intelligent temperature monitoring and partial discharge sensors, supporting IEC 61850 communication for remote operation and unattended management.
Q6: What is the expected service life of the cabinet?
A6: Due to the high-quality modular design and epoxy solid insulation, the switchgear cabinet service life exceeds 20 years with proper maintenance.
