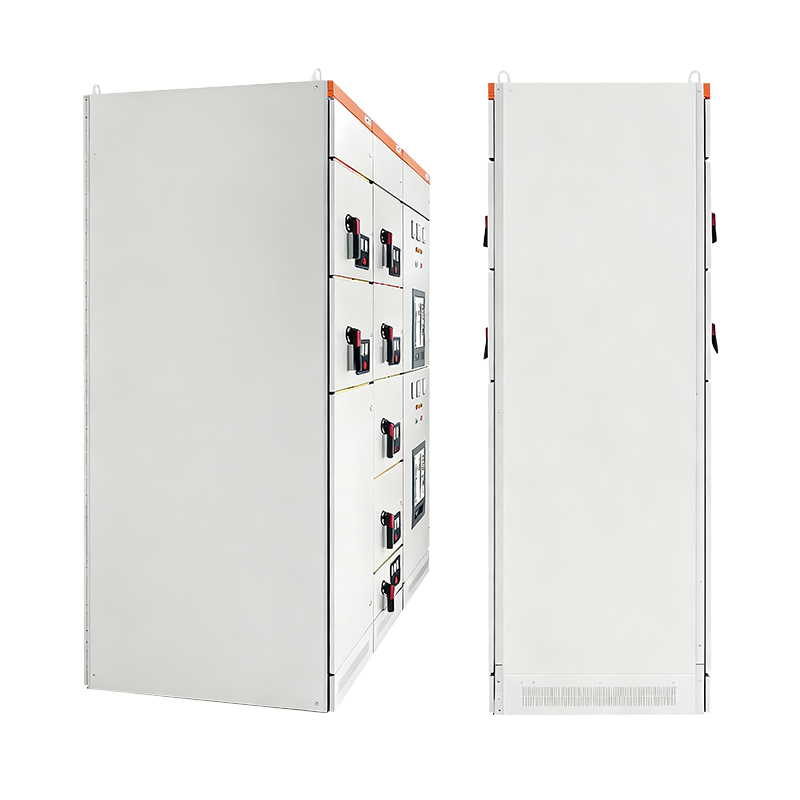

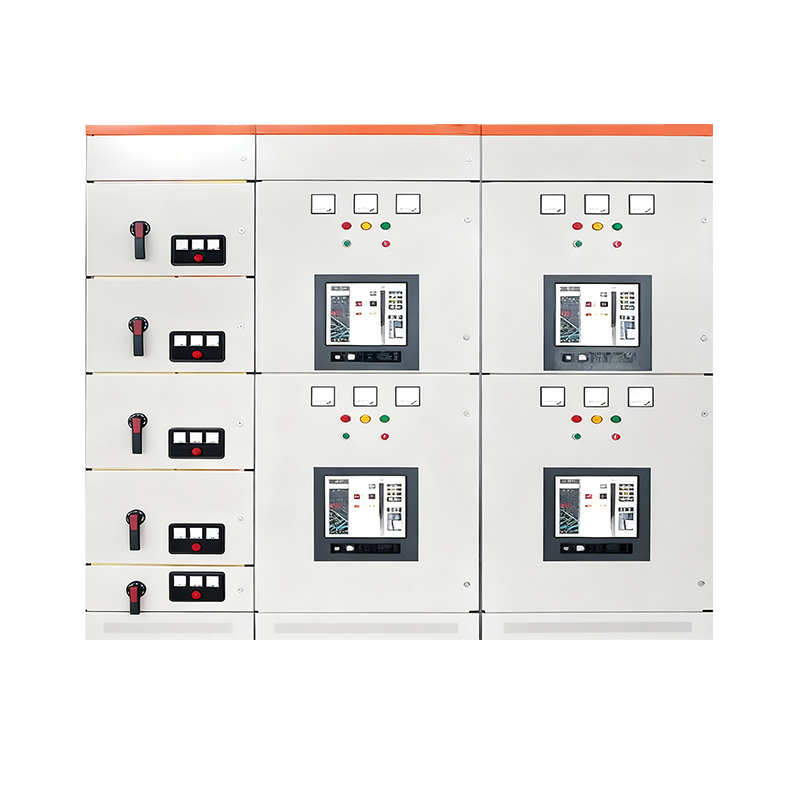

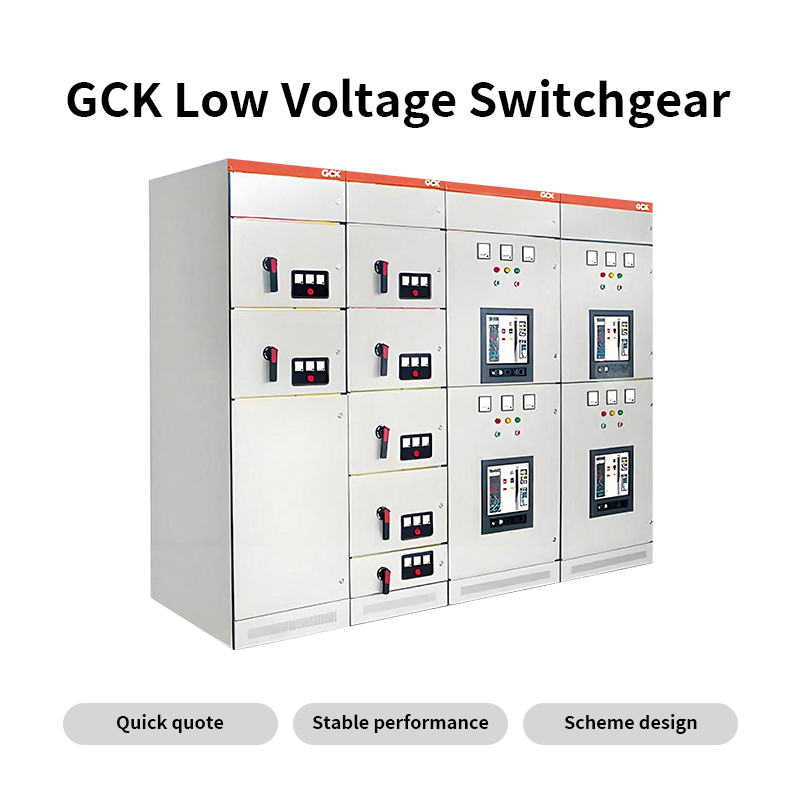

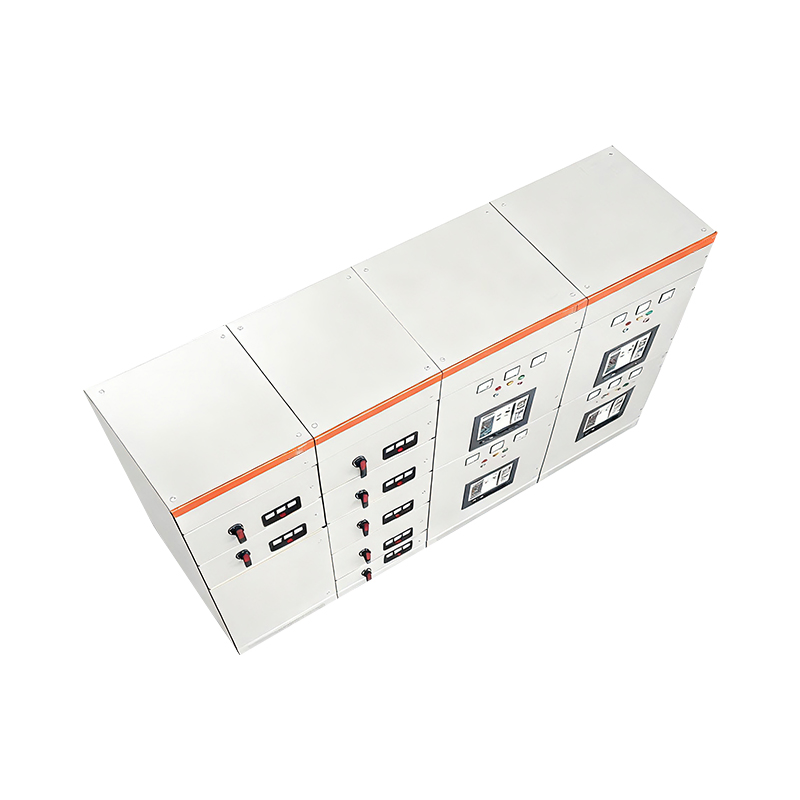

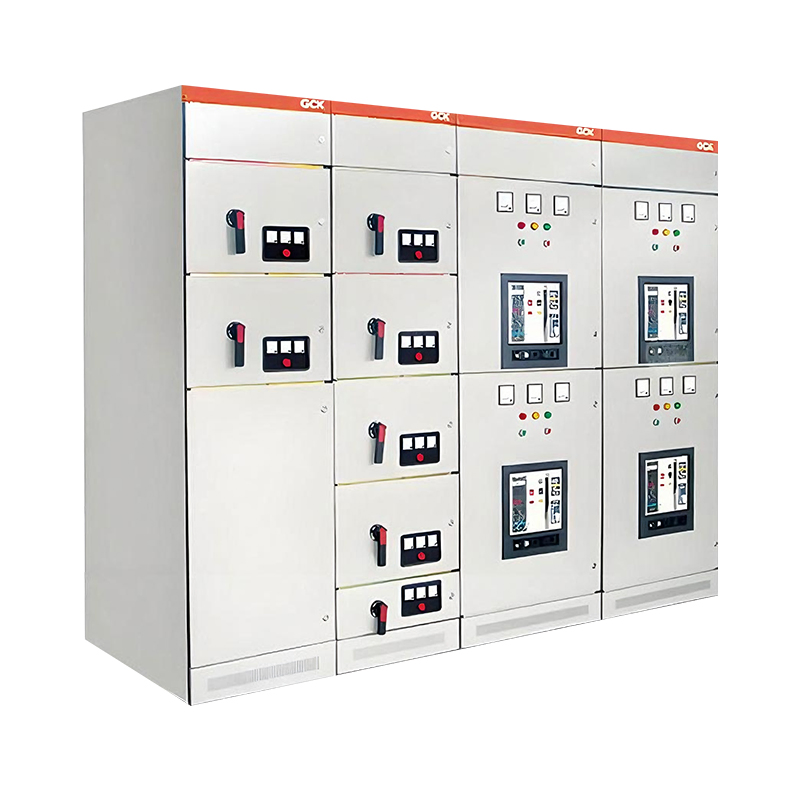

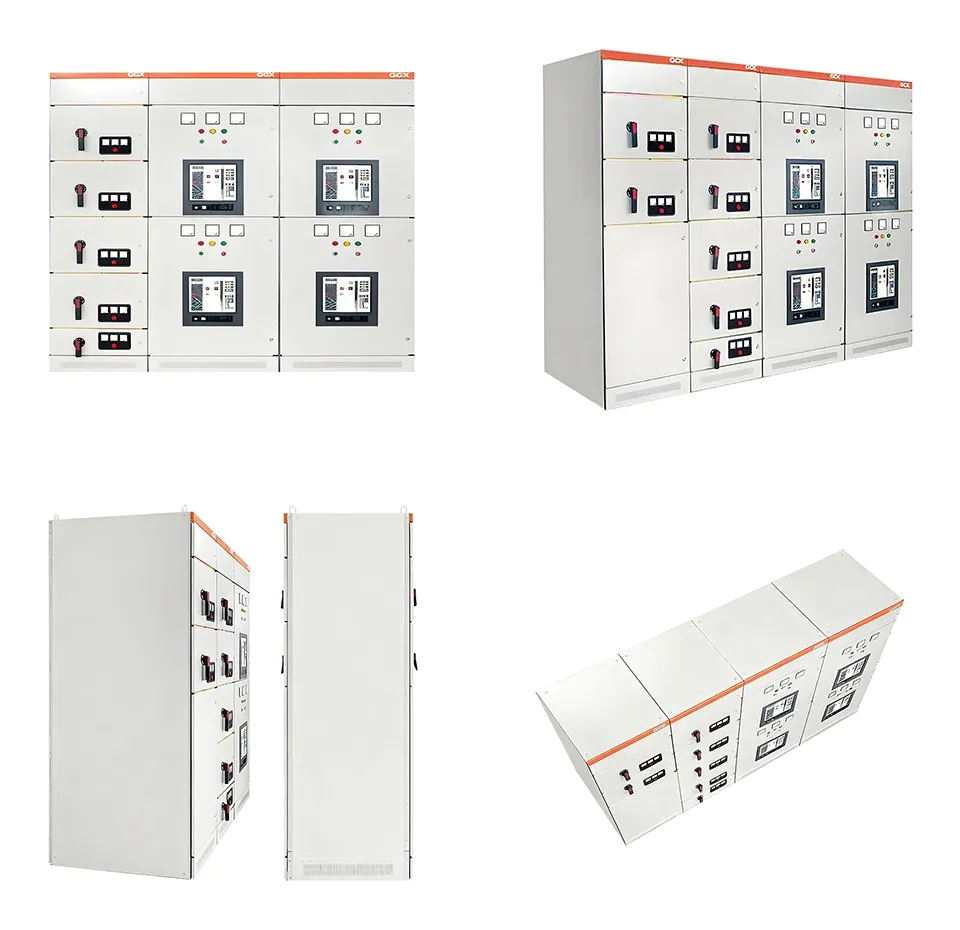

Gck Low Voltage Air Insulated 3phase Switchgear with Copper Busbars and Steel Enclosure

📋

Basic Specifications

Model NO.	GCK
Installation	Fixed
Structure	Cabinet
Current	AC
Rated Operating Voltage	380/660V
Rated Working Frequency	50Hz
Protection Class	IP40
Altitude	2000m
Main Circuit Connector	200, 400A
Horizontal Bus	630-3150
Vertical Bus	600
Max Capacity of Control Motor	155
Production Capacity	50000 Pieces/Year

⚙️

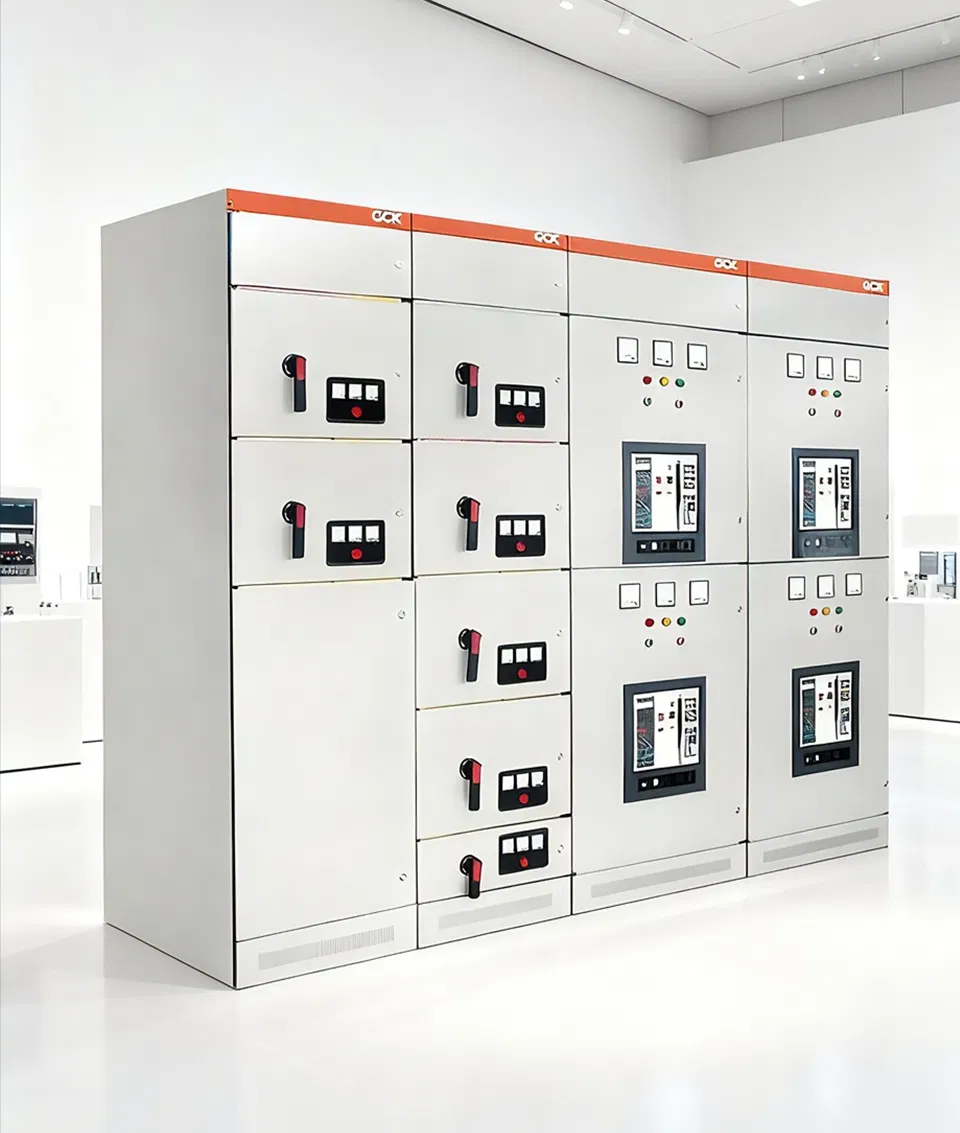

Product Overview

GCK low-voltage withdrawable switchgear consists of a power distribution center (PC cabinet) and motor control center (MCC). It is designed for power conversion and distribution control in AC 50Hz systems with a maximum working voltage up to 660V and current up to 3150A.

Key Advantages:

✔ High breaking capacity and thermal stability

✔ Advanced, reasonable structure with versatile scheme units

✔ Space-saving design accommodating more circuits per cabinet

✔ Compliant with IEC61439 and GB/T7251 standards

🌍

Operating Environment

📍 Altitude not exceeding 2000m.

📍 Ambient air temperature: -5℃ to +40℃ (24h average ≤ +35℃).

📍 Humidity: ≤ 50% at +40℃; higher humidity allowed at lower temperatures (e.g., 90% at +20℃).

📍 No fire, explosion hazards, severe pollution, or chemical corrosion.

📍 Vertical inclination not exceeding 5 degrees.

📦

Packing & Delivery

Package Size	2800.00cm * 1600.00cm * 2600.00cm
Package Gross Weight	2200.000kg
Transport Package	Wooden Case

🏭

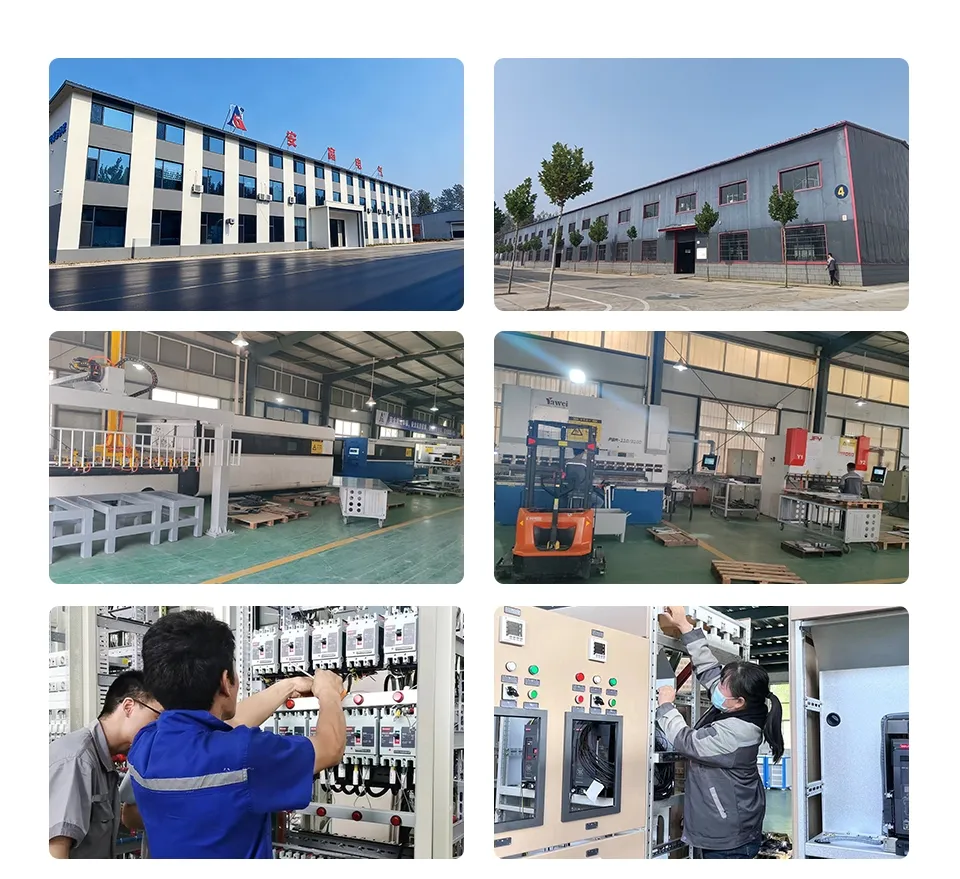

Manufacturing Capabilities

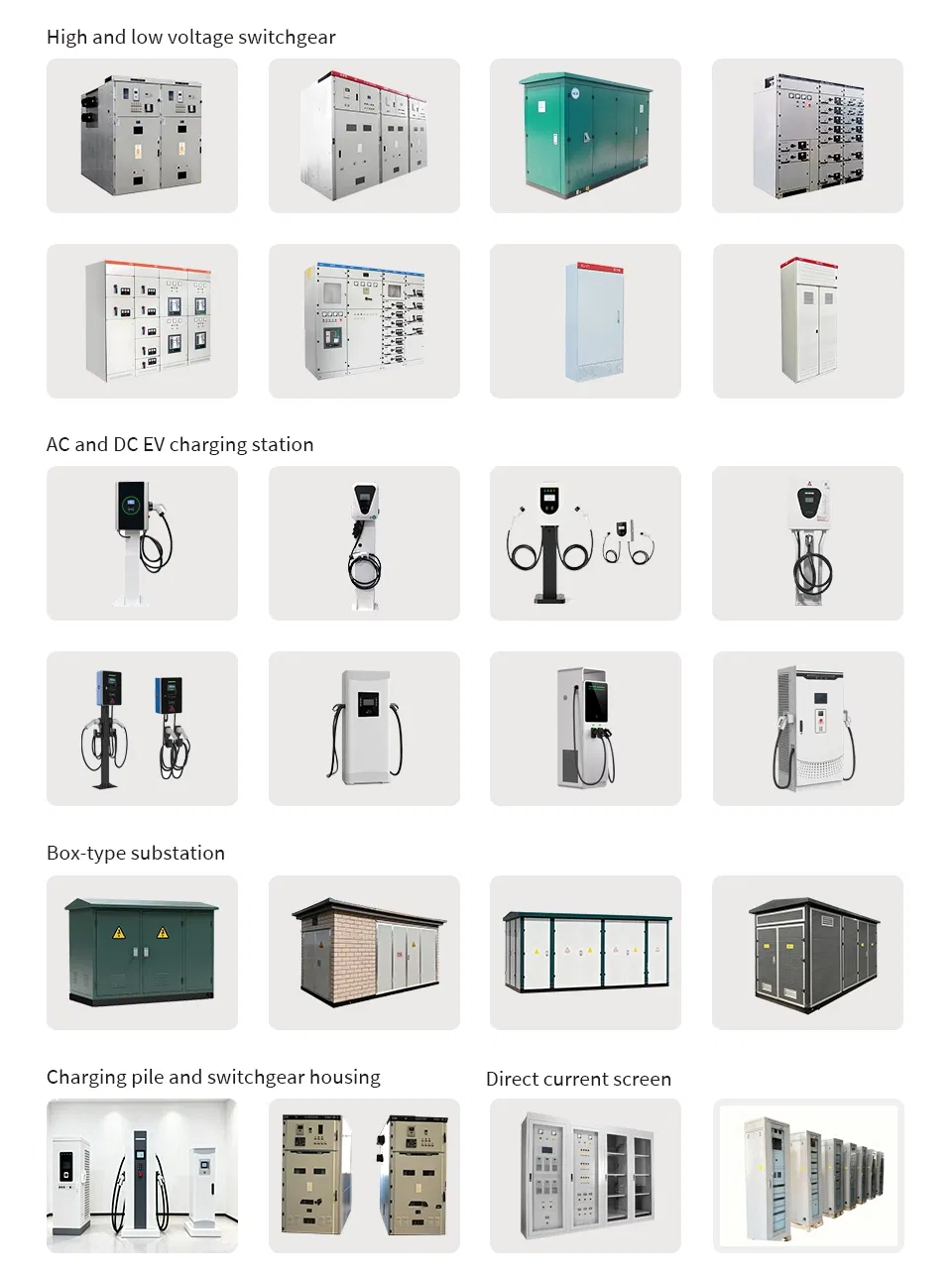

Our facility is a national high-tech enterprise dedicated to R&D and manufacturing in the power transmission and distribution field. Key offerings include high and low voltage complete switchgear, AC/DC charging piles for new energy vehicles, and sheet metal housing processing.

🛠️

After Sales Service

36 months warranty provided, including online support for installation training and maintenance.

❓

Frequently Asked Questions

Q1: Are you a trading company or manufacturer? A1: We are a professional factory with 19 years of experience in high and low voltage switchgear, substations, transformers, and electric vehicle charging stations.

Q2: What are your payment terms? A2: 30% T/T in advance, 70% before shipment. West Union and L/C are also acceptable.

Q3: How long is the delivery time? A3: Typically, production and delivery take about 15-20 days.

Q4: How do you handle quality issues? A4: Please provide detailed photos of the problem. Our technical and quality departments will analyze it and provide a satisfactory solution within 2 days.

Q5: What is the standard warranty period? A5: The standard warranty is within 12 months from the date of the bill of lading, though specific products may offer extended support.

Q6: Do you accept product customization? A6: Yes, we provide customization based on specific drawings or parameters provided by the customer.
