| Model NO. | FM200 Fire System | Object | Class A/B/C/D/E Fire |
|---|---|---|---|
| Certification | CCC, ISO9001 | Retirement Life | 8 Years |
| Agent Type | FM200 / HFC-227ea / FK-5112 | Power Source | Gas Fire Extinguisher |
| Filling Pressure | 2.5MPa / 4.2MPa / 5.6MPa | Capacity | Customized One-to-One |
| HS Code | 84241000 | Origin | China |

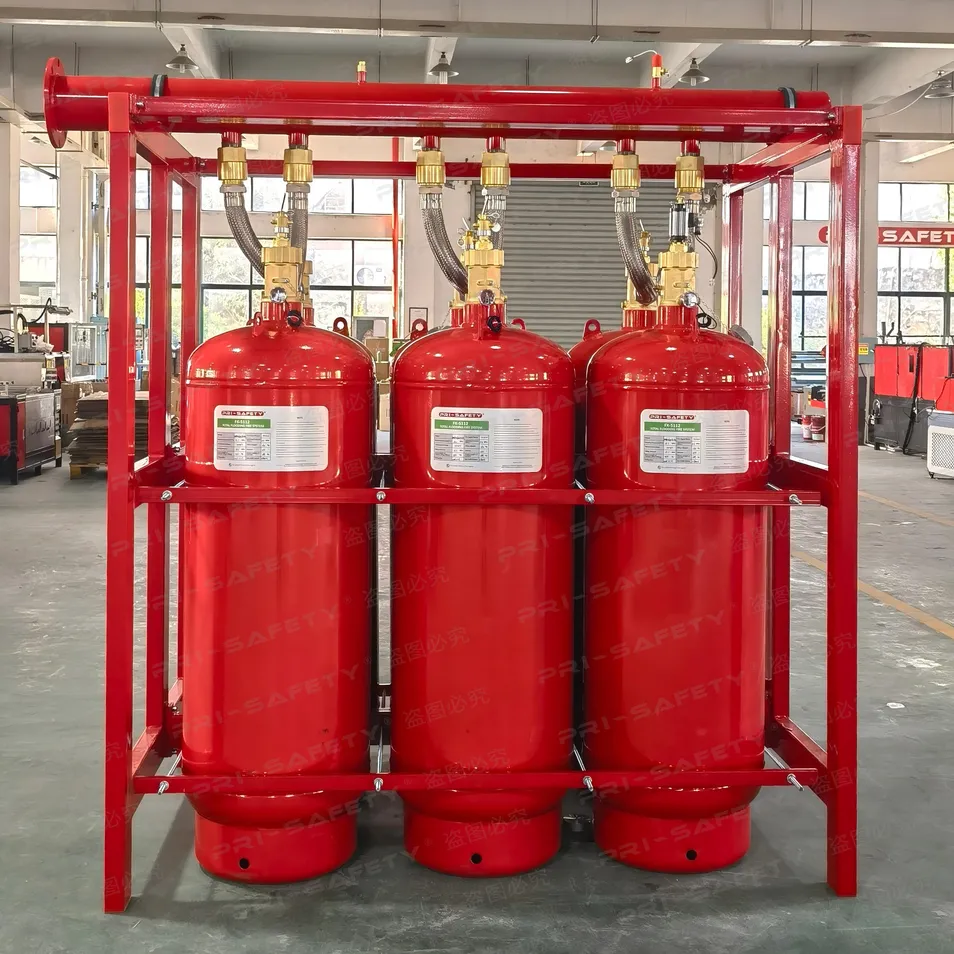

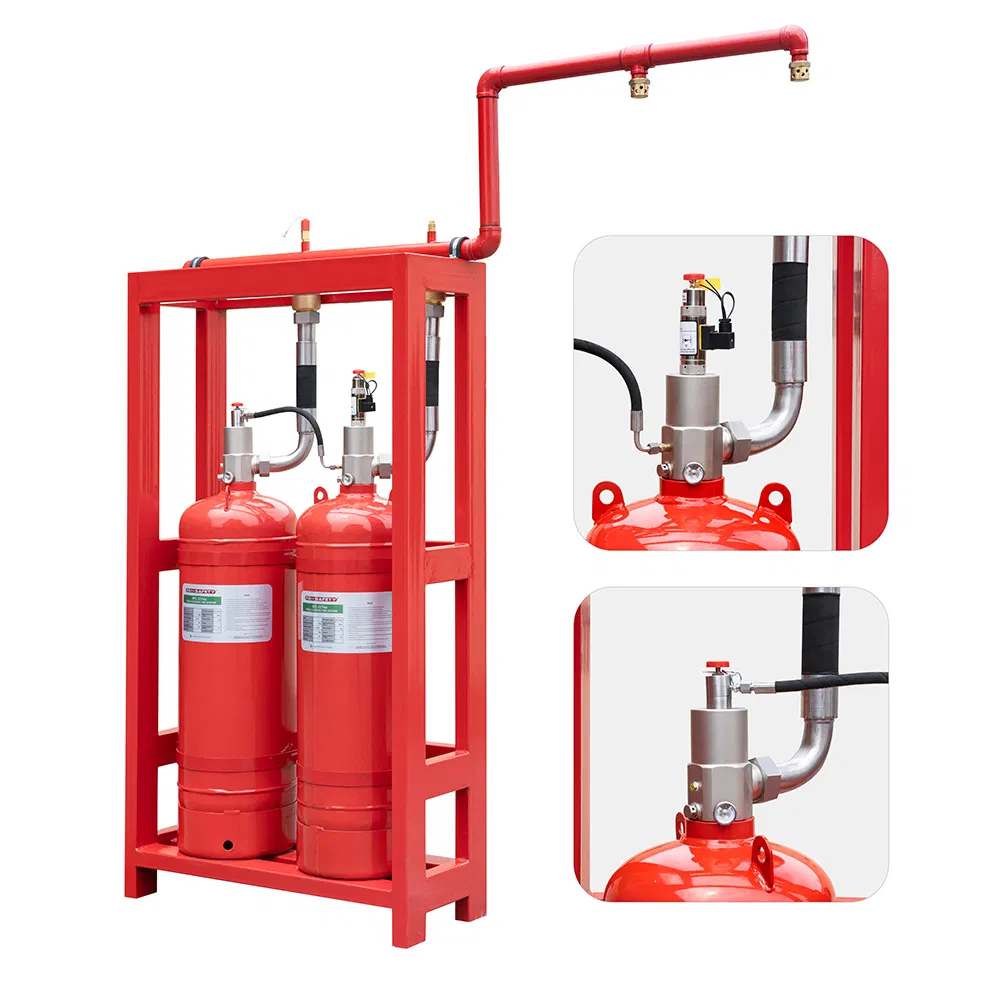

Clean Agent Automatic Fire Suppression System
The FM200 (HFC-227ea) and NOVEC 1230 / FK5112 suppression systems are advanced clean agent solutions designed in accordance with NFPA 2001 standards. These systems provide fast, reliable, and residue-free fire protection, making them ideal for environments where water-based systems could damage sensitive equipment.

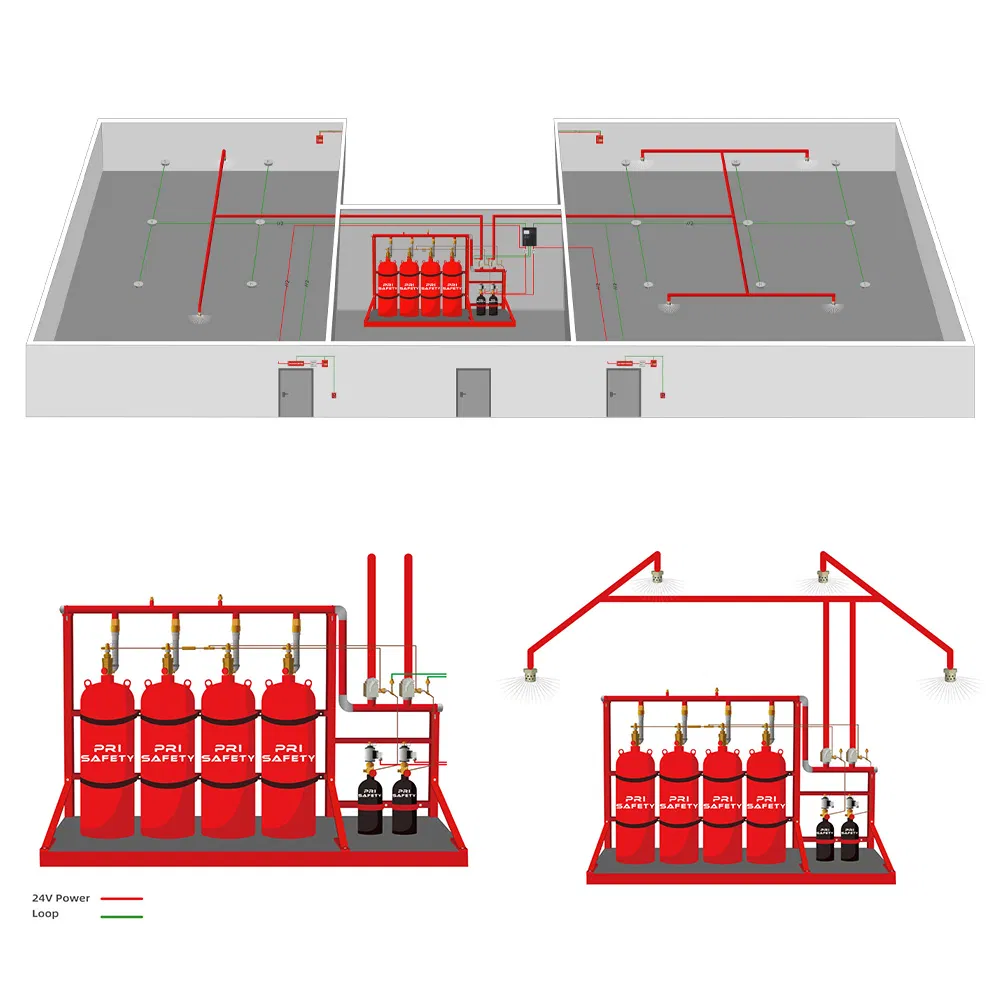

When set to "auto" mode, the system is controlled by smoke and temperature detectors. Upon detecting a fire signal, the control device logic triggers sound and light alarms, closes linkage devices, and after a brief delay, releases the extinguishing agent to suppress the fire rapidly.
| Parameter | Technical Detail (4.2Mpa) | Technical Detail (5.6Mpa) |
|---|---|---|
| Spraying Time | ≤ 10 Seconds | |
| Max Single-Zone Area | 800 m² | |
| Max Single-Zone Volume | 3600 m³ | |
| Filling Density | ≤ 950 kg/m³ | ≤ 1080 kg/m³ |
| Power Source | DC24V / 1.6A | |
| Cylinder Capacity Options | 16L to 500L (Various sizes available) | |
Our fire suppression systems are designed for high-value environments:
