A switchgear is an electrical equipment mainly used for opening, closing, controlling, and protecting electrical equipment during the generation, transmission, distribution, and energy conversion processes of power systems.

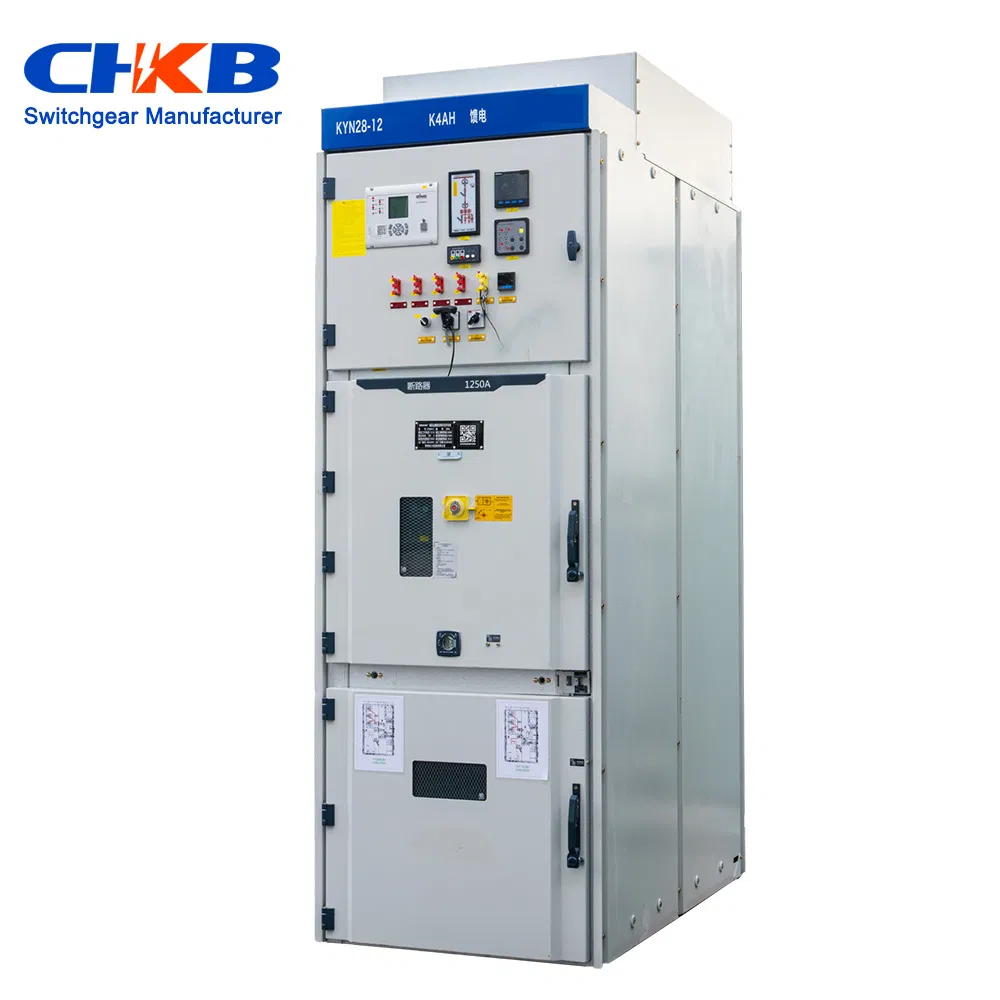

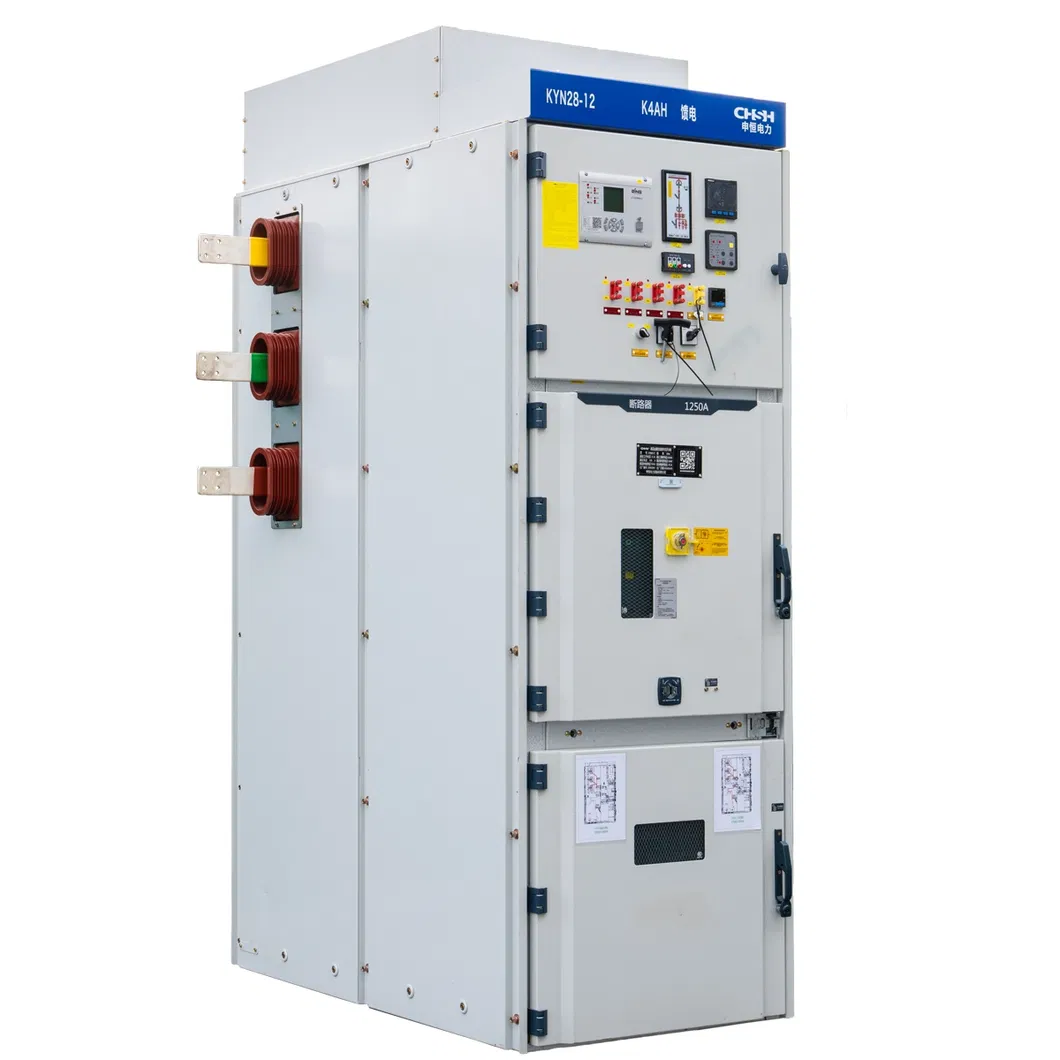

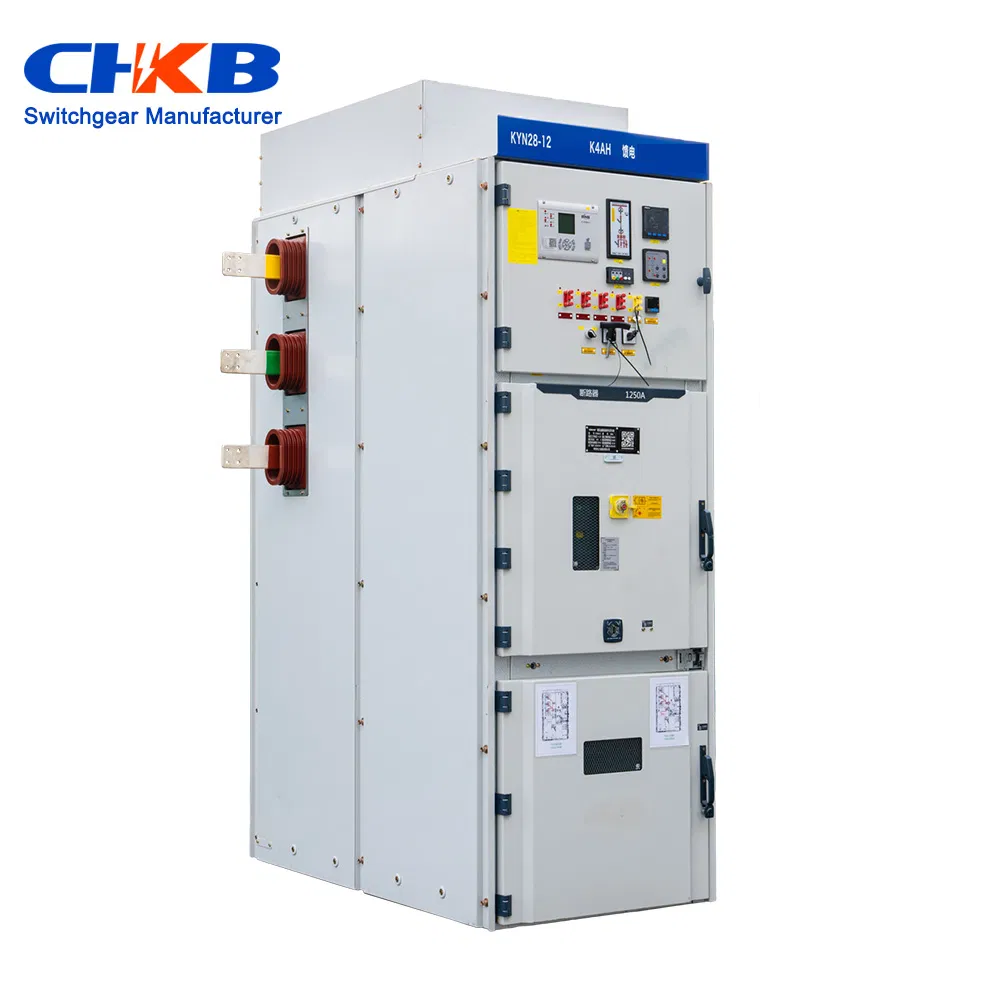

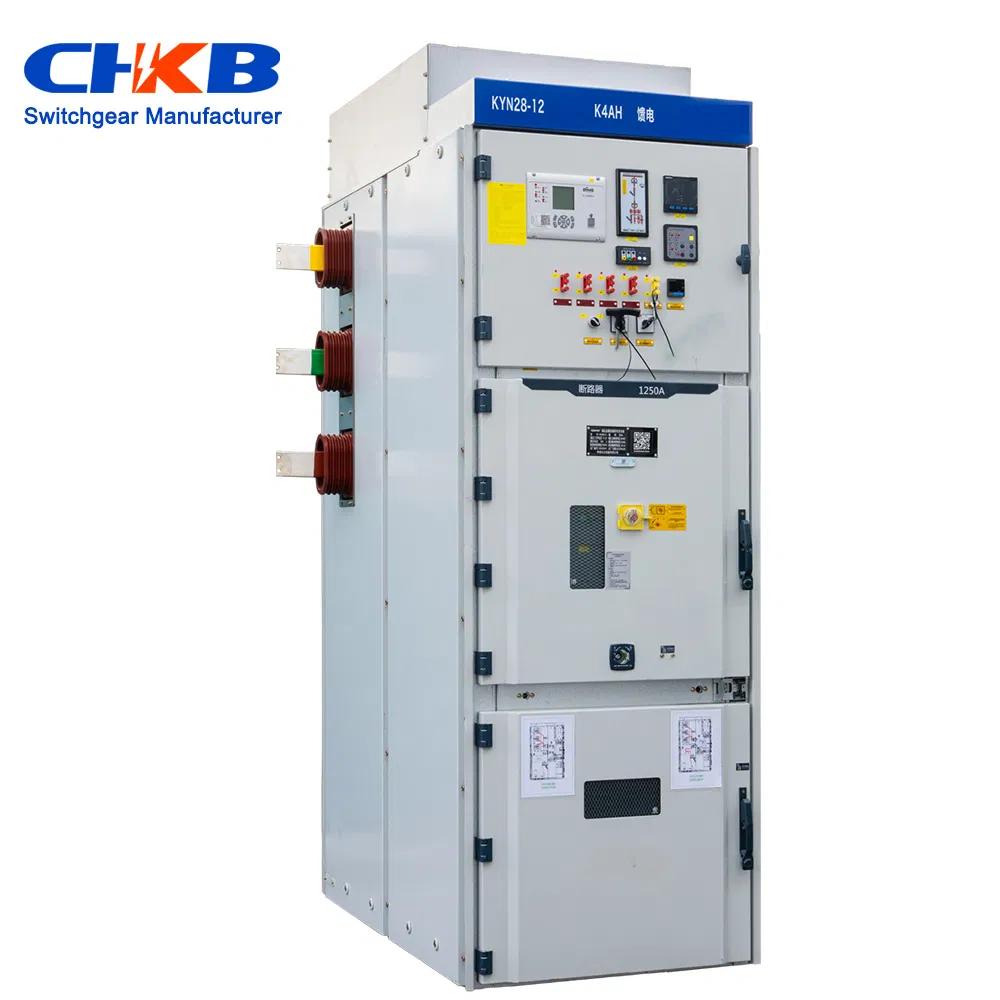

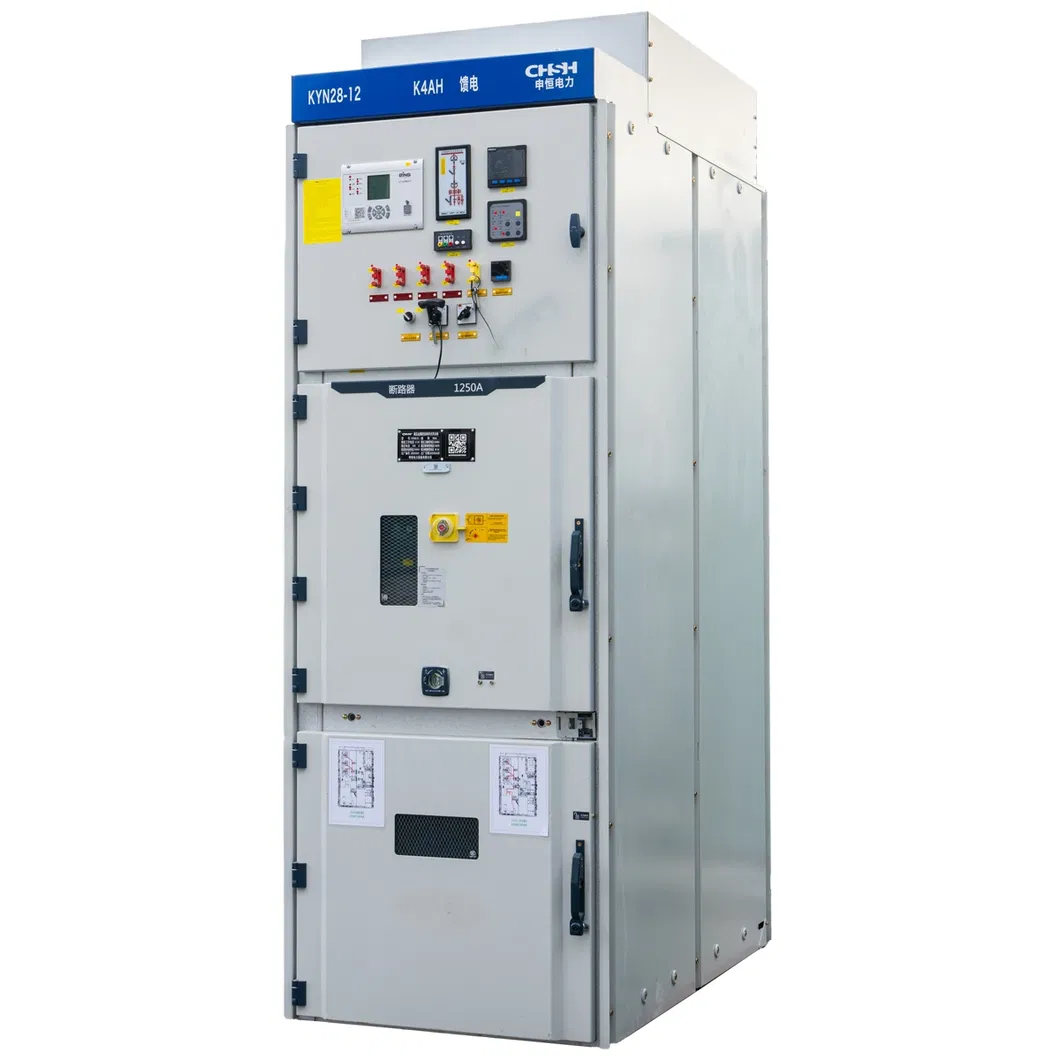

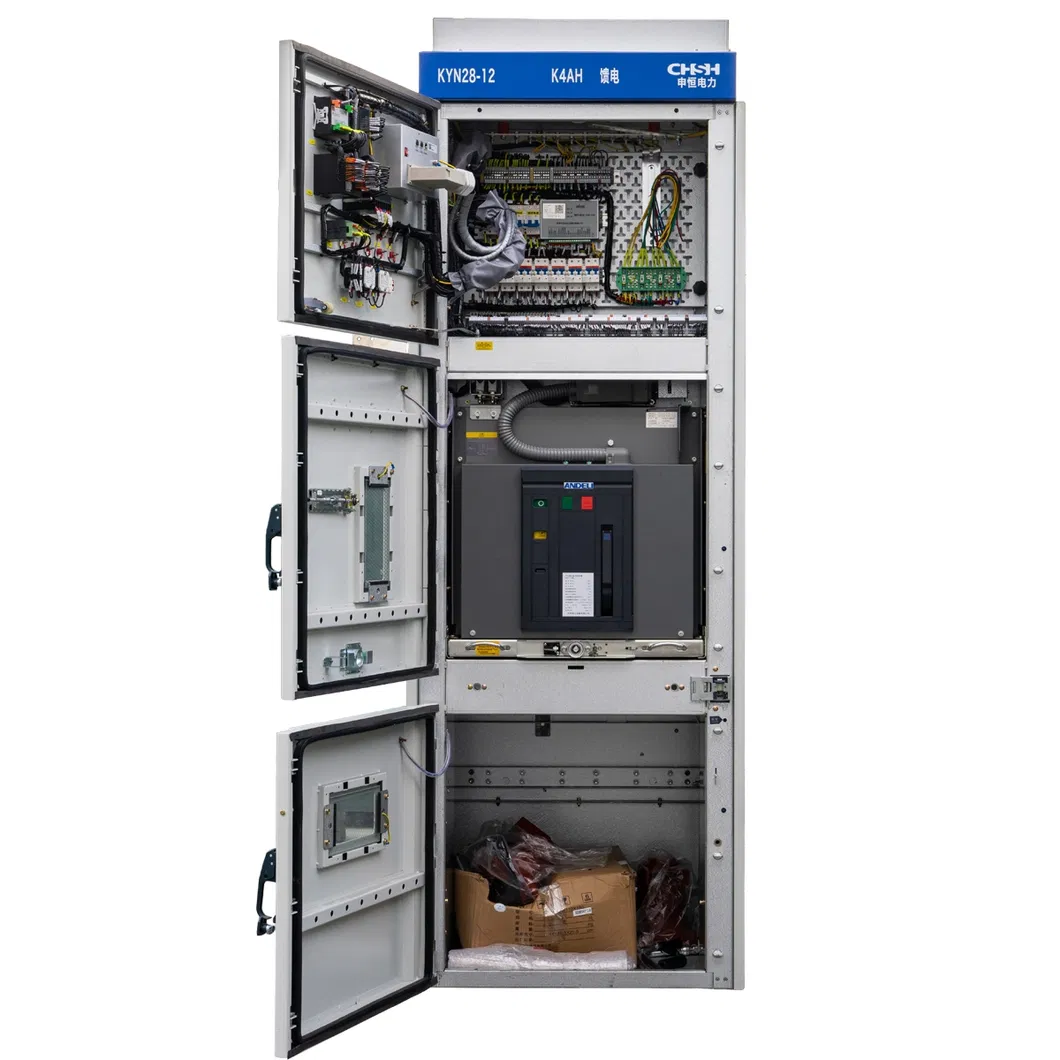

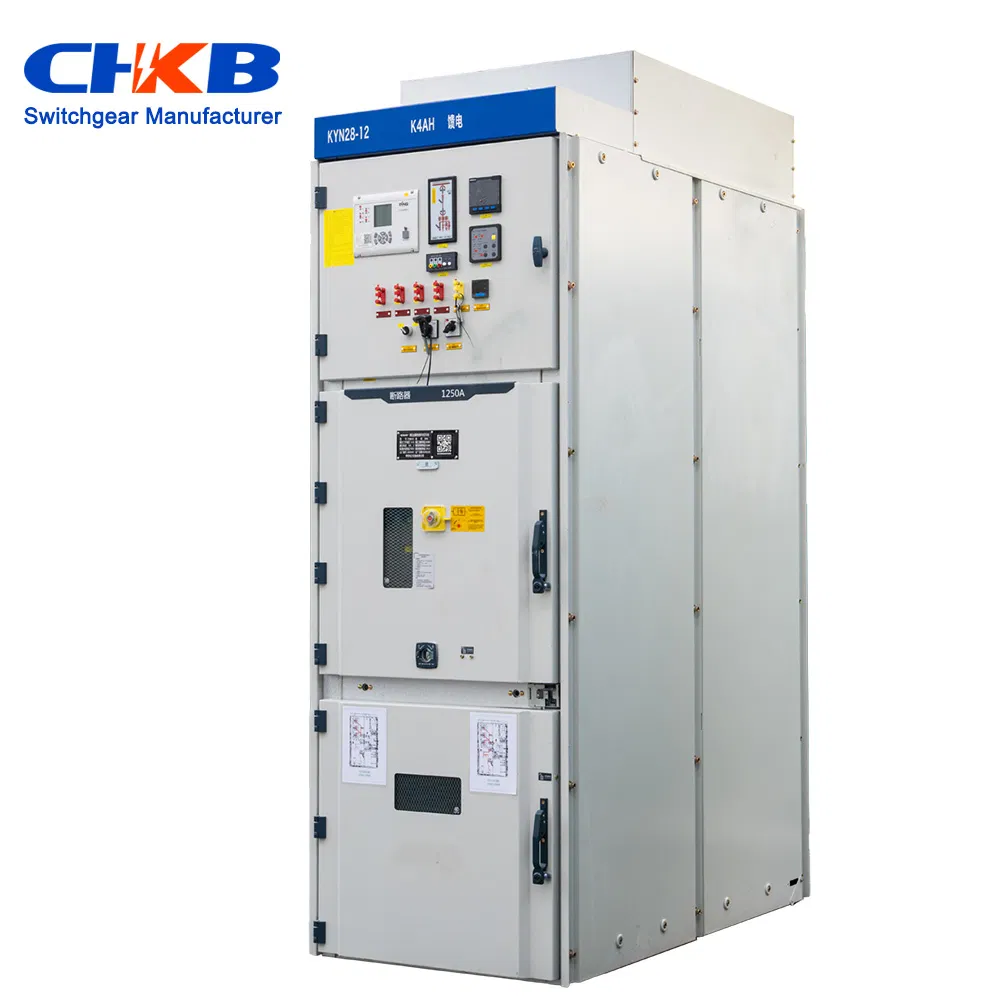

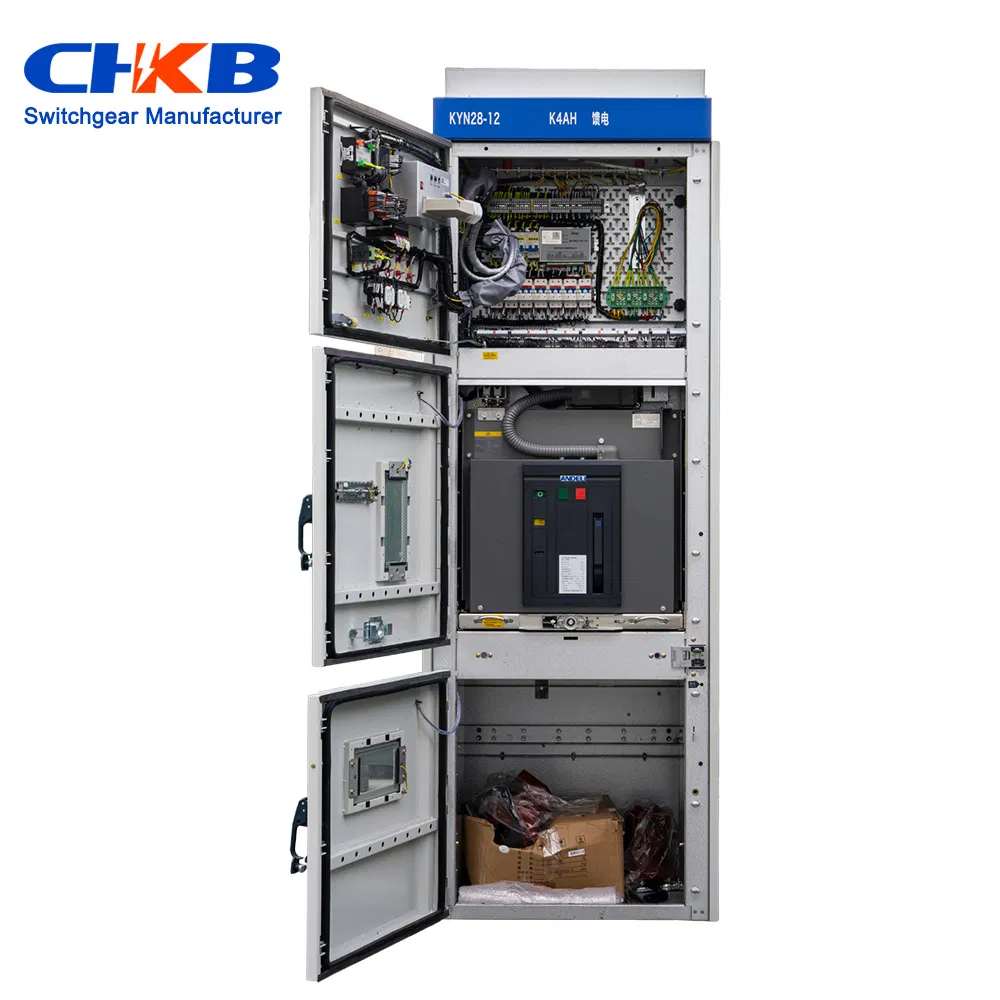

High voltage switchgear: usually includes busbar room, circuit breaker room, secondary control room (instrument room), feeder room, etc., and each room is isolated with steel plates. Like KYN28A-12 model, the upper part is the instrument room, the middle part is the circuit breaker room, and the lower part is the cable room.

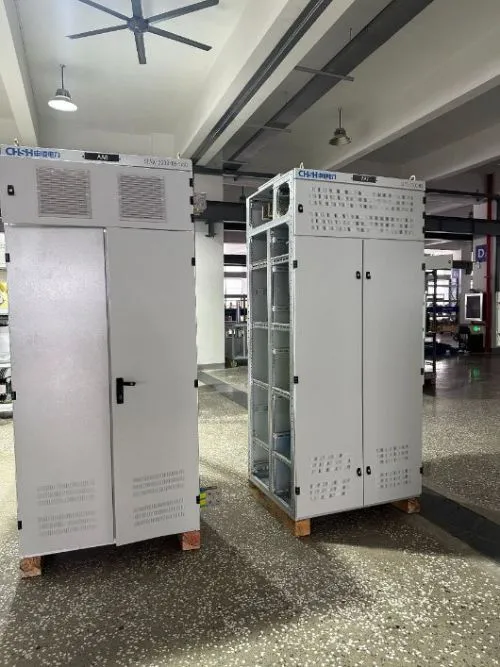

Low voltage switchgear: It is divided into fixed and drawer type according to the installation method of components. Drawer type switchgear consists of a fixed cabinet body and a movable device part.
Internal components: It mainly includes circuit breakers, isolating switches, load switches, operating mechanisms, transformers, and various protective devices.
Classification: According to the installation method of the circuit breaker, it can be divided into movable and fixed types; According to the cabinet structure, it can be divided into open, metal enclosed, and metal enclosed armored types; Divided into high-voltage switchgear (above AC1000V) and low-voltage switchgear (below AC1000V) according to voltage levels.
| System Specification | |
|---|---|
| Installeo power | 100-2000KW |
| Inverter input channels | 1 way-5way (Suggested matching AC combiner box) |
| Grid-connected output | 1way |
| Grid-connected voltage | AC: 380V - AC: 500V |
| Protective Functions | |
| Short circuit protection | Included |
| Overload protection | Included |
| Lightning protection | Nominal: 20KA, Max: 40KA, Up≤4KV |
| Isolation Protection | Knife switch / Disconnector |
| Environment & Construction | |
| Working Temperature | -25 to +60 °C |
| Box material | Cold-rolled plate spraying, stainless steel |
| Use place | Indoor type (Outdoor customizable) |
