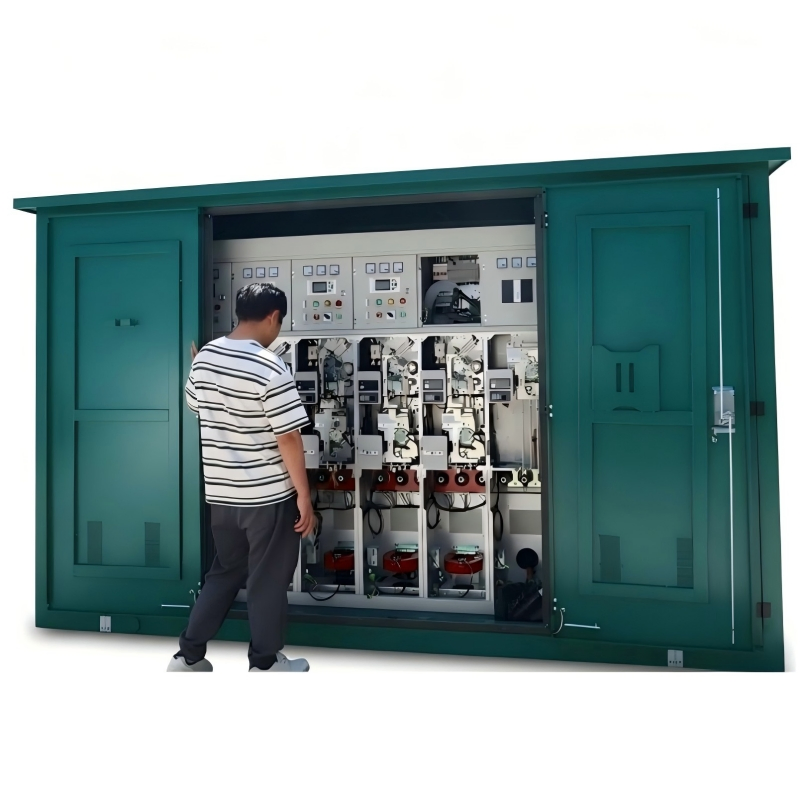

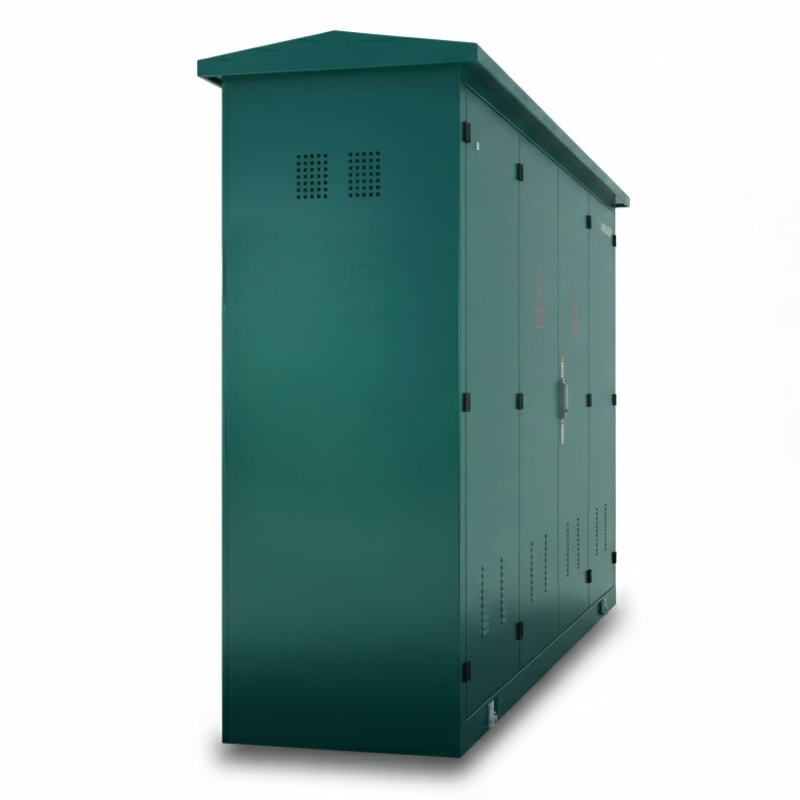

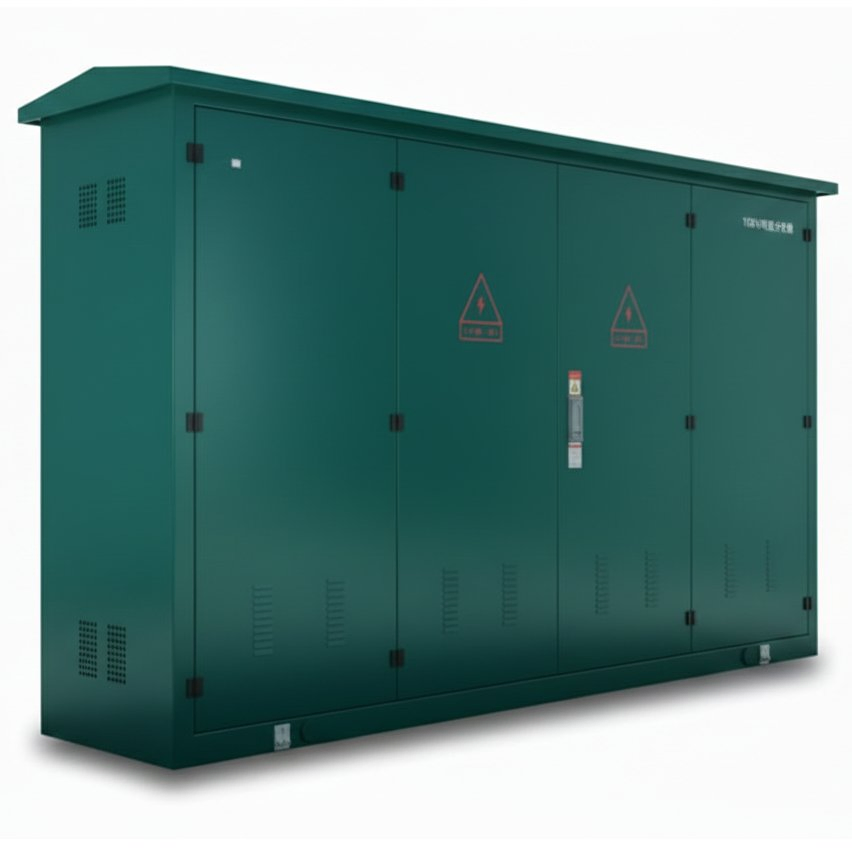

Dry Air Insulation Factory Direct Hv Live-Tank Gis Switchgear Sf6 Gas Insulated

1 / 5

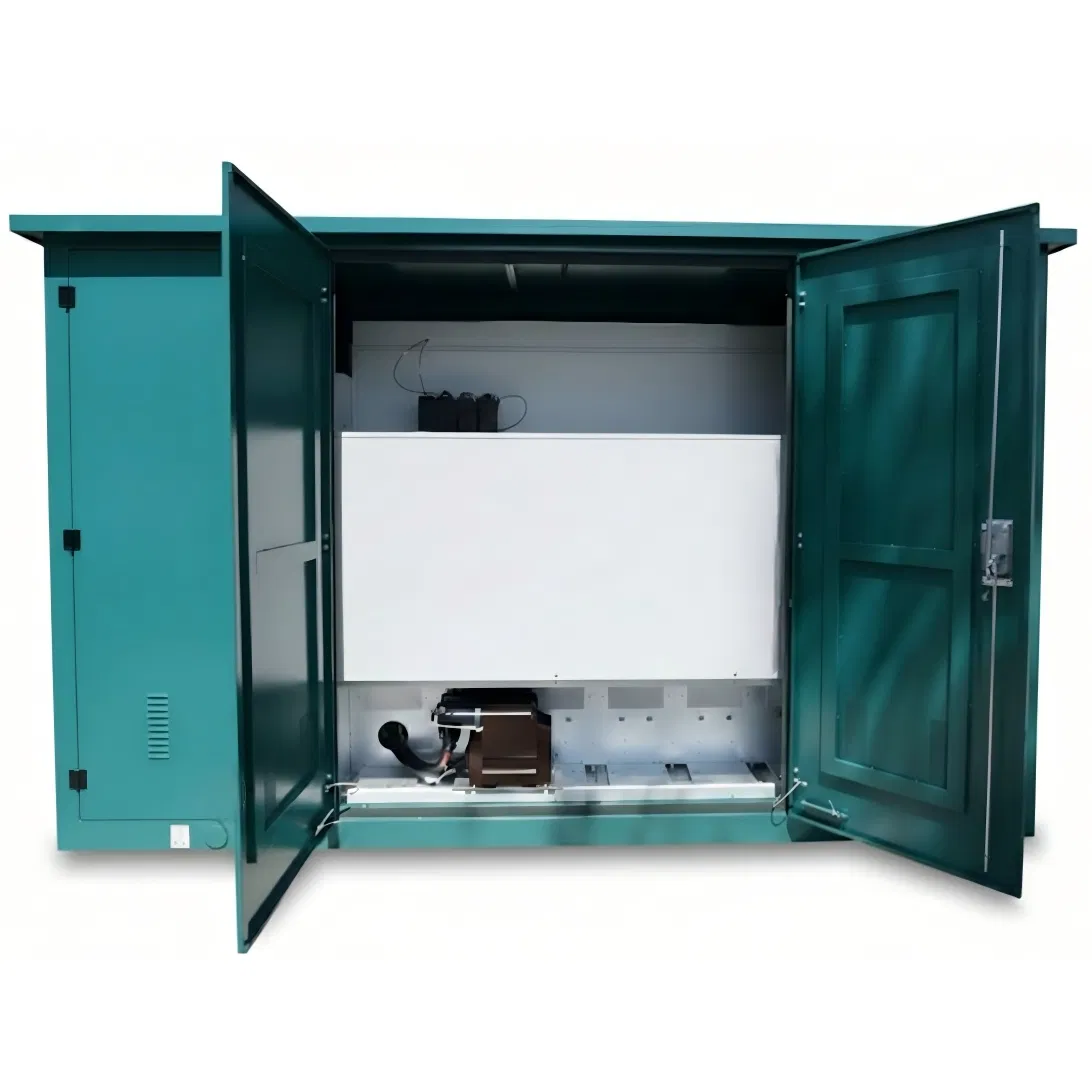

Dry Air Insulation Factory Direct Hv Live-Tank Gis Switchgear Sf6 Gas Insulated

Customization:	Available
Certification:	VDE, CCC, ISO9001, CE
Shell Material:	Steel Plate

Send Inquiry

Product Description

Basic Specifications

Voltage Level	High Voltage
Installation	Removable
Structure	Floorstanding
Current Type	AC
Rated Frequency	50Hz / 60Hz
Rated Current	630A / 1250A
Short-Circuit Breaking Current	20ka / 25ka
Short-Time Withstand Current	20ka / 25ka (4s)
Protection Class	Gas Tank IP67, Cabinet Body IP4X
Insulation Medium	SF6 Gas
Ambient Temperature	-40℃ ~ +40℃
Mechanical Life	≥ 10,000 operations

Product Description

Professional Power Distribution Solutions

We focus on the core business of customizing complete sets of power distribution cabinets. Our services include new factory supporting, old factory renovation, and special scenario adaptation. We provide precise customization, efficient delivery, and reliable quality to empower customers with safe commissioning and cost reduction.

Core Business & Services

Our comprehensive solutions cover three main areas:

New Construction Supporting

Power planning, project node coordination, and assistance in early commissioning for industrial and new energy projects.

Distribution Renovation

Old cabinet replacement and energy efficiency optimization with "minimum downtime" design.

Special Scenario Customization

High resistance to temperature, corrosion, and dust for extreme working conditions in chemical and energy industries.

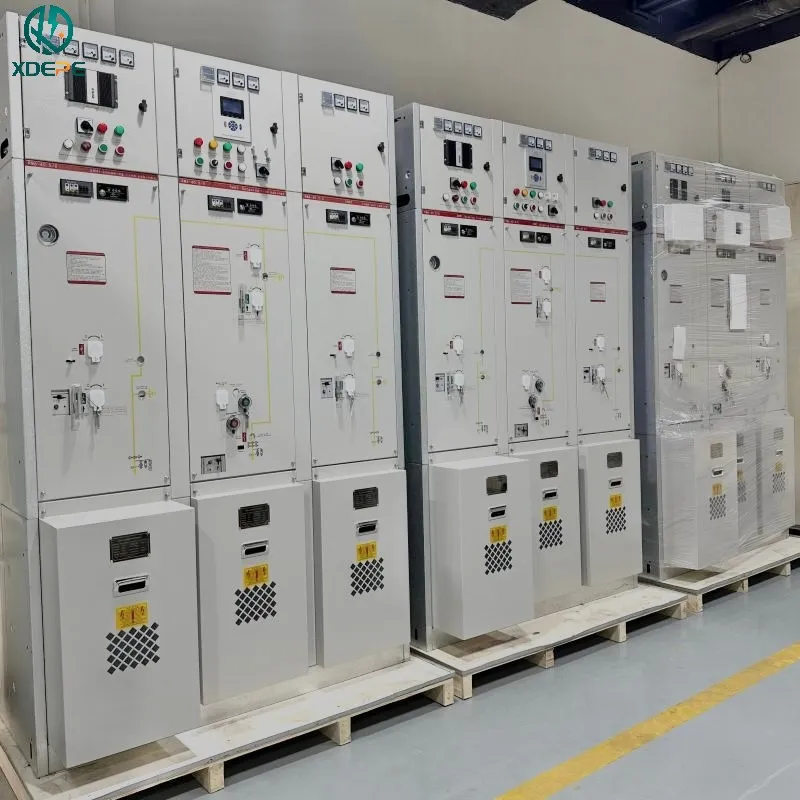

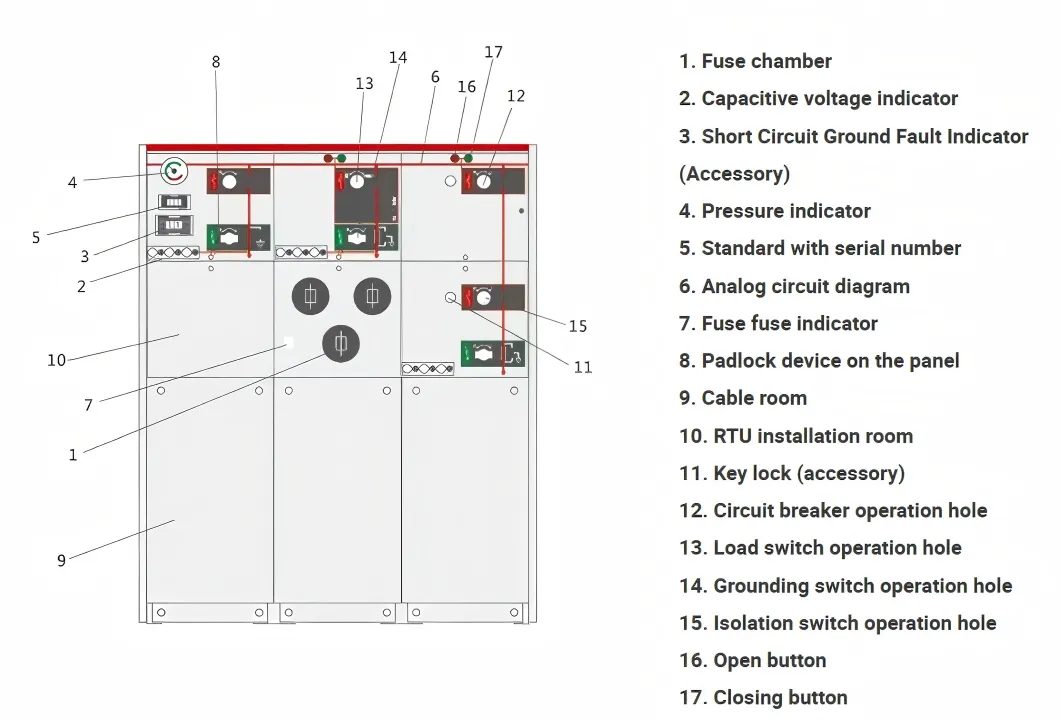

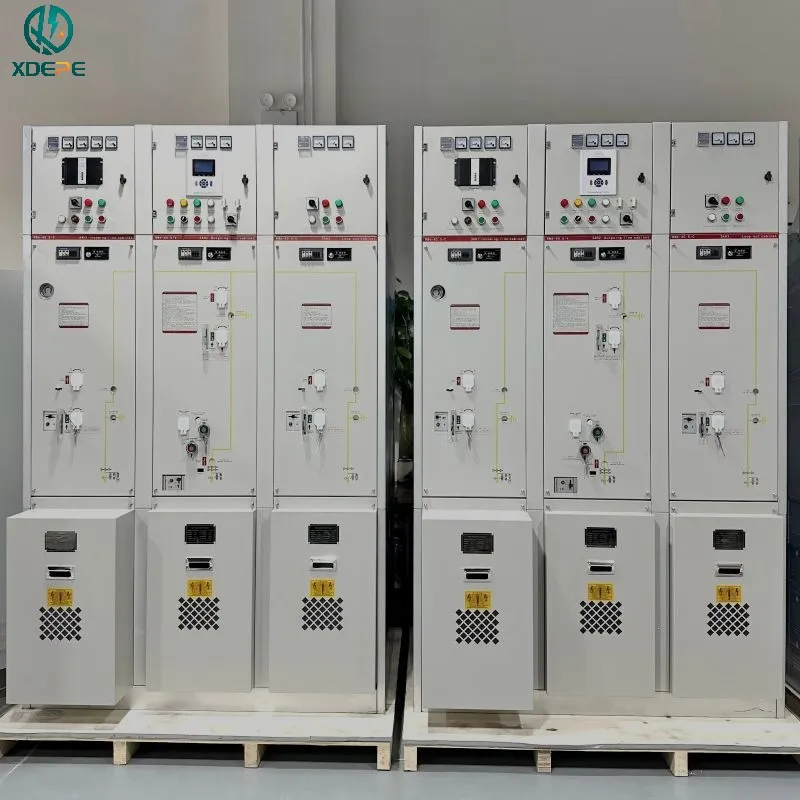

35kV RM6 Series Gas-insulated Ring Main Unit

This is a 35kV-class fully enclosed and insulated switchgear designed for medium-voltage power distribution systems. It represents a new generation of intelligent and highly reliable equipment.

Technical Features

Fully Enclosed Gas Tank

Stainless steel tank filled with SF6 gas. IP67 protection rating for high-voltage components.

Modular Design

Functional units (incoming/outgoing lines, metering) can be flexibly configured.

Environmental Adaptability

Resistant to humidity, dust, and salt spray. Ideal for coastal, mining, and subway scenarios.

KYN28-12 Medium-Voltage Switchgear (12kV)

The KYN28-12 is a widely used high-voltage distribution equipment featuring a metal-enclosed armored structure and a withdrawable trolley design for circuit breakers.

Parameter Item	Technical Specifications
Rated Voltage	3.6kV, 7.2kV, 12kV, 24kV, 40.5kV
Rated Current	630A - 5000A
Rated Frequency	50Hz / 60Hz
Short-circuit Breaking Current	25kA, 31.5kA, 40kA, 50kA
Protection Level	Shell IP4X, Compartment IP2X
Operating Temperature	-5ºC to +45ºC
Mechanical Lifespan	VCB ≥ 20,000 times

Frequently Asked Questions

1. What types of power distribution equipment can I purchase?

We provide complete sets of low voltage distribution cabinets, drawer cabinets, ATS cabinets, generator synchronization panels, and medium/high voltage switchgear (12kV to 40.5kV).

2. How do I place a custom order?

Please provide detailed technical specifications, Single Line Diagrams (SLD), or related engineering drawings. Our technical team will review and provide a tailored quotation.

3. What is the typical lead time for production?

Generally, it takes about 15 days for samples/prototypes and 25-30 days for mass production, depending on the complexity and quantity of the order.

4. How is the pricing for distribution cabinets calculated?

Pricing is determined comprehensively based on specifications, internal component configuration, quantity, and specific project requirements.

5. What are your standard payment terms?

We accept various flexible methods, typically a 30% deposit via T/T, with the remaining 70% balance due after production is completed. We also support Irrevocable L/C at sight.

6. Can we visit the manufacturing facility?

Yes, we welcome customers to visit our factory. We can provide invitation letters for visa applications and arrange pickup from nearby transit stations.
