Product Description

Product Overview

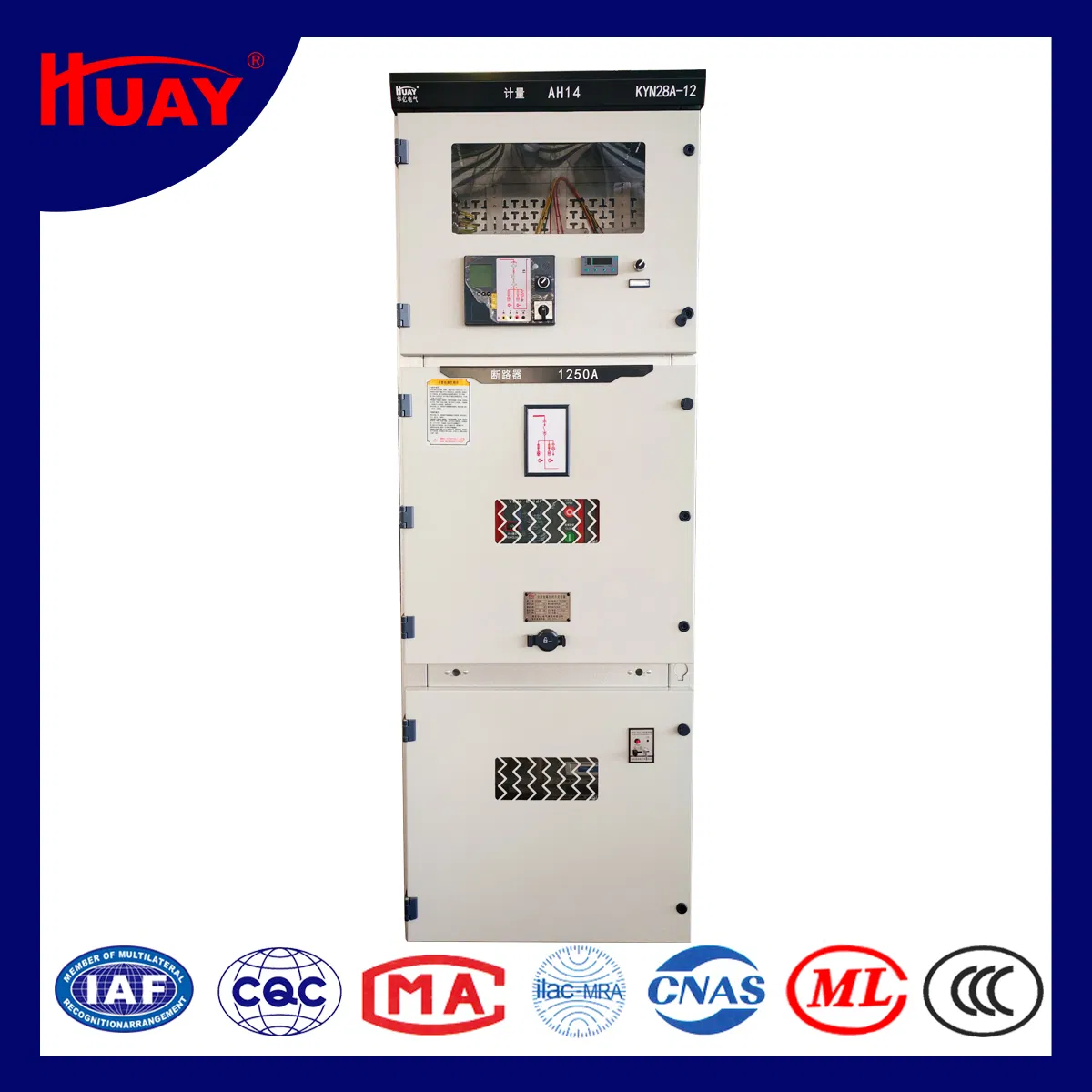

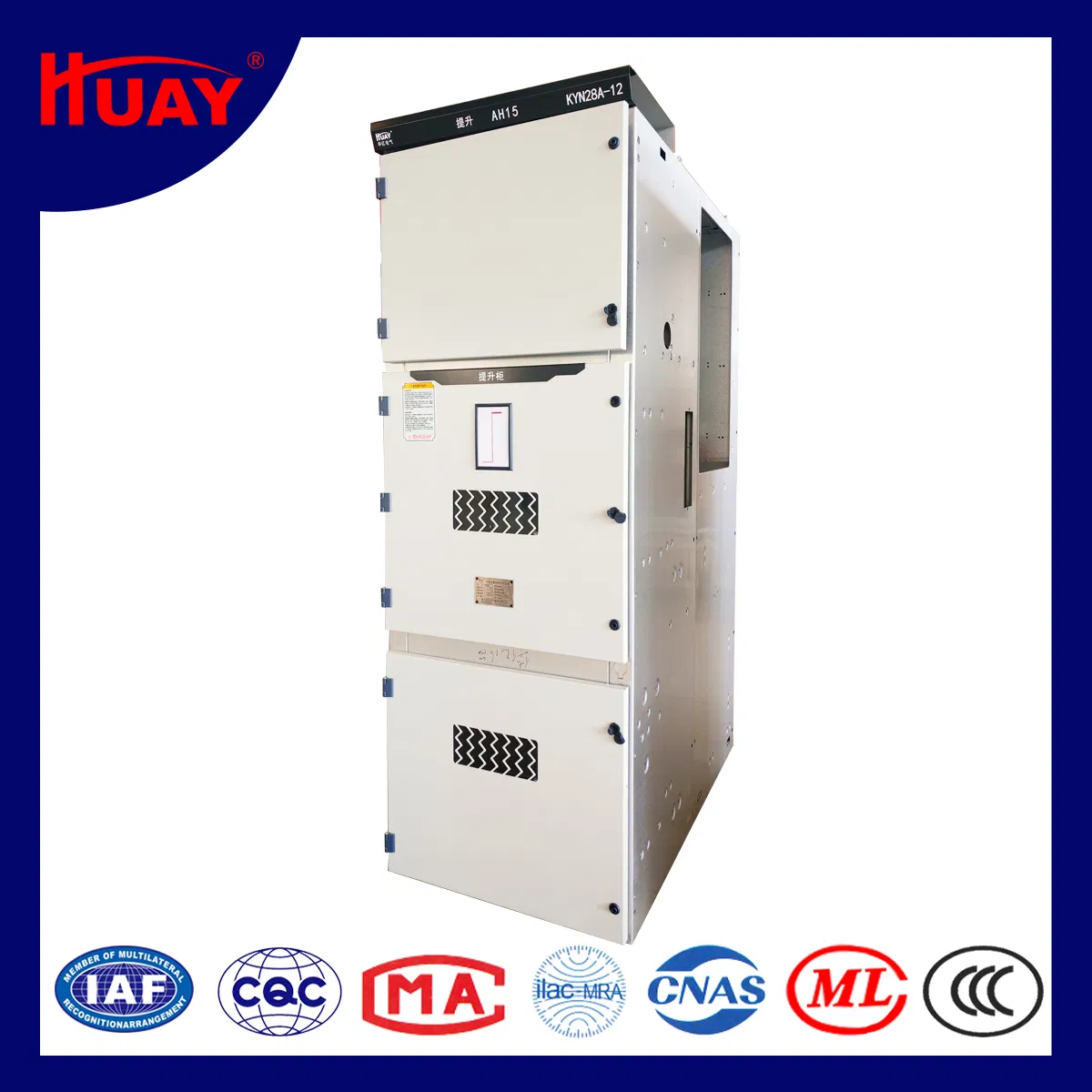

The KYN28A-12(Z)(GZS1-12) armored withdrawable AC metal-enclosed switchgear is suitable for three-phase AC power systems. It is applicable to systems with rated voltage of 12KV and rated frequency of 50Hz.

Compliance Standards:

  • GB3906: 3~35 kV AC Metal-Enclosed Switchgear
  • GB/T1102: Common Technical Requirements for High-Voltage Switchgear and Controlgear
  • IEC60298: AC Metal-Enclosed Switchgear and Controlgear (1 kV ~ 52 kV)
  • DL/T404: Technical Specifications for Indoor AC High-Voltage Switchgear Orders

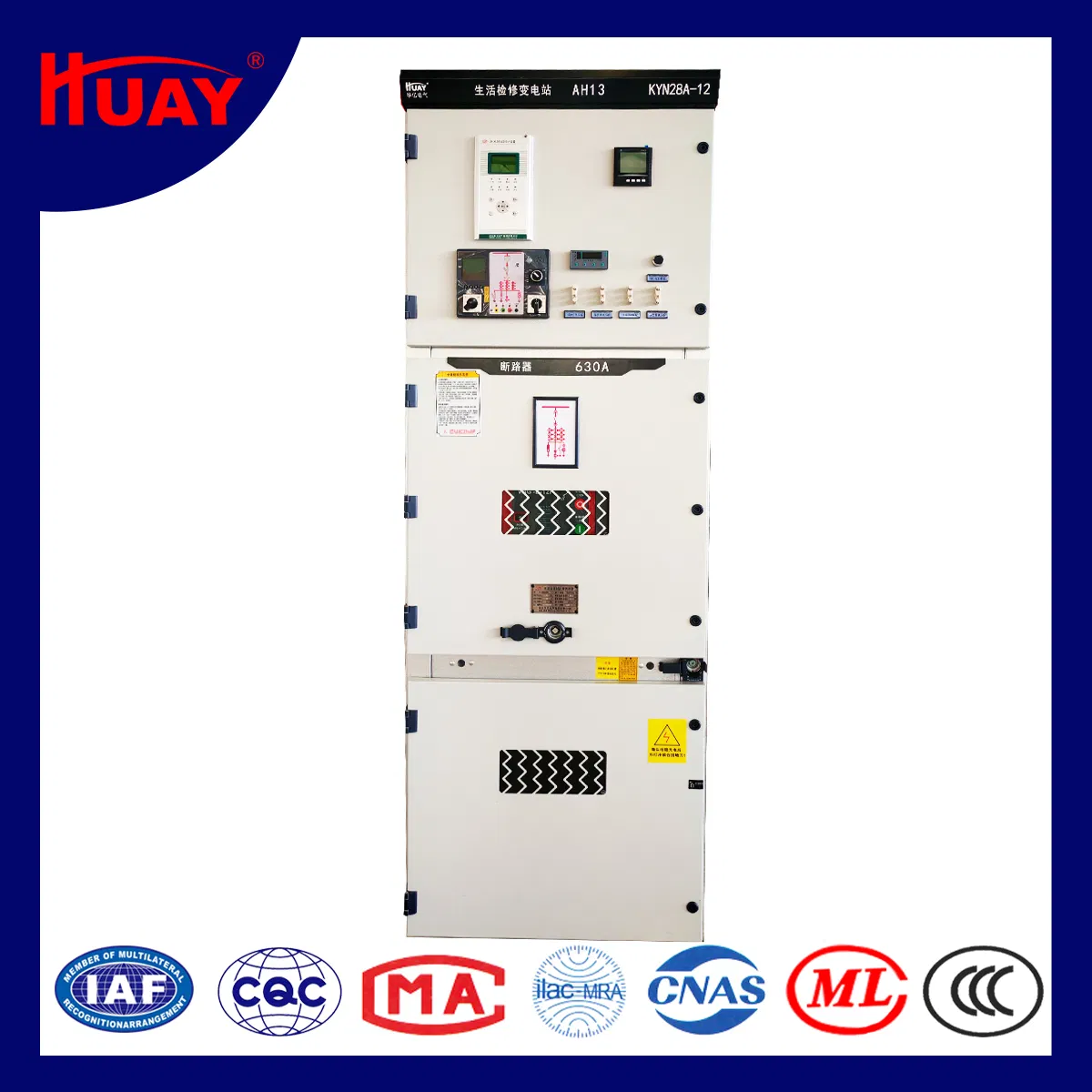

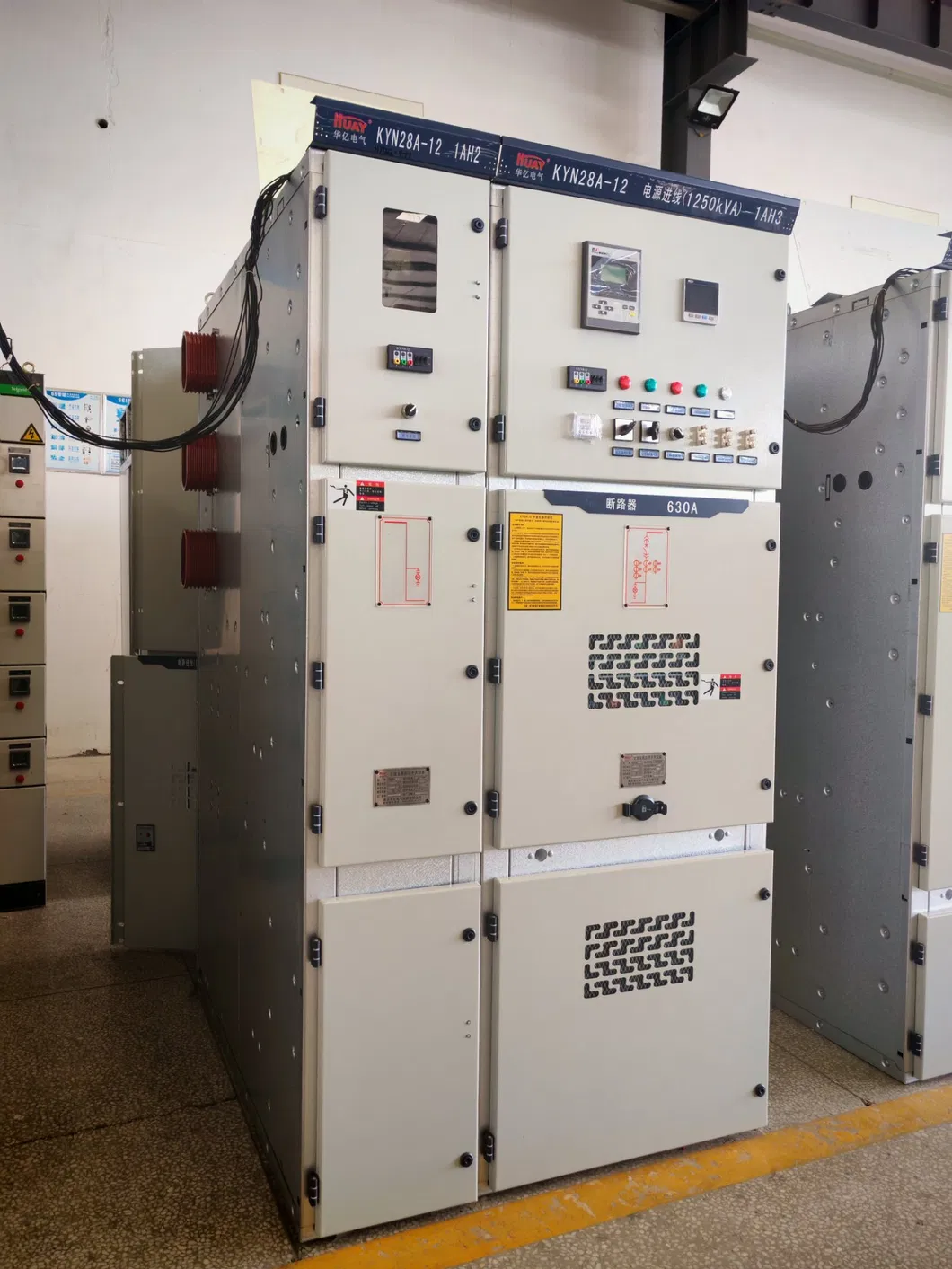

Metal-Clad Withdrawable Switchgear

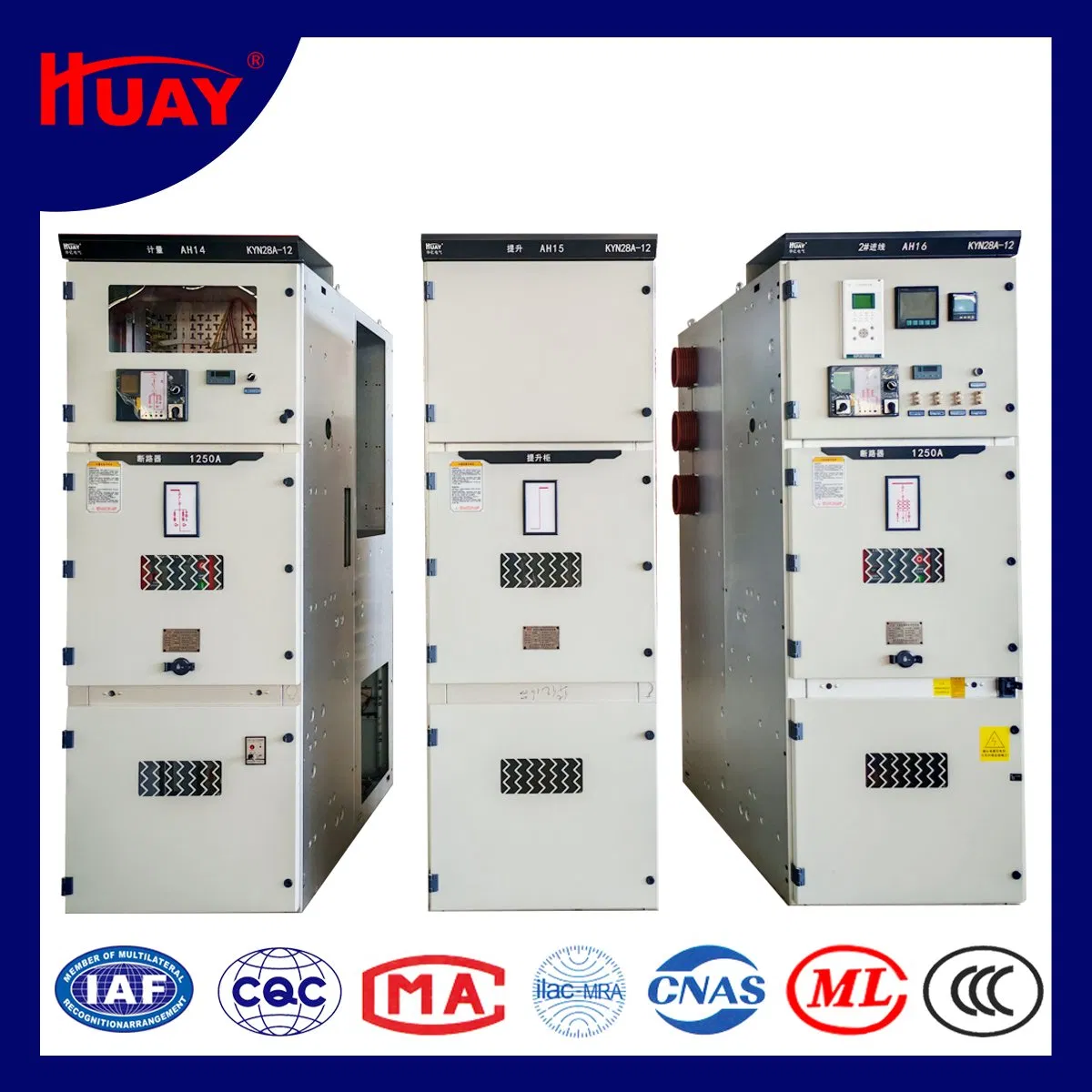

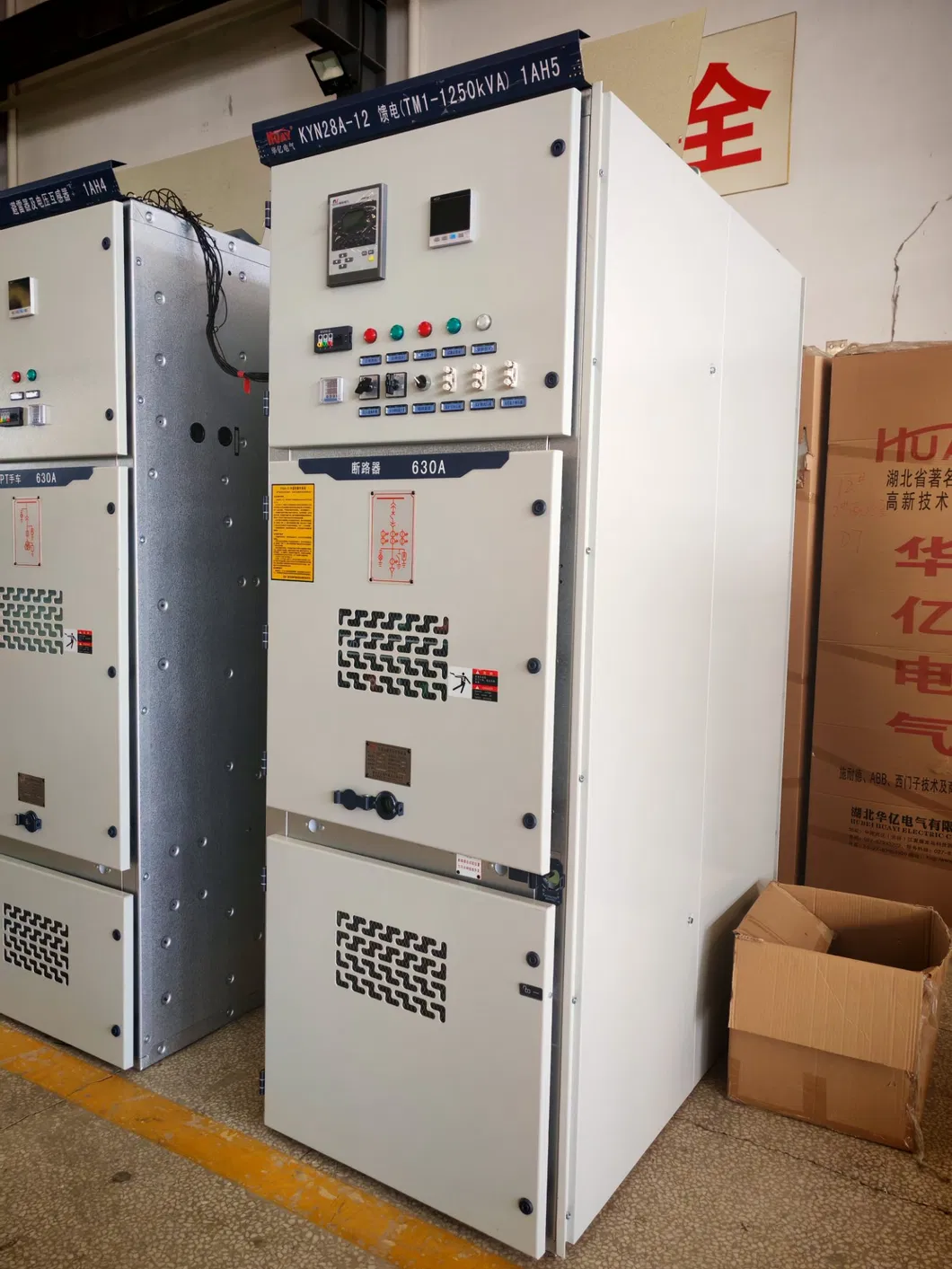

Metal-Clad Withdrawable Switchgear

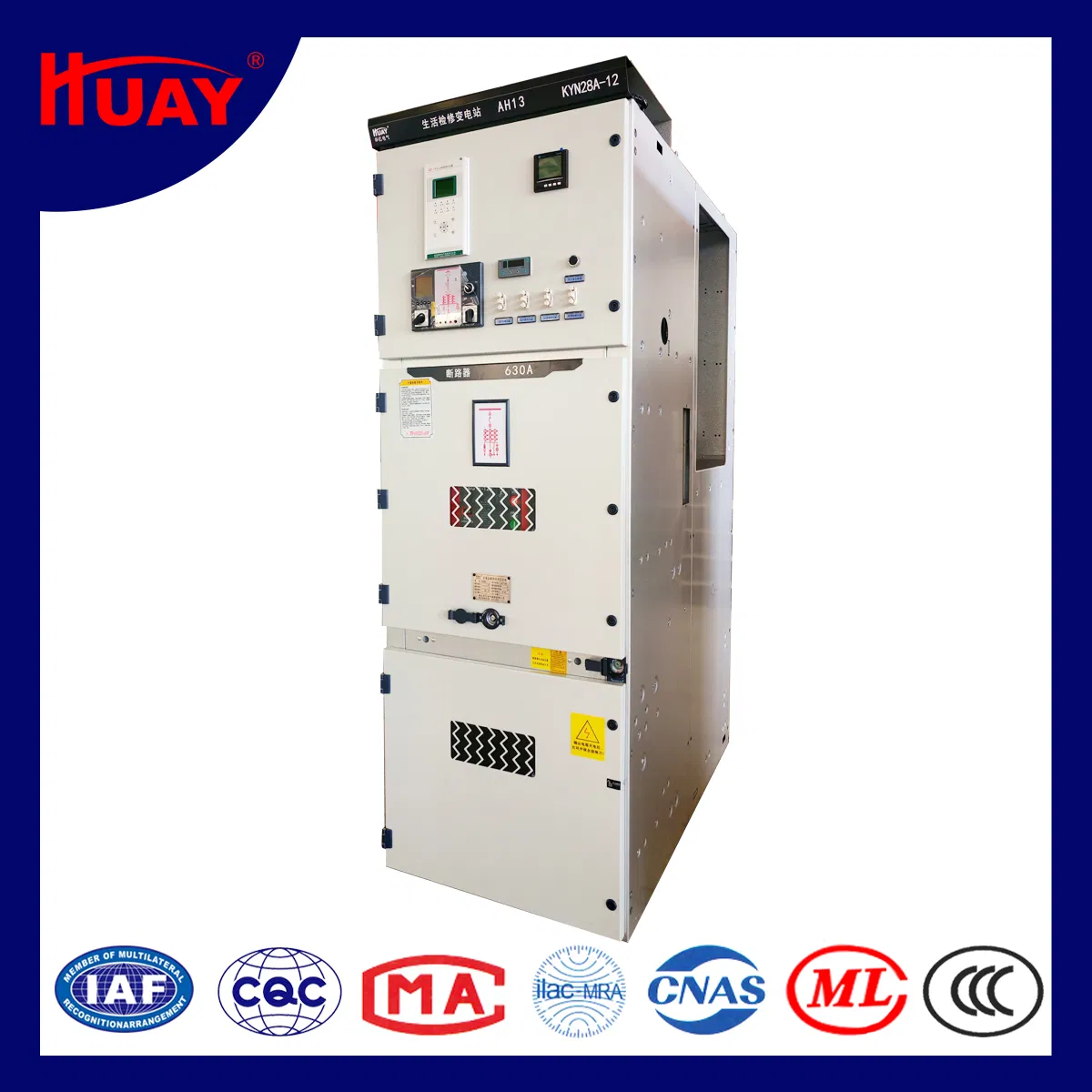

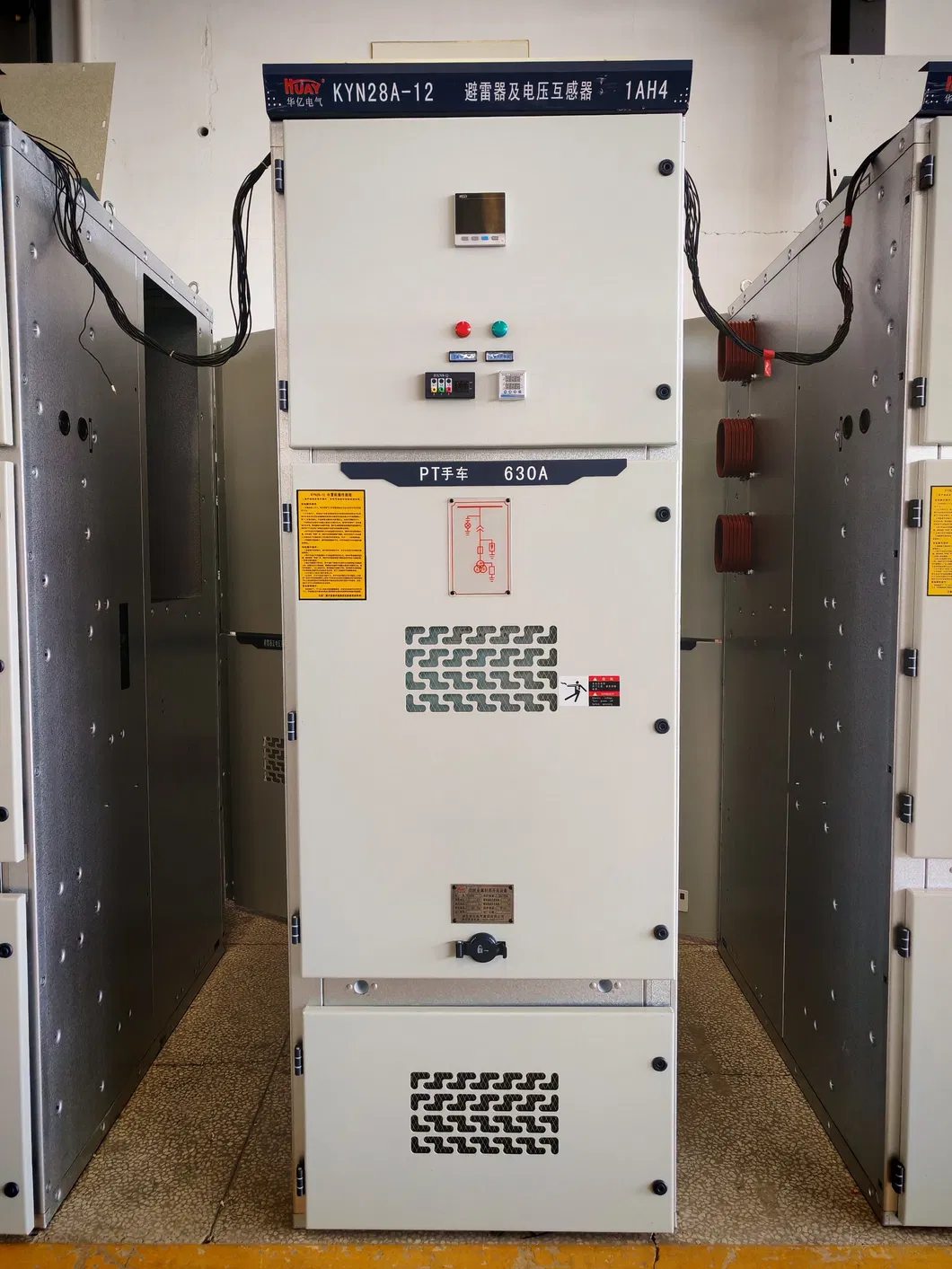

Metal-Clad Withdrawable Switchgear

Operating Environment

Ambient temperature: Max +40 °C, Min −15 °C
Ambient humidity: Daily avg ≤ 95%, Monthly avg ≤ 90%
Altitude: Not exceeding 1000 m
Earthquake resistance: Seismic intensity ≤ 8 degrees
Water vapor pressure: Daily avg ≤ 2.2 kPa, Monthly avg ≤ 1.8 kPa
Air Quality: Free from corrosive/flammable gases or significant pollutants

Note: When relative humidity exceeds 70%, the electric heater shall be switched on.

Structural Features

  • Durable Enclosure: Assembled from aluminum-zinc coated plates; high precision and corrosion resistance.
  • Circuit Breaker Compatibility: Equipped with VS1 (ZN63) or imported VD4 series vacuum circuit breakers.
  • Withdrawable Unit: Handcart features working/test positions with positioning and indication devices.
  • Interchangeability: Handcarts with the same function are fully interchangeable.
  • Safety Interlock: Effective "Five-Prevention" interlock system to prevent misoperation.
  • Protection Degree: Enclosure reaches IP4X; protection between compartments is IP2X.
  • Human Safety: Each high-voltage compartment is equipped with a pressure relief channel.
  • Maintenance: Reliable wall-mounted installation with front maintenance to save floor space.

Technical Parameters

Item Unit Value
Rated voltage (Max operating voltage)kV3.6 / 7.2 / 12
Rated frequencyHz50
Rated current of circuit breakerA630 - 3150
Rated current of switchgearA630 - 3150
Rated short-time withstand current (4s)kA16 / 20 / 25 / 31.5 / 40 / 50
Rated peak withstand currentkA40 / 50 / 63 / 80 / 100 / 125
Rated Insulation Level (Power Frequency)kV24 / 32 / 42
Degree of Protection-IP4X (Enclosure) / IP2X (Compartments)
