Cnkeeya Xgn15-12kv Indoor Power Distribution Ring Main Unit Medium Voltage Switchgear

1 / 5

Cnkeeya Xgn15-12kv Indoor Power Distribution Ring Main Unit Medium Voltage Switchgear

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

XGN15-12/24

Voltage Level

Medium Voltage

Installation

Fixed

Structure

Cabinet

Current

Package

Wooden Case

Specification

325*751*1345mm

Origin

China

HS Code

8535210000

Capacity

10000 Units

📦

Packaging & Delivery

Package Size

80.00cm * 155.00cm * 230.00cm

Gross Weight

1000.000kg

✓

Product Description

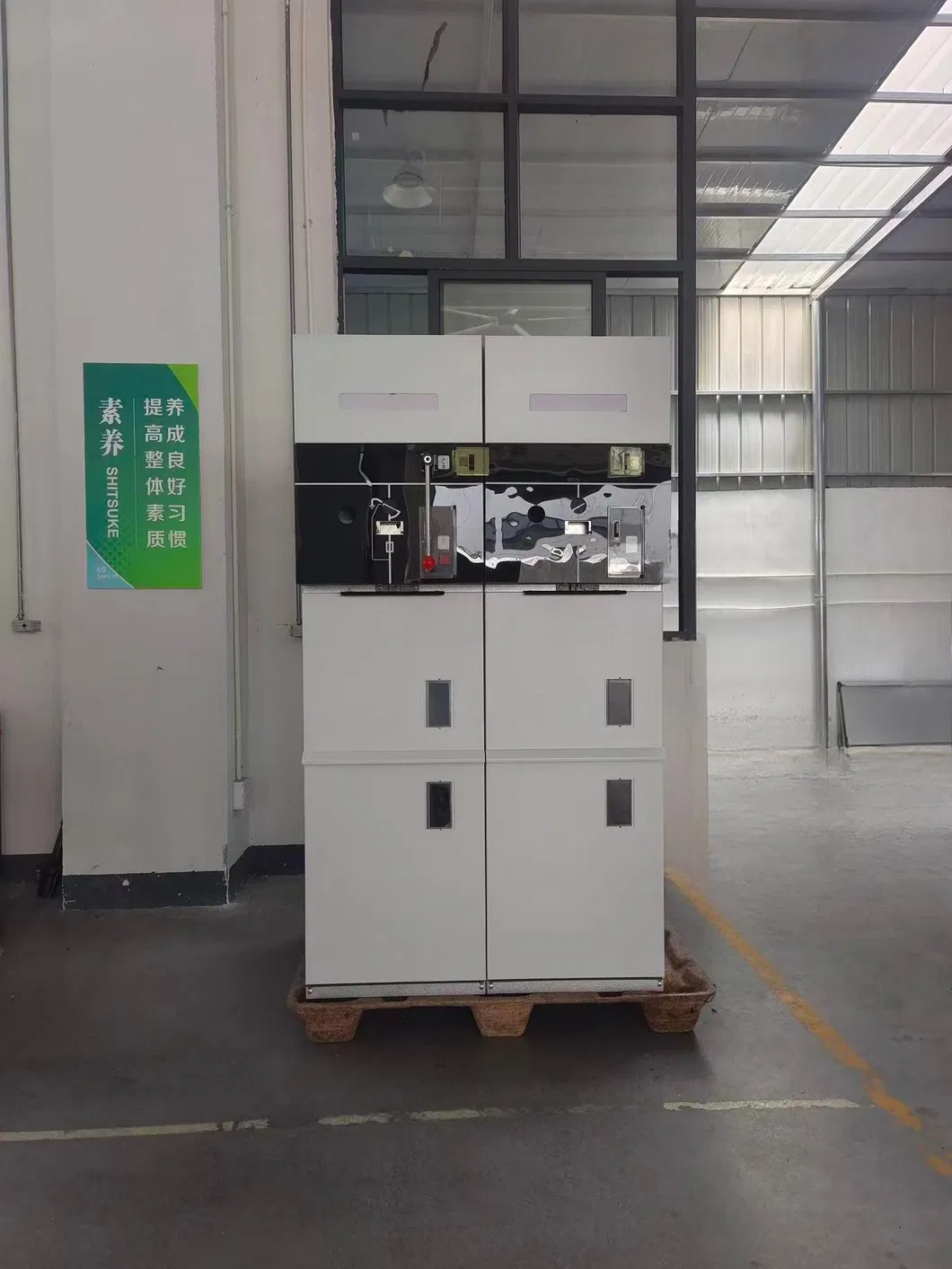

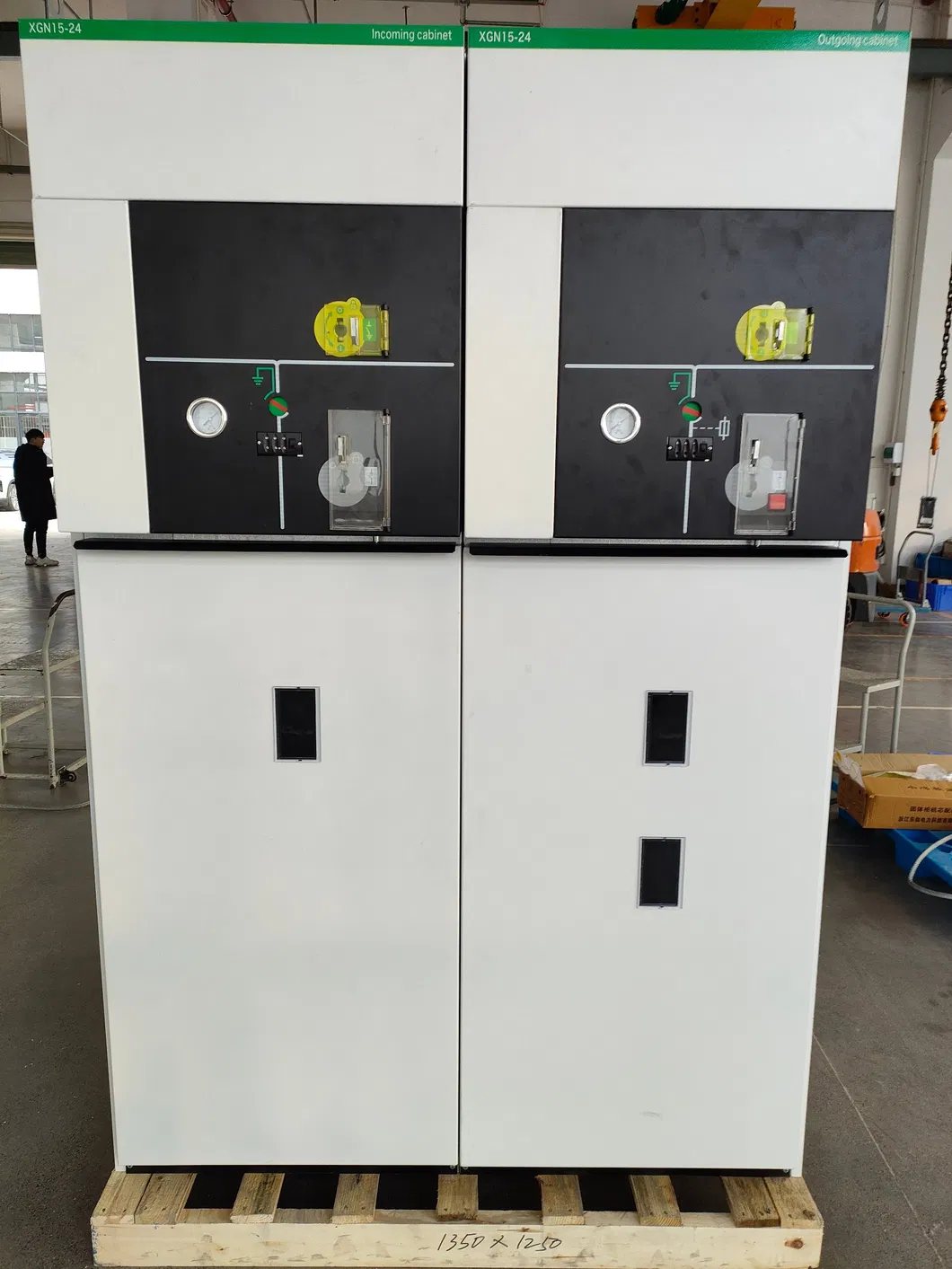

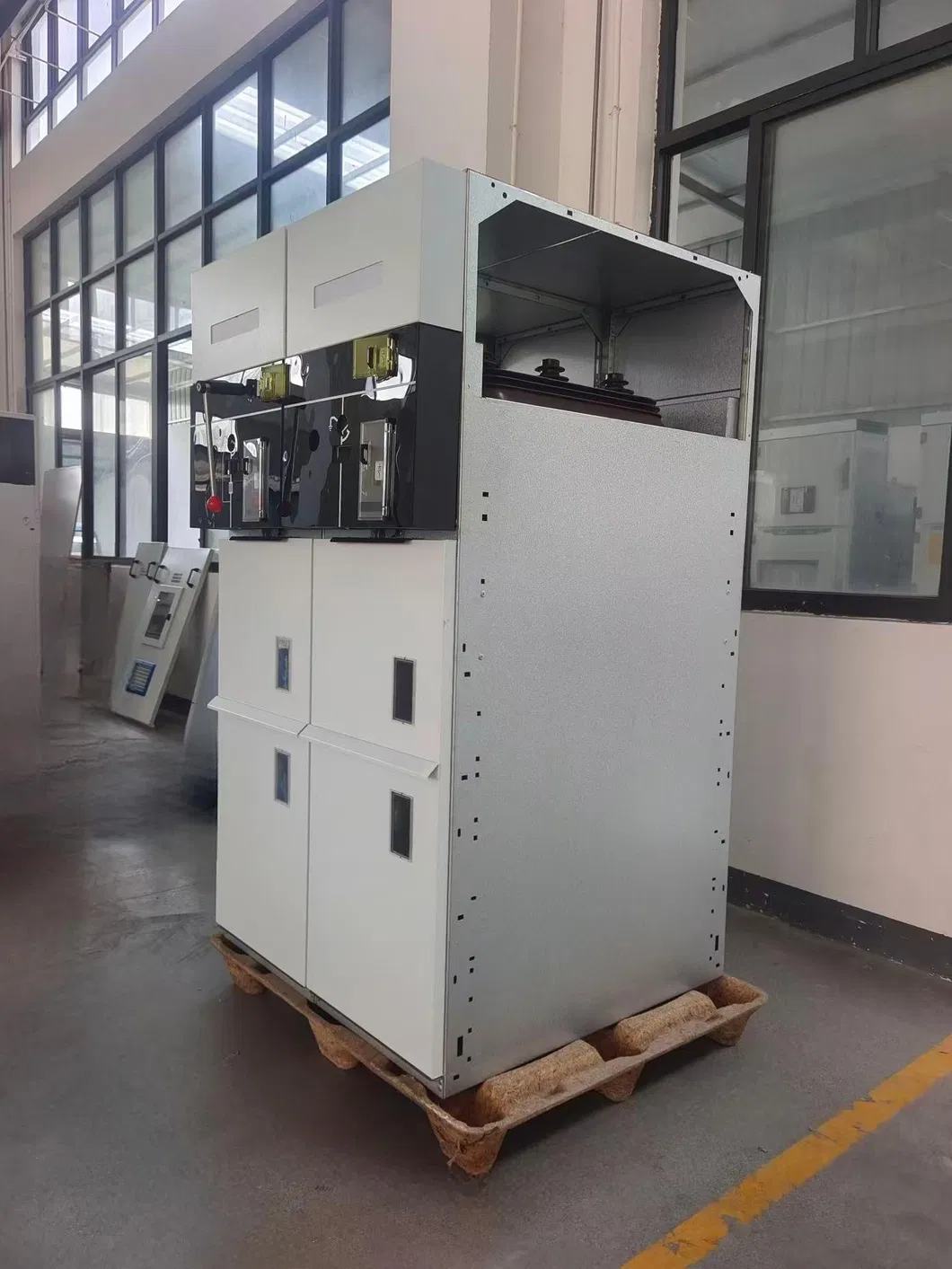

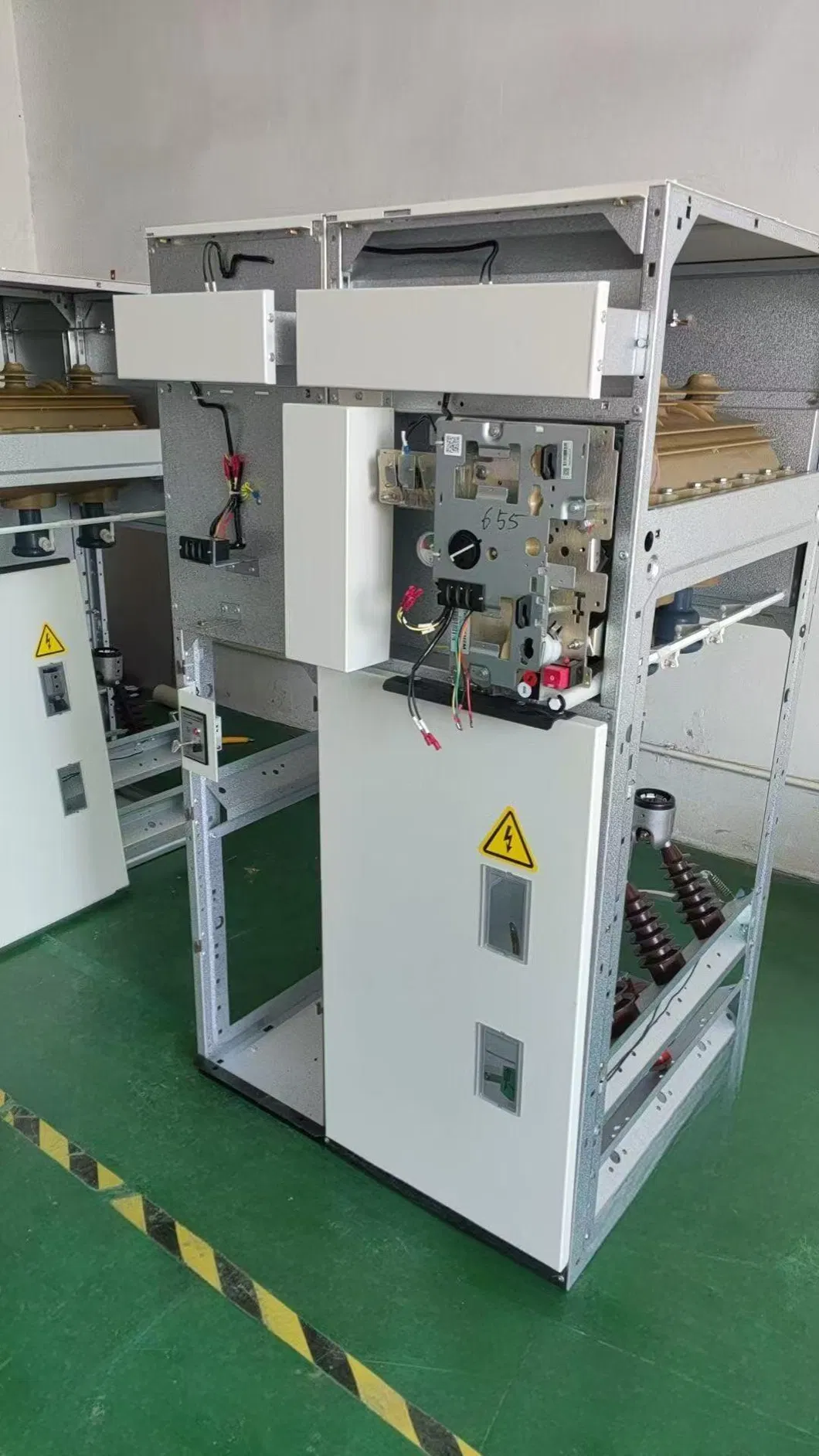

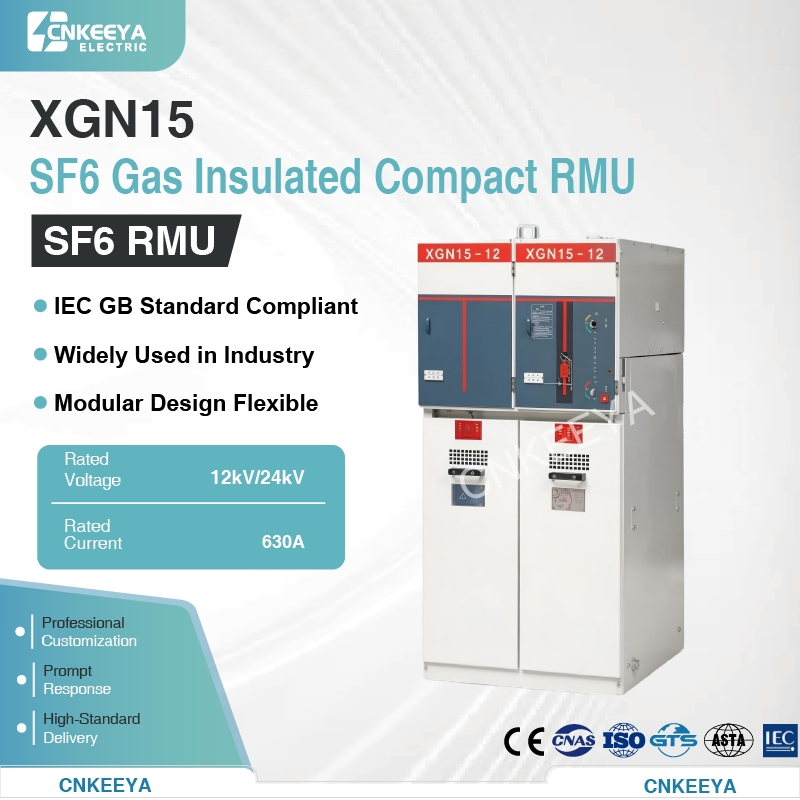

XGN15 series box-type fixed AC metal-enclosed switchgear is a compact and expandable metal-enclosed ring that uses FLN-12 SF6 load switch as the main switch and the whole cabinet adopts air-insulated, suitable for distribution automation network switchgear. It has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation. It can provide satisfactory technical solutions for various applications and different user requirements.

The main switch of XGN15 series box-type fixed AC metal-enclosed switchgear adopts the FLN36-12 type, FLN48-12 type SF6 load switch or the SFG type SF6 load switch. It can be equipped with VS1 type, VD4/S type, ISM type vacuum circuit breaker or HD4/55 type SF6 circuit breaker. The load switch and circuit breaker can be operated manually or electrically, and the power distribution automation function can be realized after selecting the electric operating mechanism, PT, CT, FTU and communication device.

📷

Detailed Product Gallery

📊

Technical Parameters

Project	Unit	Value
Rated voltage	kV	12
Rated frequency	Hz	50
Main busbar rated current	A	630
Fuse breaking current	kA	31.5/40/50

🏭

Production & Overview

Frequently Asked Questions

What is the XGN15 series switchgear used for?

It is a compact metal-enclosed ring main unit suitable for distribution automation in power networks, providing reliable technical solutions for medium voltage applications.

What types of load switches are compatible?

It primarily uses FLN36-12, FLN48-12, or SFG type SF6 load switches. It can also be equipped with vacuum circuit breakers like VS1, VD4/S, and ISM types.

Is manual or electric operation supported?

Both manual and electrical operations are available. When equipped with electric mechanisms and FTU devices, full distribution automation can be achieved.

What is the insulation method used in the cabinet?

The XGN15 switchgear adopts air insulation combined with SF6 load switches to ensure a compact structure and high reliability.

What are the main installation characteristics?

It features a simple structure, flexible operation, reliable interlocking, and convenient installation, making it ideal for various industrial and utility requirements.
