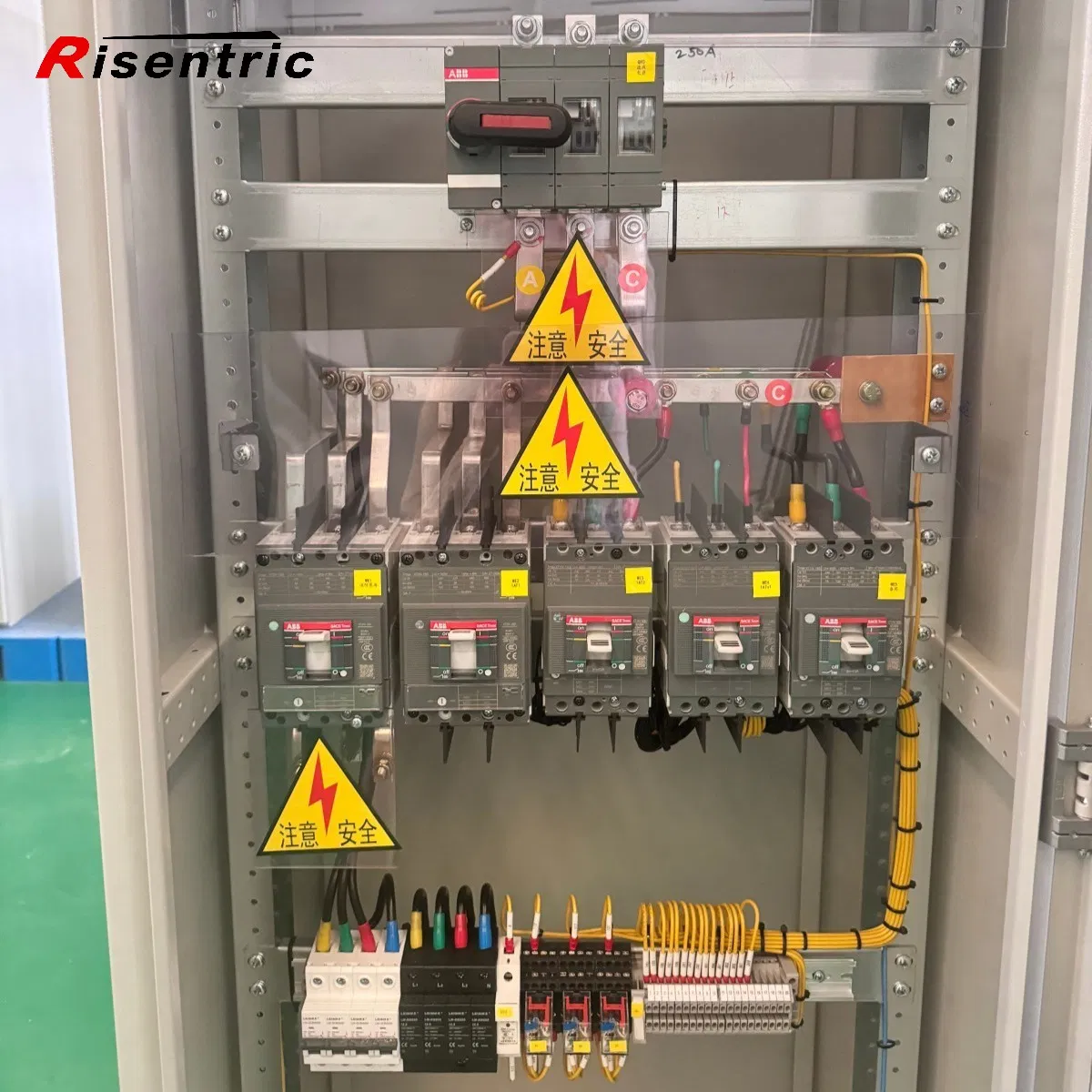

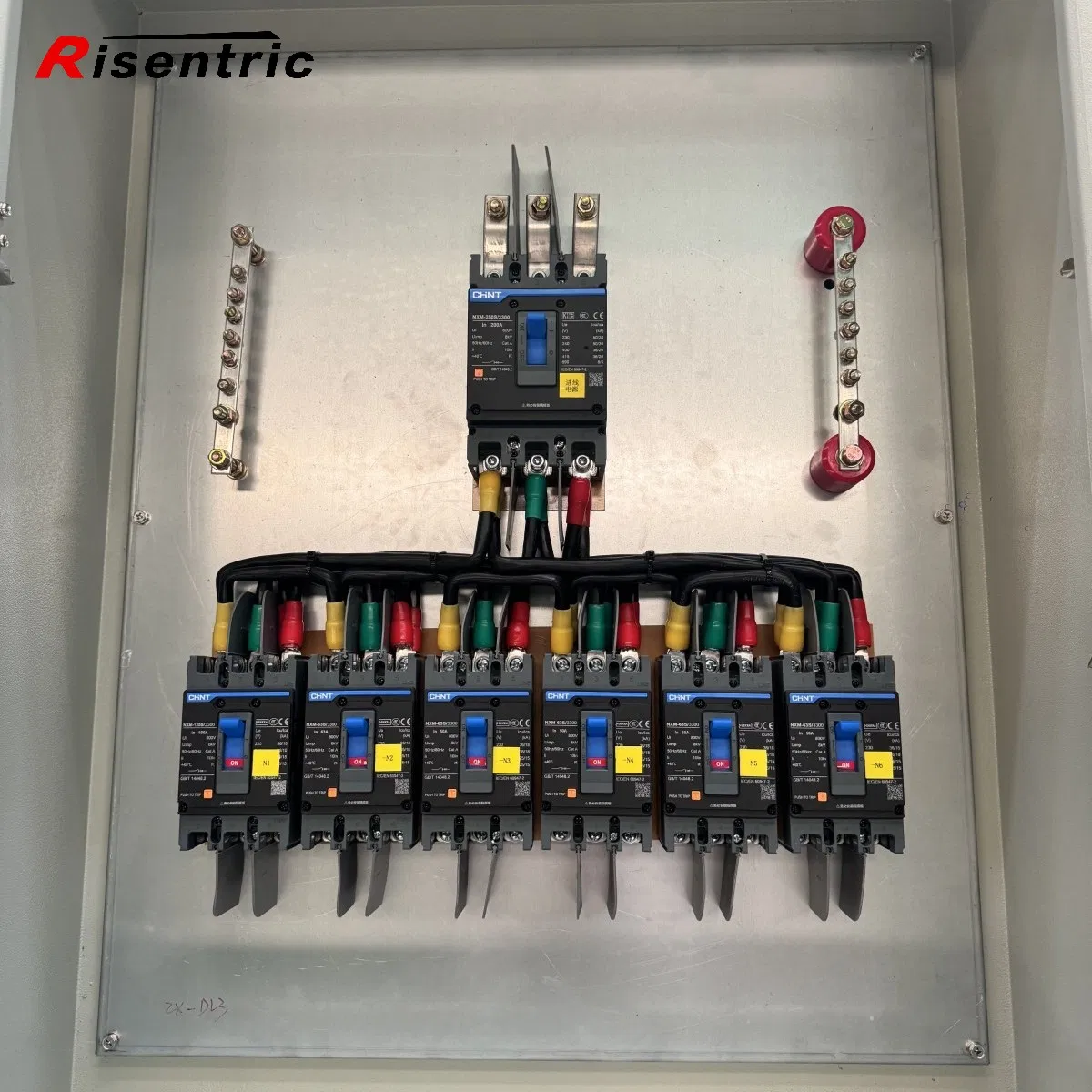

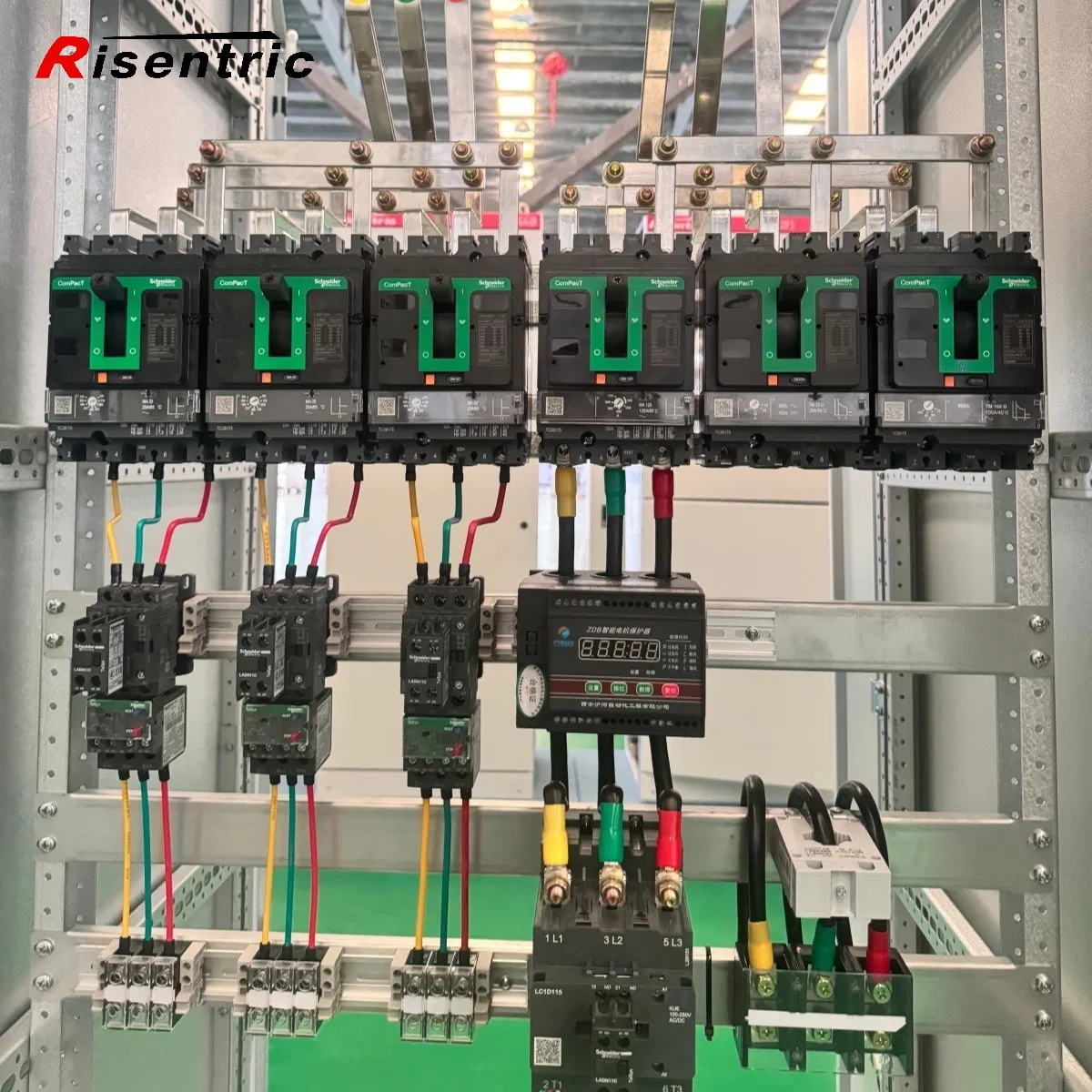

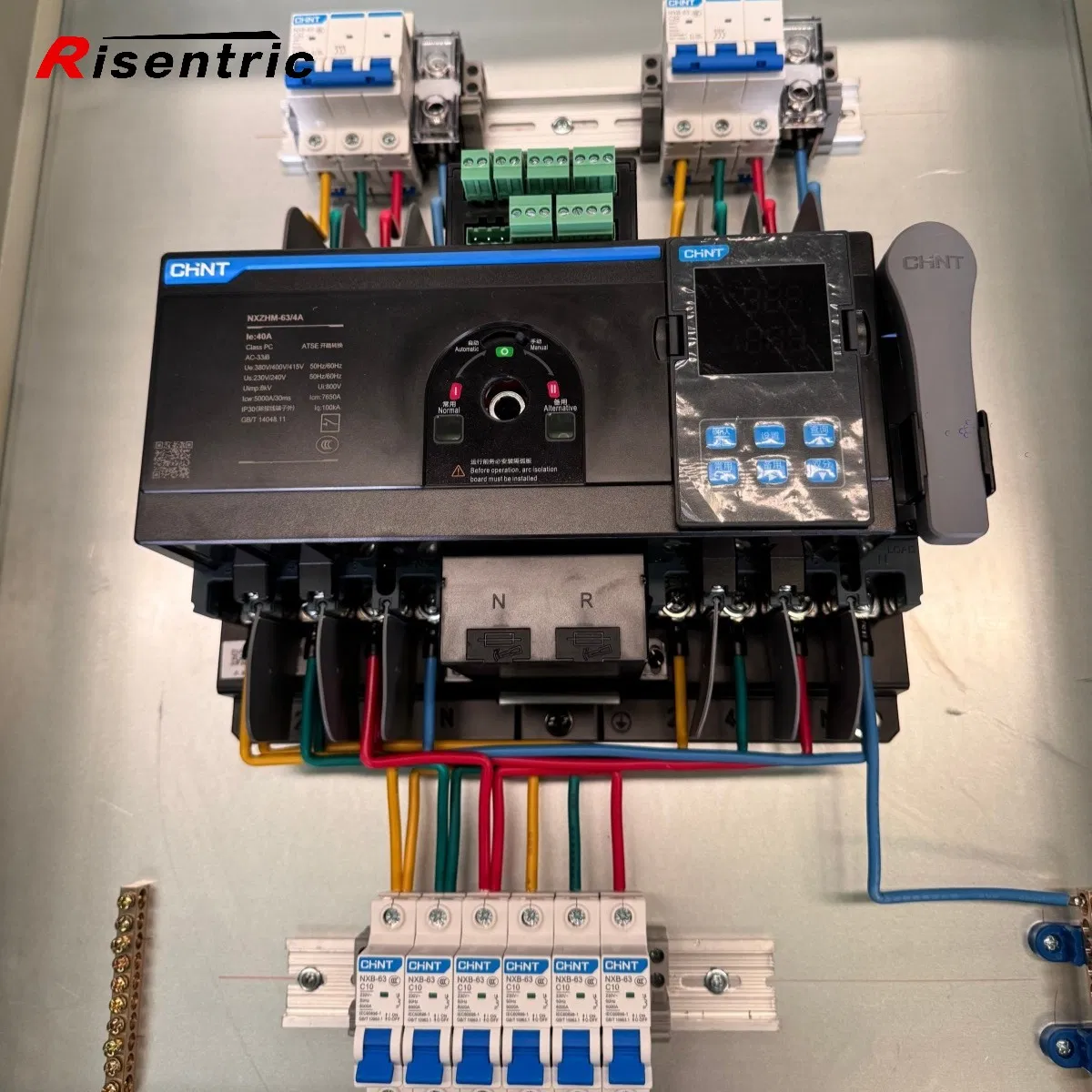

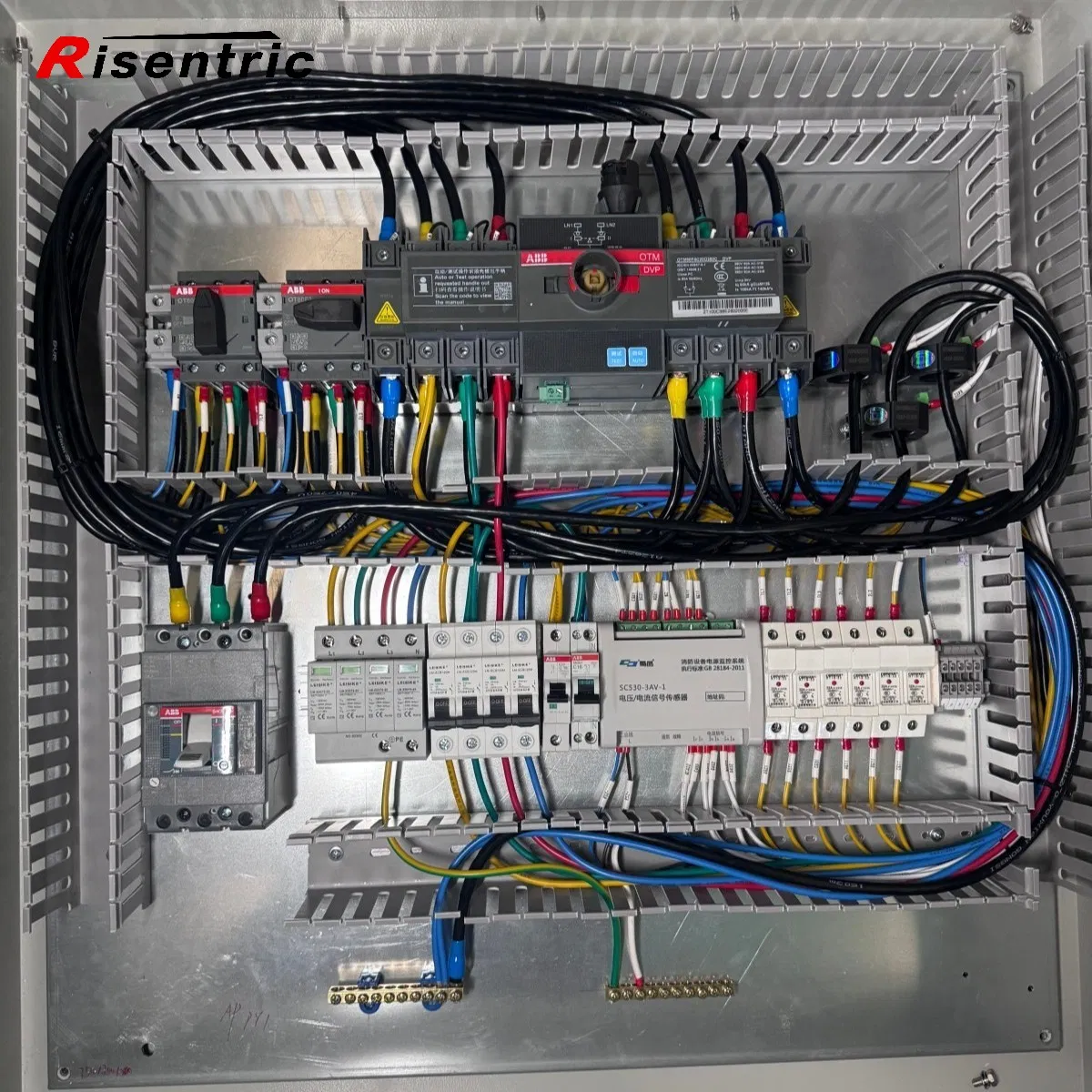

3 Phase 220V/380V Mcc Control Panel Low Voltage Electrical Panel for Hospital Use

1 / 5

3 Phase 220V/380V Mcc Control Panel Low Voltage Electrical Panel for Hospital Use

Customization:	Available
Task:	Program
Structure:	Combination

Send Inquiry

Product Description

Basic Information

Model	MCC Panel	Mathematical Model	Non-Linear
Signal	Discrete	Function	Automatic Control, Protection, Monitoring
Certification	RoHS, CCC, ISO: 9001, CE	Condition	New
Material	Stainless Steel	Voltage	Low Voltage
Protection Grade	IP56	Rated Voltage	380V / 400V / 415V / 690V
Rated Frequency	50Hz / 60Hz	Installation	Floor Standing

Product Description

What Is an MCC Panel?

An MCC panel is a low-voltage electrical assembly used to control, protect, isolate, and distribute power to multiple electric motors from a centralized system. In engineering terms, MCC stands for motor control center. It typically contains incoming and outgoing feeders, motor starters, protection devices, and control units.

Grouping these functions into one organized system improves maintenance efficiency, operational clarity, and overall electrical management for commercial and industrial applications.

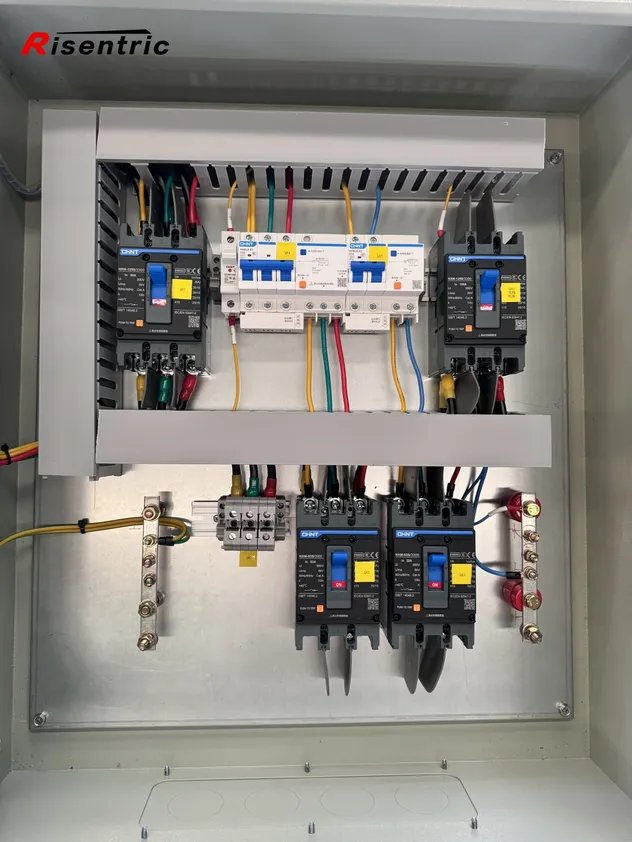

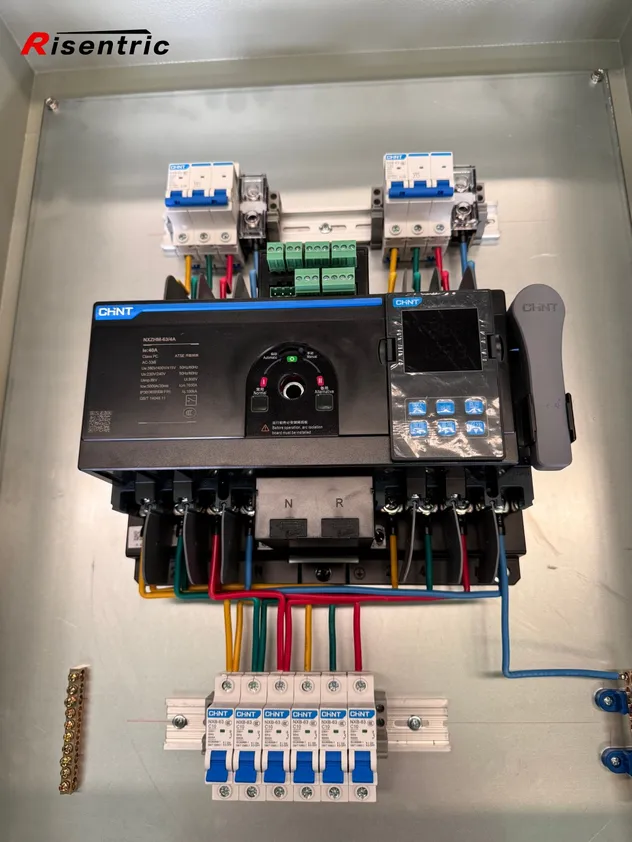

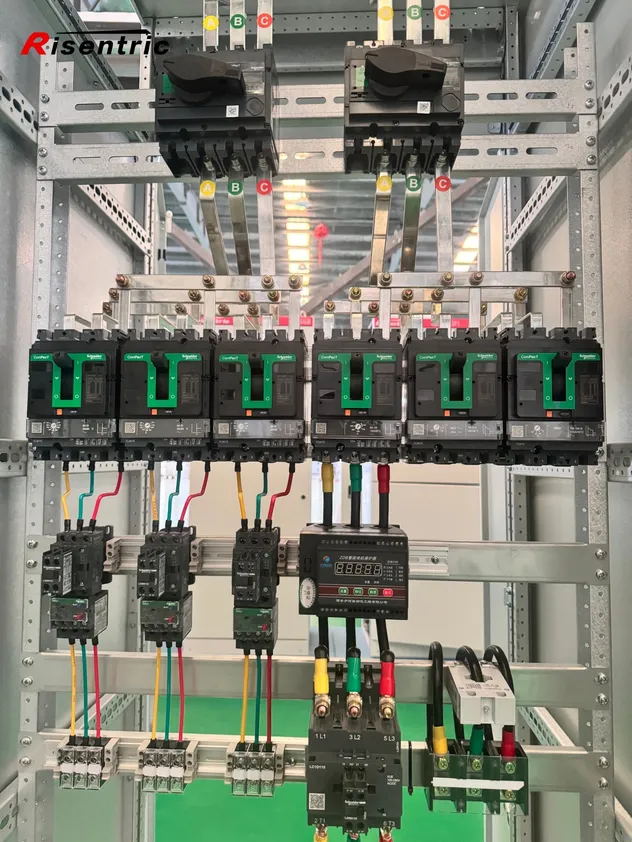

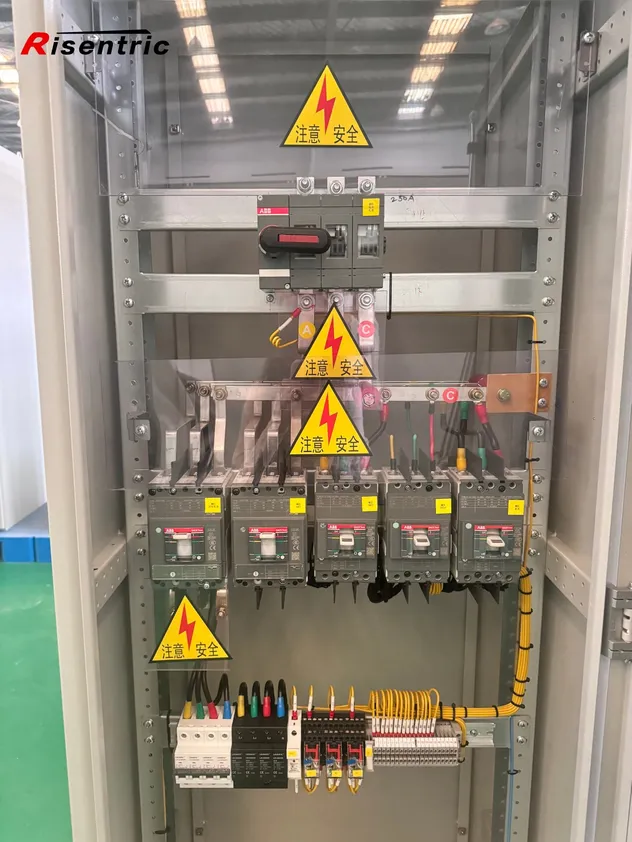

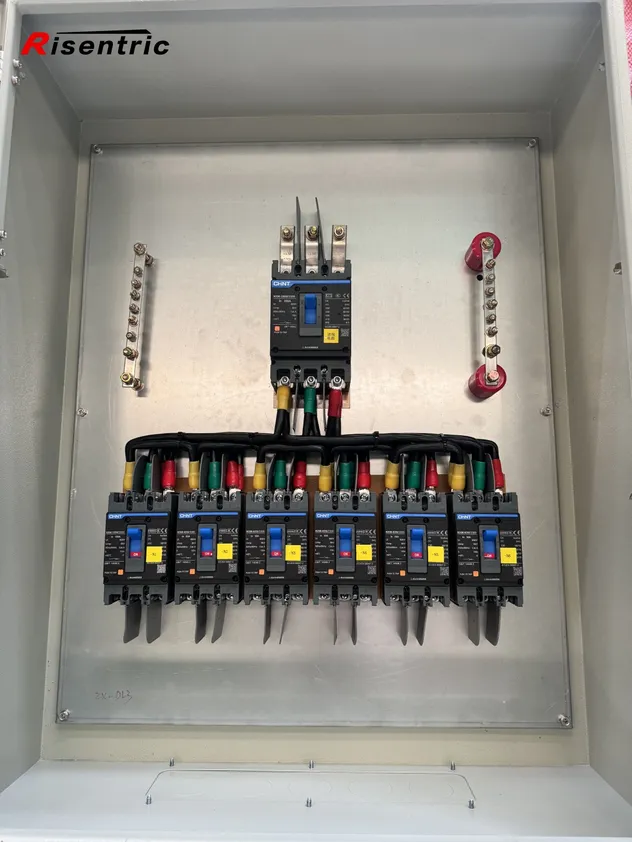

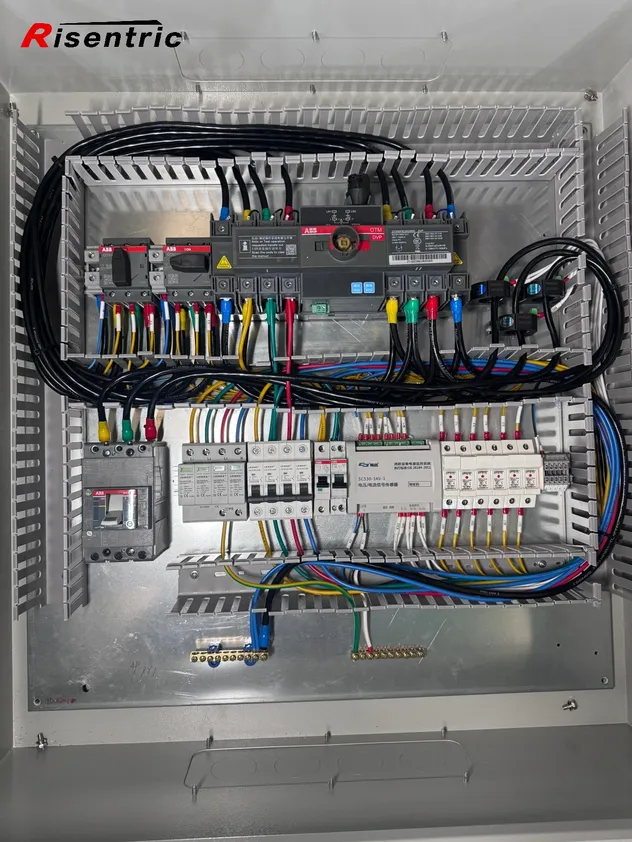

Detailed Photos

Technical Specifications

Item	Specification
Rated Voltage	380V / 400V / 415V / 690V
Rated Frequency	50Hz / 60Hz
Protection Degree	IP31 / IP42 / IP54
Control Mode	Manual / Automatic / Remote
Communication Protocol	Modbus, Profibus, Ethernet/IP
Installation Type	Floor Standing
Enclosure Material	Cold Rolled Steel / Stainless Steel

Key Features

Centralized Motor Control

Enables centralized operation, start/stop control, and fault monitoring for multiple motors.

High Reliability

Built with high-quality components and standardized wiring to ensure stable operation.

Comprehensive Protection

Short circuit, overload, phase failure, and over/under-voltage protection.

Intelligent Monitoring

Supports PLC, HMI, and SCADA integration for remote data acquisition.

Main Components

Main Circuit Breaker
Magnetic Contactor
Thermal Overload Relay
Variable Frequency Drive (VFD)
Soft Starter
PLC Control System
Power Monitoring Meter
HMI Interface
Busbar System

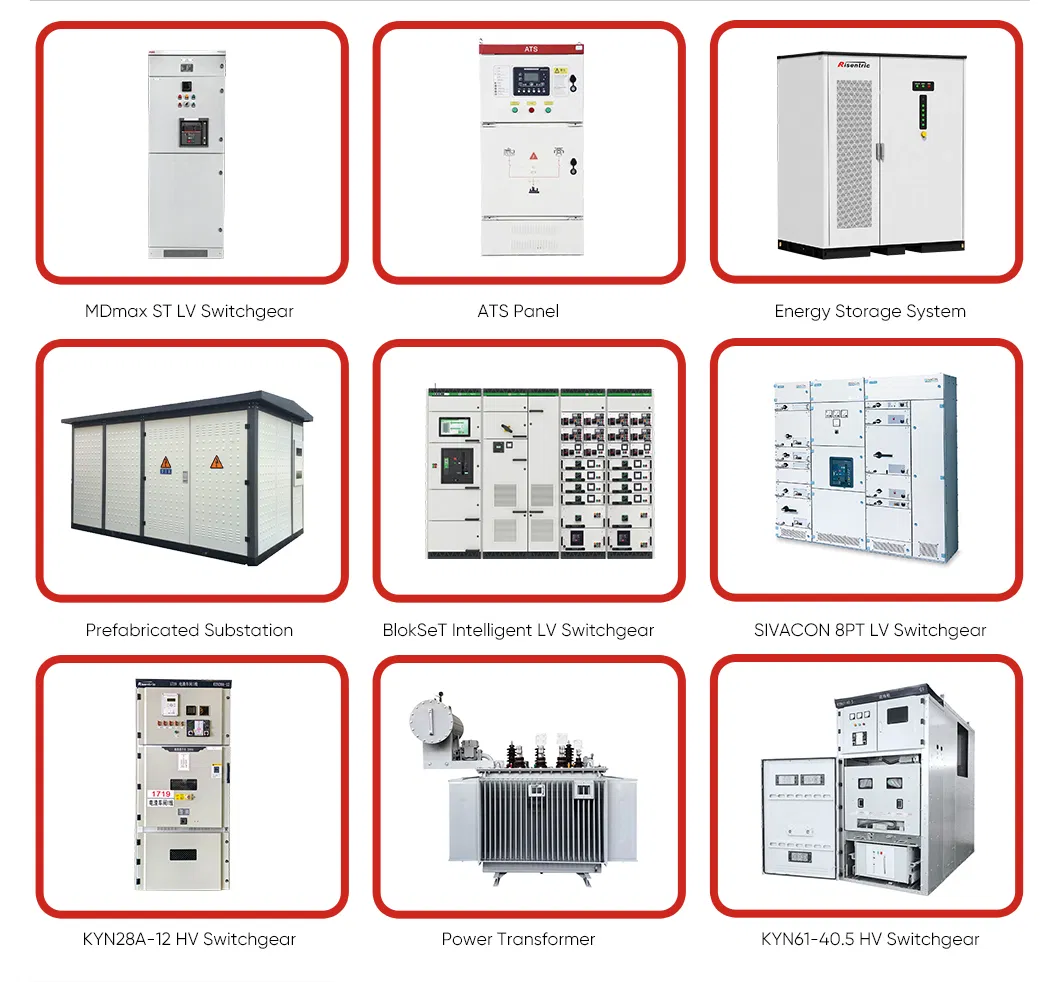

Main Product Display

About Our Manufacturer

Established in 2005, the manufacturer is a national high-tech enterprise specializing in intelligent power transmission, distribution, and industrial electrical control. The company maintains ISO 9001, ISO 14001, and ISO 45001 certifications.

Products are designed and manufactured in strict accordance with IEC standards. Equipped with advanced CNC laser cutting and bending machines, the facility ensures lean manufacturing and full-process quality control for global infrastructure projects.

Certifications & Shipping

Frequently Asked Questions

Q1: Are you a factory or a trading company? A: We are a factory. We can guarantee that our prices are first-hand, very competitive, and cost-effective.

Q2: What are your payment terms? A: We accept T/T. Generally, for large orders, it is 30% in advance and 70% after confirmation before shipment.

Q3: How soon can I get a reply after sending an inquiry? A: We welcome all inquiries and will reply within 24 hours.

Q4: What is the typical delivery time? A: It depends on your order quantity, but normally it takes about 15-20 days.

Q5: What is the guarantee period for your equipment? A: Our standard quality guarantee period is 12 months. Production strictly complies with international standards like IEC and ANSI.

Q6: Do you accept customized products? A: Yes, we provide customization based on your technical specifications, single line diagrams (SLD), or relative drawings.
