3 Phase Mcc Electrical Control Panel for Industrial Commercial

1 / 5

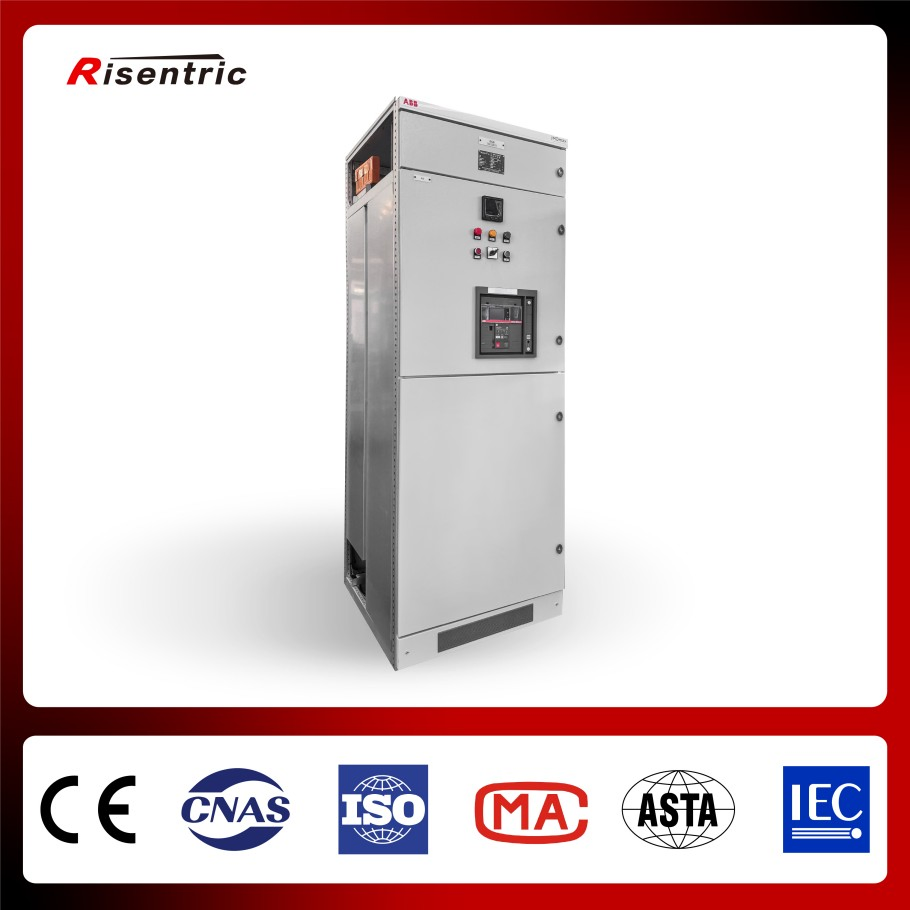

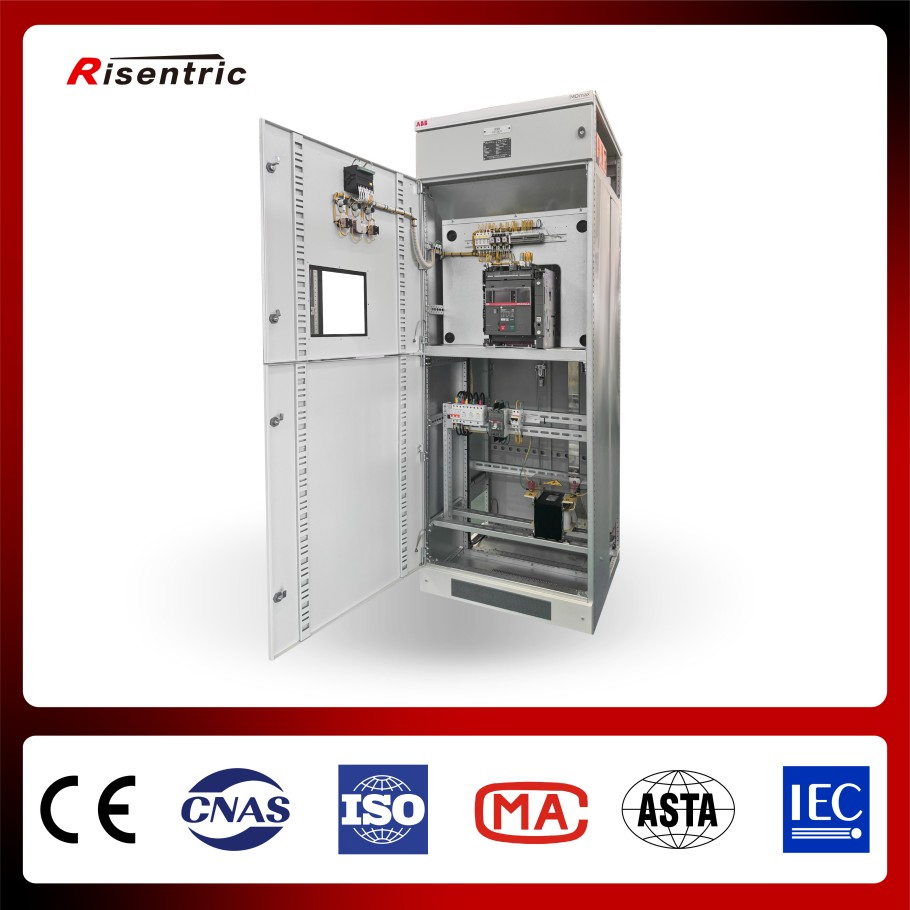

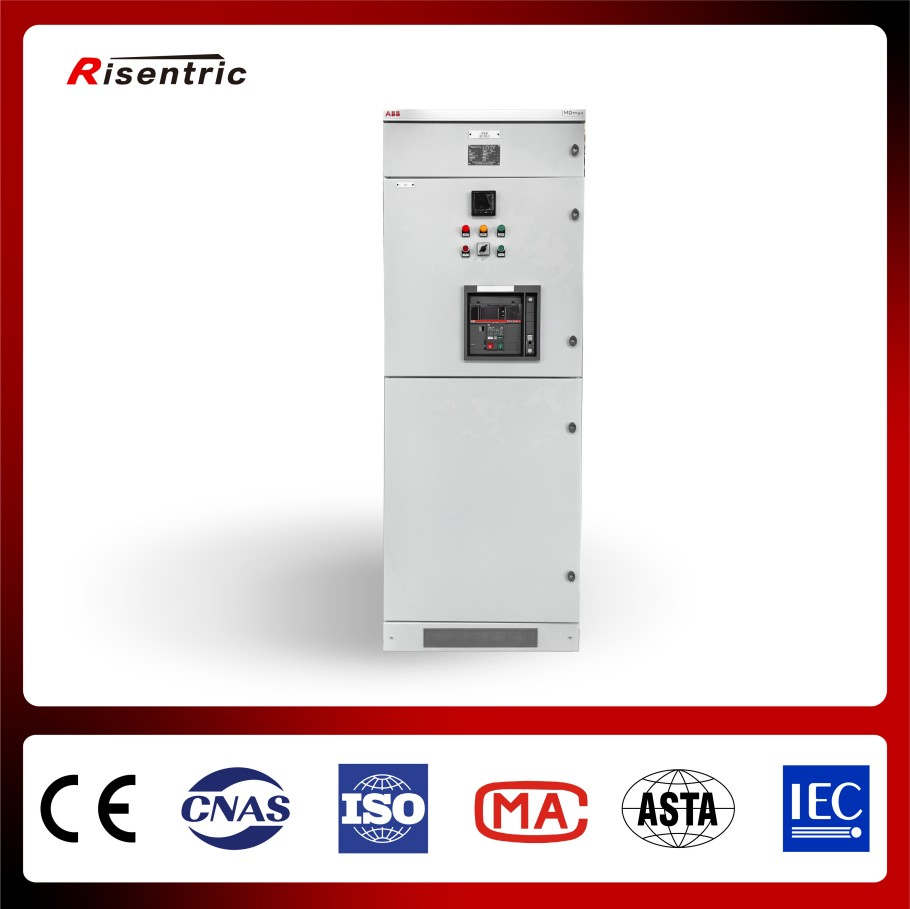

3 Phase Mcc Electrical Control Panel for Industrial Commercial

Customization:	Available
Certification:	CCC, ISO9001
Shell Material:	Steel Plate

Send Inquiry

Product Description

Product Overview

Basic Specifications
Model NO.	Mdmax St
Voltage Level	Low Voltage
Installation	Removable
Structure	Withdrawable
Current	AC, DC
Rated Operating Voltage	400V/690V AC
Rated Insulation Voltage	690V/1000V AC
Rated Operating Frequency	60Hz
Shell Protection Grade	IP54
Application Range	Factories, High-Rise Buildings, Power Plant
Transport Package	Wooden Case

Product Description

MDmax ST Low-Voltage Switchgear

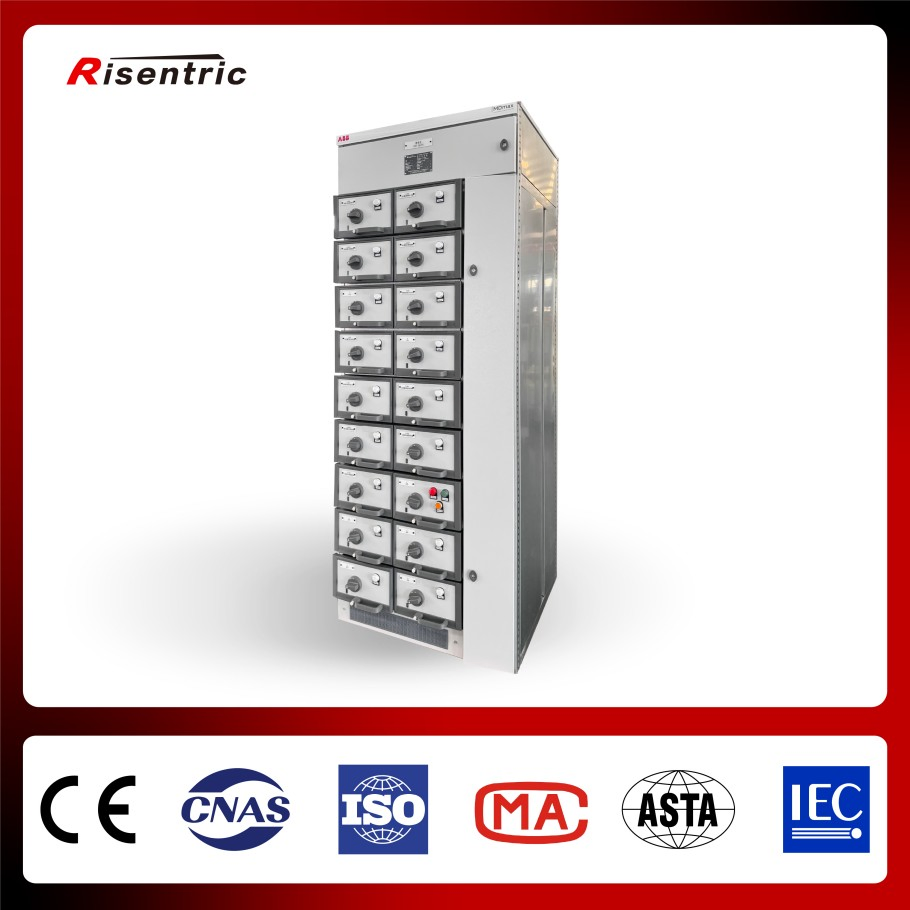

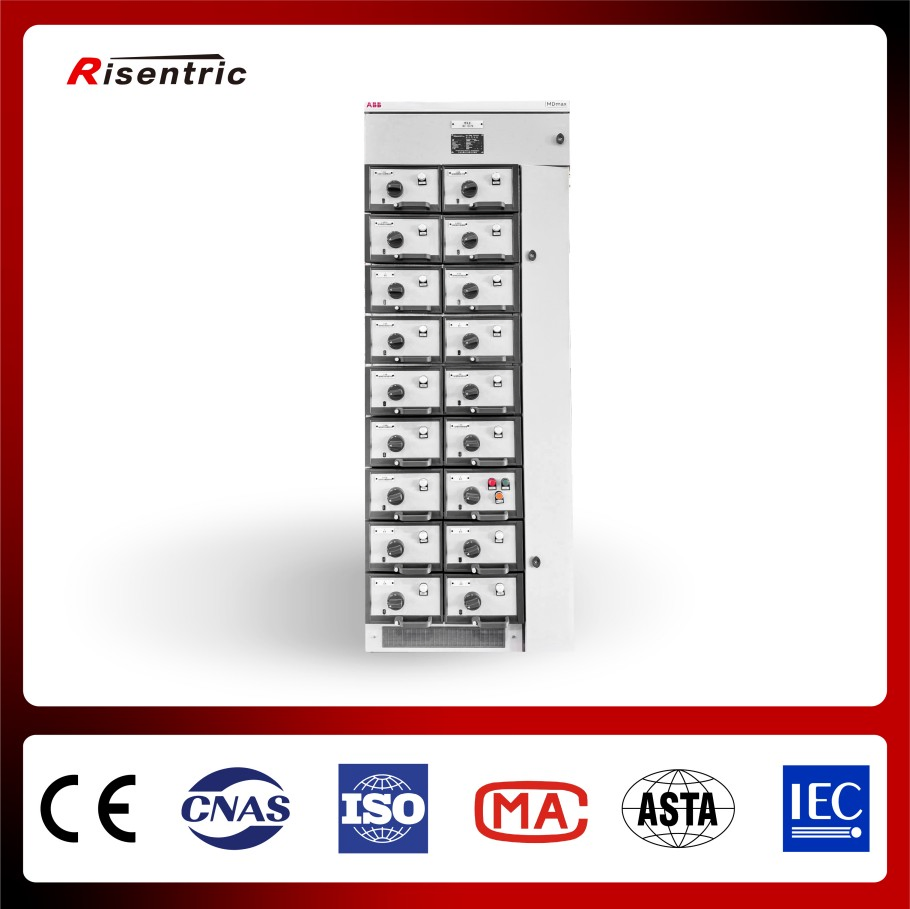

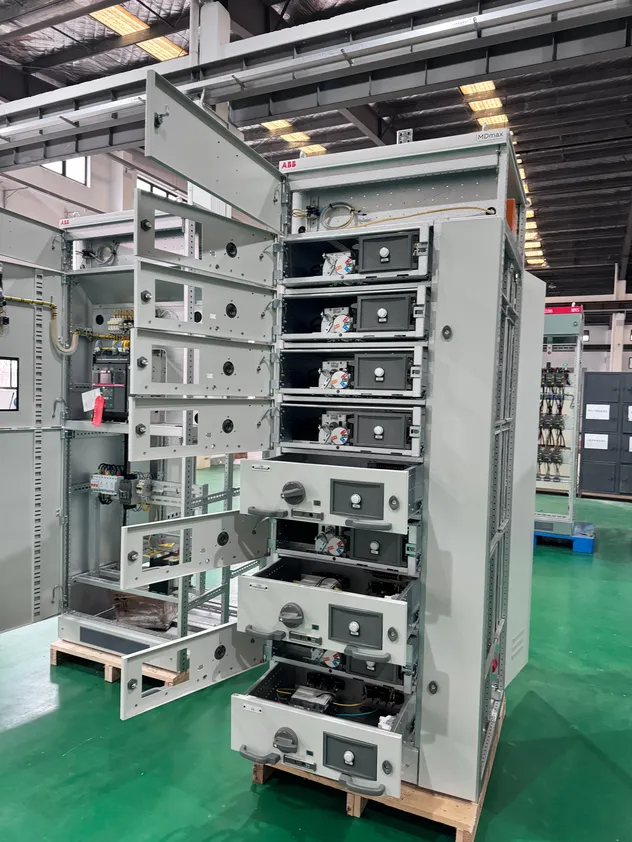

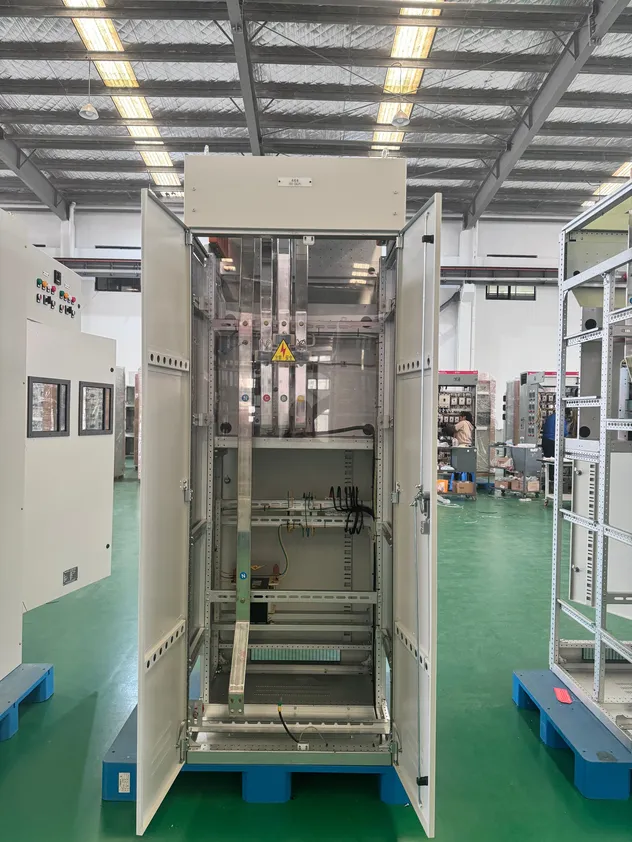

The frame adopts double-folded edge technology with aluminum-zinc coated sheet; the top cover of the horizontal busbar area is removable; it has three functional units: drawer-type, movable, and insert-type; the drawer-type structure can be equipped with 36 circuits. It can realize three-position switching of the drawer circuit without reducing the protection level. The position positioning of the movable parts of the drawer can be matched with three indicators: sound, light, and text; a complete drawer-type electric operation circuit solution.

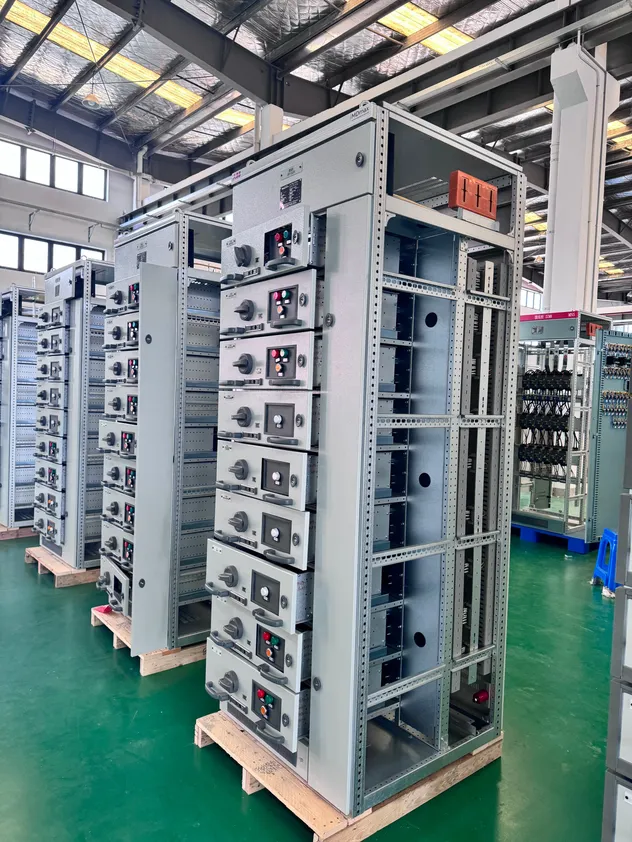

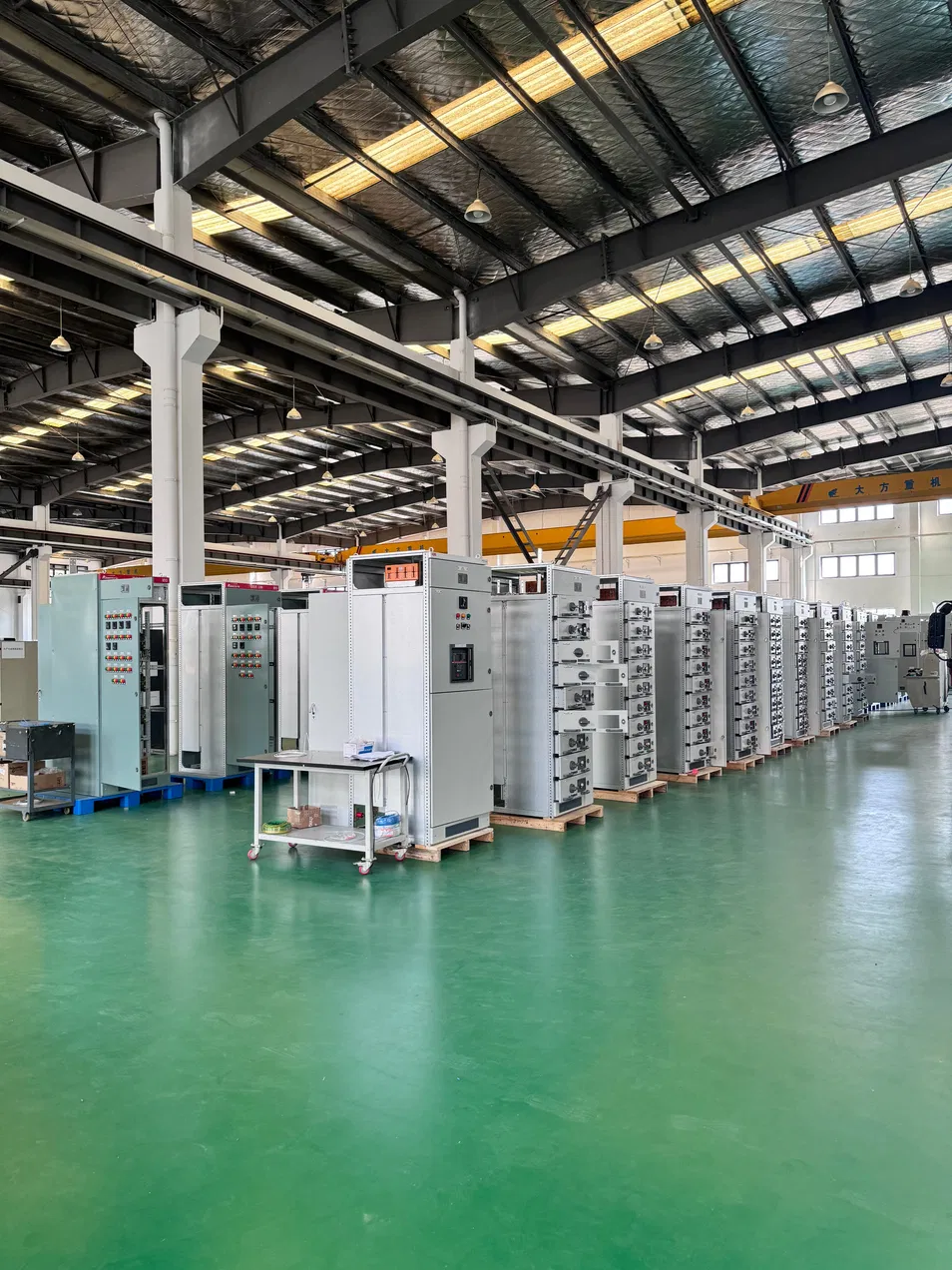

Detailed Photos

Electrical Characteristics

Parameter Item	Technical Specifications
Rated Insulation Voltage	690V/1000V AC, 3P, 1500V DC
Rated Operating Voltage	400V/690V AC, 3P, 750V DC
Rated Pulse Withstand Voltage (Uimp)	6/8/12kV
Main Bus Rated Current (le)	Up to 6300 A
Main Bus Rated Peak Withstand (lpk)	Up to 220 kA
Distribution Bus Rated Current (le)	Up to 2000 A
Standard Compliance	GB7251.1-2005, IEC60439-1, EN60439.1

Structural Characteristics

Dimensions (Height)	Recommended 2200mm
Dimensions (Width)	400, 600, 800, 1000, 1200mm
Frame Material	Aluminum Zinc Coated
Protection Rating	Up to IP54
Internal Division	Up to Form 4b

Product Advantages

✓

High Reliability: Capable of withstanding significant short-circuit current surges. Sealed and shockproof design suitable for industrial environments.

✓

Flexibility: Standardized modular design allows units to be freely combined and scaled according to requirements.

✓

Digital Functions: Integrated intelligent alarms and sensors for remote monitoring and seamless DCS/SCADA integration.
