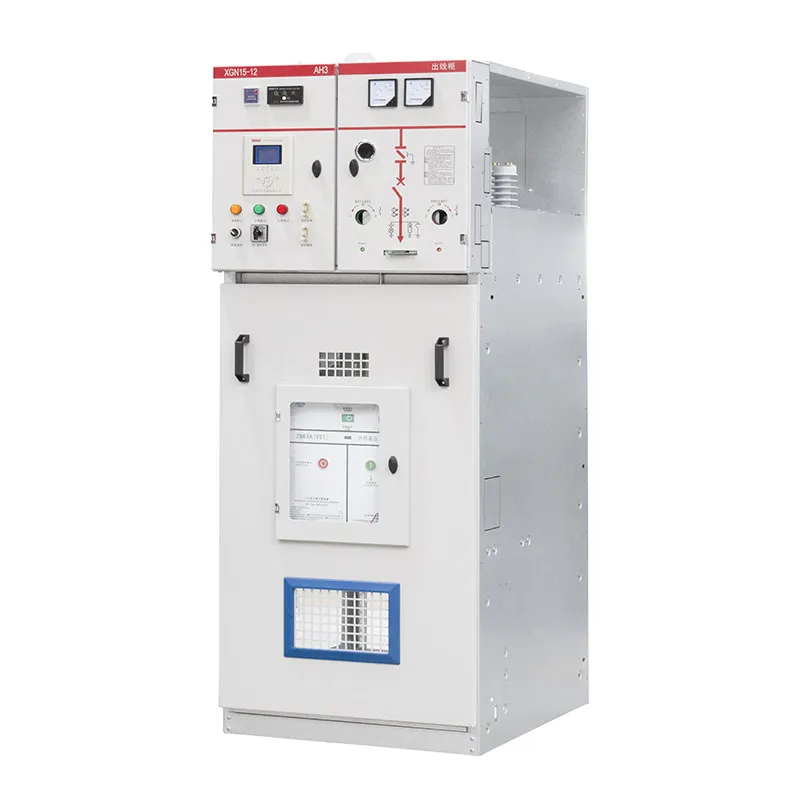

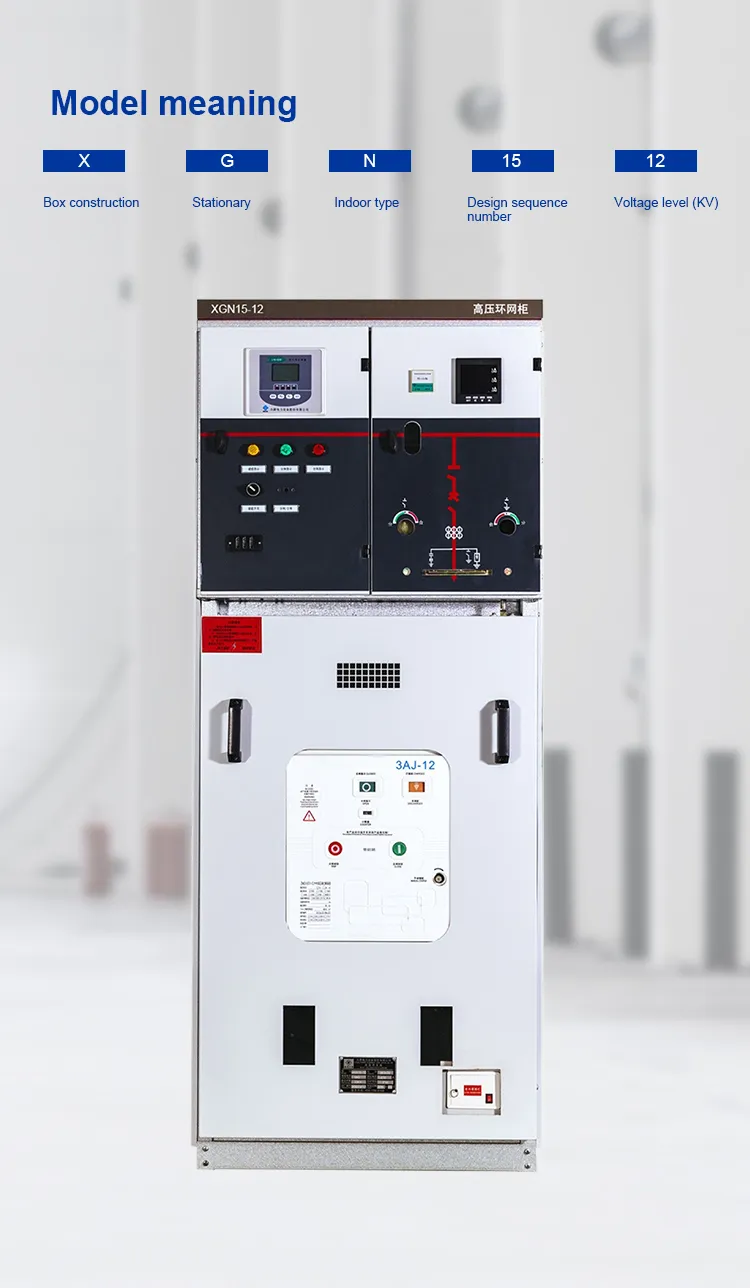

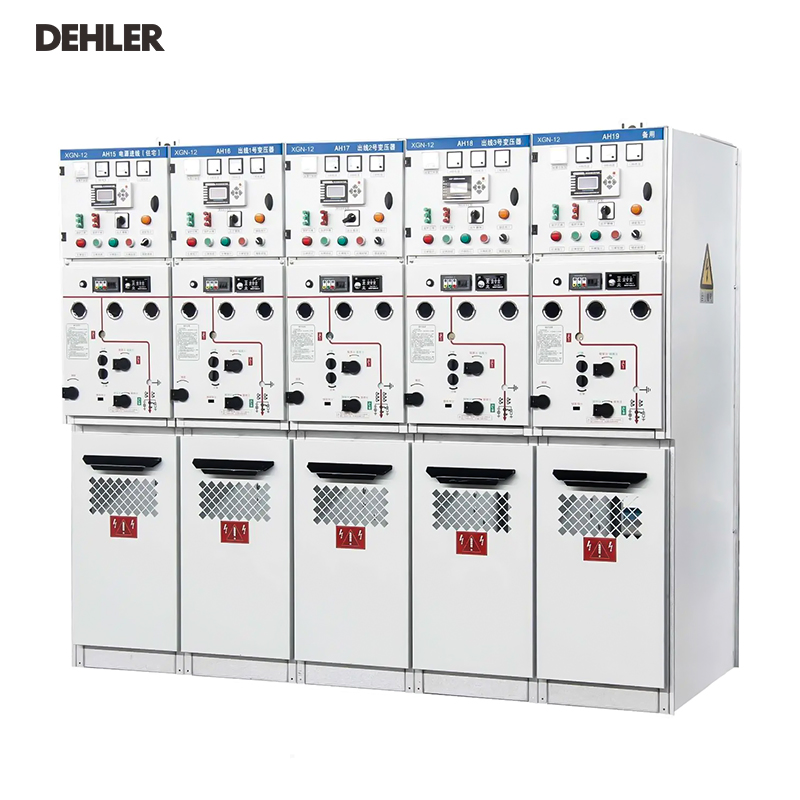

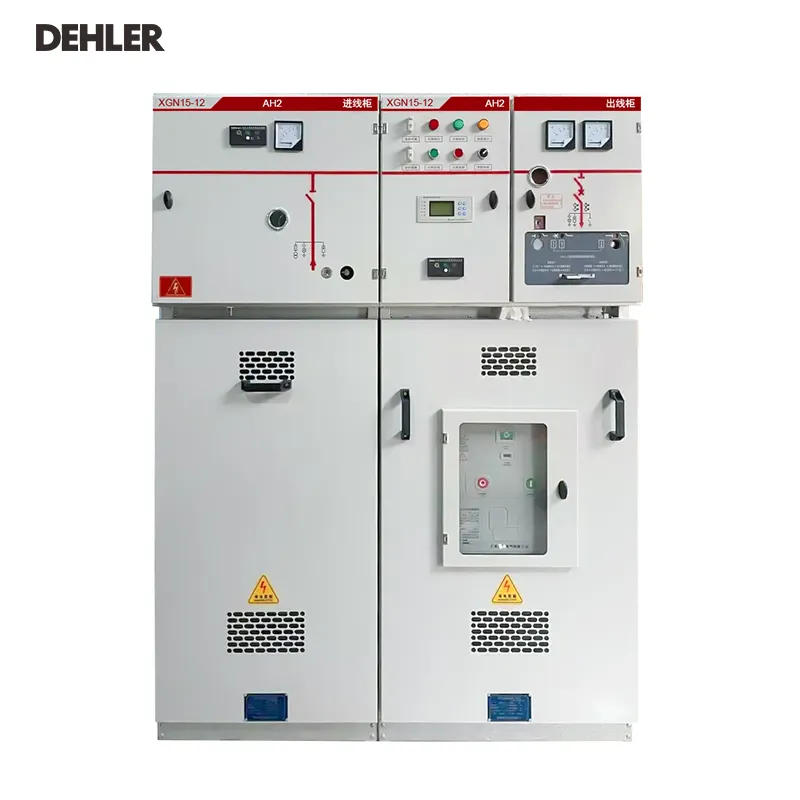

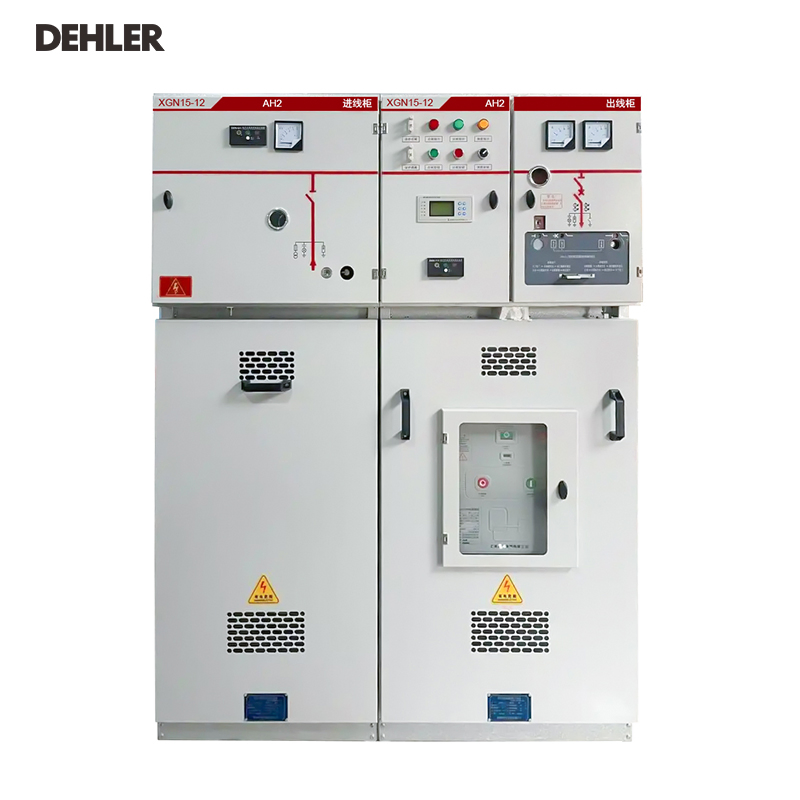

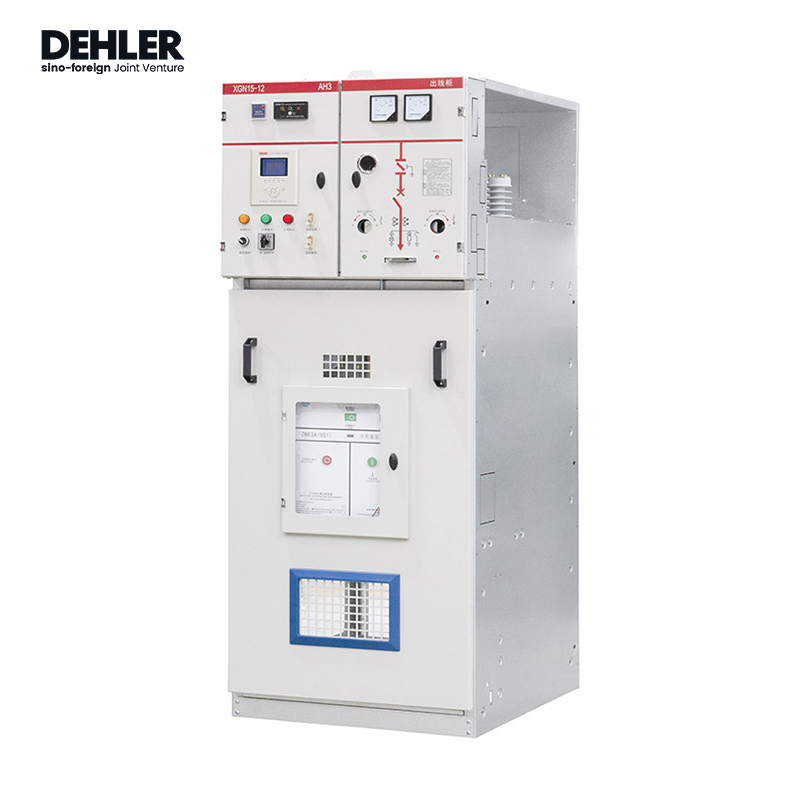

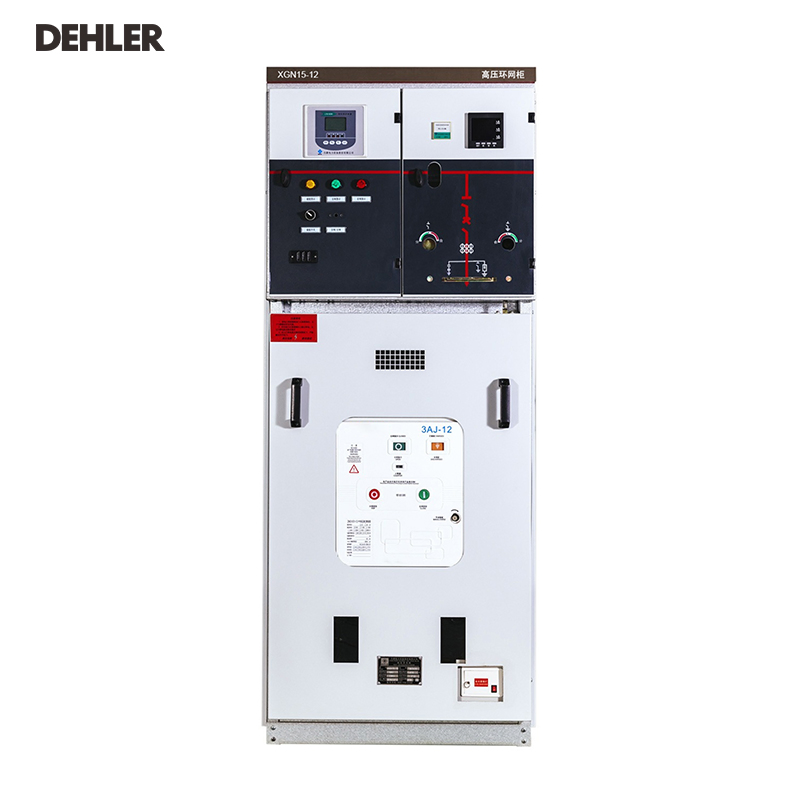

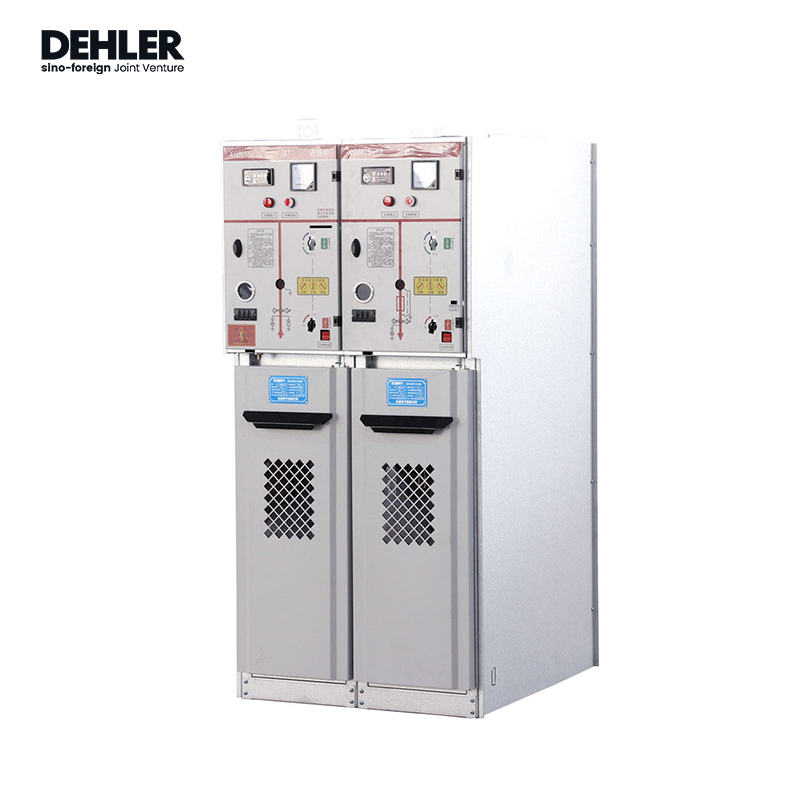

XGN15 series box-type fixed AC metal-enclosed switchgear is a compact and expandable metal-enclosed ring that uses FLN-12 SF6 load switch as the main switch. The whole cabinet adopts air-insulated design, suitable for distribution automation network switchgear. It features a simple structure, flexible operation, reliable interlocking, and convenient installation, providing satisfactory technical solutions for various applications.
The main switch adopts the FLN36-12 or FLN48-12 type SF6 load switch. It can be equipped with VS1 type, VD4/S type, ISM type vacuum circuit breaker or HD4/55 type SF6 circuit breaker. Operations can be manual or electrical, and distribution automation functions can be realized through electric operating mechanisms, PT, CT, FTU, and communication devices.
| Item | Unit | Value |
|---|---|---|
| Rated voltage | KV | 12 |
| Rated current | A | 630 |
| Rated Short-Circuit Making Current (Peak) | KA | 50 |
| Rated Short-Circuit Breaking Current | KA | 31.5 |
| Rated active load breaking current | A | 630 |
| 3S heat stable current | KA | 630 |
| Rated dynamic stable current (peak) | KA | 50 |
| 1min power frequency withstand voltage | KV | 42 (Fracture, 48) |
| Lightning impulse withstand voltage | KV | 75 (Fracture, 85) |
| Mechanical life | Time | 5000 |
| Mode of operation | - | Manual or electric |
| Class of protection | - | IP2X |
