Smart Electrical Distribution Solutions with Efficient Switchgear Options

Customization:	Available
Type:	Power
Structure:	Protection

Send Inquiry

Product Description

Basic Specifications

Model NO.

KXRM6-24

Certification

ISO9001:2000, CCC, ISO15001

Form

All-packaged Type

Operation Voltage

High Voltage

Shell Material

Stainless Steel

Protection Grade

IP56 (Shell)

Warranty

12~24 Months

Delivery

3~4 Weeks

MOQ

1 Set

Package

Wooden Box

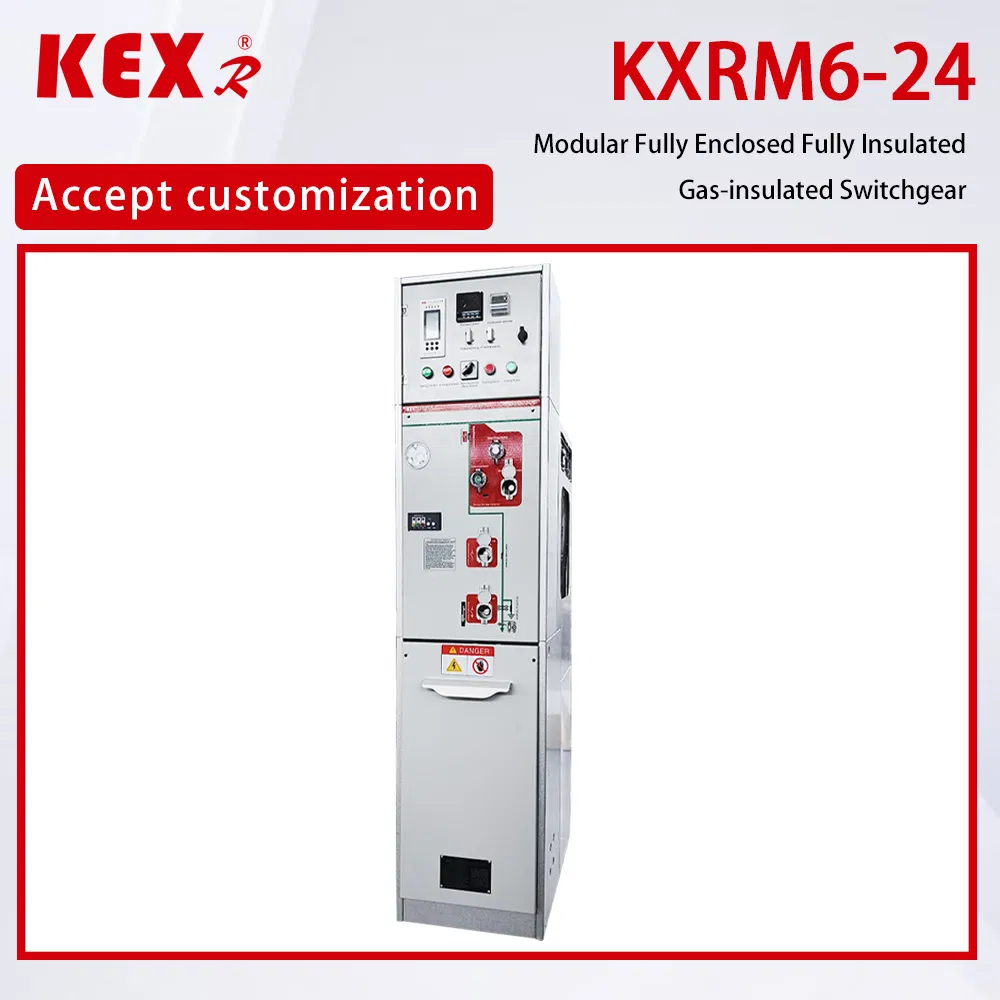

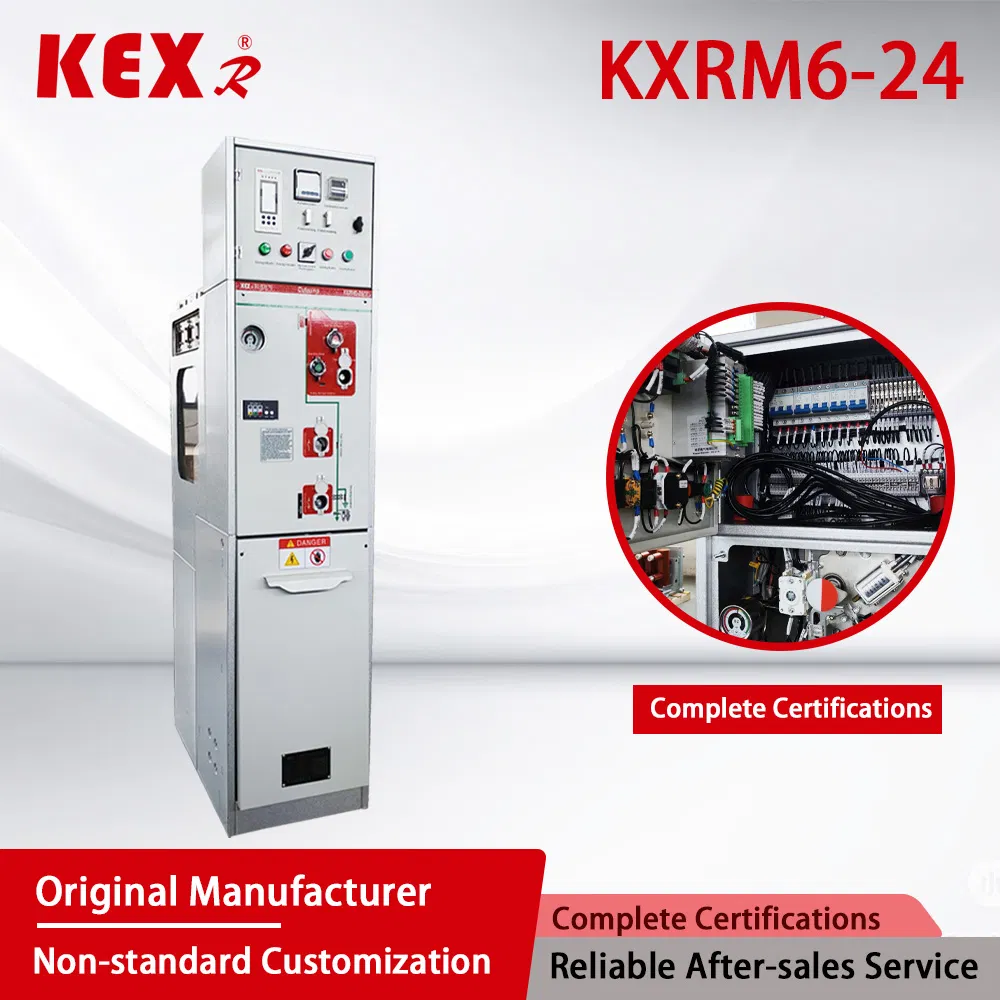

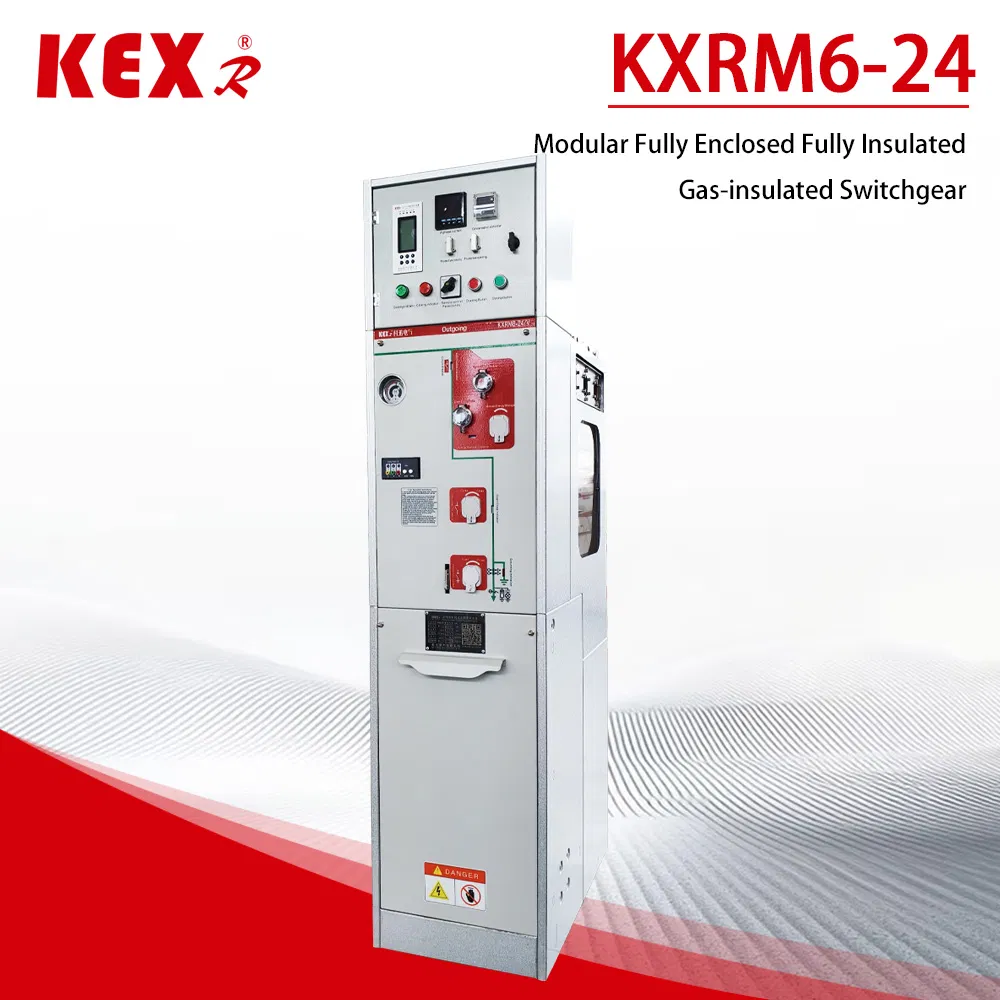

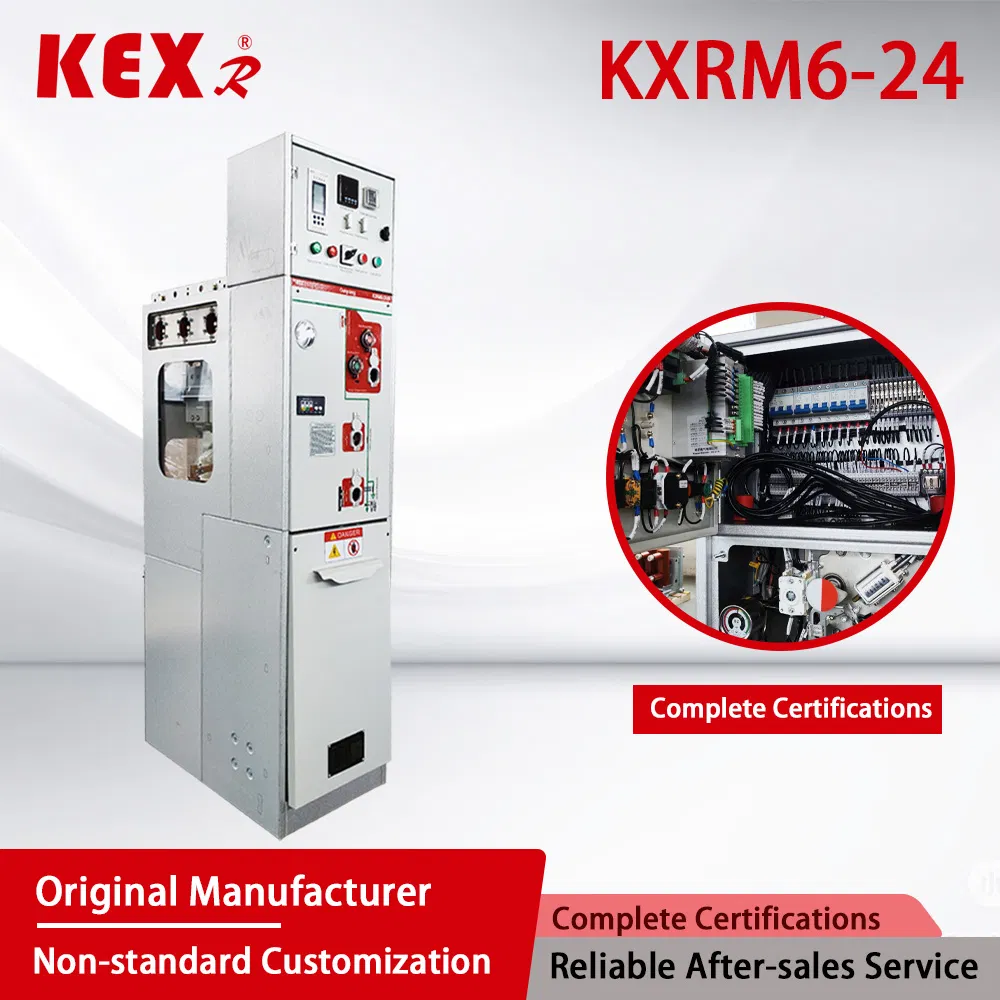

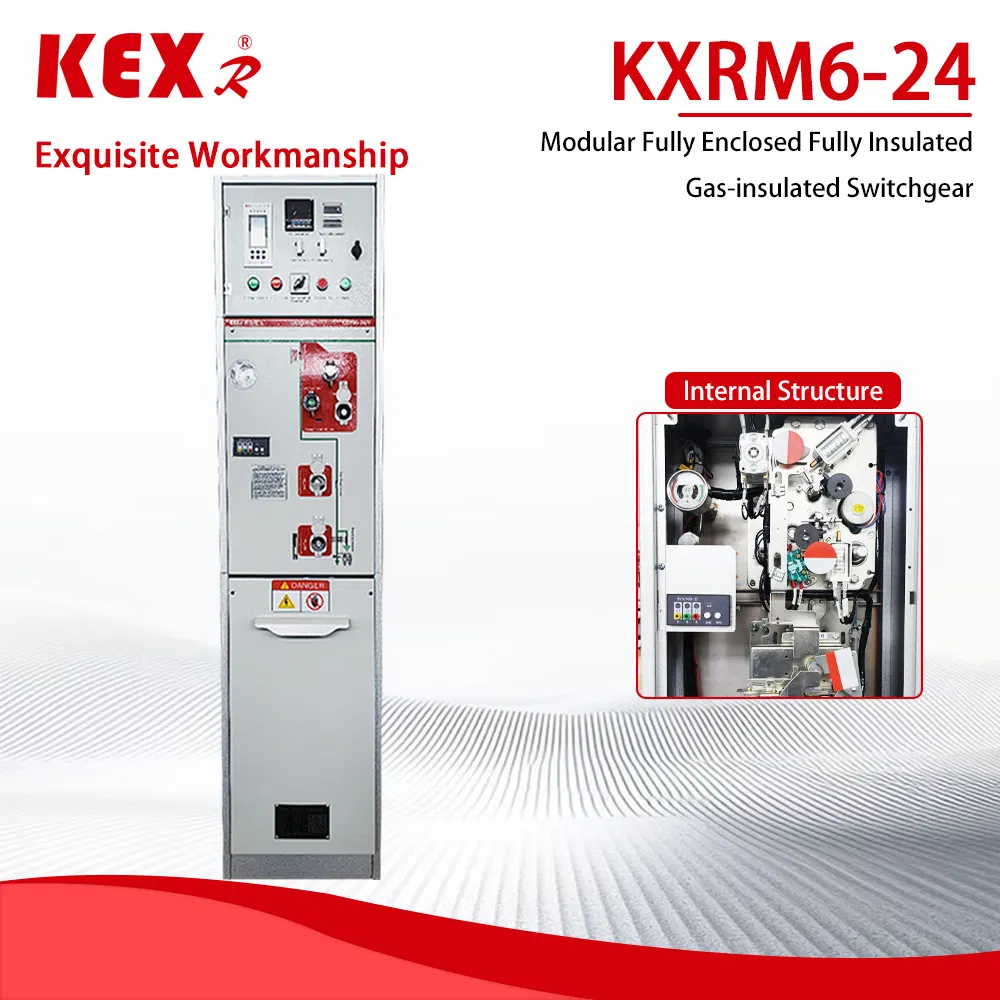

KXRM6-24 Combined Type GIS Cabinet stands as a beacon of excellence and reliability in 24kV/20K distribution systems. With a cutting-edge modular unit structure, it offers customizable combinations tailored to diverse applications. Comprising both fixed and expandable units, it expertly caters to the compact switchgear needs of various substations.

Key Advantages

🛡️ Extreme Resilience

Engineered to endure temperatures from +40ºC to -40ºC and high altitudes up to 1000m.

💧 Waterproof Protection

IP67 gas box protection level; survives short-term water immersion for up to 24 hours.

⚙️ Maintenance Free

Completely sealed stainless steel enclosure pressurized with SF6 gas ensures maintenance-free operation.

🔒 Safety First

Integrated 'five-prevention' interlocking mechanism and robust pressure relief channels.

International Standards: Meets IEC60056, IEC60298, IEC60129, IEC60420, IEC60265, IEC60694, GB3804, GB3906, GB11022.

Meter Module M

12KV metering cabinet configuration
Precision-engineered current and voltage transformers
400-series bushings for enduring performance
Low pressure component with voltmeter and ammeter

VCB Module CB

1250A/630A vacuum circuit breaker for superior line protection
Advanced electrical operation at 10VDC
Three-station isolating/grounding switch
Integrated SF6 gas pressure gauge and sensors

Application Schemes

Scheme 1: SA+CCF+ (Bus-mounted lightning arrester)

Scheme 2: CCF+ (Incoming line protection)

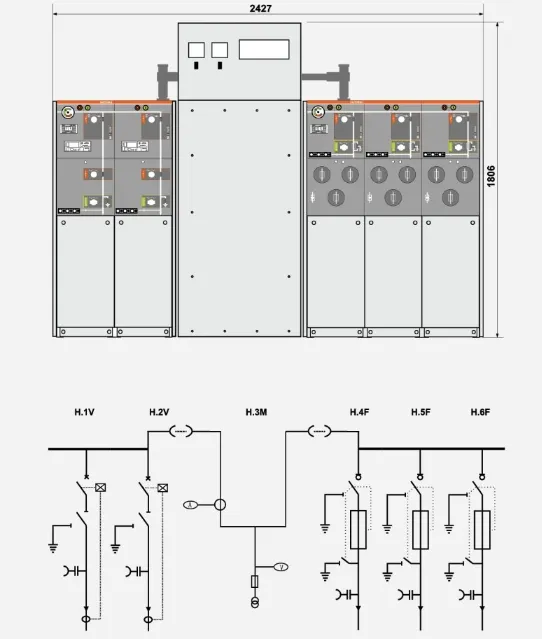

Scheme 3: W+M+FFF (HV side calculation)

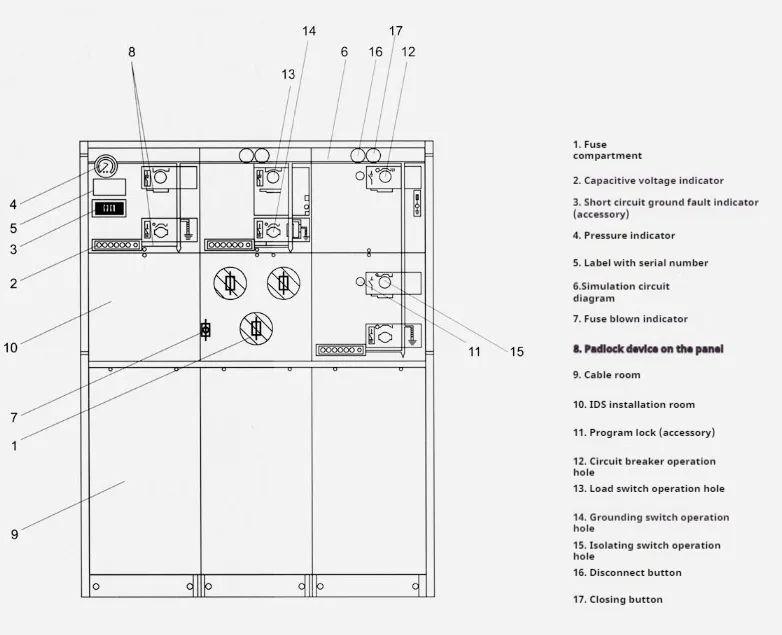

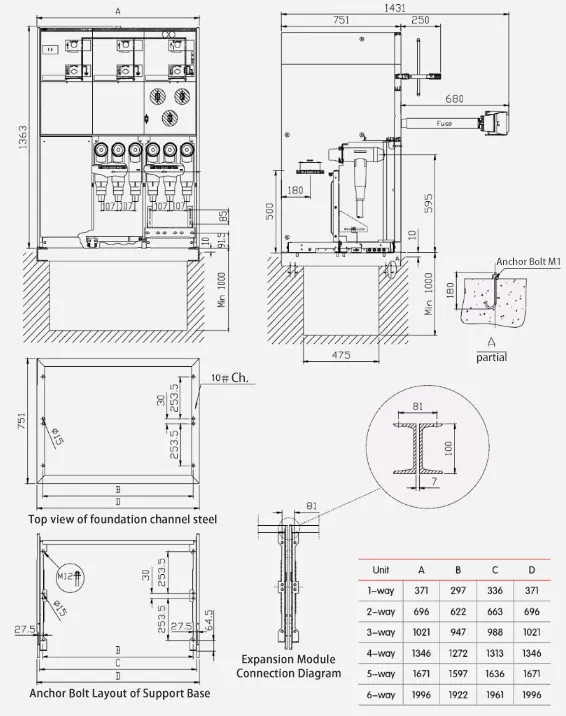

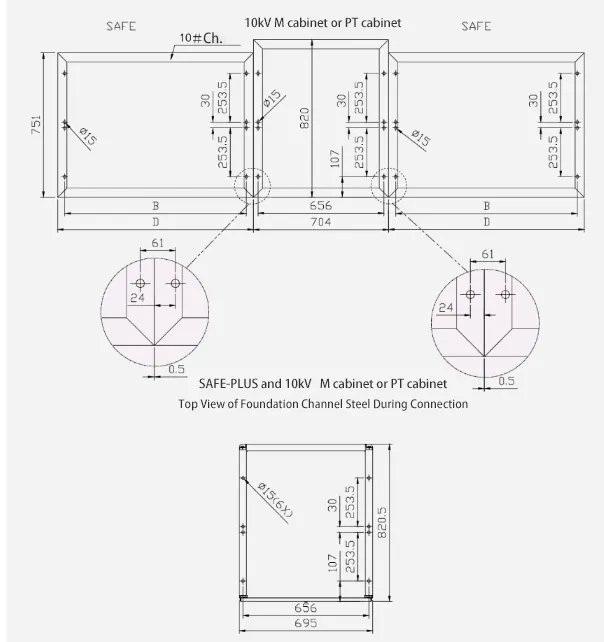

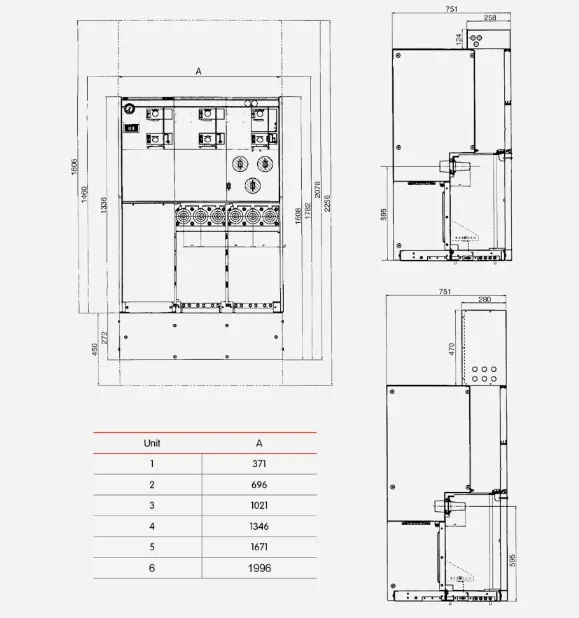

Structure & Dimensions

Frequently Asked Questions

What is the protection rating of the KXRM6-24 cabinet?

The switch cabinet attains an IP67 protection level for its sealed components, while the outer shell is rated at IP56, providing robust defense against dust and water.

Can this GIS cabinet operate in extreme weather?

Yes, it is meticulously engineered to endure extreme temperature variations ranging from +40ºC to as low as -40ºC.

Is the system maintenance-free?

The cabinet is completely sealed and insulated with SF6 gas, rendering it impervious to external environmental factors and designed for maintenance-free operation.

How does the cabinet prevent operational errors?

It features an innovative 'five-prevention' interlocking mechanism to mitigate risks of human mishandling during operation.

What insulation medium is used in the cabinet?

The KXRM6-24 utilizes SF6 gas as its primary arc extinguishing and insulating medium for maximum safety and efficiency.

What are the installation requirements for high altitudes?

The standard design handles up to 1000m. For higher altitude installations, please specify the precise elevation during order for optimal performance adjustments.
