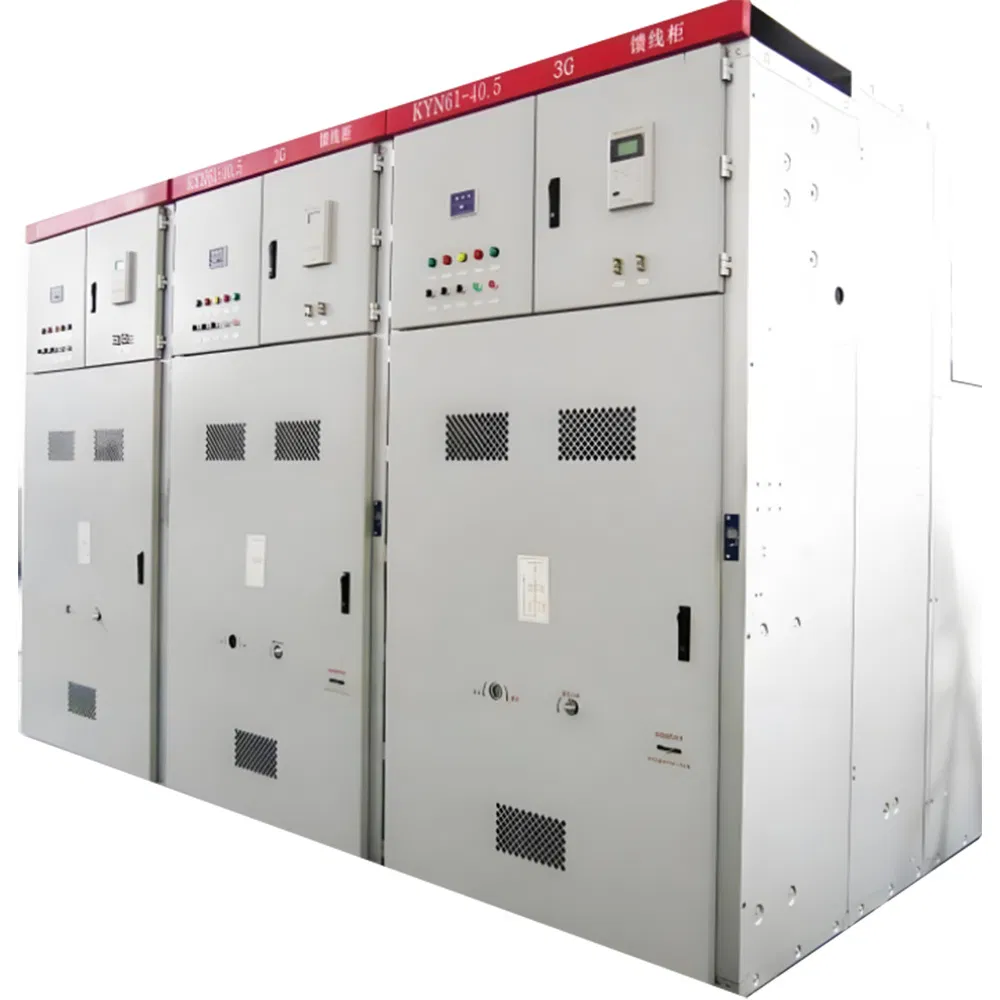

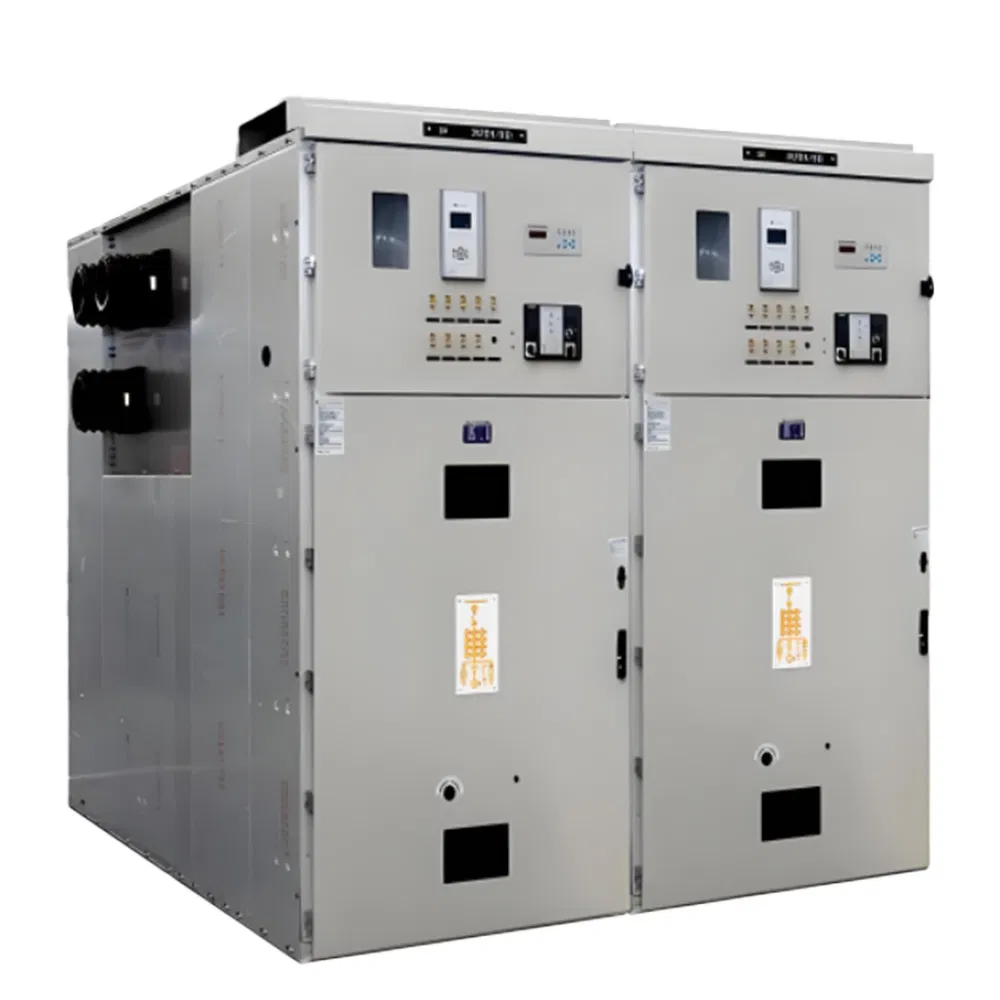

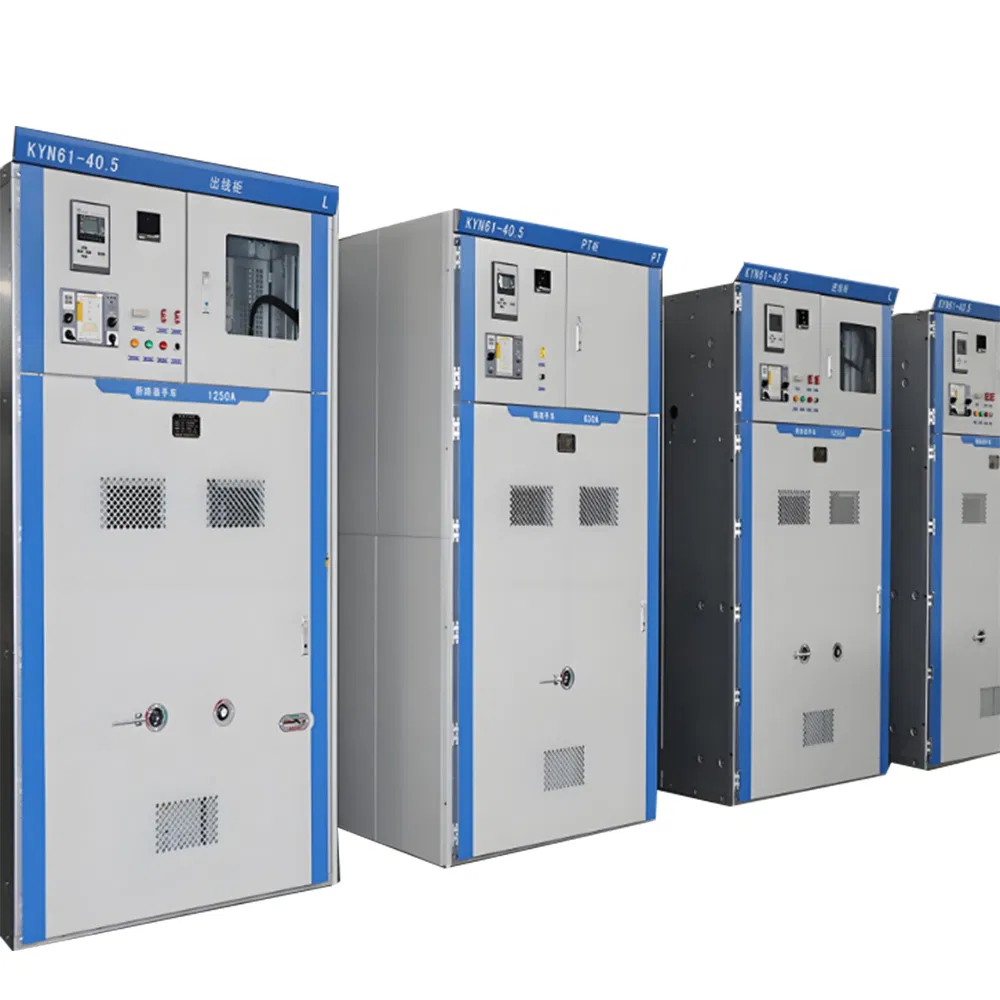

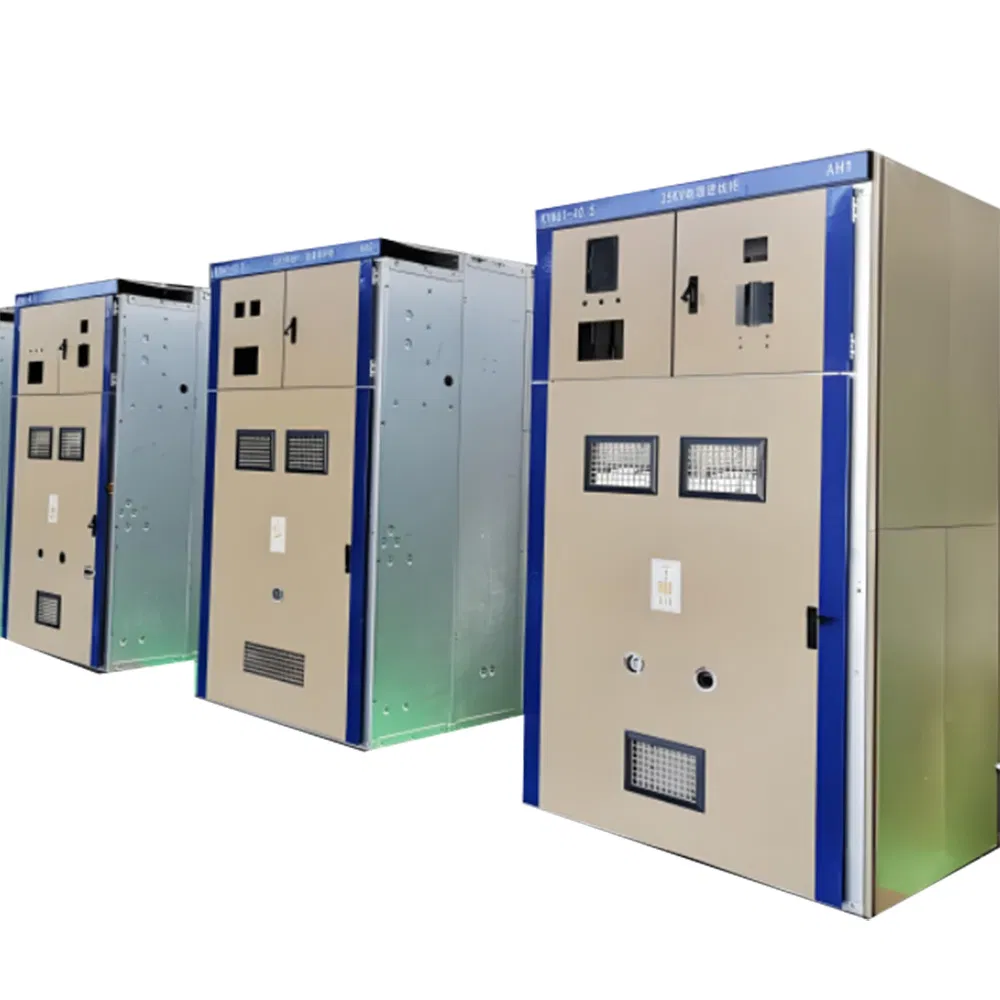

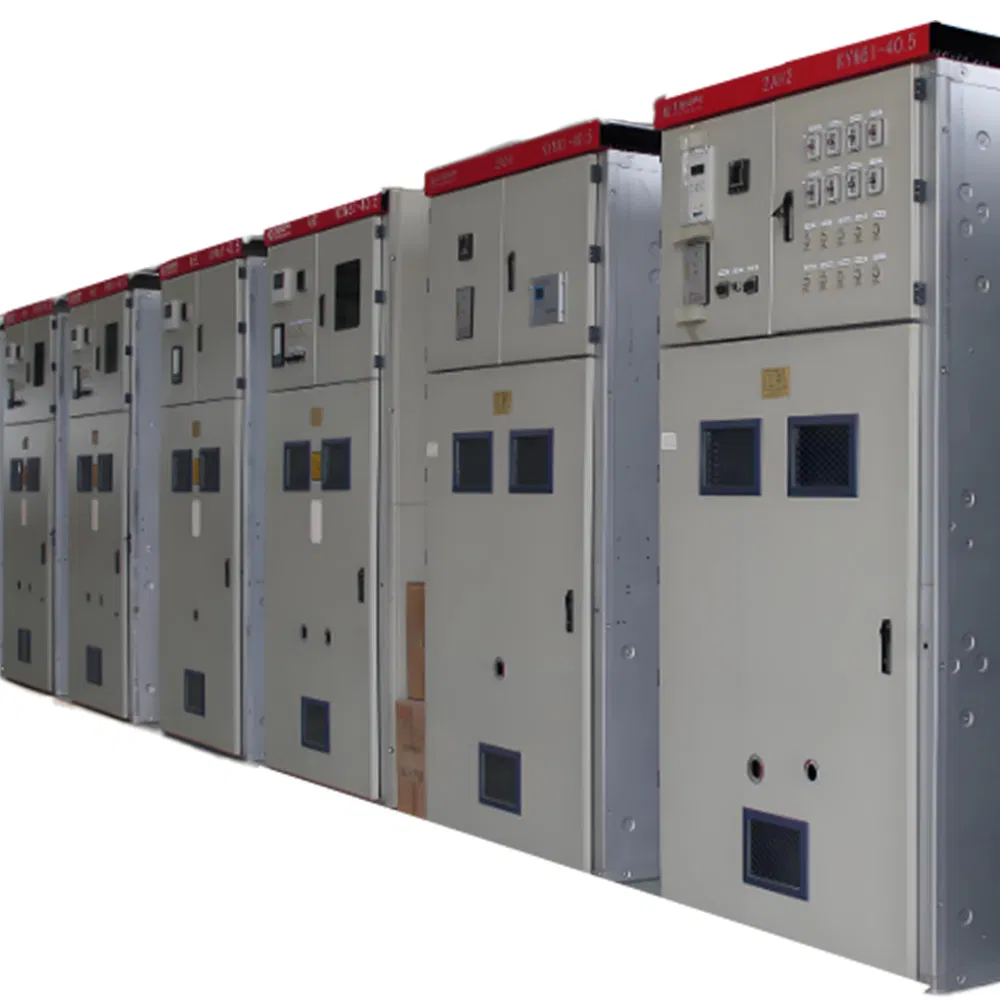

Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
1 / 5
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear
Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear

Kyn61-40.5 AC Metal-Enclosed Distribution Panel Box High-Voltage Panel Electrical Switchgear

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
KYN61-40.5
Installation
Fixed
Structure
Cabinet
Current
AC
Altitude
1000m
Rated Frequency
50Hz
Current Rating
630A/1250A/1300A
Peak Withstand Current
50ka\63ka\80ka
Transport Package
Wooden Case
Origin
China
⚙️ Product Description
Switchgear Overview
Core Features
  • New generation armored switchgear for AC metal-enclosed testing.
  • Assembled by steel plate spraying for high matching accuracy.
  • Equipped with ZN85-40.5 fully insulated vacuum circuit breaker.
Operational Use
  • Used in 35kV three-phase AC 50Hz power systems.
  • Full control, protection, and monitoring functions.
  • Ideal for power plants, substations, and industrial distribution.

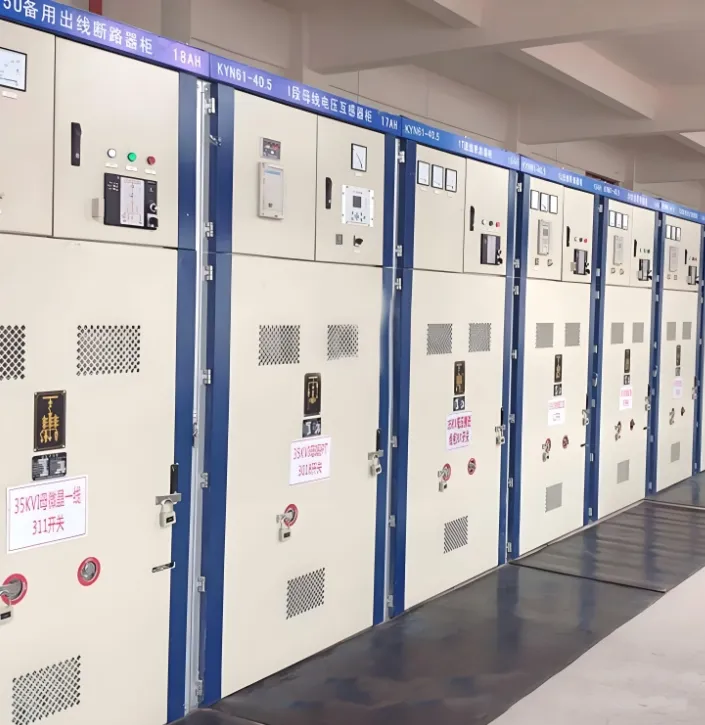

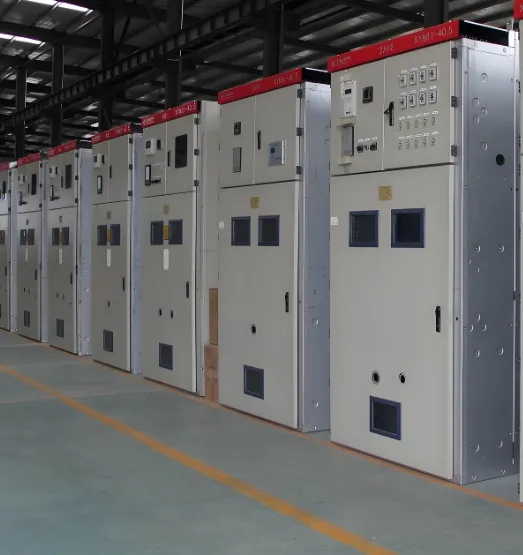

Internal Structure Panel Detail
Parameter Specification Value
Product ModelKYN61-40.5
Rated Voltage-40.5 KV
Current RatingMain Busbar630A/1250A/1300A
Insulation Level1min Power Frequency95/110KV
Lightning ResistanceShock Resistance185/215KV
Rated Frequency-50Hz
Short-circuit Interrupting-20KA, 25KA, 31.5KA
Peak Withstand Current-50KA, 63KA, 80KA
Control Loop VoltageDC/AC110v, 220v
🛡️ Environment & Quality Assurance
Ambient Temp
-15°C ~ 40°C
Humidity
Daily Avg ≤ 95%, Monthly Avg ≤ 90%
Seismic Intensity
≤ 8 degrees
Standards
ISO9001, ISO45001, CCC Certified
🏢 Manufacturing & Certificates

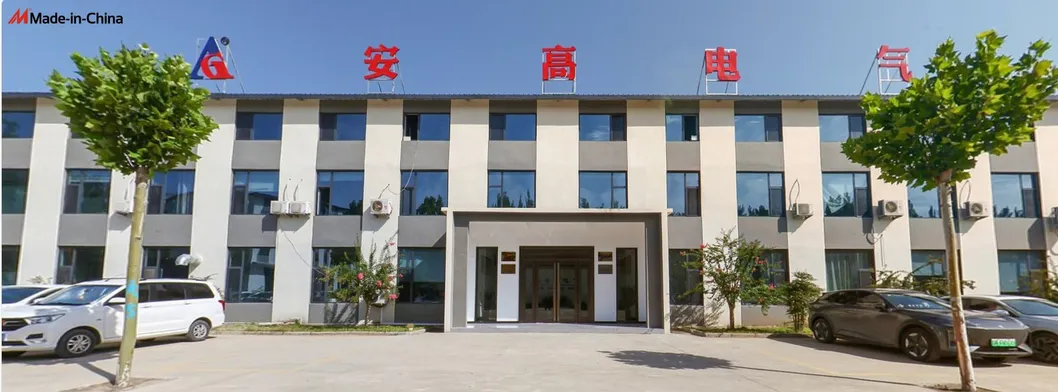

Facility
Customers Certificates
Cooperative Clients
⚡ Product Display
Final Product
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional factory with 19 years of experience in high and low voltage switchgear, substations, transformers, and electrical equipment.
What is your typical delivery time?
Usually, production and delivery take approximately 15-20 days depending on the order specifications.
How do you handle quality control and issues?
We provide detailed analysis through our technical department. For any quality concerns, we offer a satisfactory solution within 2 days.
What is the warranty period for your products?
All products come with a 12-month warranty from the date of the bill of lading.
Do you accept product customization?
Yes, we provide customization based on specific drawings or technical parameters provided by the client.
Do the products meet local international standards?
Our products have been sold globally and have passed relevant certifications recognized locally, ensuring full compliance with customs and safety requirements.
