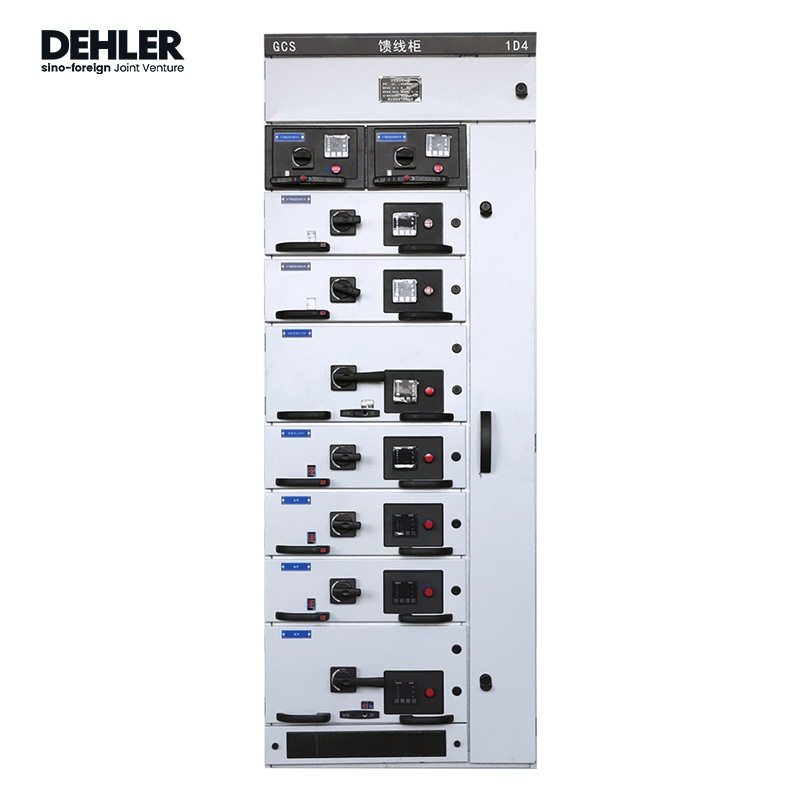

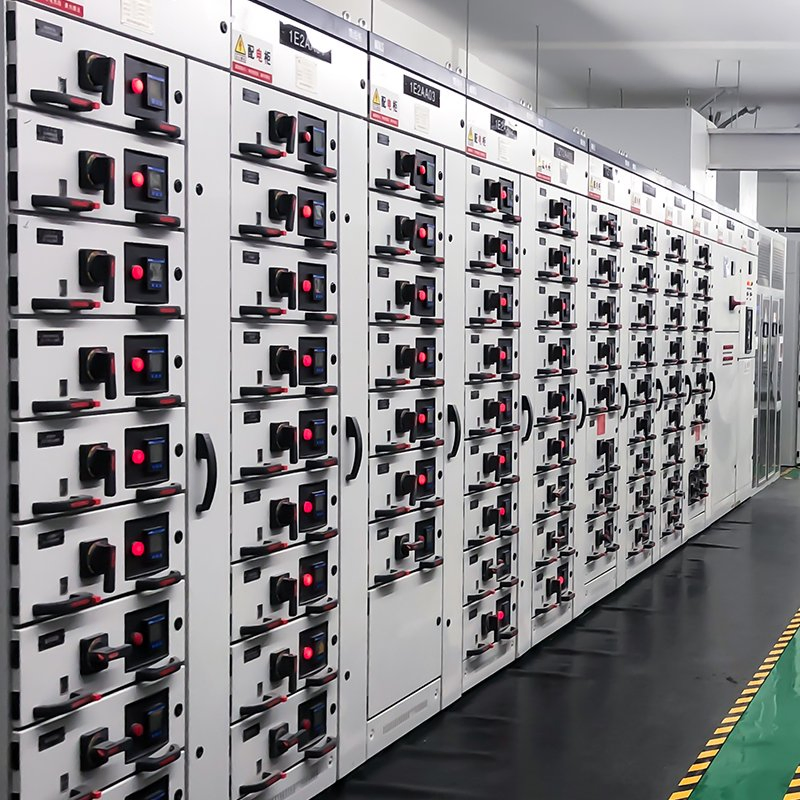

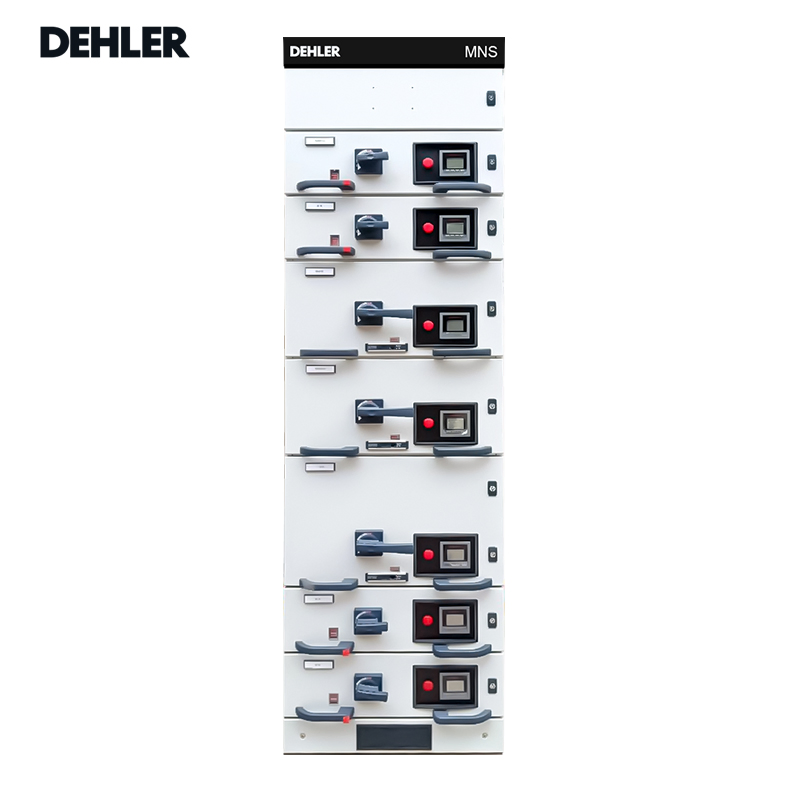

380V, 690V, 230V Steel Plate Smart 10kv High Voltage Switchgear

Customization:	Available
Certification:	CCC, ISO9001
Shell Material:	Steel Plate

📊

Basic Info & Overview

Model NO.

GCS

Product Name

Power Compensation Cabinet

Voltage Level

Low Voltage

Rated Voltage

380V, 690V, 230V

Installation

Removable

Structure

Cabinet

Material

Aluminium Alloy Shell

Current

AC

MOQ

1 set

HS Code

8535210000

⚙️

Product Description

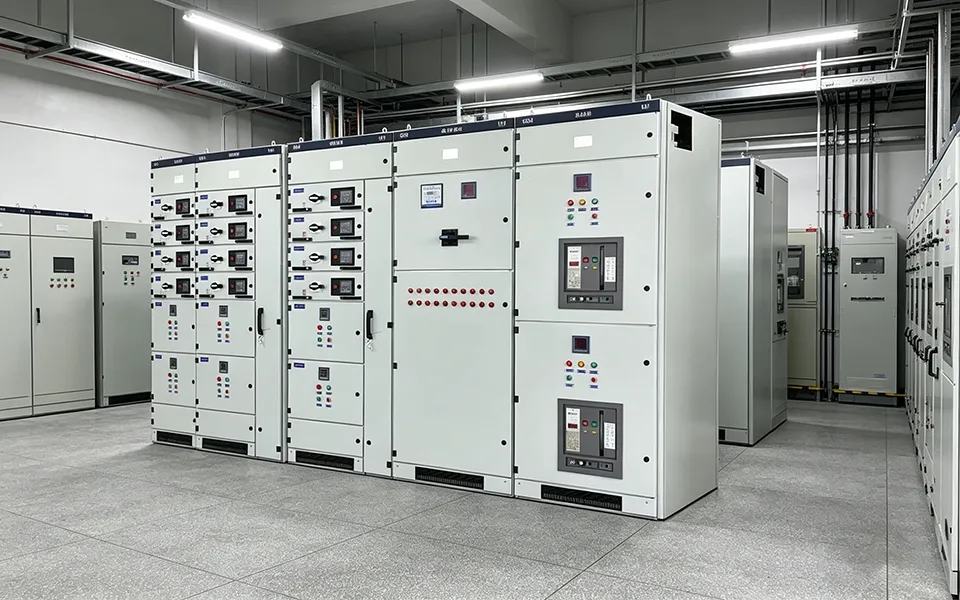

This switchgear is suitable for three-phase five-wire power supply system with AC 50(60) Hz, rated working voltage 400V, 660V, rated current 5000A and below. It is designed for use in power plants, substations, industrial and mining enterprises, hotels, airports, terminals, and communication centers.

Main functions include control of power generation, transmission and distribution, power conversion, and power consumption equipment. Reactive power compensation is performed on its main busbar through the capacitor compensation cabinet.

Project	Unit	Value
Overvoltage category	-	IV, III
Pollution level	-	3
Rated working voltage (Ue)	V	400/660
Rated insulation voltage (Ui)	V	660/1000
Rated frequency	Hz	50(60)
Protection class	-	IP30/IP40

📜

Quality & Certification

Our equipment complies with national and international standards including GB7251.1 "Low-voltage switchgear" and IEC60439 "Low-voltage switchgear and control equipment".

📦

Packaging & Shipping

Transport Package

Wooden Case

Single Gross Weight

400.000kg

Package Size

900.00cm * 700.00cm * 2300.00cm

❓

Frequently Asked Questions

Are you a manufacturer?

We are a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing, and technical services.

What are your major products?

We specialize in high and low voltage switchgear, box-type substations, cable branch boxes, vacuum circuit breakers, isolating switches, and low voltage components.

Can your products be customized?

Yes. Considering differences in voltage, frequency, and other specifications in different regions, our products can be customized according to your requirements.

Do you offer a guarantee for the products?

Yes, we offer at least a one-year guarantee for all of our products.

How can I place an order?

Please provide detailed technical specifications or a Single Line Diagram (SLD) via email or messaging platforms. Our sales staff will provide a quotation and further guidance.

What is the typical production capacity?

Our current production capacity is approximately 1000 sets per month.
