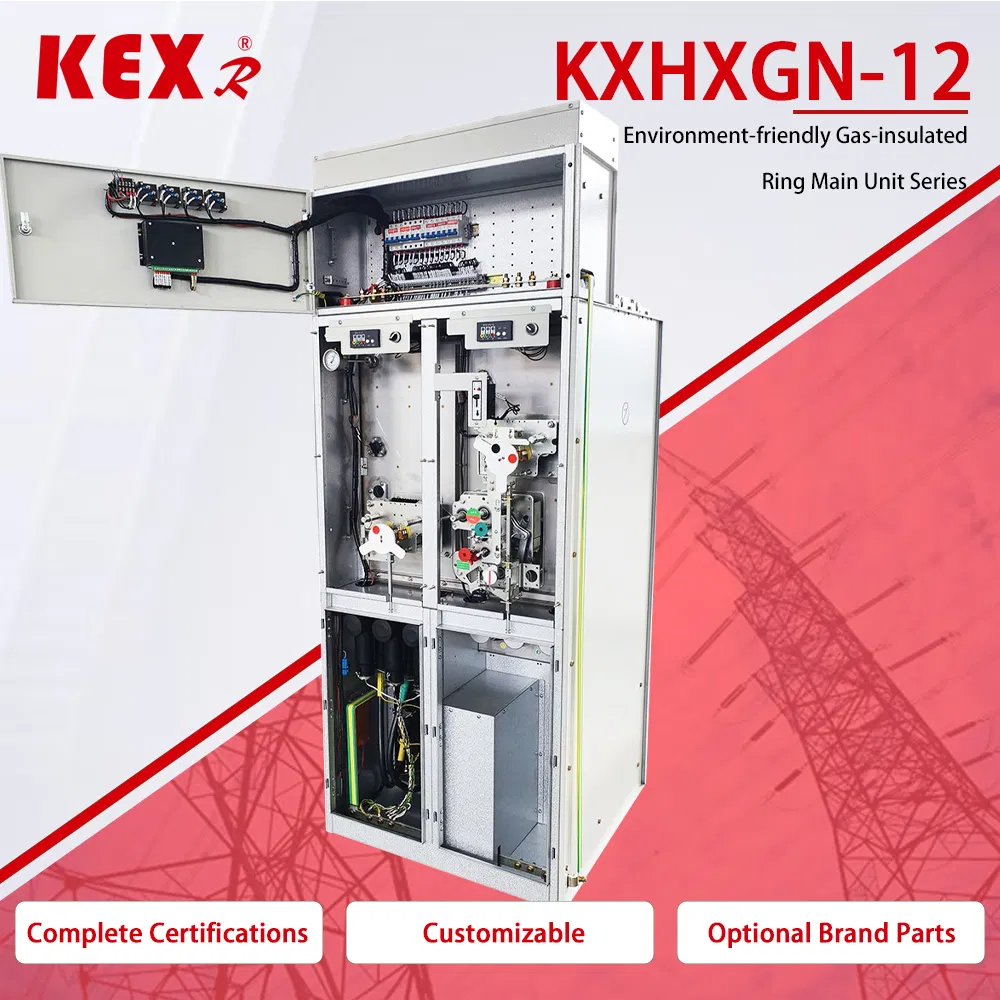

The KXHXGN Environmental Protection Gas Insulated Ring Main Unit is an innovative power solution utilizing non-toxic, harmless materials. By employing N2 or dry air as its insulation medium, it ensures a safe and sustainable operation, transforming the landscape of eco-conscious design. It significantly reduces gas emissions and facilitates recycling after its life cycle, promoting environmental conservation.
This environmentally friendly GIS cabinet does not utilize any toxic or harmful gases. It is ideal for basements, tunnels, ships, and extreme conditions such as high altitudes, strong sandstorms, or low-temperature climates. The unit is fully insulated and enclosed, allowing it to resume operation even after brief water exposure.
Meticulously sealed high-voltage switch components minimize the need for cleaning and maintenance. Equipped with advanced automation and real-time online detection, it enhances distribution network efficiency while reducing manual labor costs.
A robust interlocking system ensures maximum safety with visible three-phase isolation fractures. By eliminating SF6 gas and using explosion-proof vacuum interrupters, it prevents interphase short circuits and explosion risks.
Simplified single-handle operation for disconnector grounding switches eliminates confusion. The solid sealing pole, crafted using the epoxy resin APG process, delivers exceptional mechanical and electrical performance.

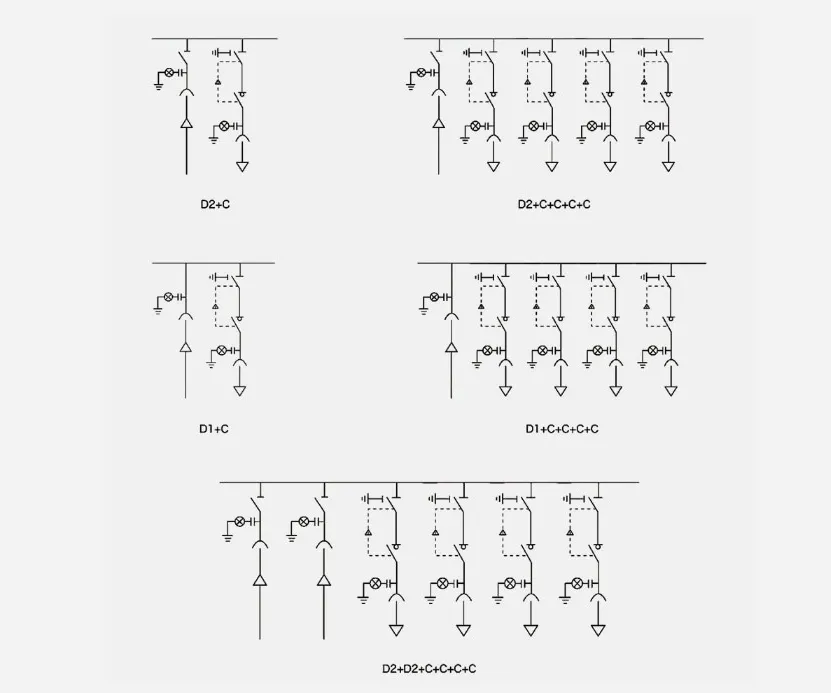

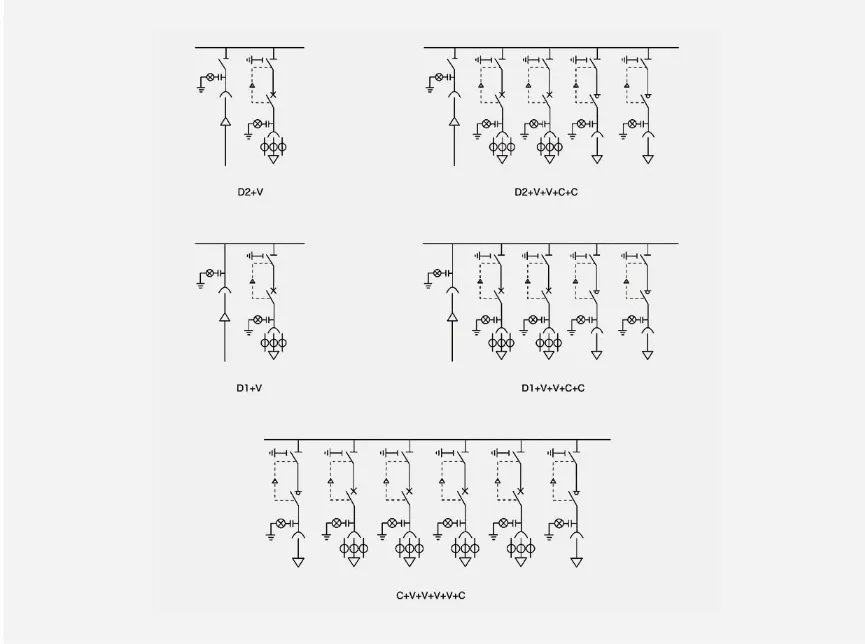

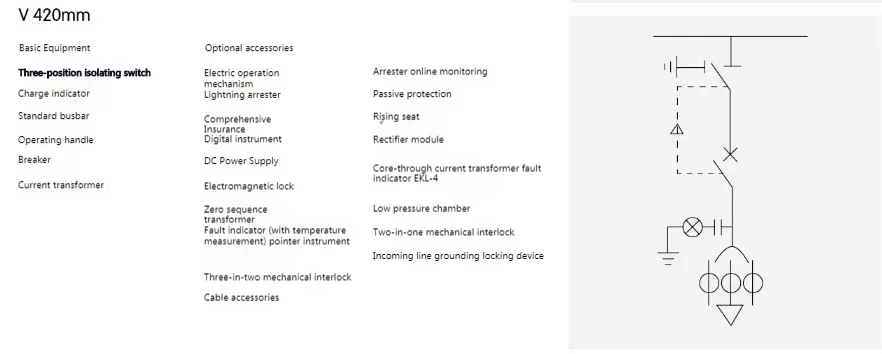

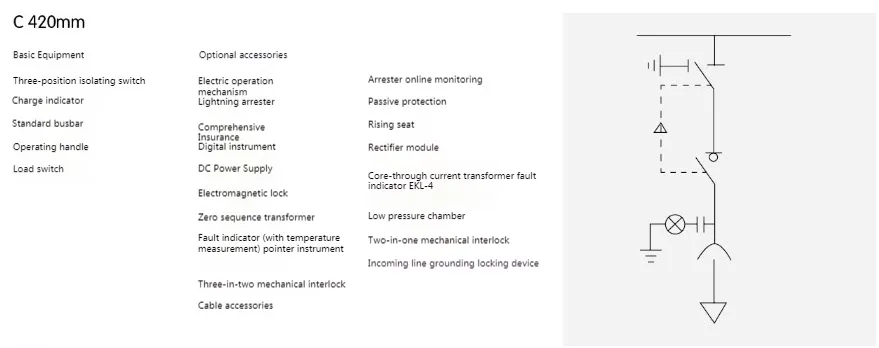

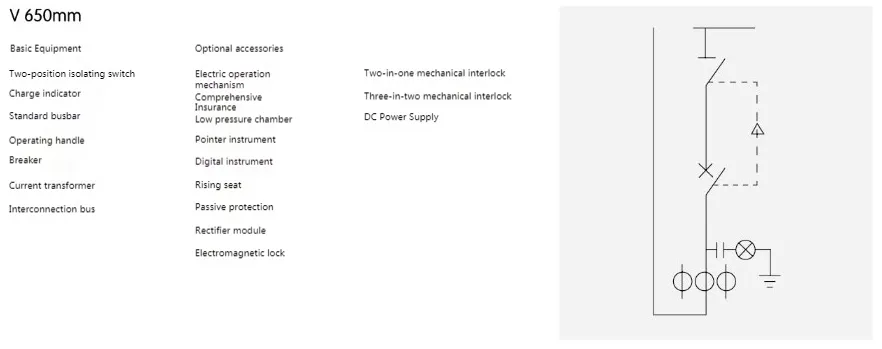

Note: Reference schemes provide flexible combinations tailored to specific user specifications.

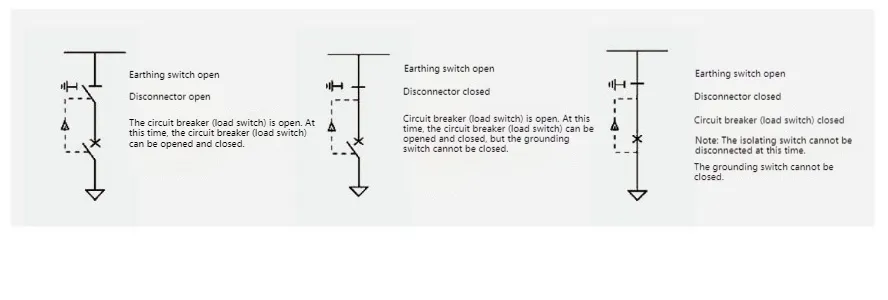

Power Transmission: Securely close both doors → engage grounding/isolating switch → circuit breaker concludes transmission.
Power Cut: Initiate breaker → operate disconnector → engage earthing switch → breaker is safely unloaded.
