Product Description

⚙️ Basic Information

Model NO.

KXHB-12

Certification

ISO9001:2000, CCC

Form

All-packaged Type

Operation Voltage

High Voltage

Size

3 Unit

Application Range

Power Plants

Shell Material

Stainless Steel

Protection Grade

IP56

Warranty Period

12~24 months

HS Code

85371090

📘 Product Description

💡

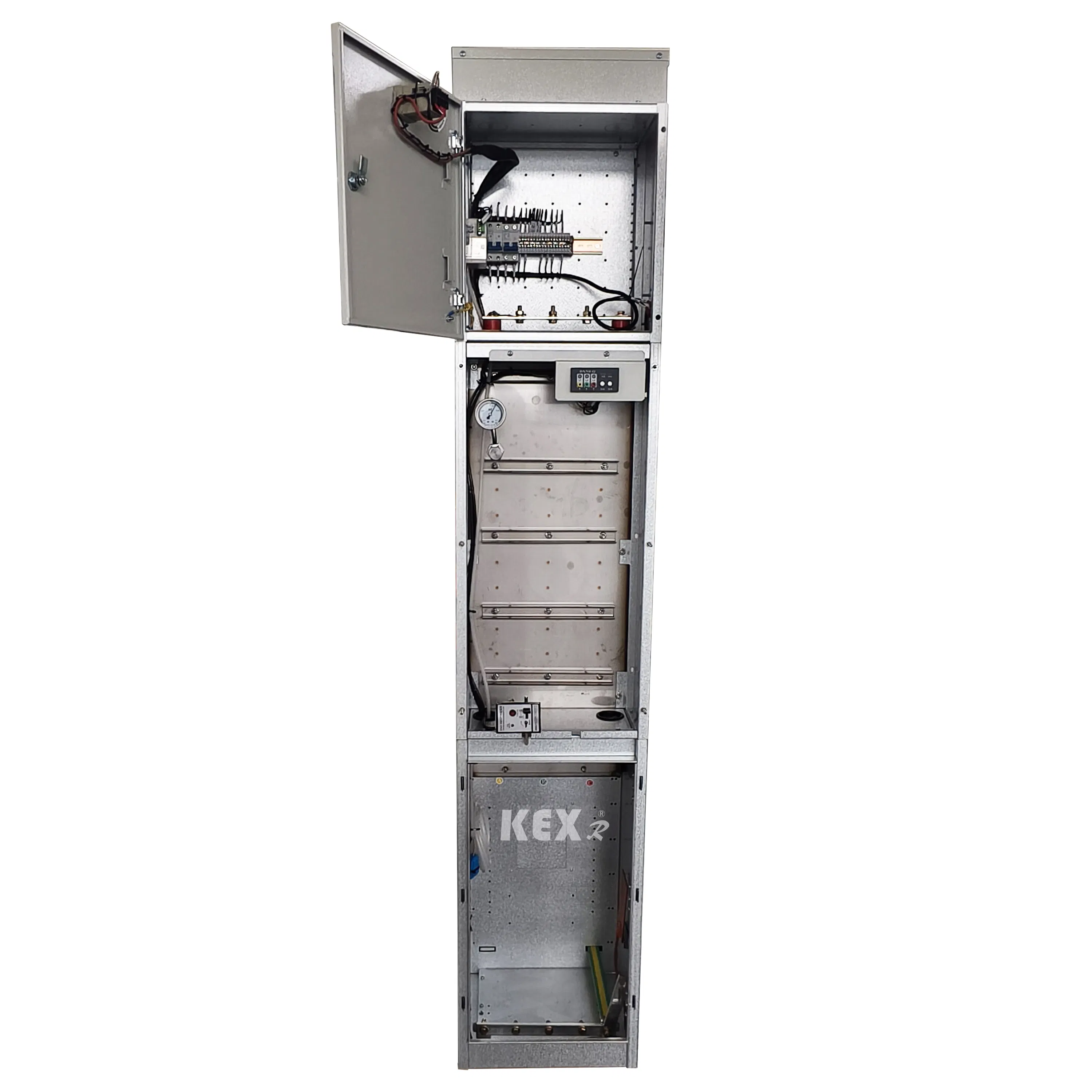

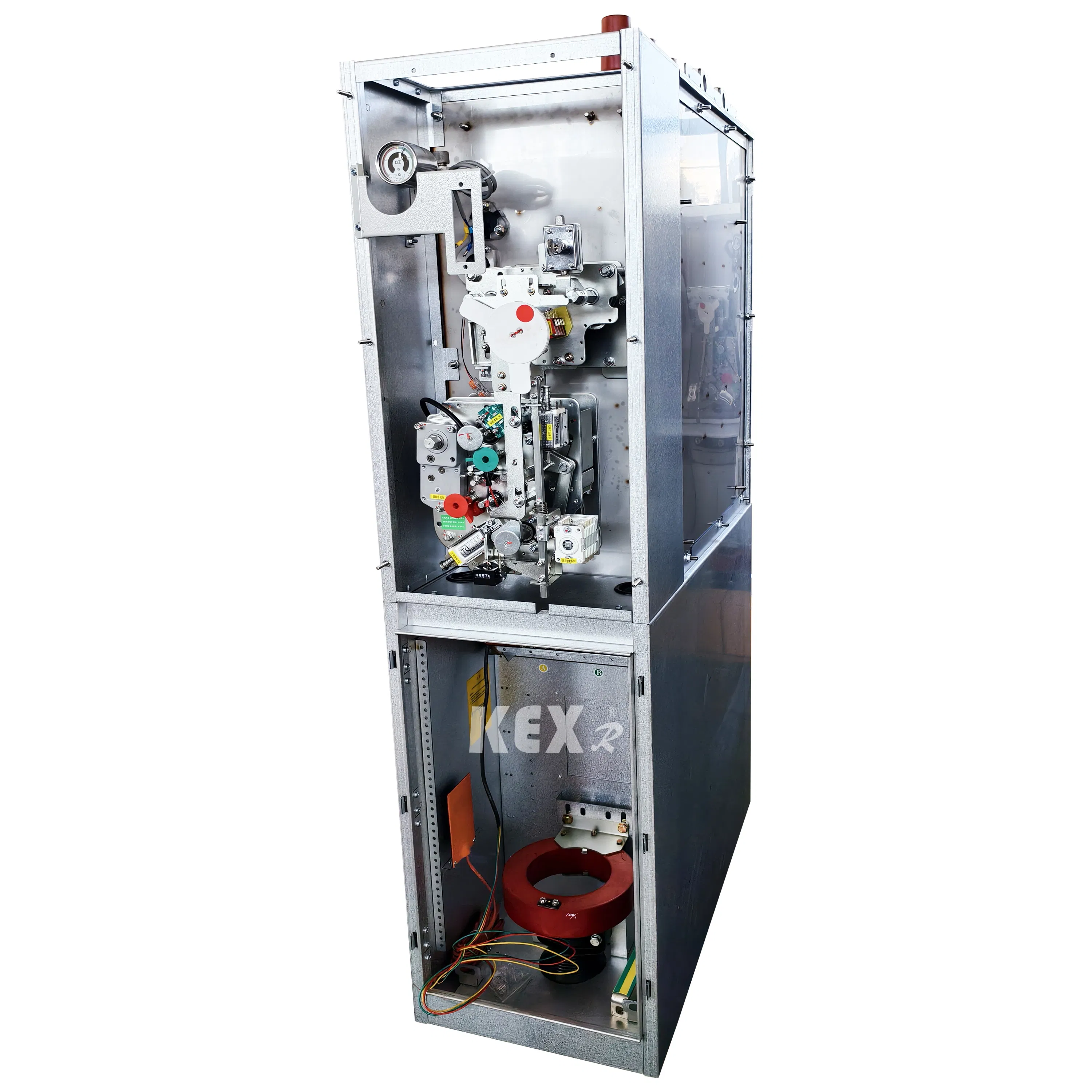

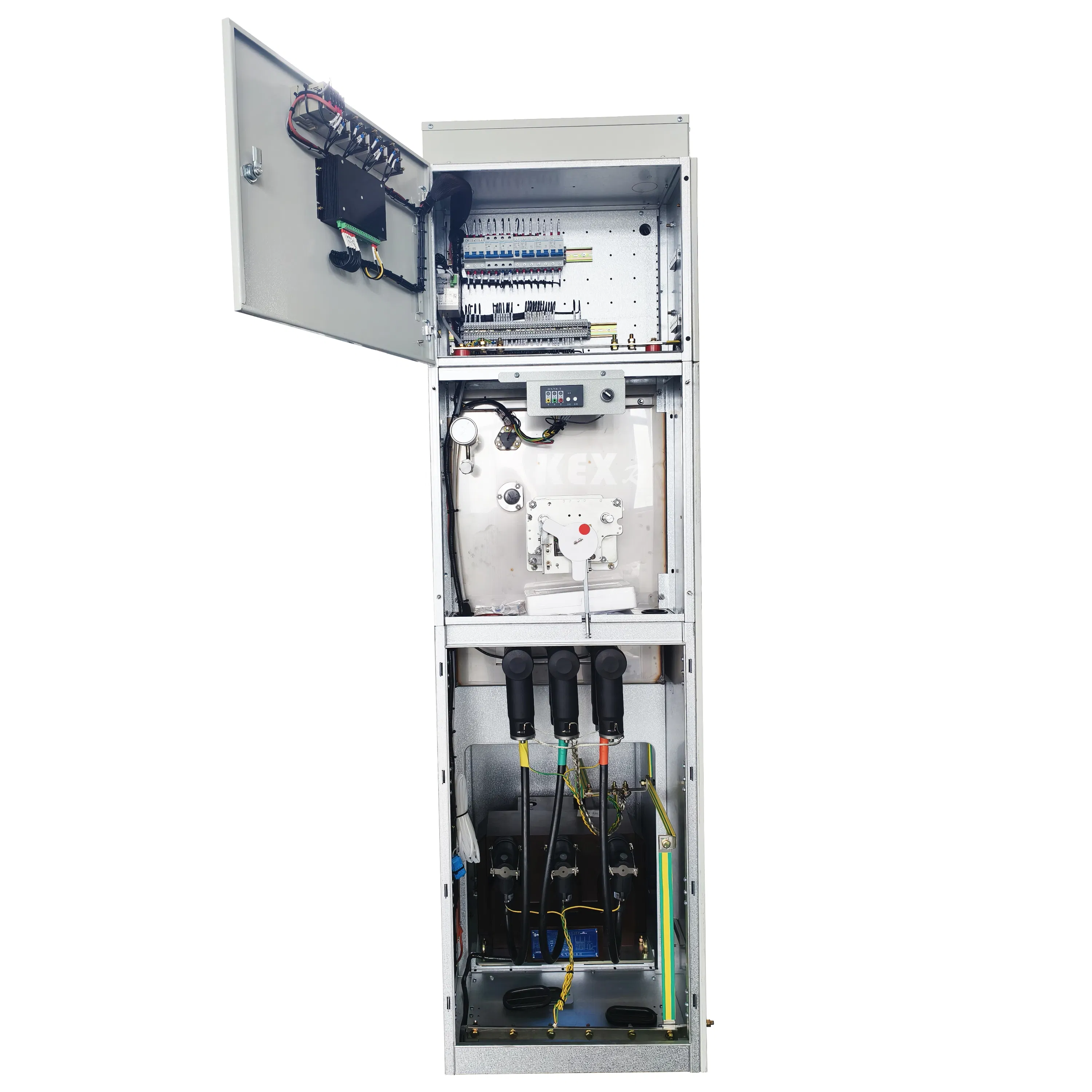

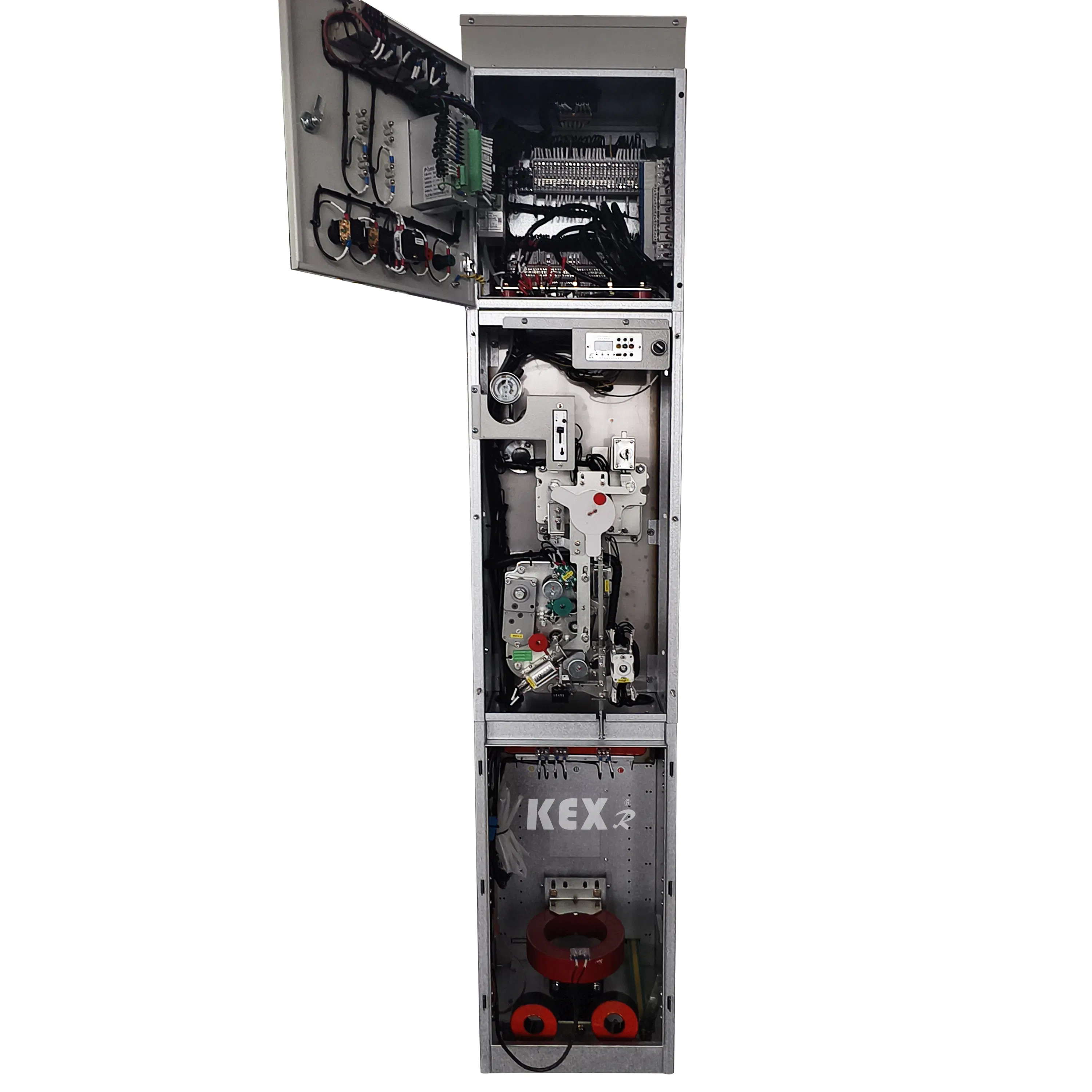

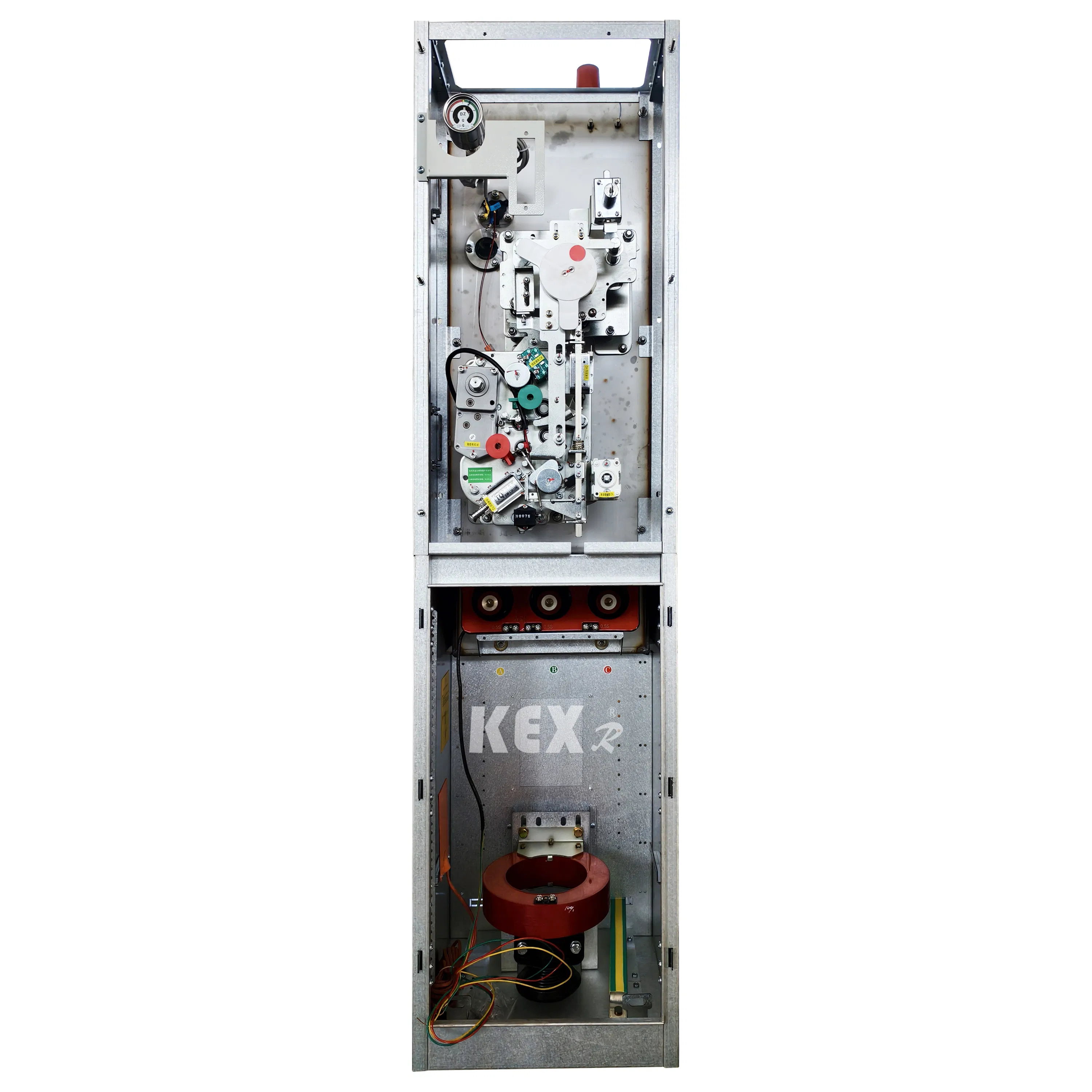

The environmentally friendly Gas Insulated Switchgear Cabinet is an engineering masterpiece designed with a straightforward yet resilient structure. It assures seamless operations, dependable interlocking, and hassle-free installation. Its adaptability makes it the quintessential choice for a spectrum of power distribution needs including urban residential areas, industrial enterprises, wind farms, and transport hubs like airports and subways.

Model: KXHB-12 | Brand: KEXR

📍 Conditions of Use

Temperature Range: -25~45ºC (Max Daily: 35ºC)
IP Degree: Charged Body Seal IP67, Switch Cabinet Shell IP4x
Environment: Free from corrosive or combustible gases and water vapor
Vibration: Designed to endure environments devoid of frequent or intense vibrations

📊 Technical Parameters

Circuit Breaker Cabinet Data

Item	Unit	Data
Rated Voltage	KV	12
Rated Frequency	HZ	50
Rated Current	A	630
Rated Short-term Withstand Current	kA	25/4s
Rated Peak Withstand Current	kA	63
Mechanical Life (Breaker/Disconnector)	Time	10000/3000
Annual Leakage Rate	%/Year	≤0.05
Sealed Box IP Rating	-	IP67

🛠️ Configuration Schemes

Scheme 1: CL650mm

PTC500mm Solution

Scheme 2: C 420mm

V 420mm Disconnector

V 650mm Operating System

Scheme 3: DI 420mm

PTS500 Precision

M 650mm Versatility

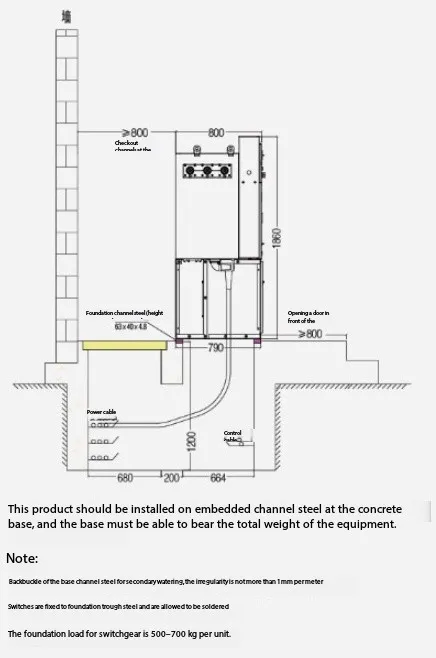

🕹️ Operation & Installation

Power Transmission: Ensure upper and lower doors are closed, then proceed with grounding and isolating switches.

Power Cut: Execute via breaker, then disconnector, then earthing switch to securely blackout the door.

❓ Frequently Asked Questions

Q1: What is the rated voltage for the KXHB-12 switchgear?

A: The KXHB-12 is designed for high-voltage operations with a rated voltage of 12KV and a frequency of 50Hz.

Q2: What is the protection grade of the unit?

A: The shell protection grade is IP56, while the internal charged body seal reaches an IP67 rating, ensuring high reliability in various environments.

Q3: Can the cabinet configuration be customized?

A: Yes, the system supports various configuration schemes (CL650mm, PTC500mm, etc.) and can be rearranged to meet specific user requirements.

Q4: What materials are used for the outer shell?

A: The shell is constructed from high-quality stainless steel, providing excellent durability and corrosion resistance.

Q5: What are the installation environment requirements?

A: It should be installed in environments between -25°C and 45°C, free from intense vibrations and corrosive or combustible gases.

Q6: What certifications does this product hold?

A: The product is certified under ISO9001:2000 and CCC, meeting rigorous international and national safety standards.
