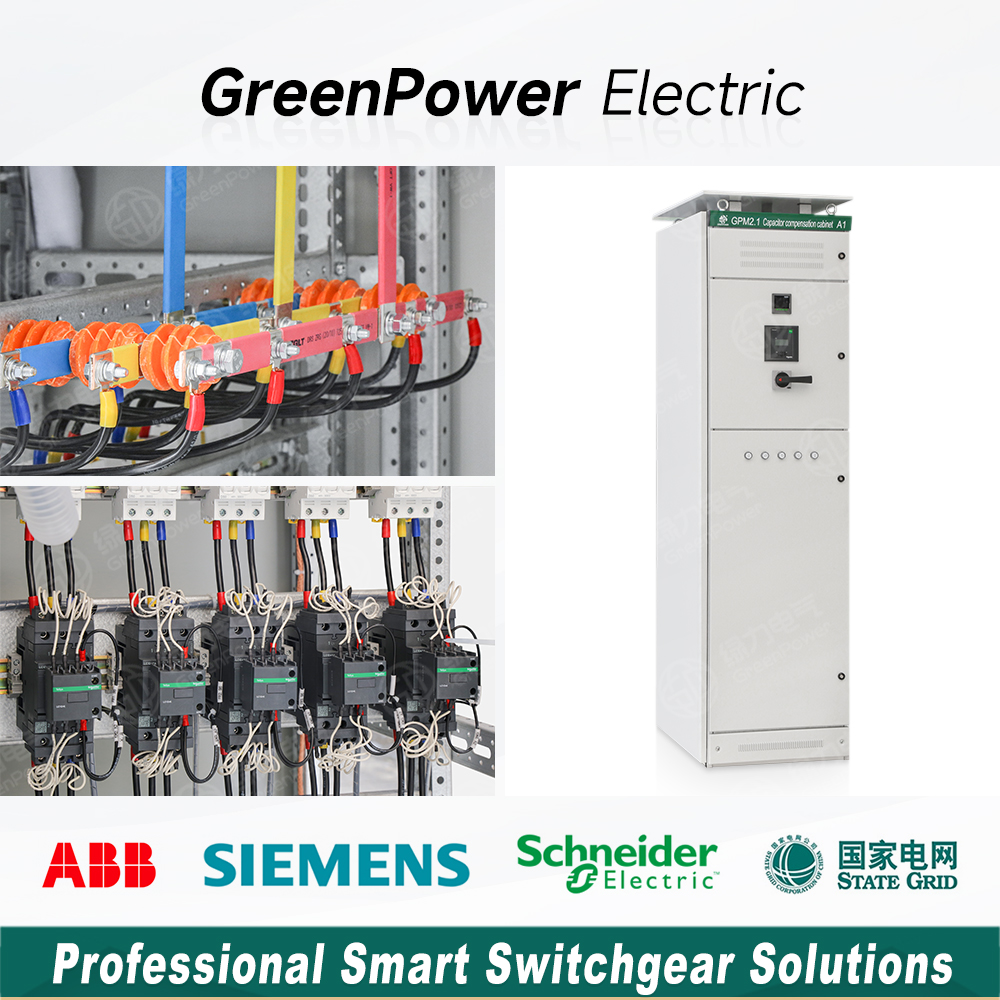

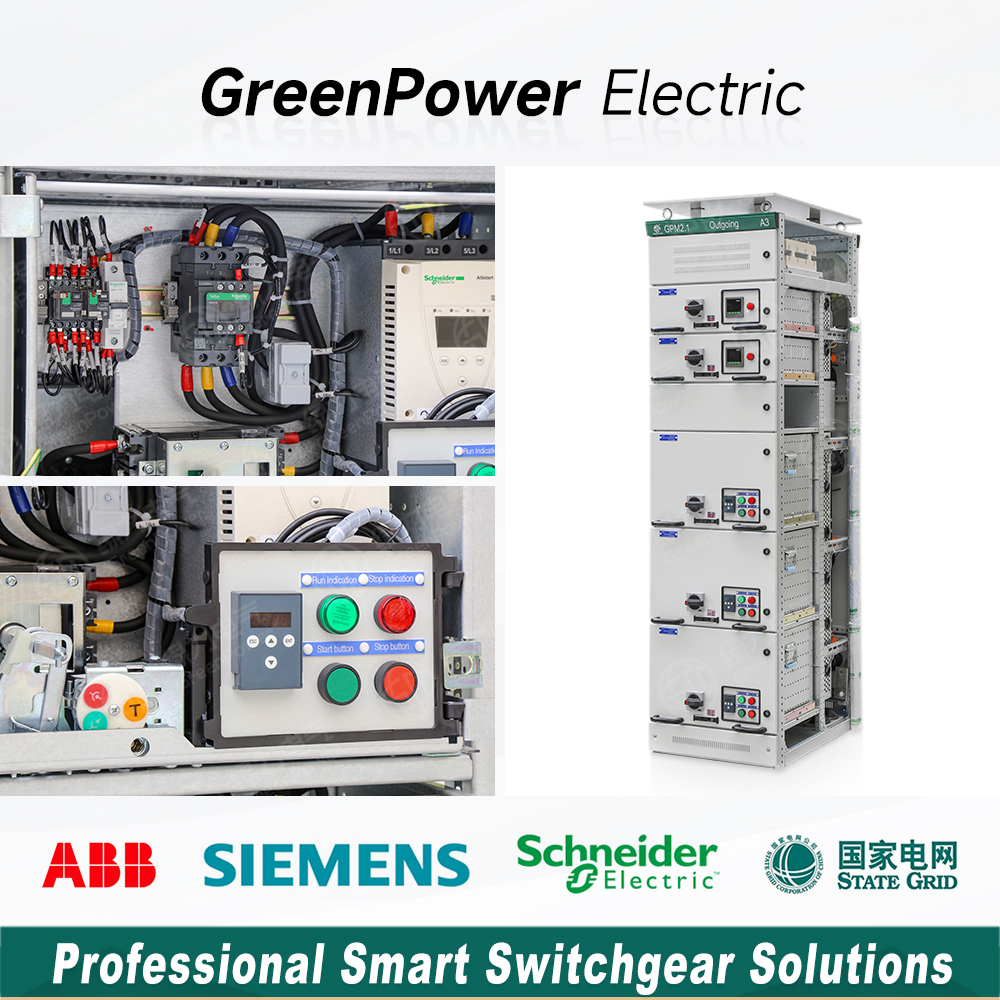

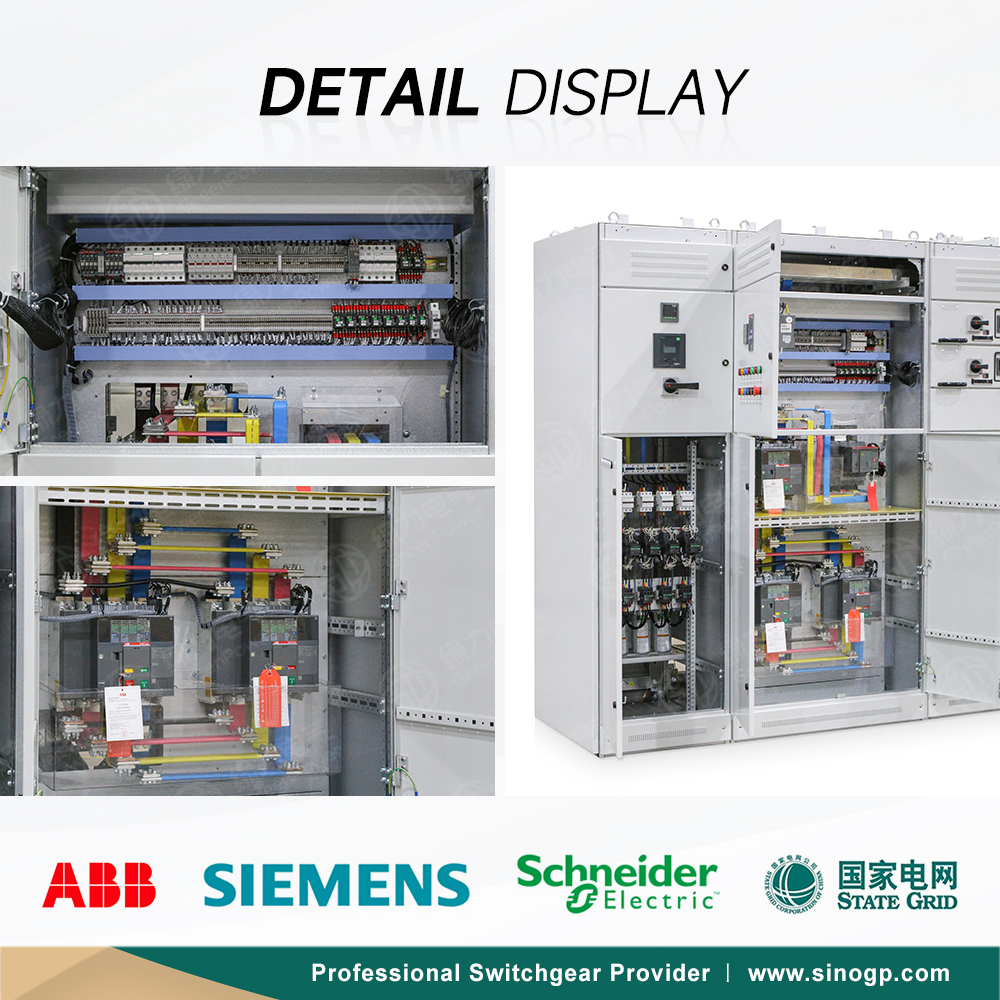

GPM2.1 Drawer Type Low Voltage Switchgear
GPM2.1 low voltage drawer switchgear adopts standard modules and is factory assembled. It is suitable for AC 50/60Hz, rated working voltage <660V, and the power supply and distribution systems rated current 6300A and below. These units are used for electric energy distribution, conversion, control and reactive power compensation.
The GPM2.1 low voltage drawer switchgear is a control device featuring advanced technology, stable performance, a reasonable structure, and safe, reliable operation. It has been widely adopted in power supply and distribution systems across sectors such as power generation, construction, steel, cement, mining, and petrochemical industries.
| No. |
Item |
Unit |
Data |
| 1 |
Rated voltage |
V |
380 / 440 / 660 |
| 2 |
Rated current |
A |
630~6300 |
| 3 |
Rated frequency |
Hz |
50 / 60 |
| 4 |
Rated peak withstand current |
kA |
1pk can cause 375kA |
| 5 |
IP Degree |
- |
IP30 / IP32 / IP40 / IP54 |
| 6 |
Outline dimension (W*D*H) |
mm |
800 / 1000 / 2200 | 1000 / 1000 / 2200 |
| 7 |
Weight |
kg |
500~800 |
| 8 |
Package |
- |
Wooden case |
| 9 |
Rated insulation level |
V |
660 / 1000 |
Frequently Asked Questions
Q1: What are the main applications of GPM2.1 Low Voltage Switchgear?
A: It is widely used for energy distribution, conversion, and control in power plants, steel mills, petrochemical facilities, and large-scale construction projects.
Q2: What is the rated current capacity for this system?
A: The GPM2.1 switchgear supports rated currents up to 6300A, making it suitable for high-demand power supply systems.
Q3: Which protection degrees (IP) are available?
A: We offer multiple IP degrees including IP30, IP32, IP40, and IP54 to suit different environmental requirements.
Q4: Does the switchgear support both 50Hz and 60Hz frequencies?
A: Yes, the equipment is designed to operate efficiently at both AC 50Hz and 60Hz frequencies.
Q5: How is the product packaged for international shipping?
A: Every unit is securely packed in a robust wooden case to ensure safety and prevent damage during transportation.
Q6: What is the maximum rated insulation voltage?
A: The rated insulation level for this switchgear is specified at 660V to 1000V.
