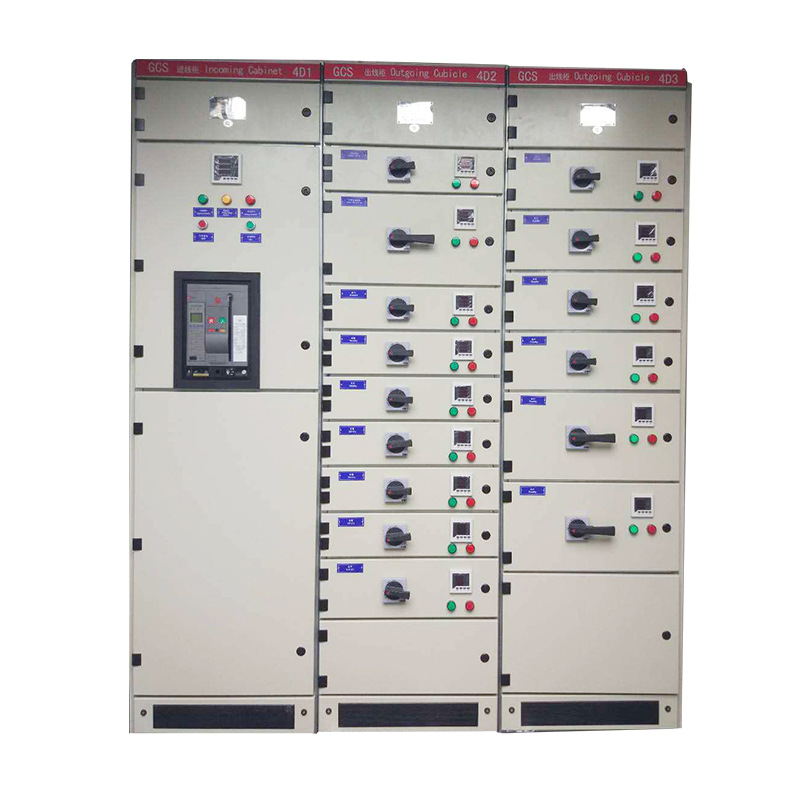

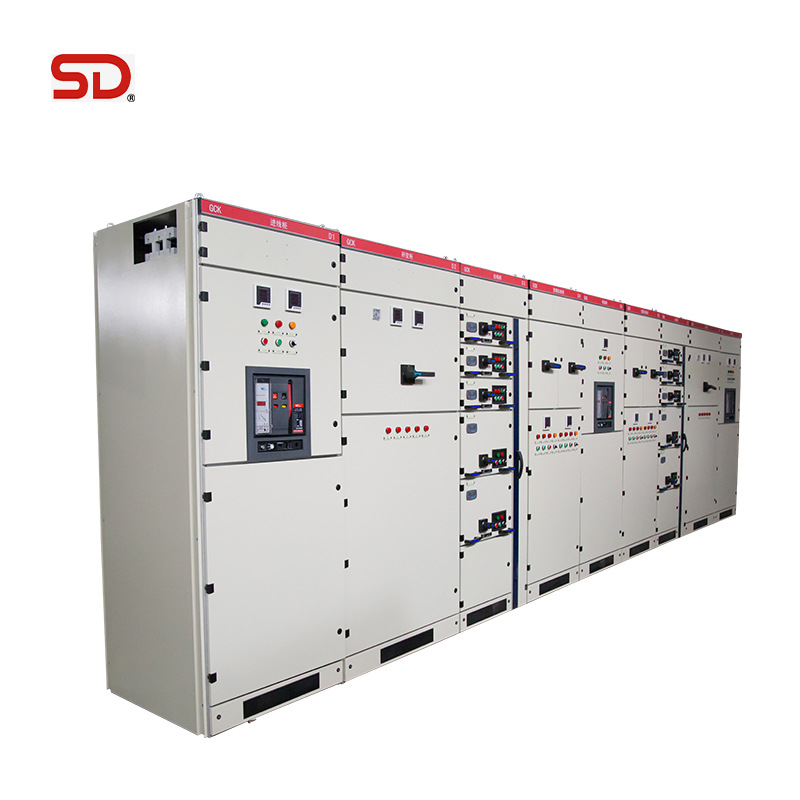

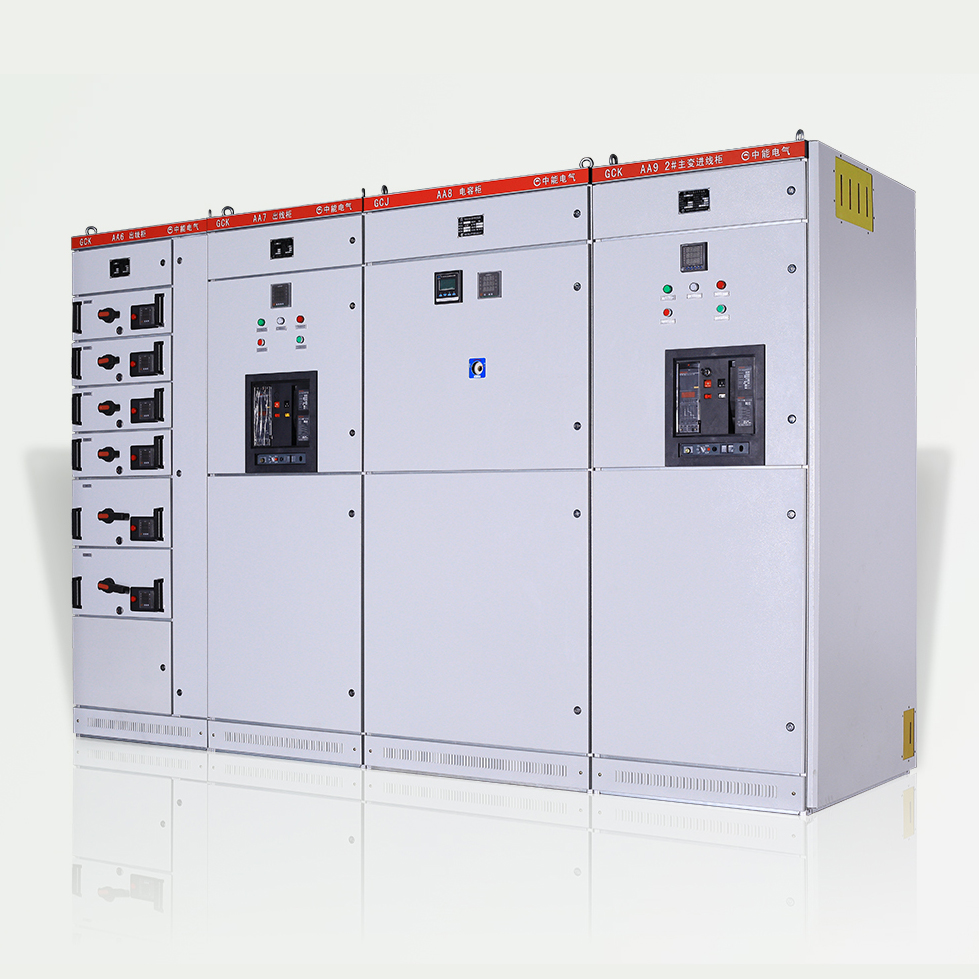

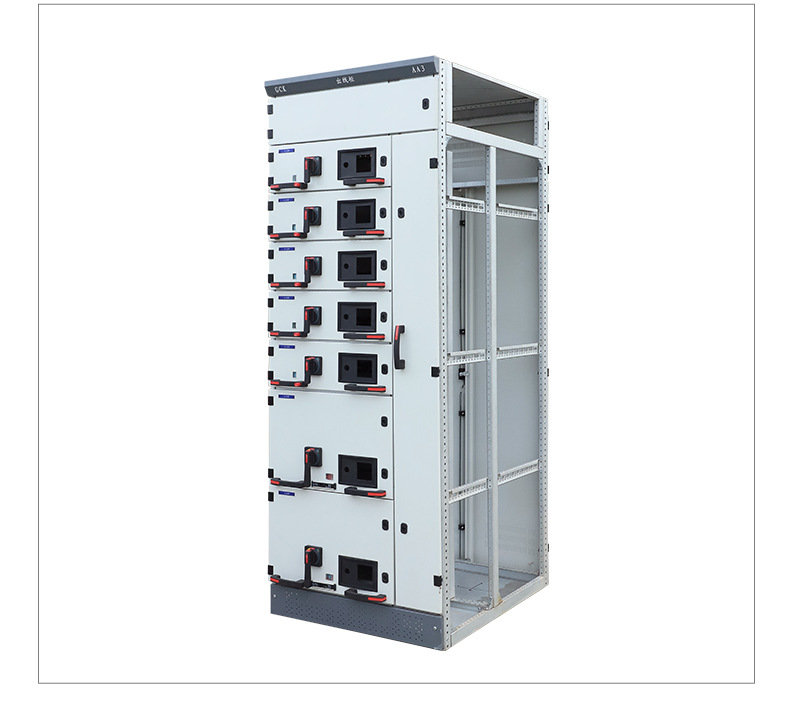

GCK GCS MNS AC Low-Voltage Withdrawable Switch Distribution Cabinet
★
Overview: The GCK series low-voltage draw out distribution cabinet is a high-performance solution developed to meet the rapid development of power systems. It offers a superior cost-performance ratio compared to similar products.
★
Advanced Design: Characterized by an advanced structure, aesthetic appearance, high protection level, and exceptional safety. It is designed for convenient maintenance and serves as a new generation of low-voltage switchgear.
Scope of Application & Purpose
The GCK series low-voltage draw out power distribution cabinet is an advanced assembled device suitable for three-phase four-wire or three-phase five-wire systems (AC 50Hz, rated voltage ≤380V). It is ideal for:
- ✔ Power conversion and distribution in power centers (PC).
- ✔ Centralized motor control centers (MCC).
- ✔ Automatic power distribution with program controllers and microprocessors.
- ✔ Industries: Power plants, substations, metallurgy, petroleum, chemical, textiles, and machinery.
Compliance Standards:
• IEC60439-1 Low voltage Switchgear and Controlgear Assemblies
• GB7251.1 Low voltage Switchgear and Controlgear Assemblies
• ZBK3600 Low Voltage Drawout Switchgear
Model Meaning Reference
▶ GGD: G-Low voltage distribution; G-Fixed installation; D-Power cabinet.
▶ GCK: G-Enclosed switchgear; C-Draw out type; K-Control center.
▶ GCS: G-Enclosed switchgear; C-Draw out type; S-Senyuan electrical system.
Service Conditions
1. Ambient air temperature: -5℃ to +40℃ (24h average ≤ +35℃).
2. Altitude: Indoor installation not exceeding 2000m.
3. Humidity: ≤50% at +40℃; higher humidity allowed at lower temperatures (e.g., 90% at +20℃).
4. Installation inclination: Not exceeding 5° to the vertical plane.
5. Storage/Transport: -25℃ to +55℃ (short term up to 70℃).
Main Technical Parameters
| Main circuit rated working voltage (V) |
380 / 660 |
| Auxiliary circuit rated working voltage (V) |
AC380, 220 / DC220, 110 |
| Rated frequency (Hz) |
50 |
| Rated working current (A) - Horizontal bus |
630, 1000, 1600, 2000, 2500, 3000 |
| Rated working current (A) - Vertical bus |
630, 800, 1000 |
| Rated short-time withstand current (kA/s) |
50/30 (30 for neutral bus) |
| Rated peak withstand current (kA) |
63, 105 |
| Motor capacity range (kW) |
0.45-160 |
| Enclosure protection grade |
IP30 |
| Operation mode |
Manual, Electric |

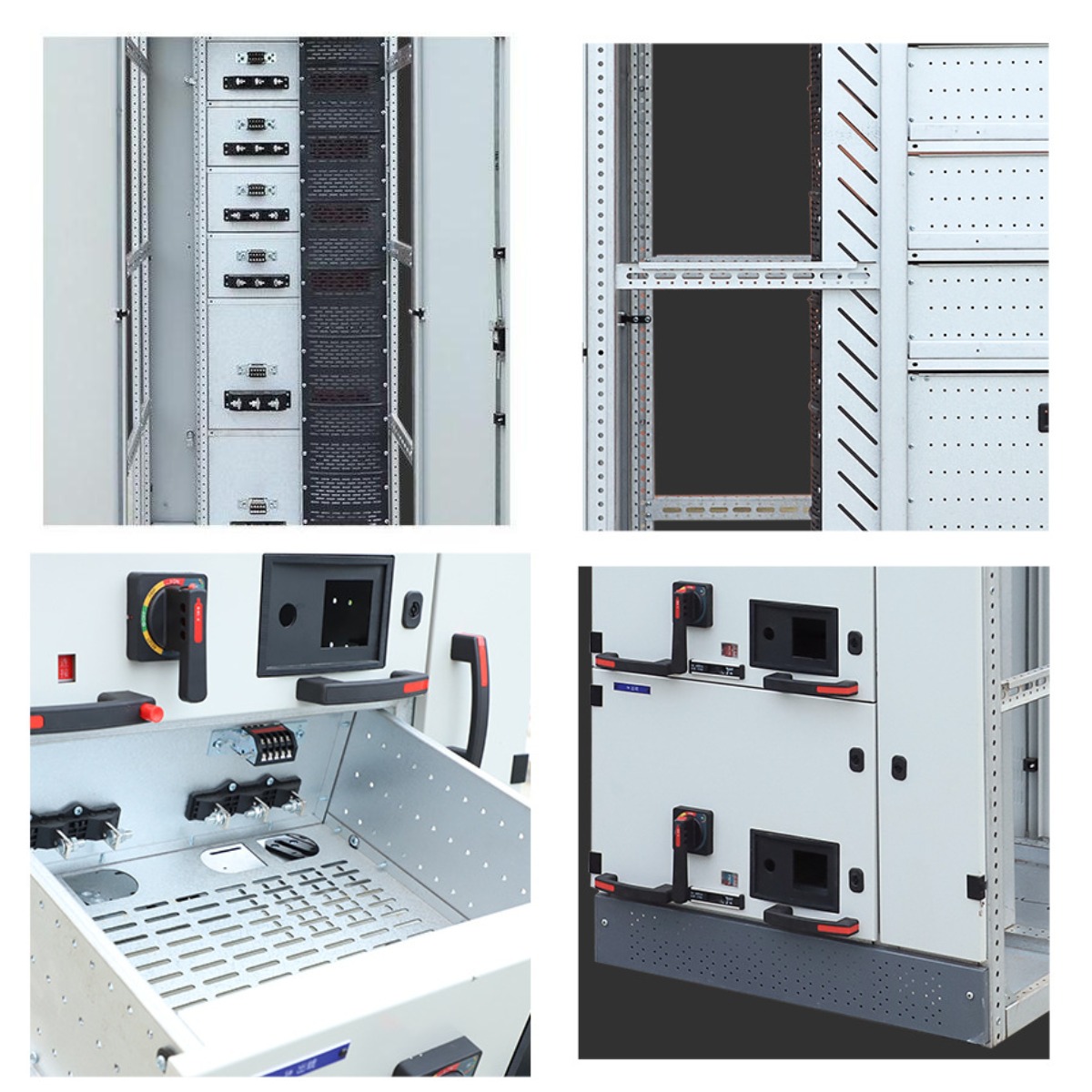

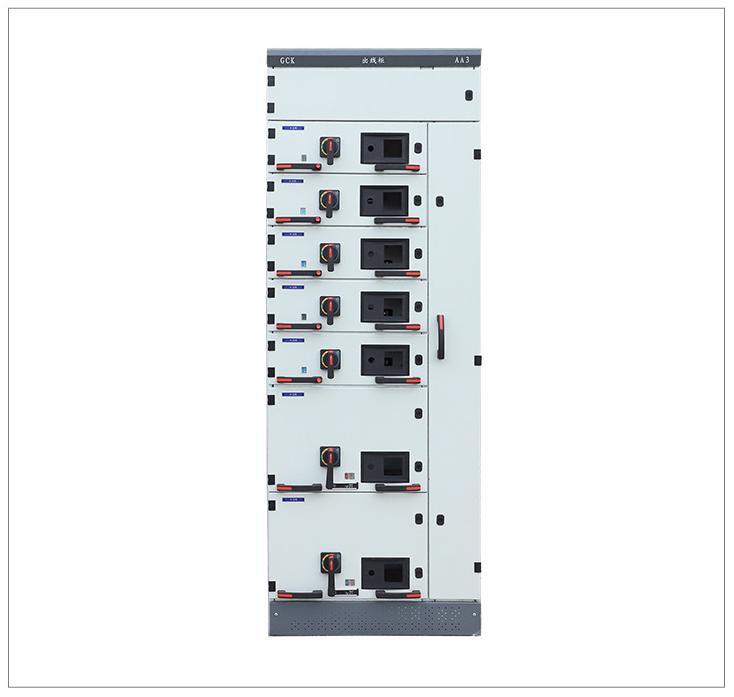

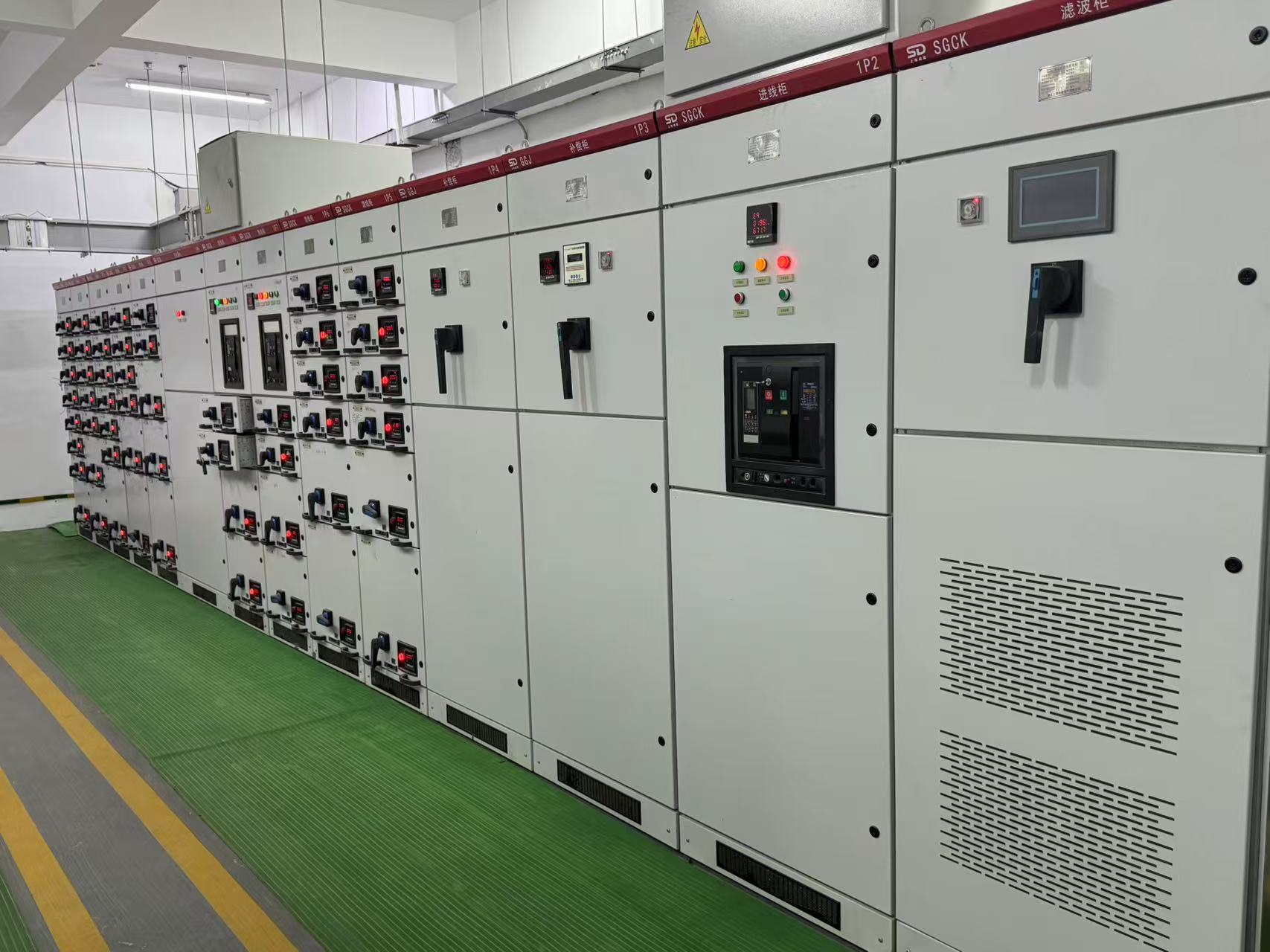

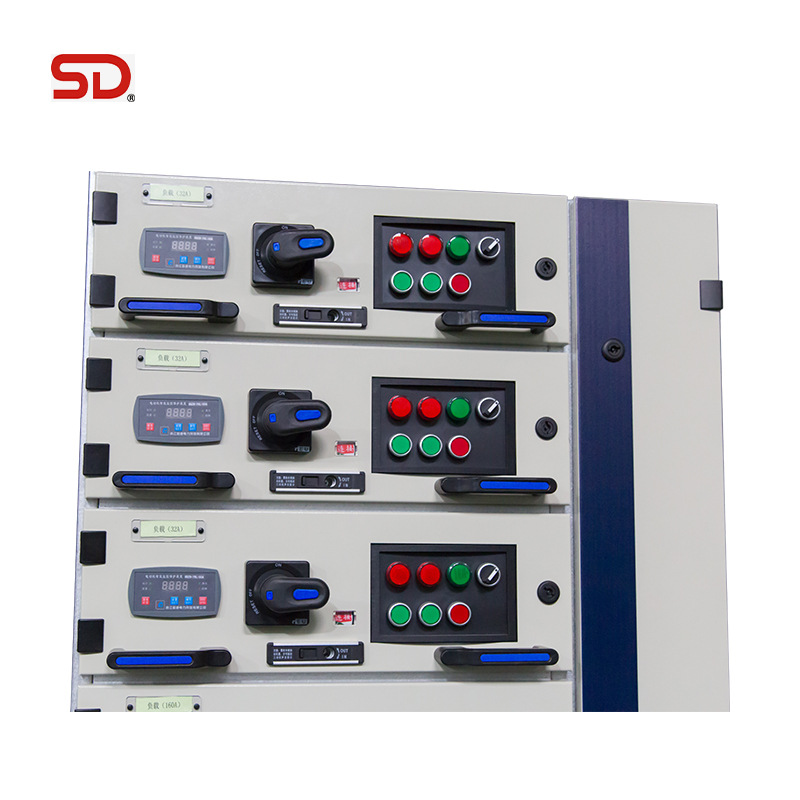

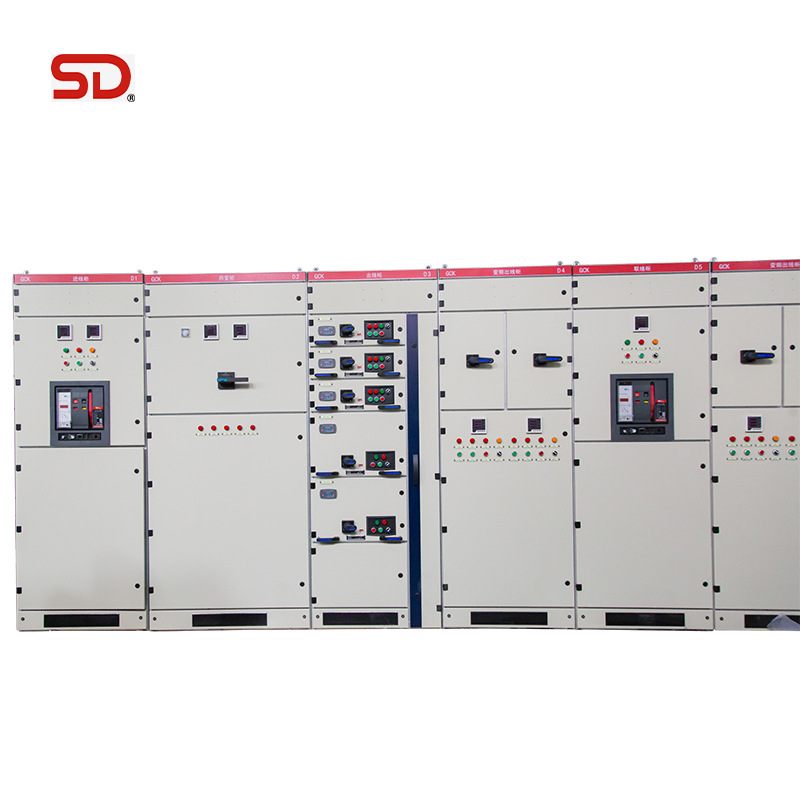

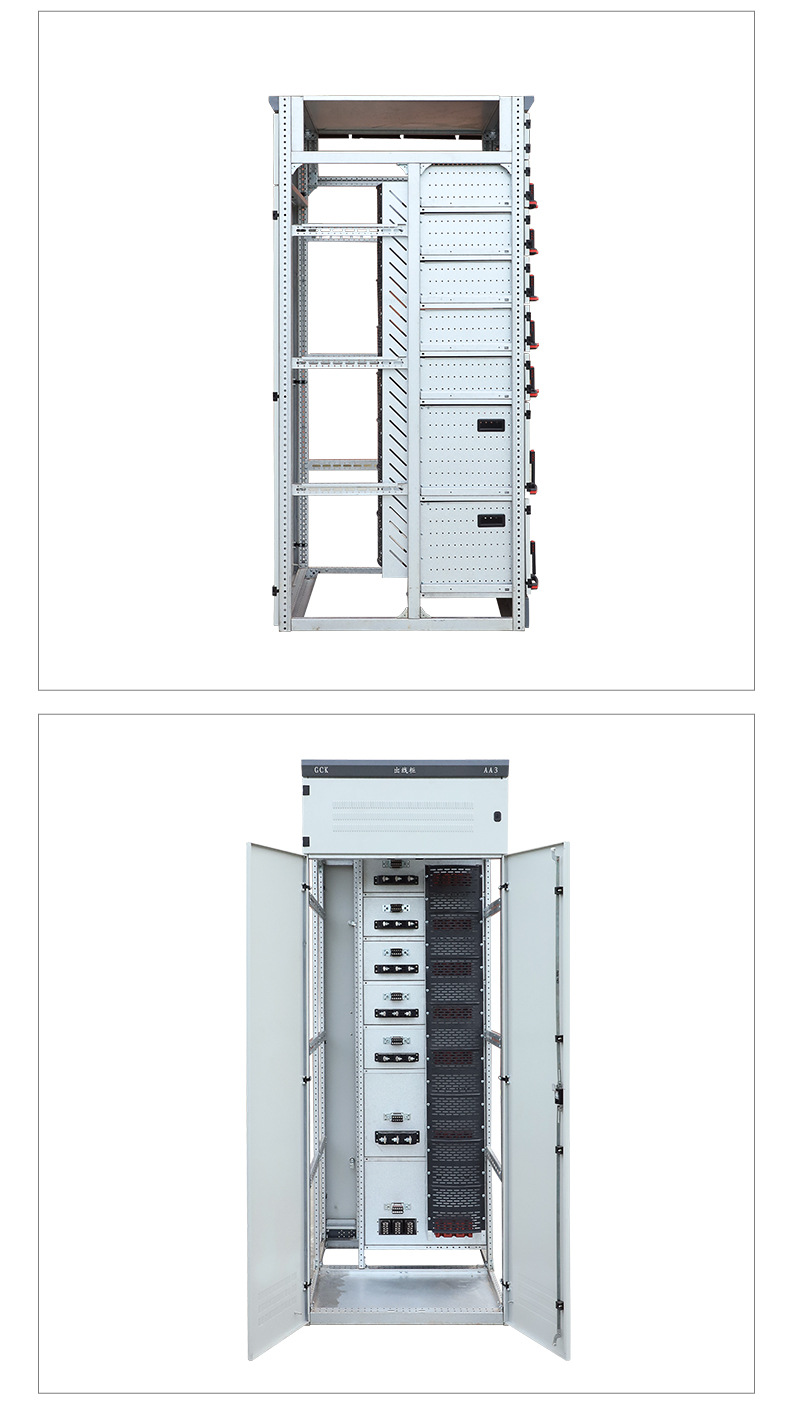

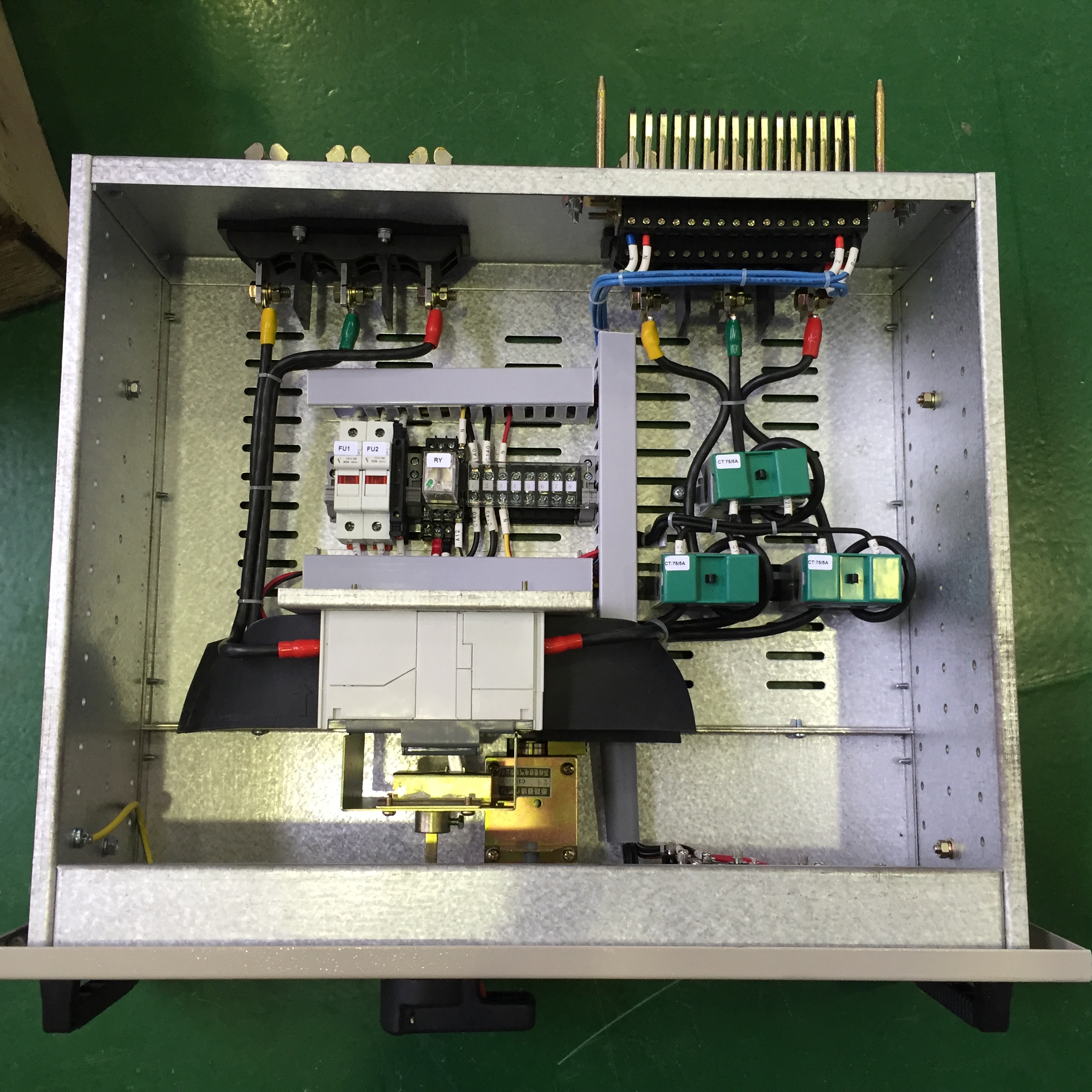

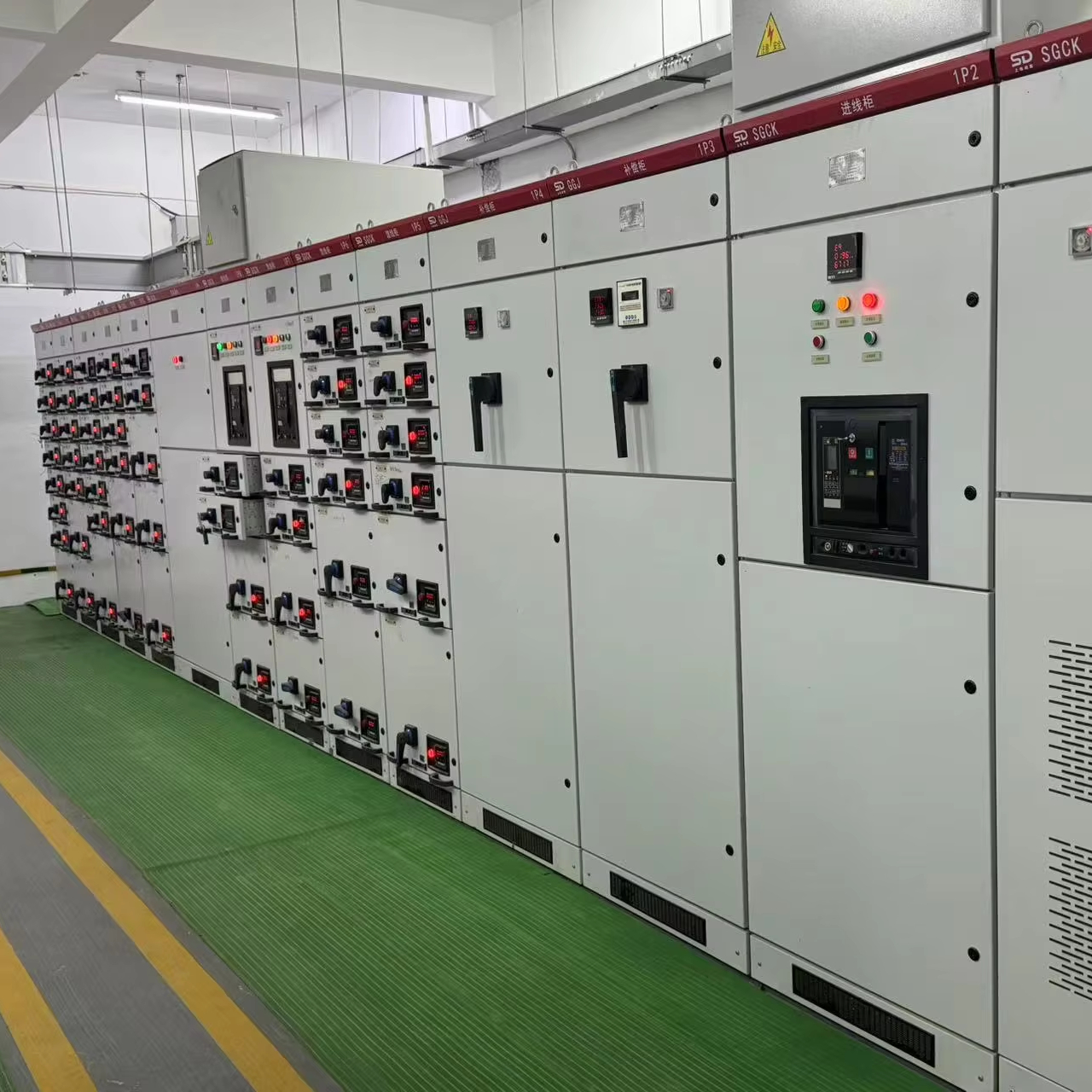

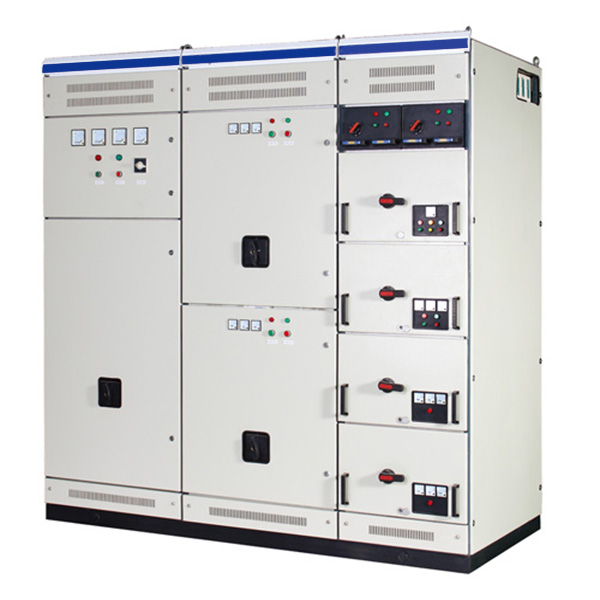

Product Showcase

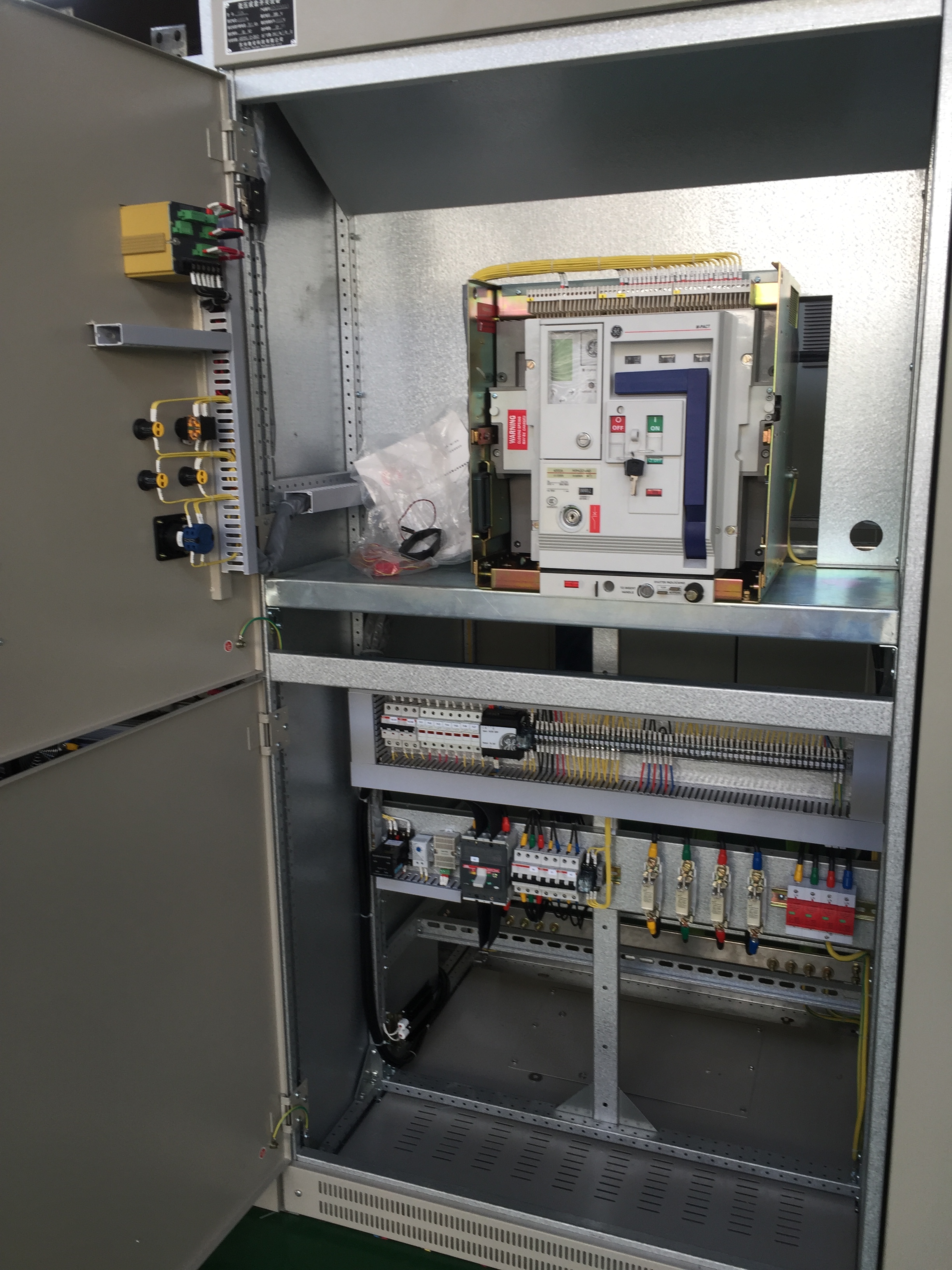

Production & Quality Control
Packaging & Shipping
