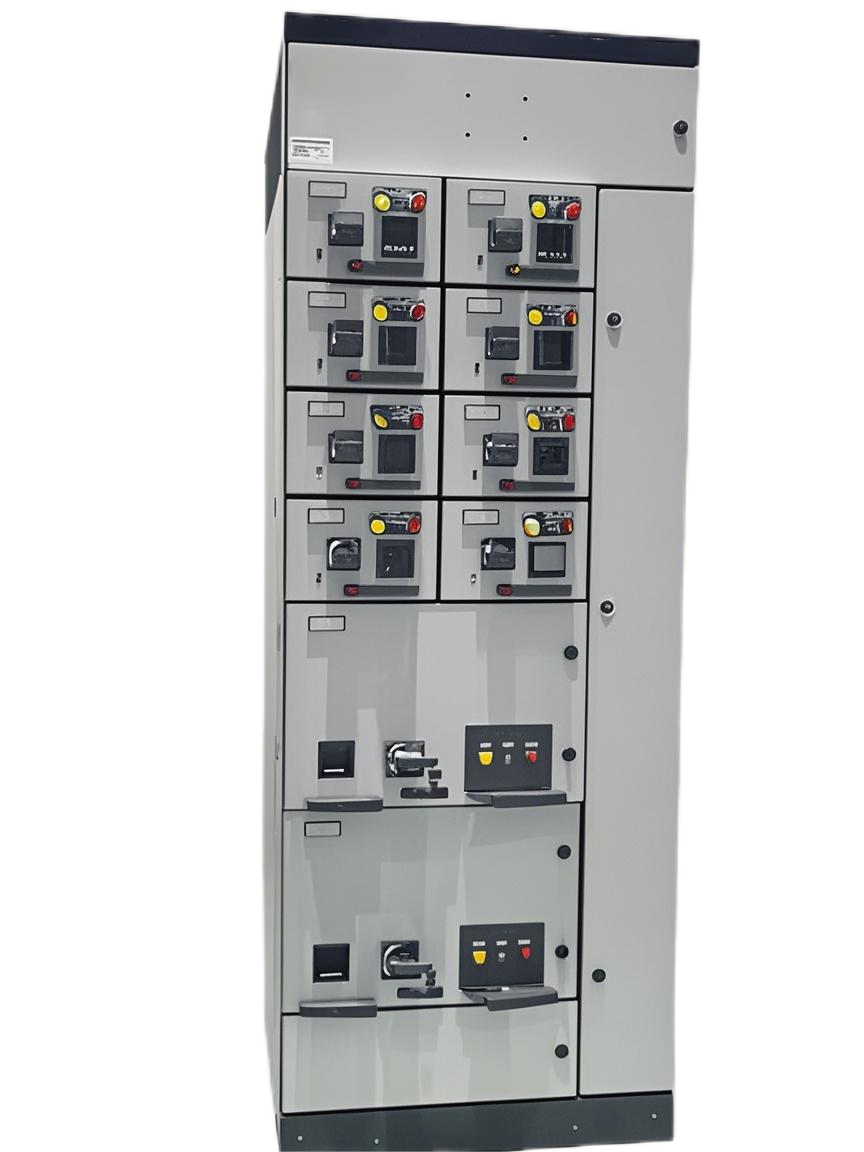

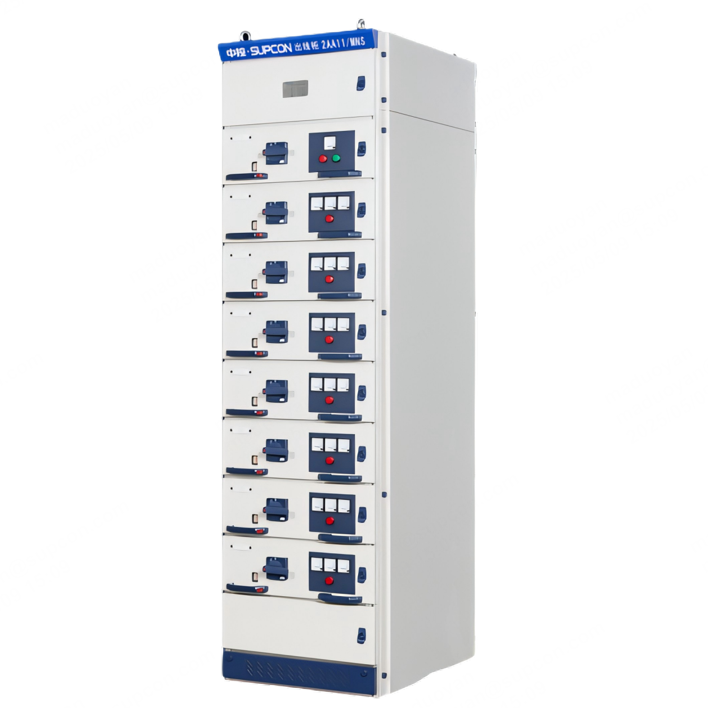

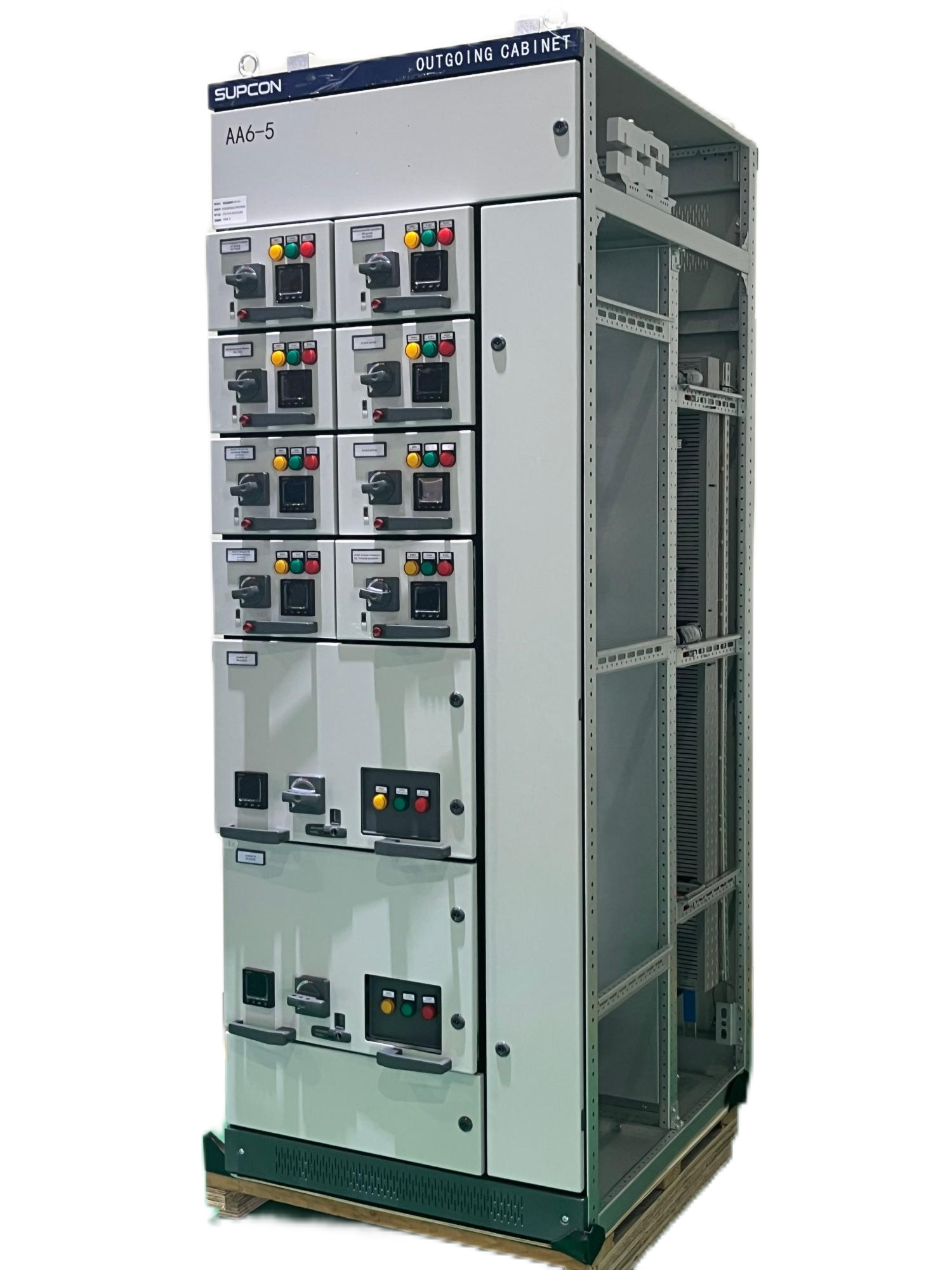

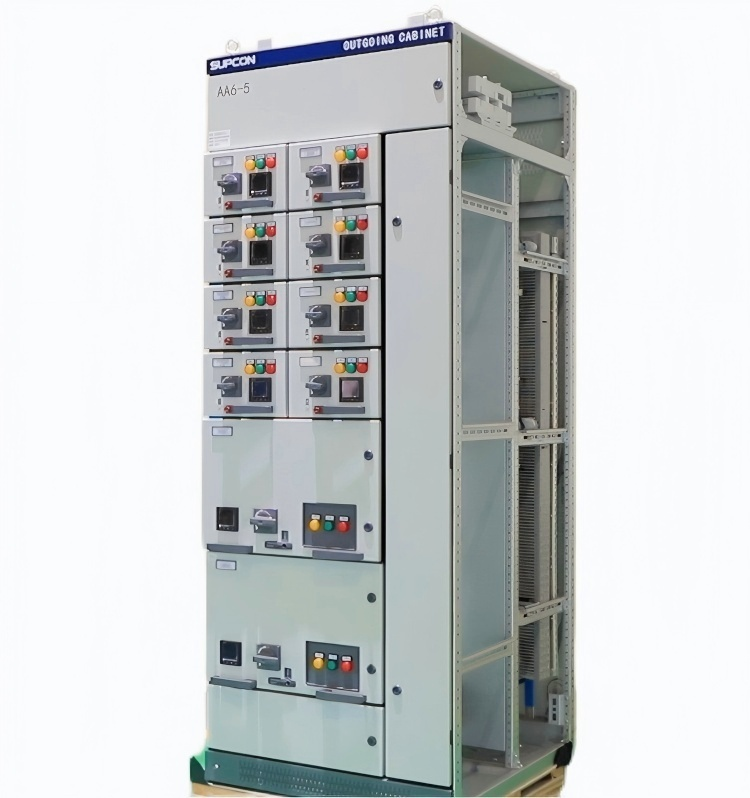

Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
1 / 5
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment
Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment

Low-Voltage Switchgear Assembly for Critical Power Transmission Withdrawable Design for Power Distribution Equipment

Send Inquiry

Product Description

MNS Switchgear Overview
⚙ Technical Specifications
Name MNS Withdrawal Switchgear Electrical Power Distribution Cabinet
Feature Power receiving, distribution, control, protection, monitoring
Usage Industrial, Indoor, Electric Power Transmission
Core Parameters • Rated Voltage: 0.4KV
• Rated Frequency: 50Hz
• Rated Current: ≤6300A
• Rated short-time withstand current (≤4s): ≤100KA
• Rated Insulation Withstanding Voltage: 0.66KV
• Cabinet Structure: Drawer Type
• Protection Grade: IP4X
• Certificates: ISO, CE, CCC, IEC, CQC
• Package: Wooden Box
• Application: Power Distribution and Motor Control
🔍 Product Detail Showcase
Details 1

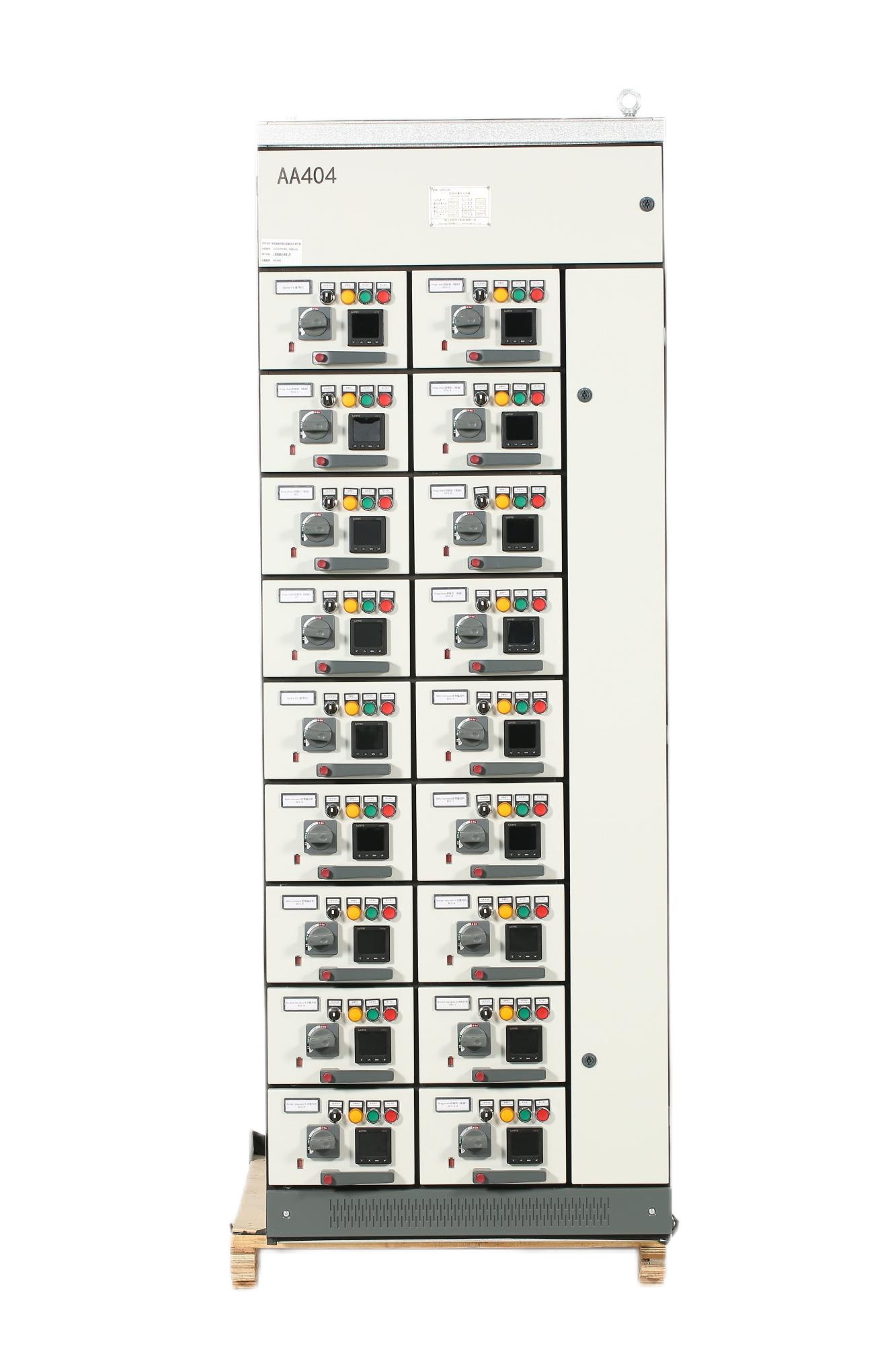

Details 2
Details 3
Details 4
Details 5
Details 6
🛡 Manufacturing Excellence
Production 1
Production 2
Production 3
Production 4
Quality Assurance
❓ Frequently Asked Questions
1. What is the primary application of MNS Withdrawal Switchgear?
The MNS withdrawal switchgear is designed for power distribution and motor control in industrial environments, power plants, and large-scale indoor electrical transmission systems.
2. What are the key technical safety ratings?
This equipment features an IP4X protection grade and has passed ISO, CE, CCC, IEC, and CQC certifications, ensuring high safety and reliability in power management.
3. What is the maximum rated current capacity?
The system supports a rated current up to 6300A, making it suitable for high-capacity power receiving and distribution requirements.

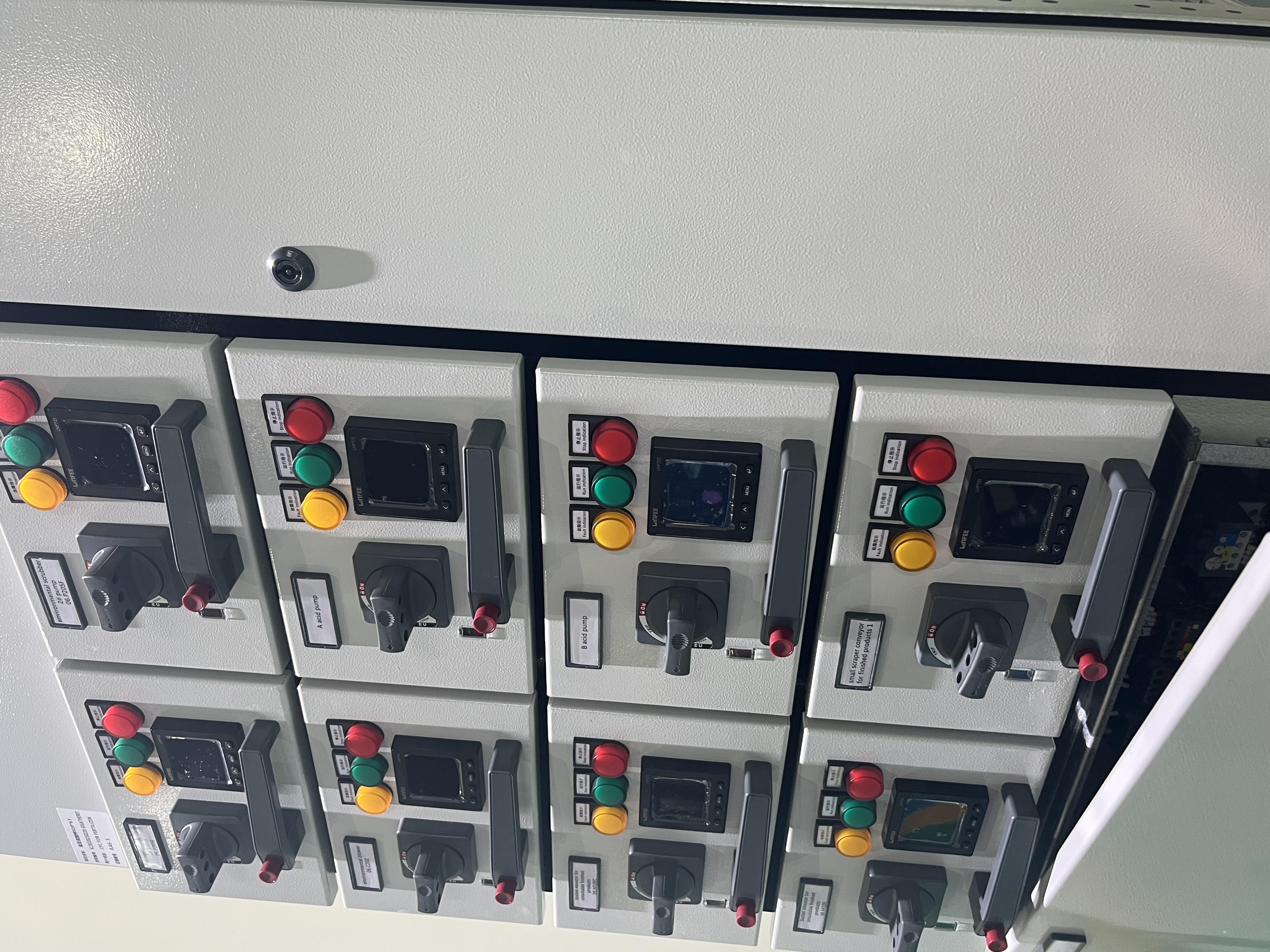

4. How is the cabinet structured?
The cabinet uses a drawer-type structure, which allows for easier maintenance, modular expansion, and safe withdrawal of individual units without disrupting the entire system.
5. What protection functions does this cabinet provide?
It offers comprehensive power protection, including monitoring, control, and short-time withstand current protection up to 100KA.
6. How is the product packaged for international shipping?
Each unit is securely packed in a robust wooden box to ensure maximum protection during long-distance industrial transportation.
