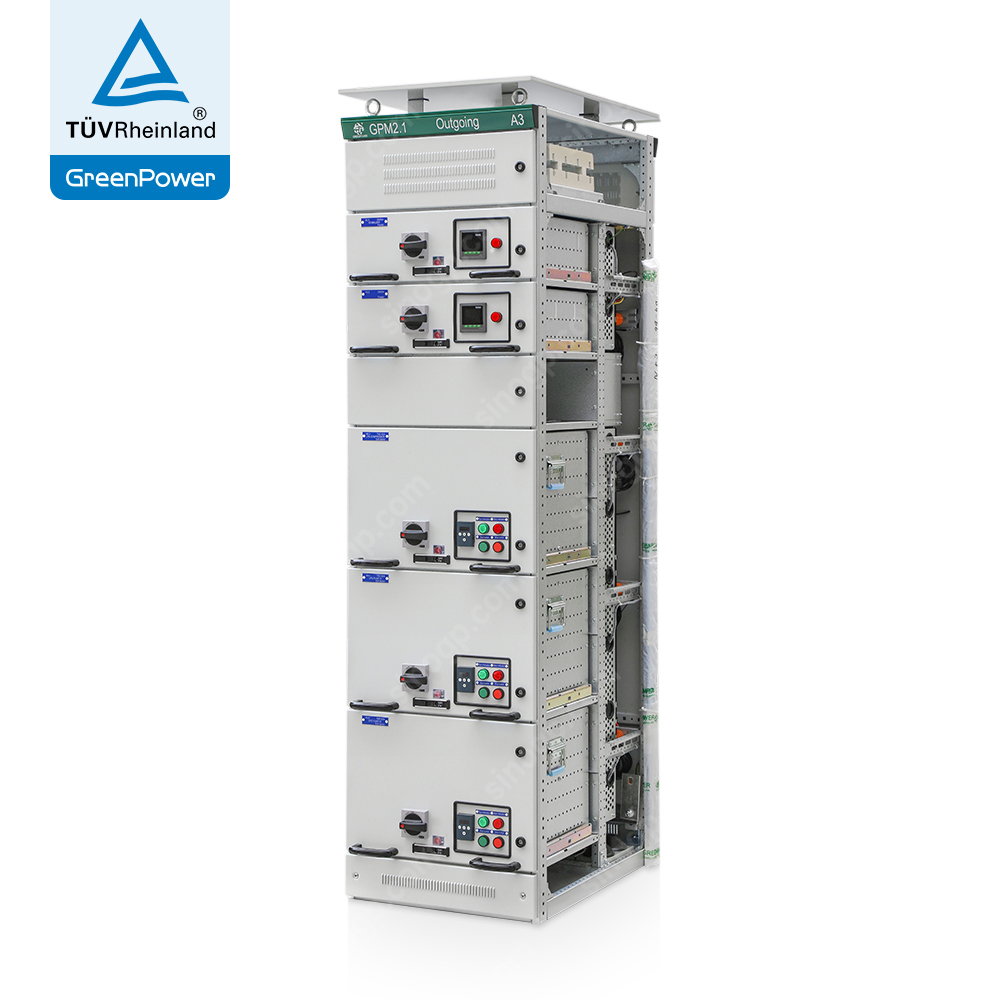

Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
1 / 5
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box
Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box

Industrial Low Voltage Withdrawable Motor Control Center MCC Panel Drawout Compartment Switchgear Modular Distribution Box

Send Inquiry

Product Description

Low Voltage Switchgear Display
Switchgear Internal View

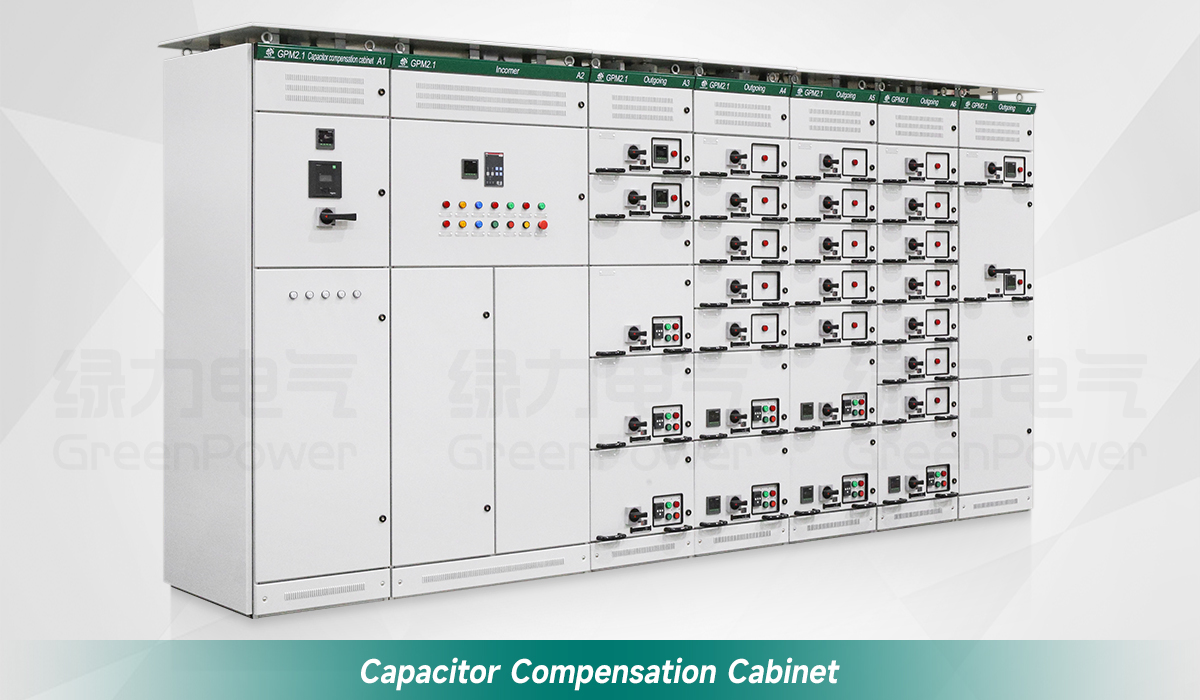

Switchgear Layout

GPM2.1 Low Voltage Switchgear with Top Drip-Proof Cover

GPM2.1 low voltage drawer switchgear adopts standard modules and is a factory-assembled low voltage drawer switchgear. It is suitable for AC 50/60Hz, rated working voltage <660V, and power supply and distribution systems with rated current 6300A and below. These units are essential for electric energy distribution, conversion, control, and reactive power compensation.
This low voltage drawer switchgear is a control device featuring advanced technology, stable performance, reasonable structure, and safe, reliable operation. It is widely applied in power generation, construction, steel, cement, mining, and petrochemical distribution systems.

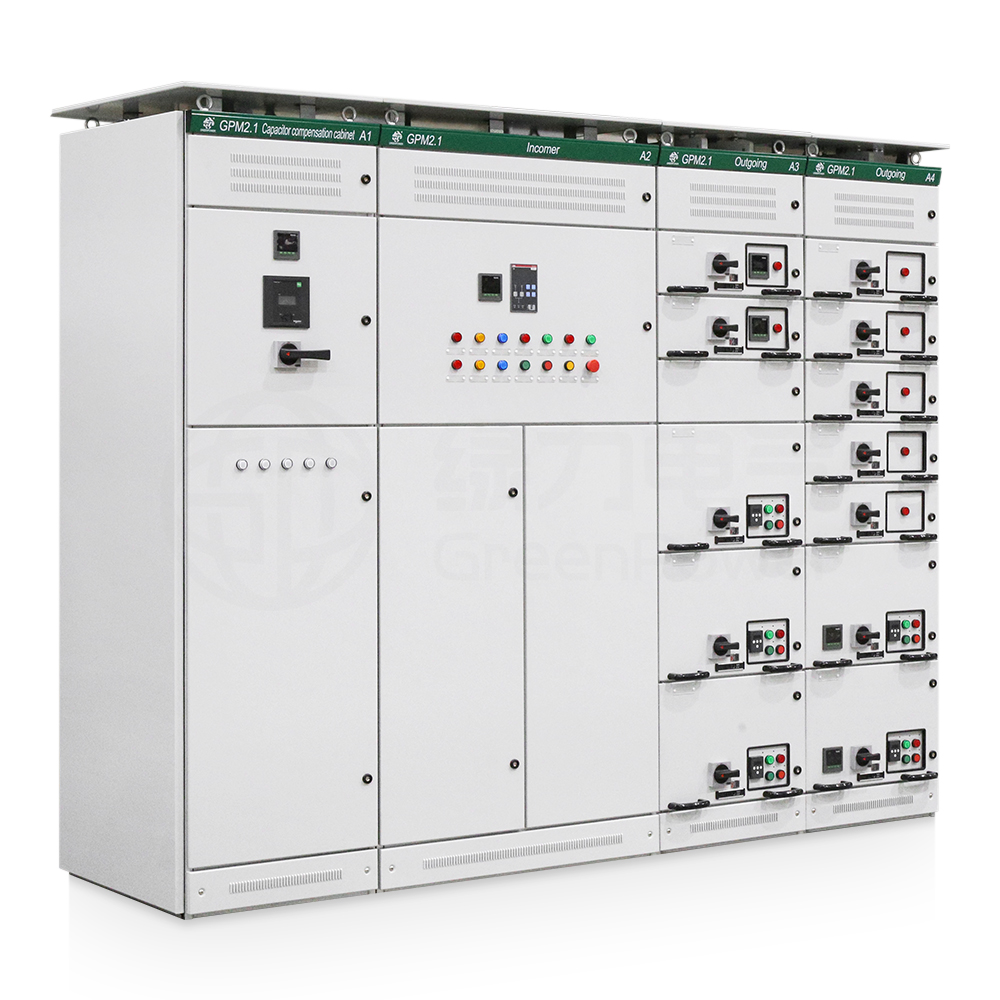

IP41 Protection
IP41: Top cover with drip protection

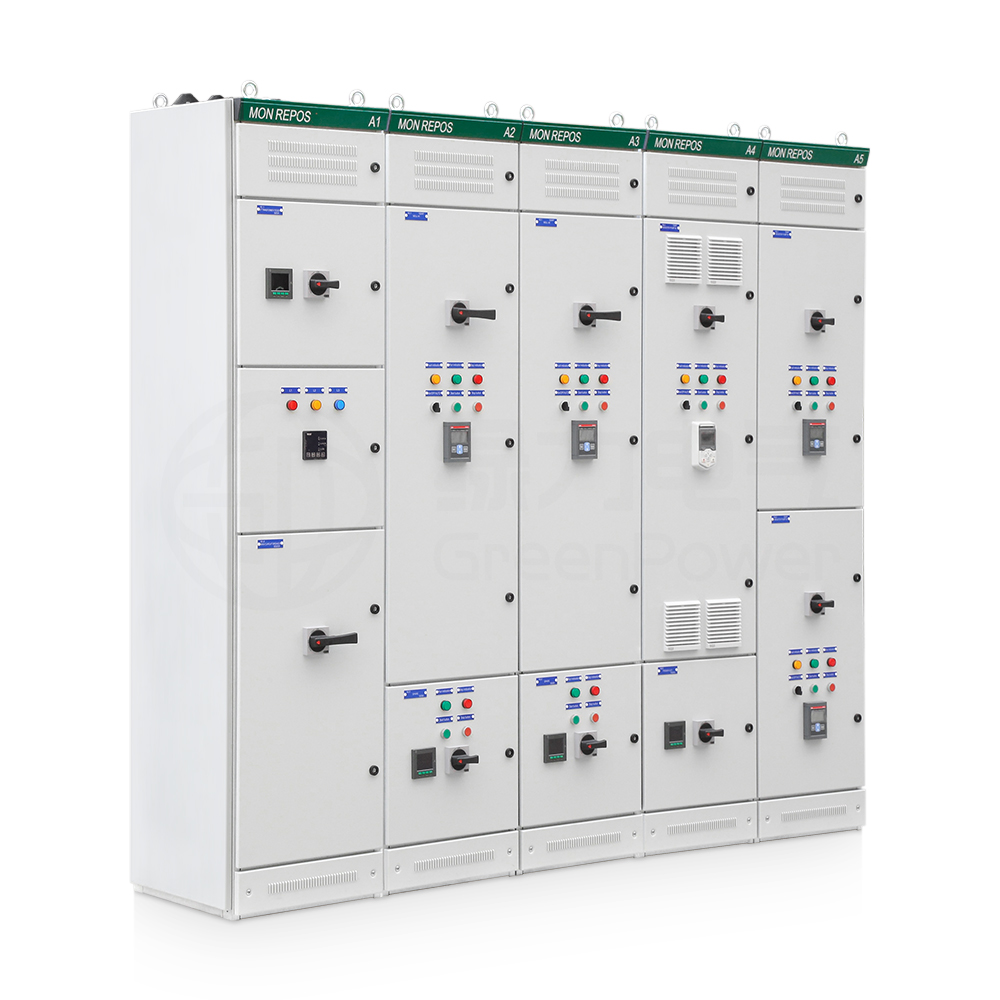

IP40 Protection
IP40: Ordinary cabinet type

Technical Specifications

No. Item Unit Data
1Rated voltageV380 / 440 / 660
2Rated currentA630 ~ 6300
3Rated frequencyHz50 / 60
4Rated peak withstand currentkA1pk can cause 375kA
5IP Degree-IP30 / IP32 / IP40 / IP54
6Outline dimension (W*D*H)mm800 / 1000 / 2200 | 1000 / 1000 / 2200
7Weightkg500 ~ 800
8Package-Wooden case
9Rated insulation levelV660 / 1000

Cabinet Configuration Types

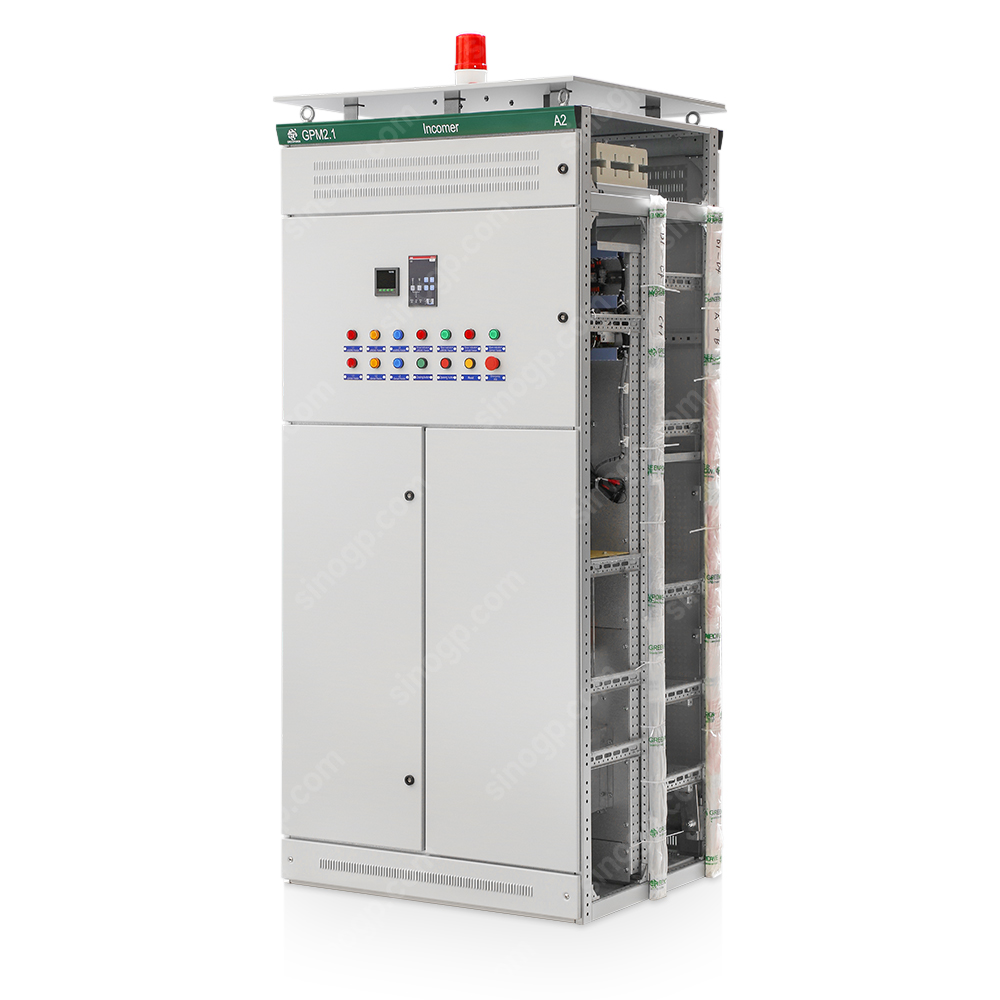

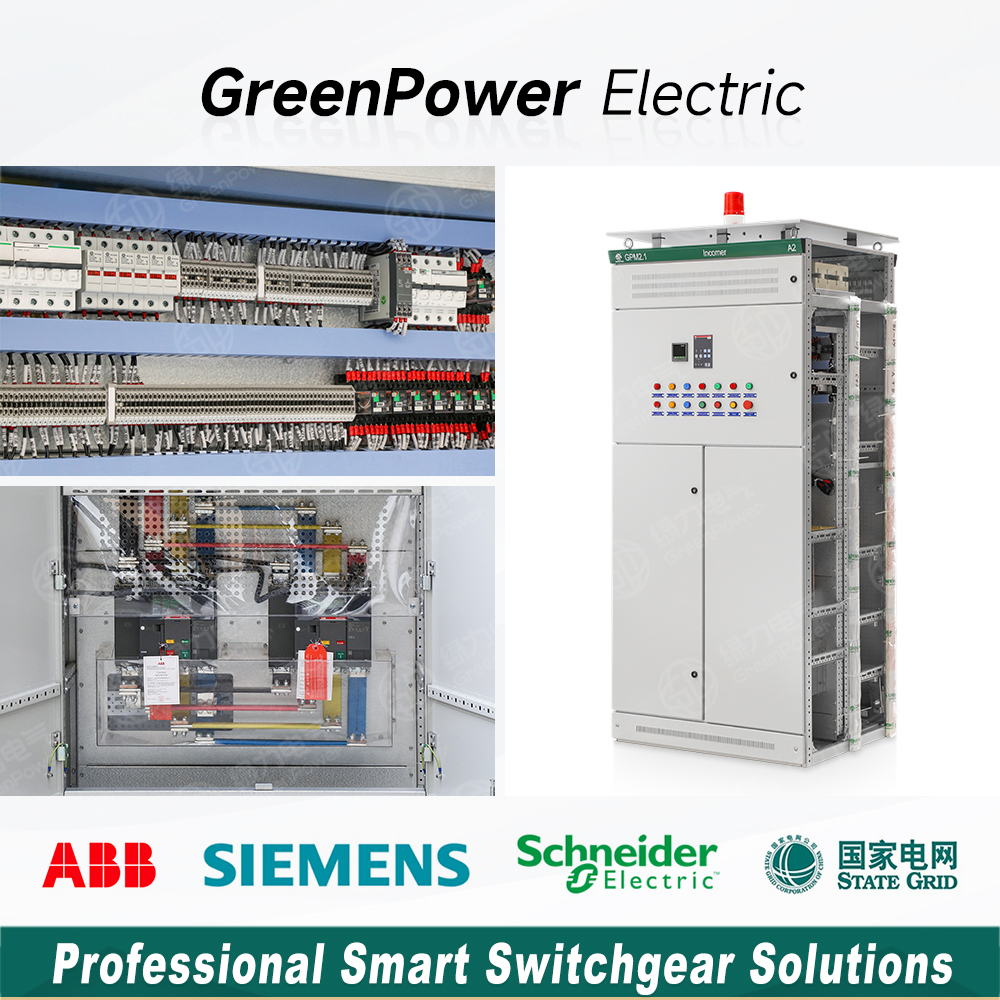

Incomer cabinet
Incomer Cabinet

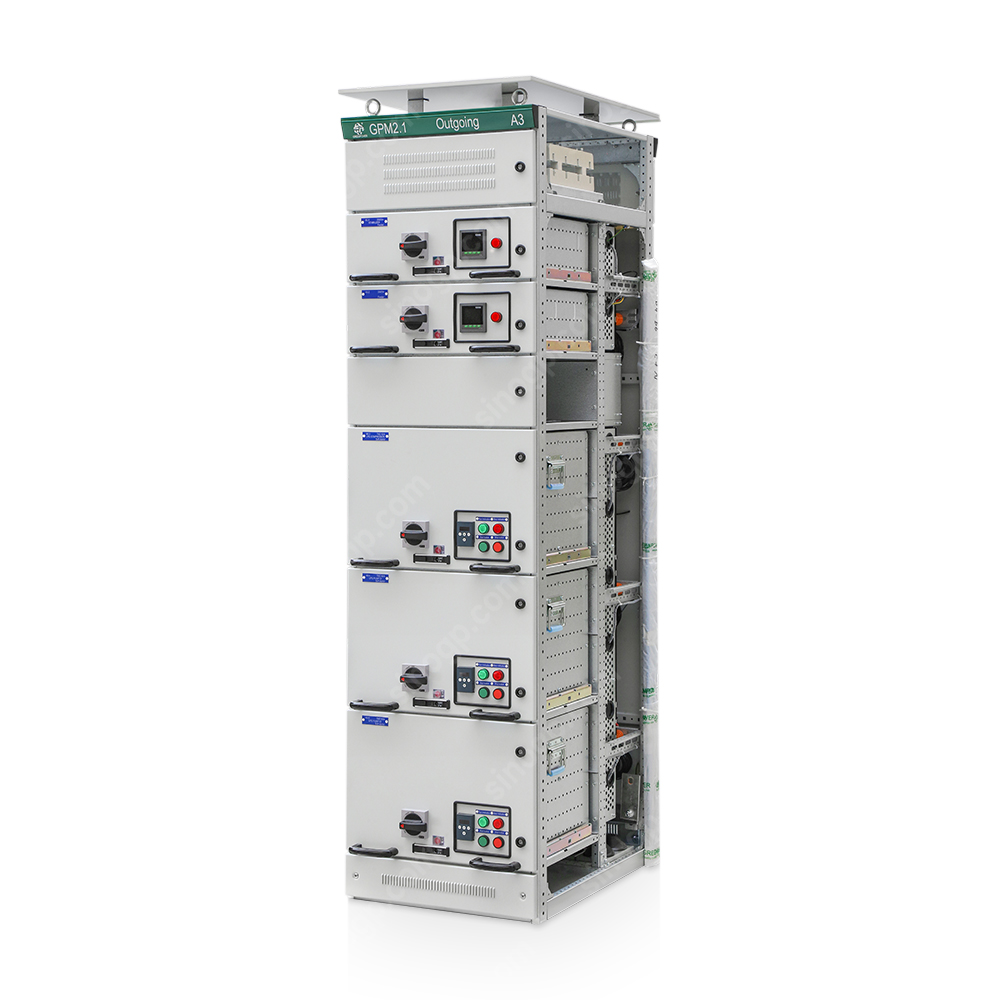

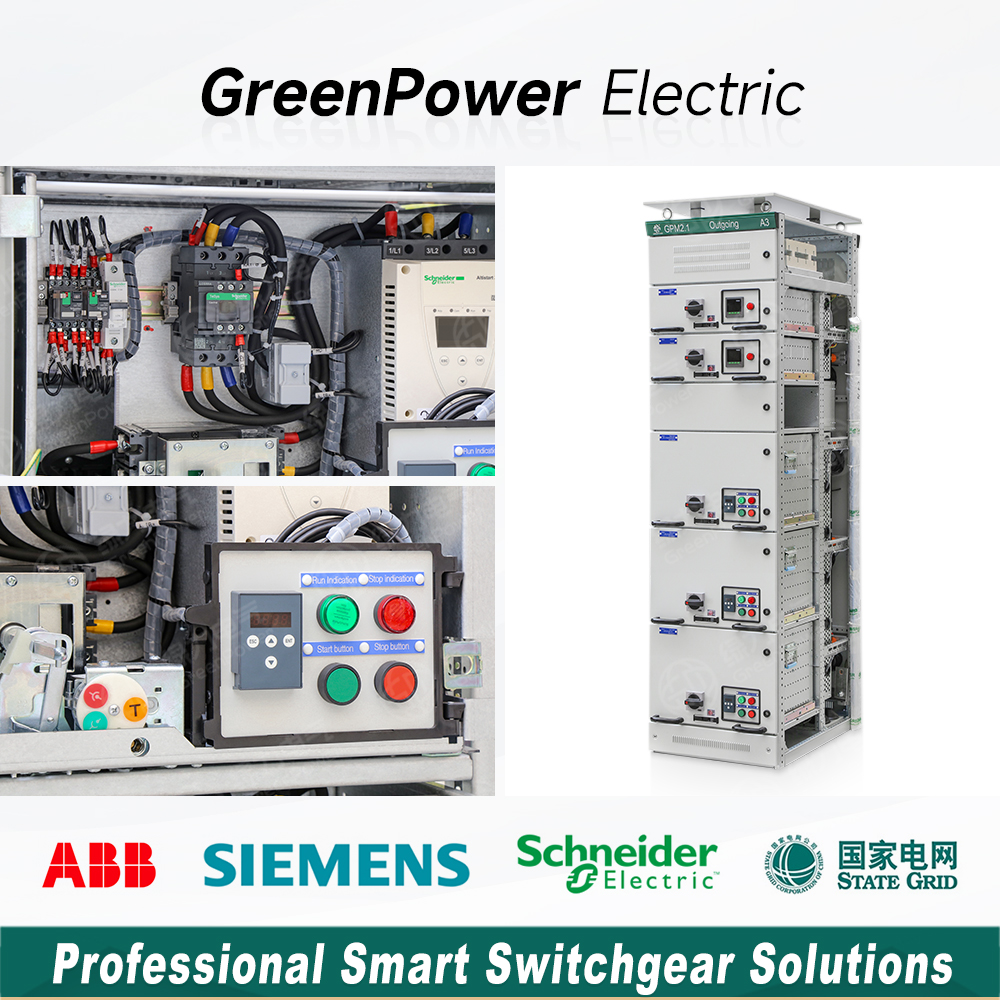

Outgoing cabinet
Outgoing Cabinet

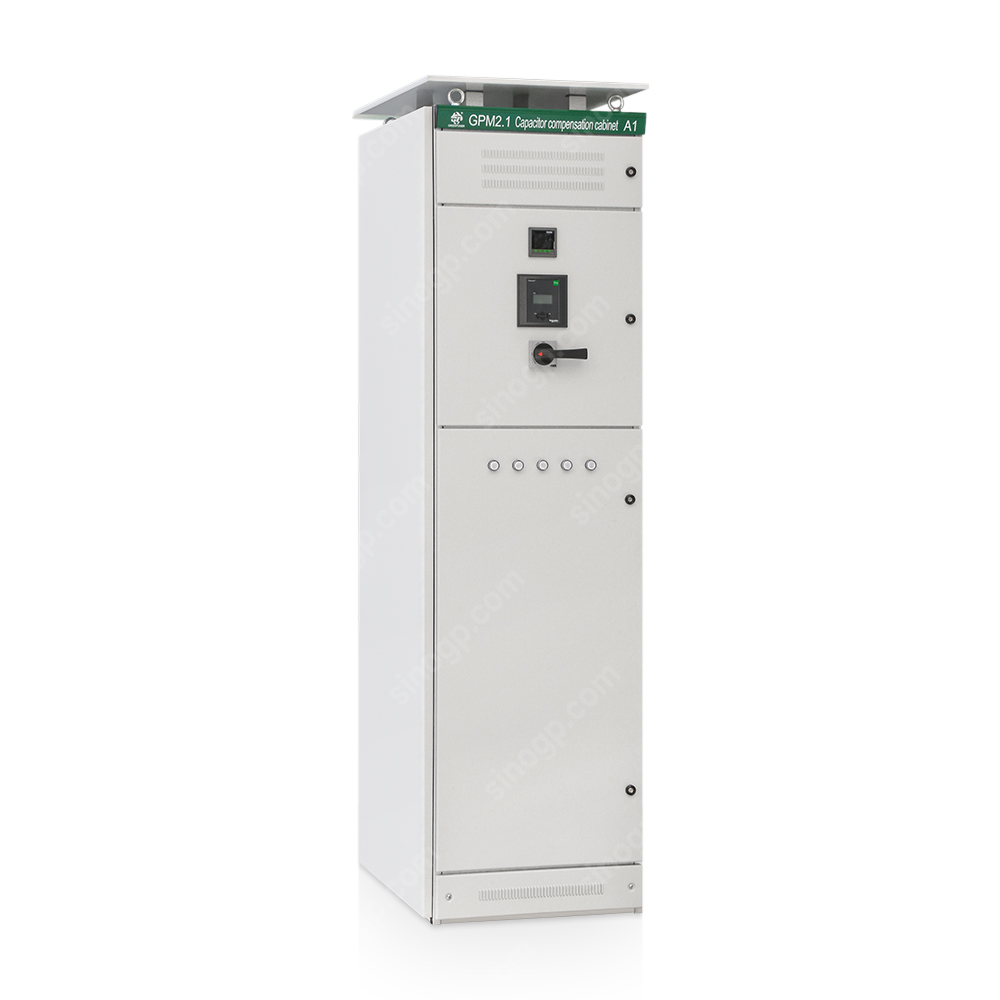

Capacitor compensation
Capacitor Compensation

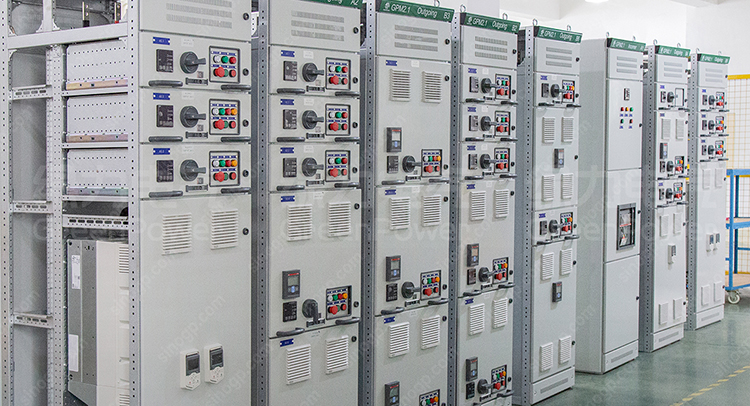

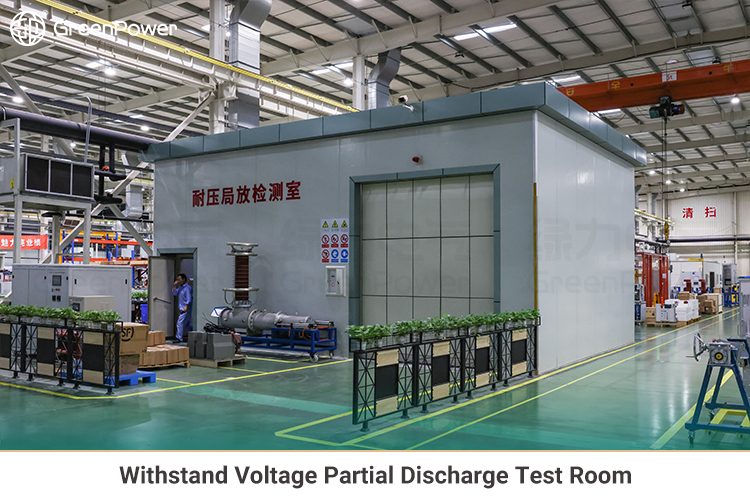

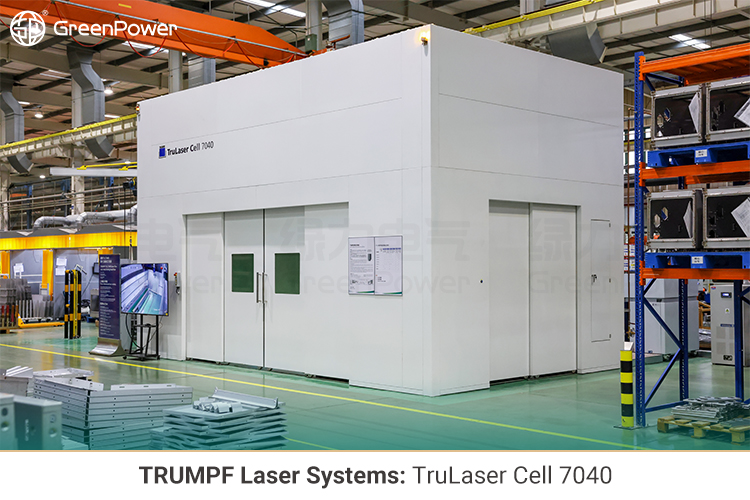

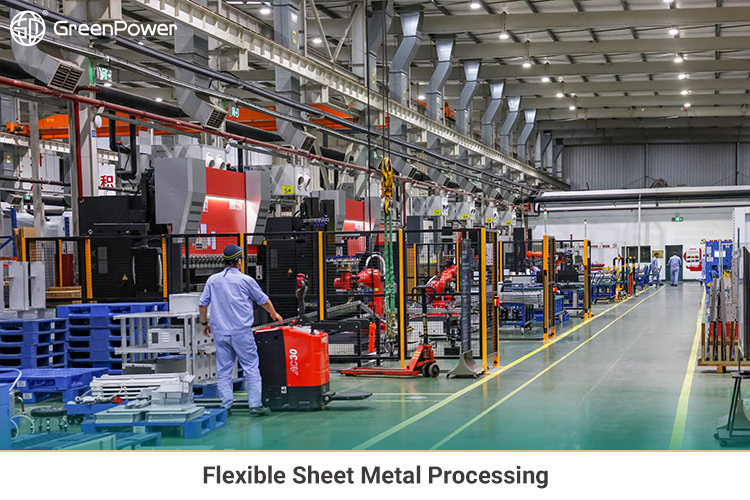

Equipment & Workshop Details

Frequently Asked Questions

Q1: What is the main application of the GPM2.1 Low Voltage Switchgear?
A: It is designed for electric energy distribution, conversion, control, and reactive power compensation in systems like power generation, mining, and petrochemical industries.
Q2: What are the available protection ratings for this equipment?
A: We offer multiple IP degrees including IP30, IP32, IP40, and IP54. For enhanced protection against water ingress from the top, the IP41 drip-proof cover is recommended.
Q3: What range of current and voltage can this switchgear handle?
A: It supports rated working voltages up to 660V and rated currents from 630A up to 6300A.
Q4: Are these units factory-assembled or modular?
A: GPM2.1 switchgear uses standard modules and is factory-assembled to ensure quality, stability, and convenient onsite installation.
Q5: How is the switchgear packaged for delivery?
A: To ensure safe transportation, the equipment is securely packed in professional wooden cases, suitable for long-distance shipping.
Q6: Can the cabinet configuration be customized?
A: Yes, configurations for incomer cabinets, outgoing cabinets, and capacitor compensation can be adjusted based on specific project requirements.
