Product Description

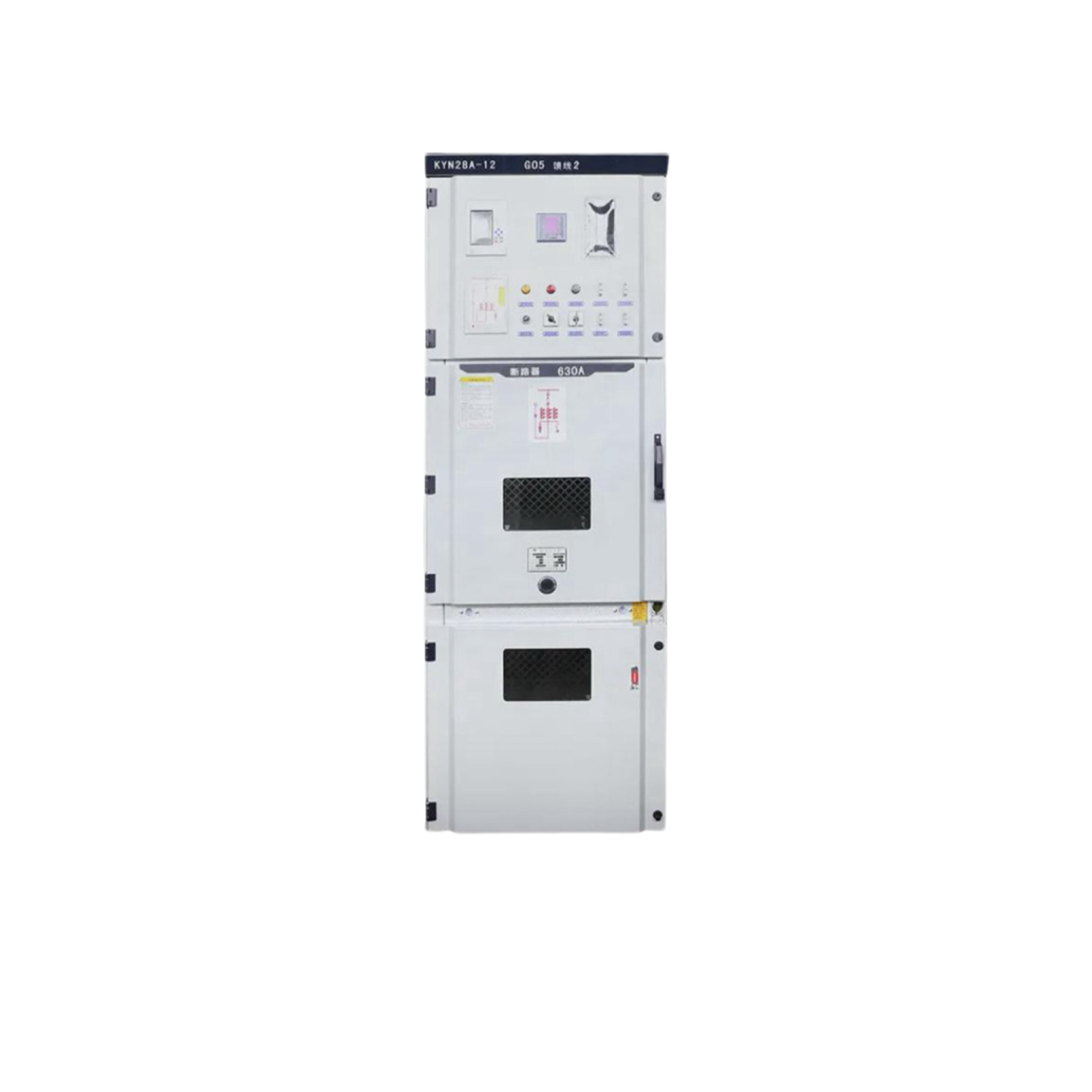

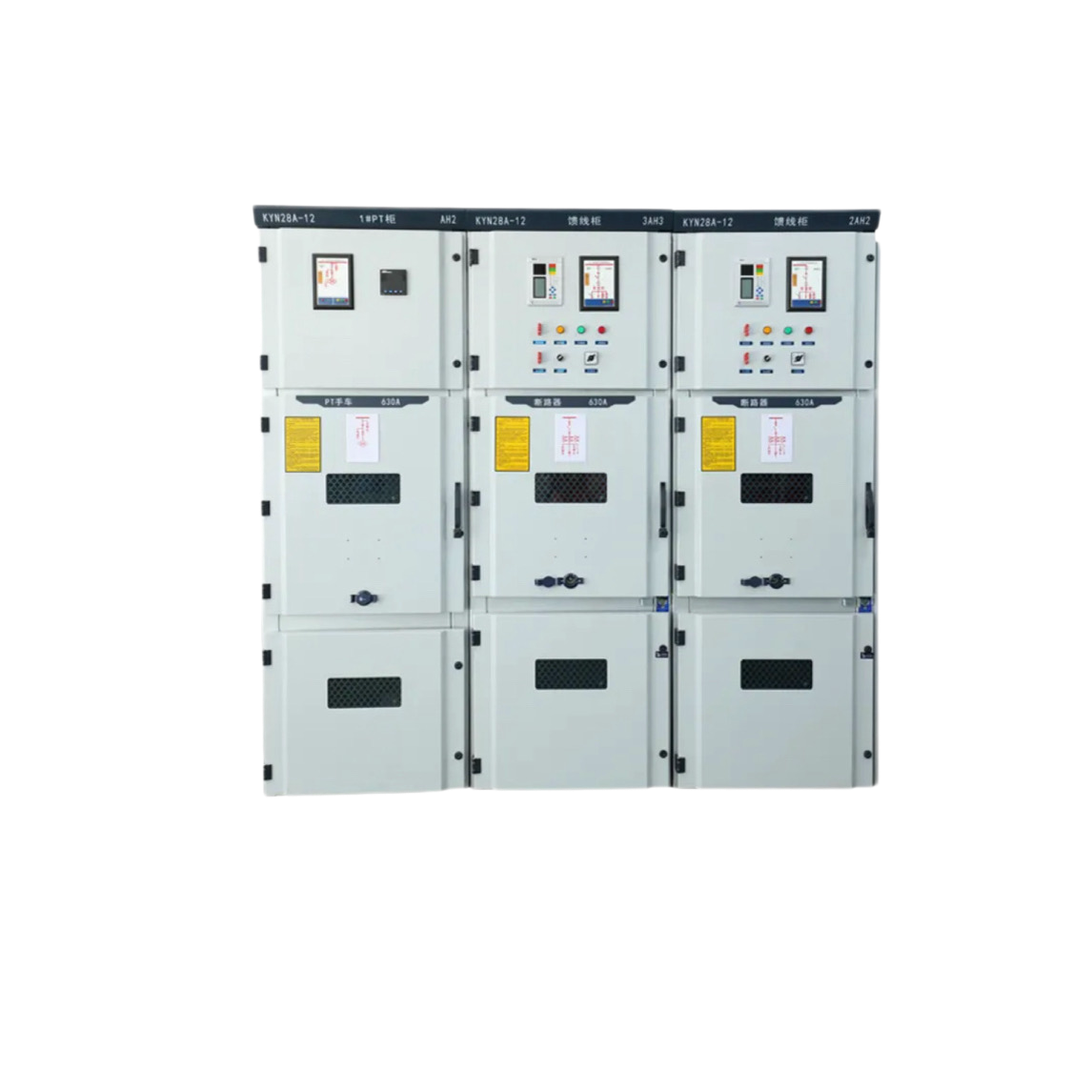

KYN28 Indoor Metal-clad Withdrawable Switchgear

The KYN28-12 armored removable AC metal-enclosed switchgear is suitable for 3.6-12kV three-phase AC 50Hz power grid, designed to receive and distribute electrical energy while providing control, monitoring, and protection for the circuit. It can be utilized with single busbar, single busbar segmentation systems, or double busbar systems.

This switchgear meets rigorous international standards including IEC298, IEC694, GB3906, and DIN.VDE0670. It features a complete and reliable anti-misoperation function, ensuring maximum safety and efficiency in power distribution environments.

⭐ Product Advantages

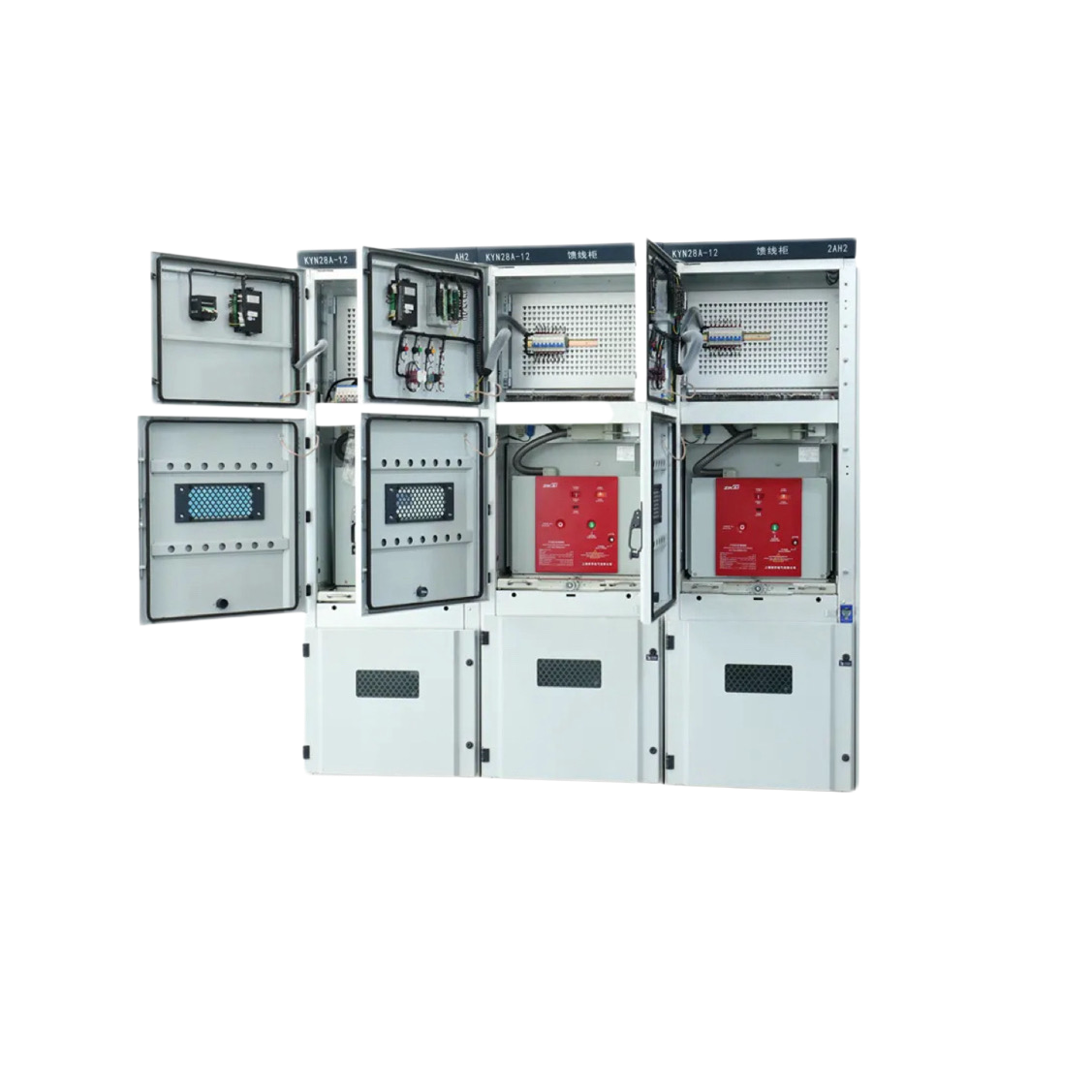

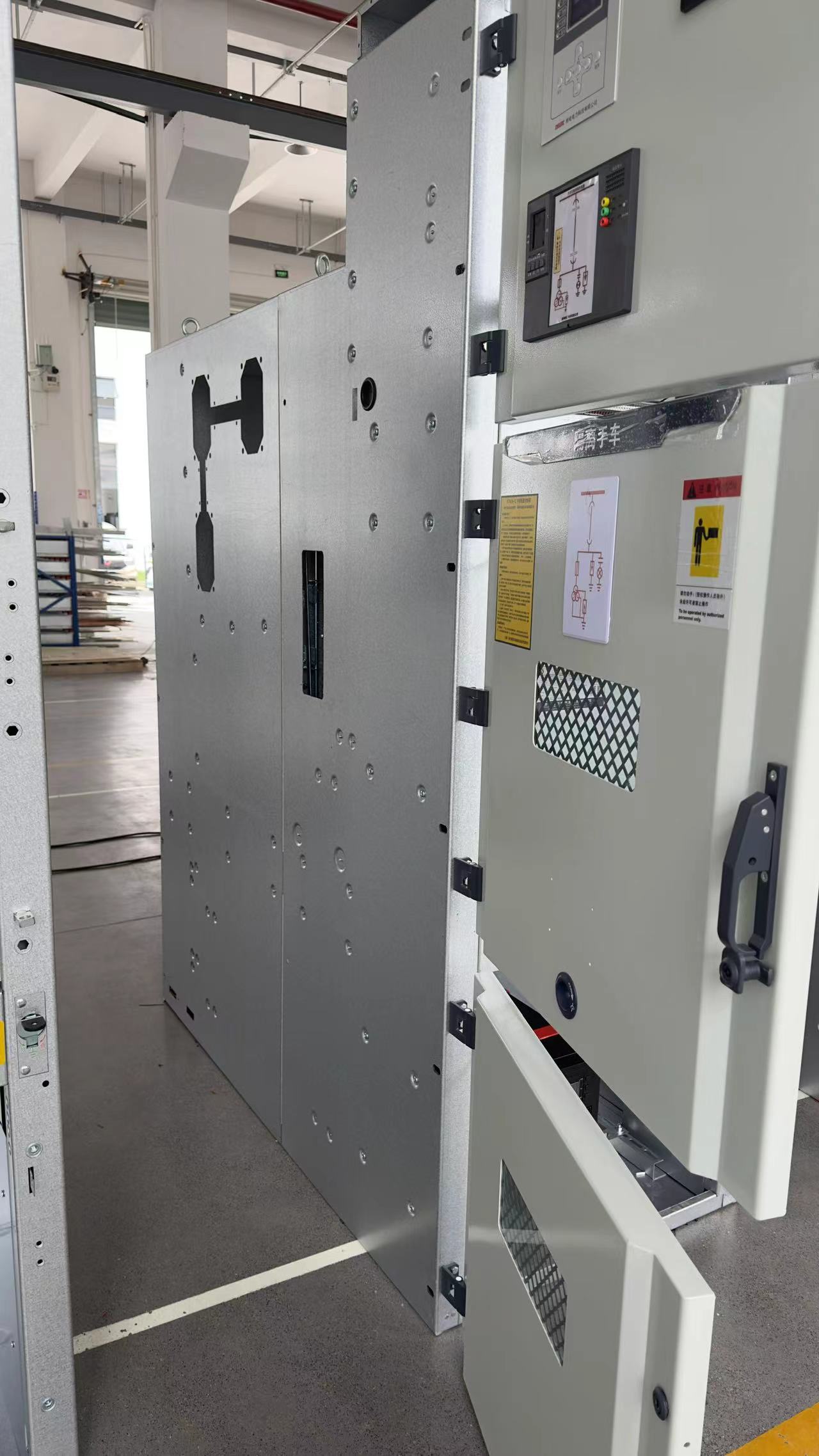

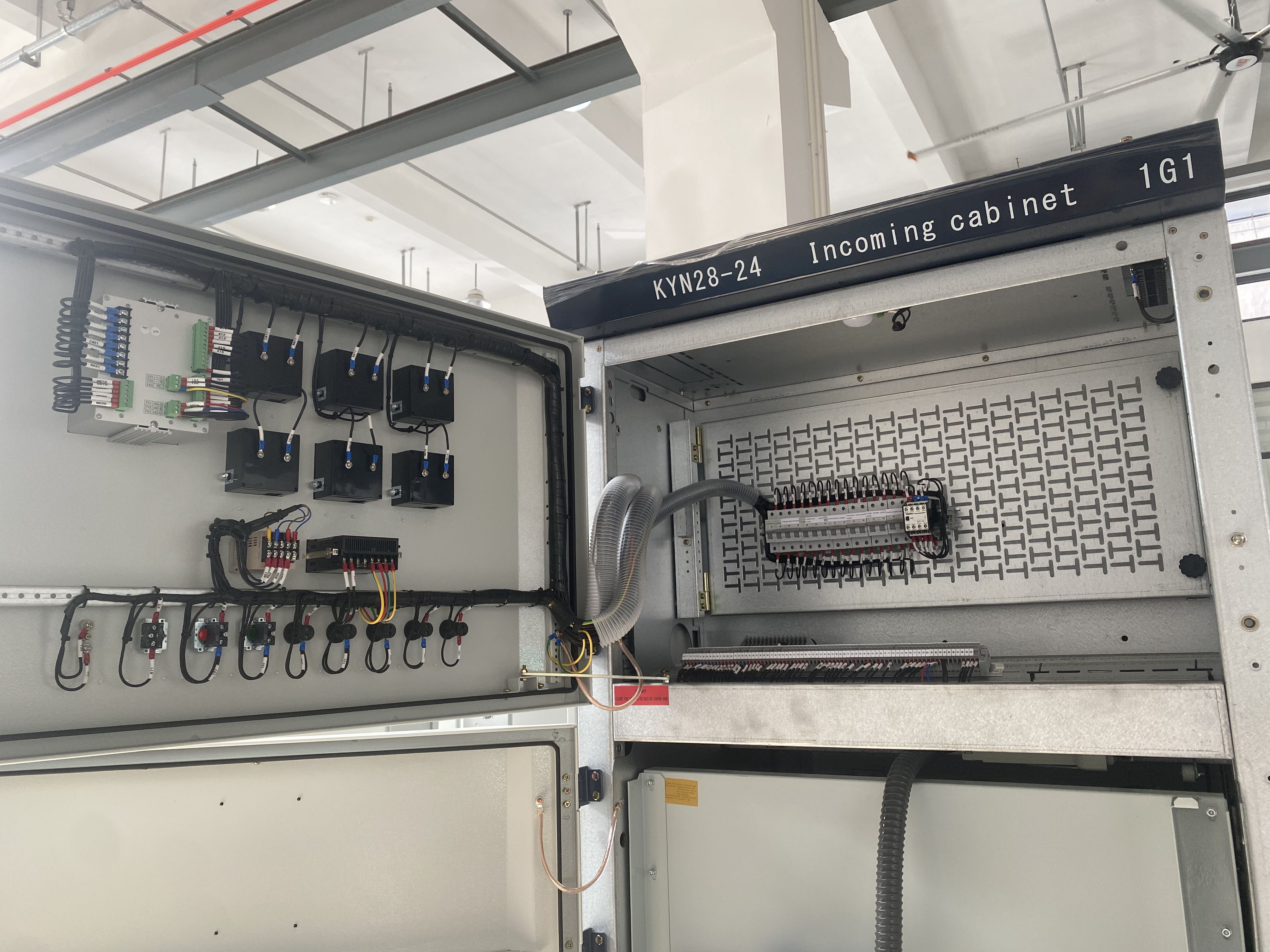

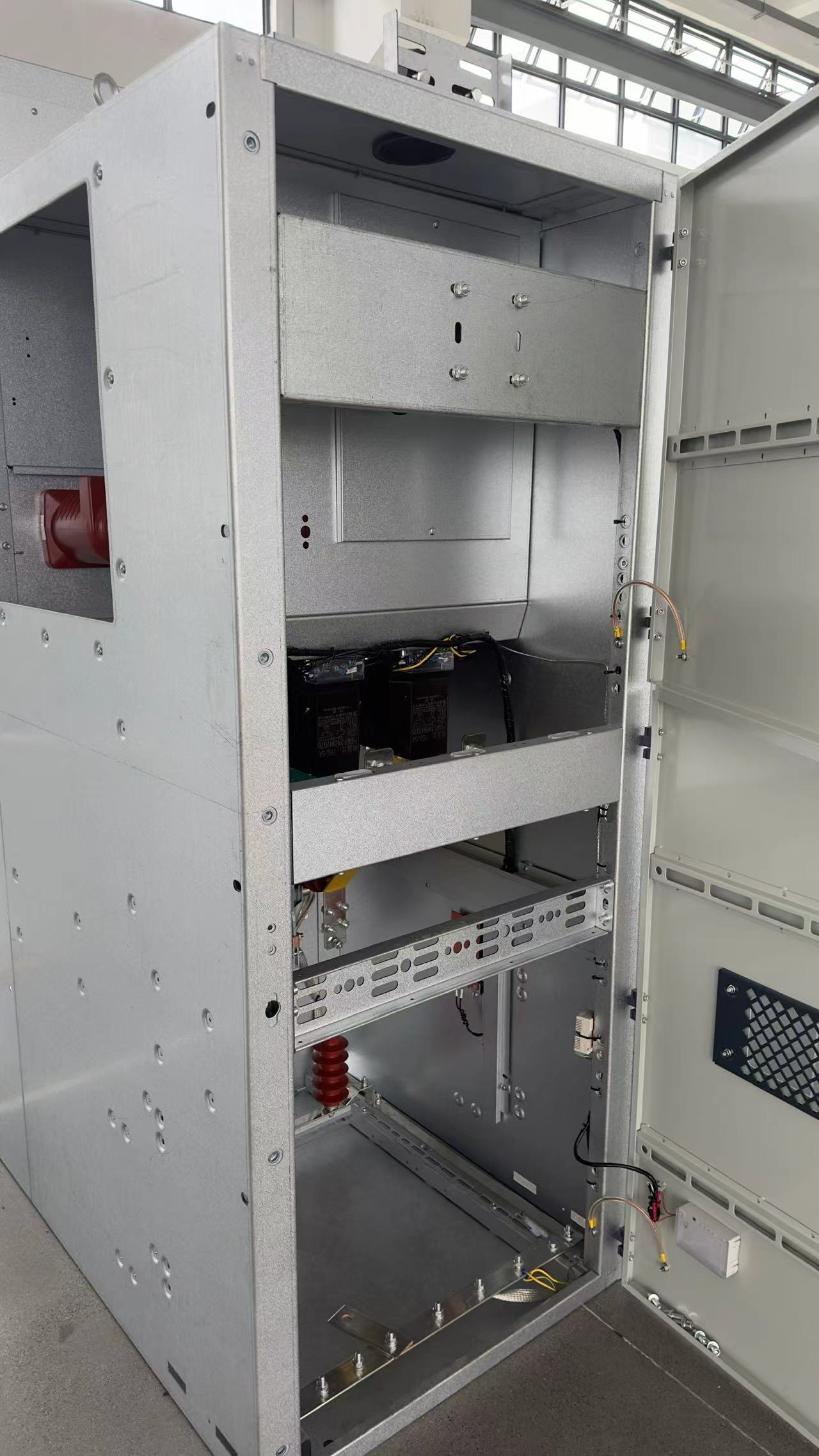

The shell is completely assembled by bolts, offering high mechanical strength and a neat aesthetic. The cabinet door is treated with plastic spraying for superior impact and corrosion resistance, achieving an IP4X rating.

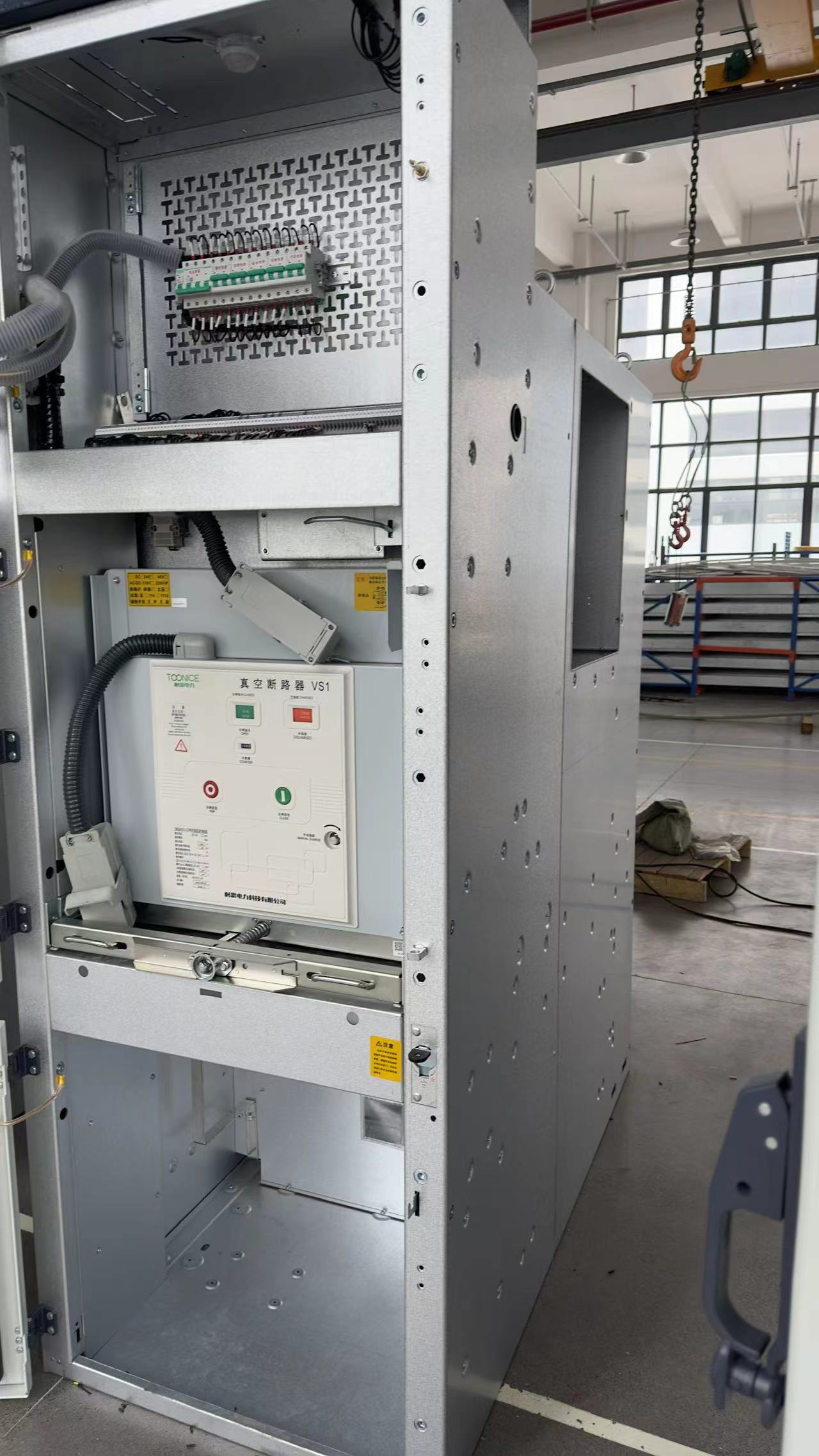

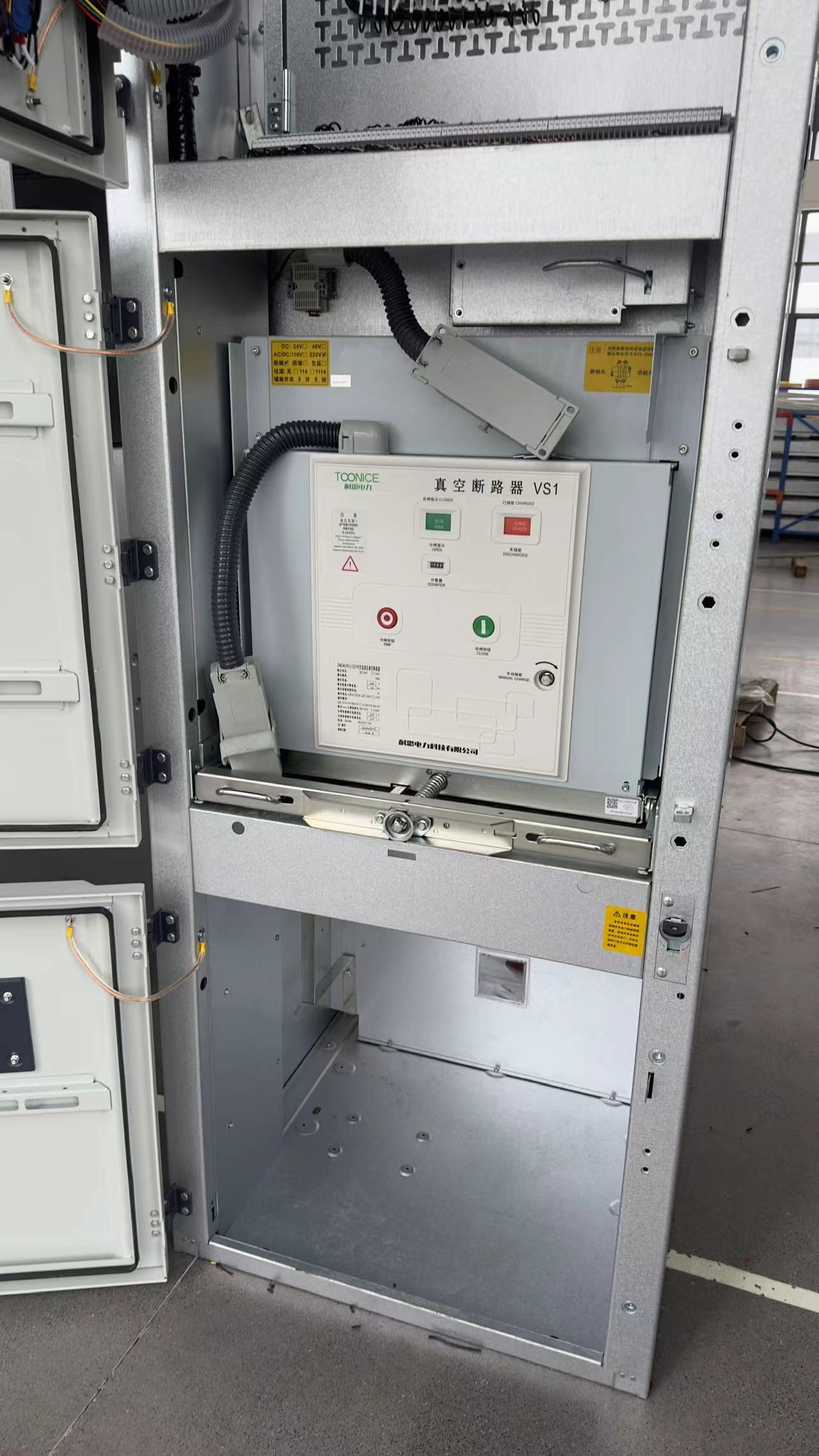

Equipped with versatile options, it supports vacuum circuit breakers such as VD4, C3 series fixed load switches, or various domestic series (VS1, VH1, VK, ZN28). All configurations guarantee an air insulation distance of over 125mm for bare conductors and composite insulation exceeding 60mm.

Installation Instructions

Arrange switch cabinets according to project drawings; start from the middle for long rows (10+ sets).
Use specific transport means like cranes or forklifts; roller crowbars are strictly forbidden.
Store circuit breaker handcarts separately during initial installation.
Remove necessary partition plates and bottom plates (1, 9, 16, 19) for access.
Ensure the installation foundation is level; unevenness must not exceed 2mm.
Secure firmly to the foundation channel steel with anchor screws or welding once assembled.

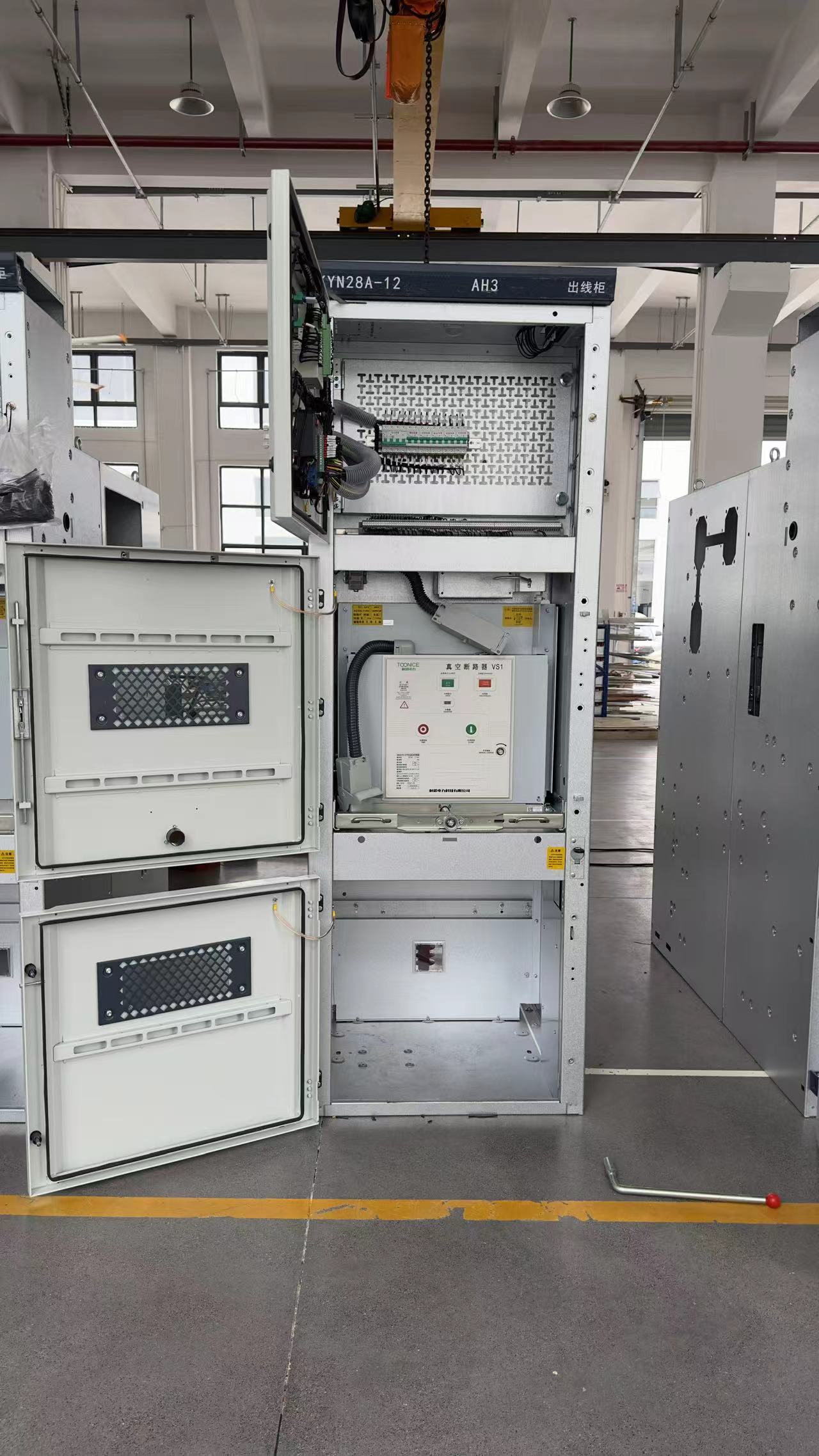

Component Legend

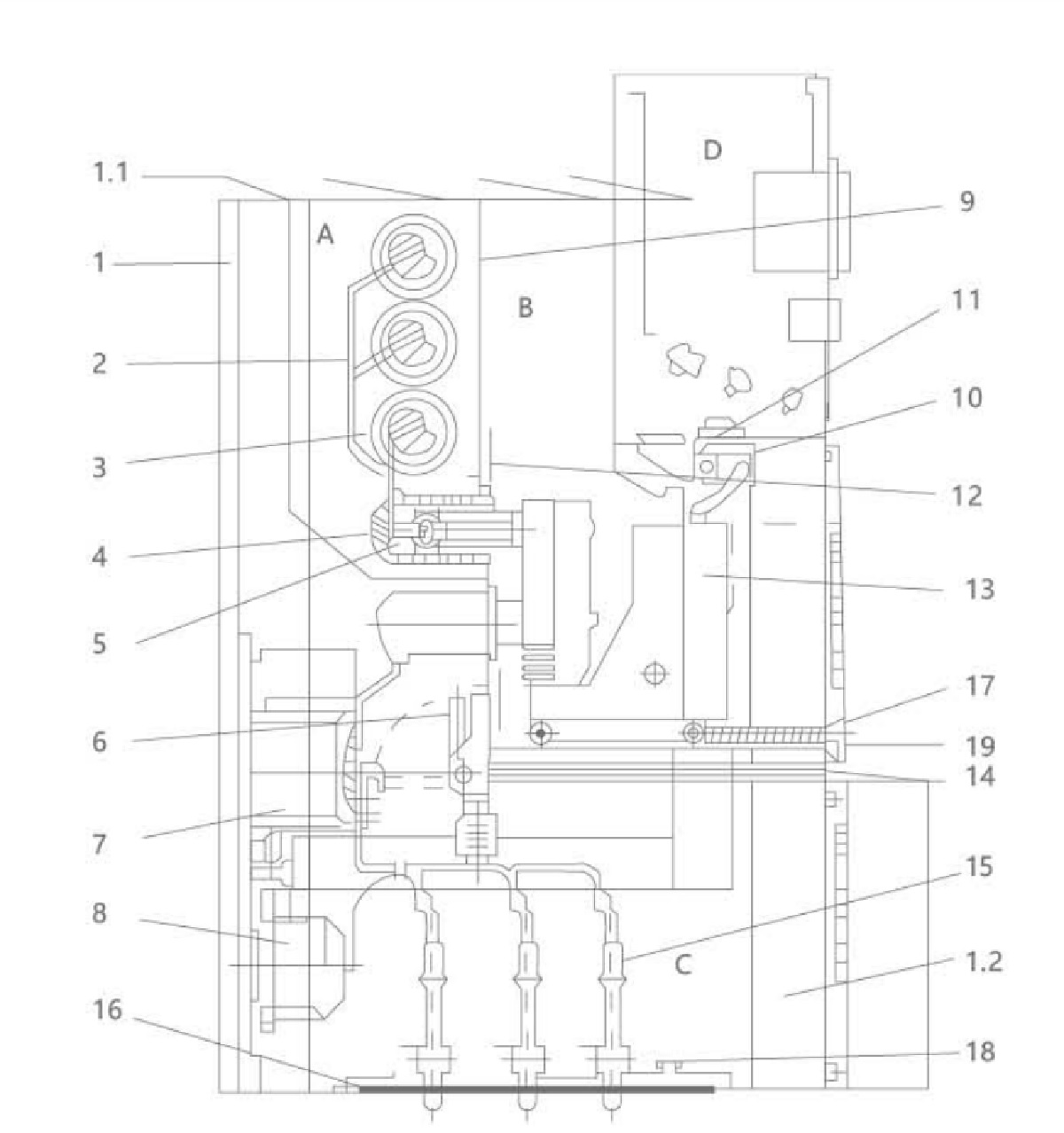

A. Busbar compartment B. Circuit breaker compartment C. Cable compartment D. Instrument compartment	1. Shell (1.1 Pressure release / 1.2 Cable cover) 2. Branch busbar / 3. Busbar 4. Static contact / 5. Spring contacts 6. Grounding gate / 7. Current transformer 8. Voltage transformer
9. Unloading partition 10. Secondary plug / 11. Auxiliary switch 12. Movable curtain / 13. Pull-out hand car	14. Operating mechanism / 15. Cable seal 16. Base plate / 17. Screw mechanism 18. Main busbar / 19. Horizontal partition

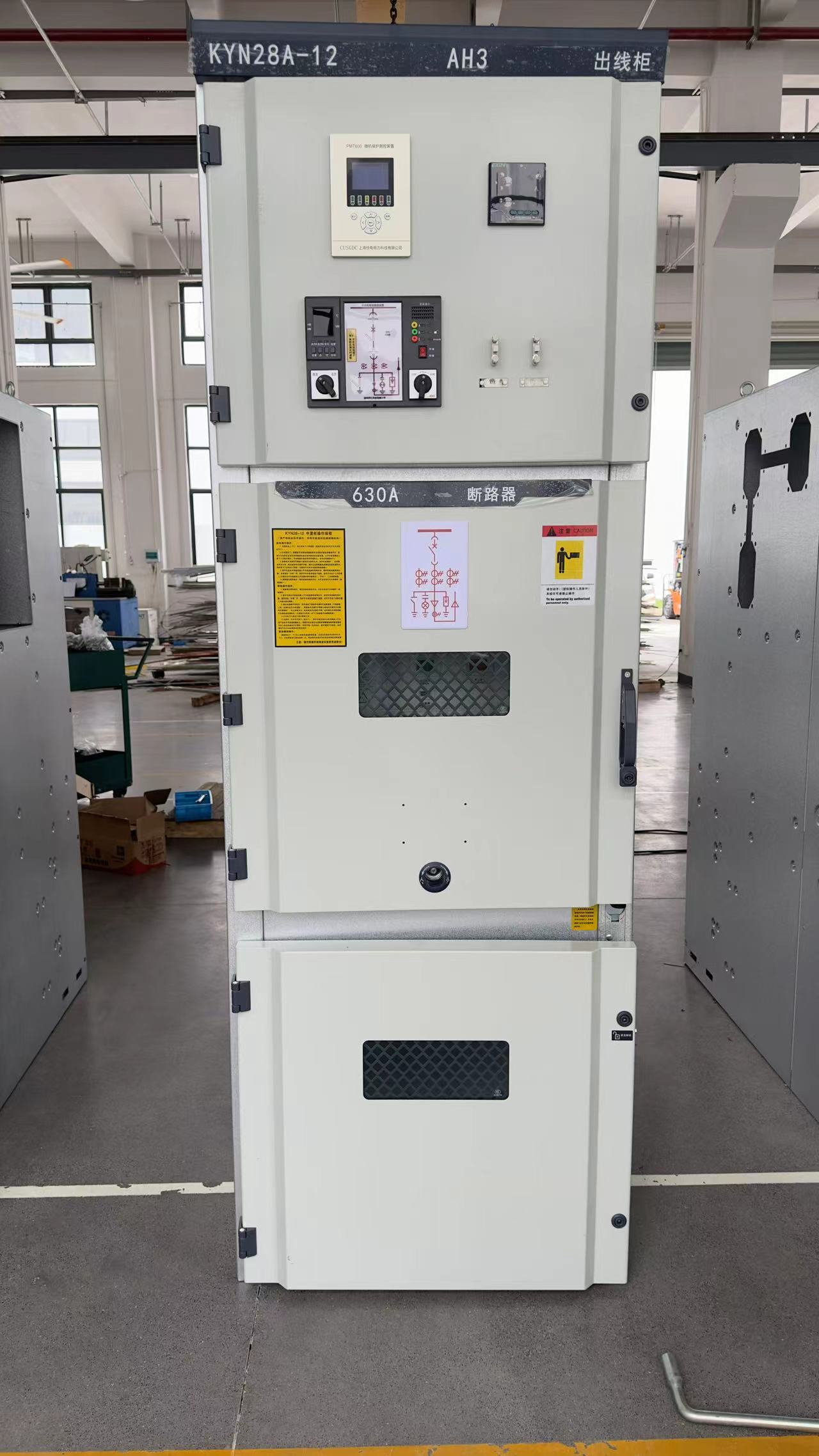

Model Description: K Y N 28 - 12

1. K: Armoured removable metal-enclosed switchgear

2. Y: Move away

3. N: Indoor conditions of use

4. 28: Design serial number

5. 12: Rated voltage (kV)

🌍 Working Environment

Temperature: -10°C ~ +40°C

Humidity: Daily Avg < 95% / Monthly Avg < 90%

Altitude: < 1000m

*Note: Avoid fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.

📜 Enforced Standards

GB3906: 3~35kV AC metal-enclosed switchgear
GB/T11022: High-voltage switchgear and control equipment standards
DL/T404: Indoor AC High Voltage Switch Technical Specifications

Technical Parameters

PROJECT	UNIT	DATA
Rated voltage	kV	12
Rated frequency	Hz	50
Rated current of main bus	A	630-1250
Current rating	A	630-1250
Short-Time Withstand Current (2S)	kA	27.3
Short-Time Withstand Current (4S)	kA	25-31.5
Rated peak withstand current	kA	63-80
Short-circuit interrupting current	kA	31.5
Ingress protection	-	Shell IP4X
