Product Description

Certifications
Certification 1
Certification 2
Products Description

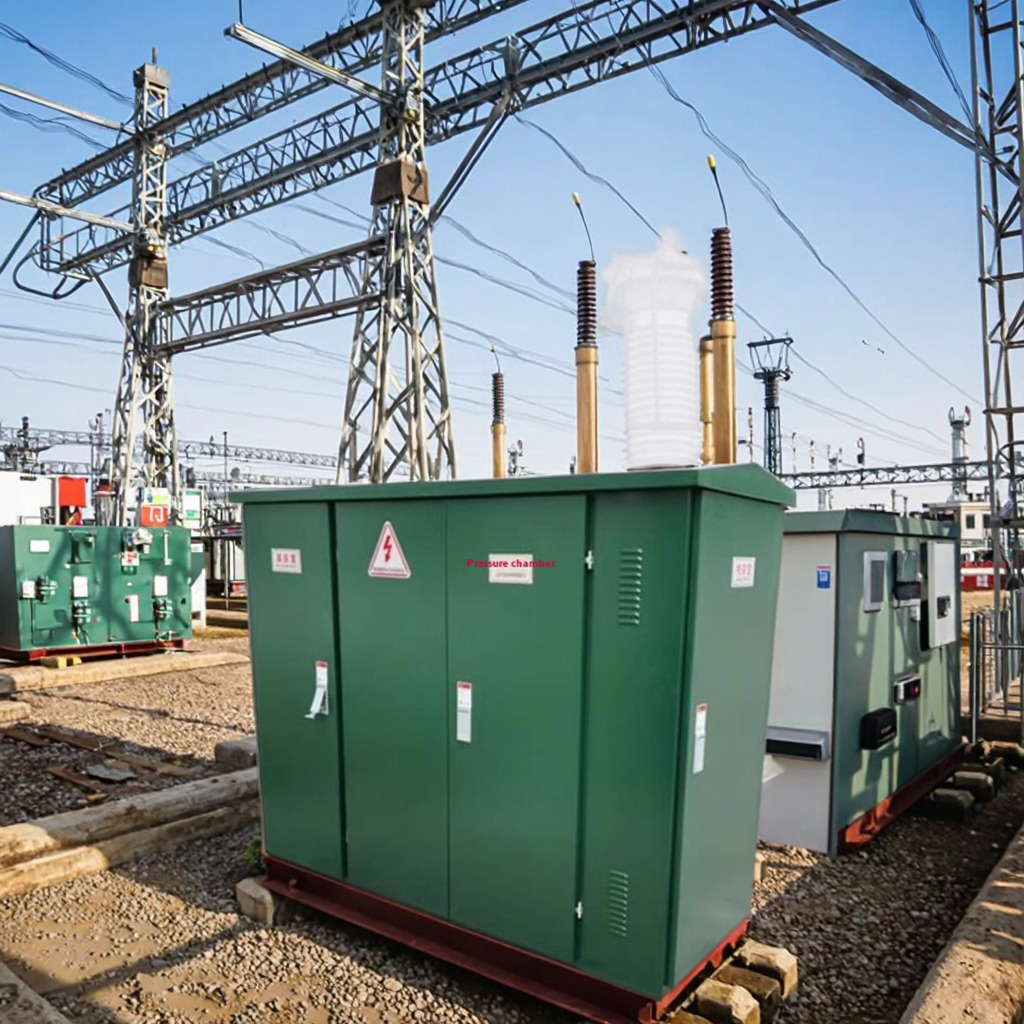

Product Display

Product name: High-Voltage American-Style Complete Set 630Kva Pre-Assembled Power Station Box Distribution MV&HV Switchgear

◈ Transformer Substation: Used to transform high to low voltage for local distribution, or low to high voltage for long-distance transmission.
◈ Integrated Solution: A compact substation transformer that combines a transformer, medium-voltage switchgear, low-voltage switchgear, and protective devices in a single, enclosed unit.
◈ Versatile Application: These Box-type Substations are widely used in urban areas, industrial plants, and renewable energy applications where space is limited.
◈ European-Style Advantage: Also called outdoor transformer substation or combined substation. It offers flexible combination, convenient transportation, and maintenance-free operation with a low construction period.
Transformer Substation Gallery

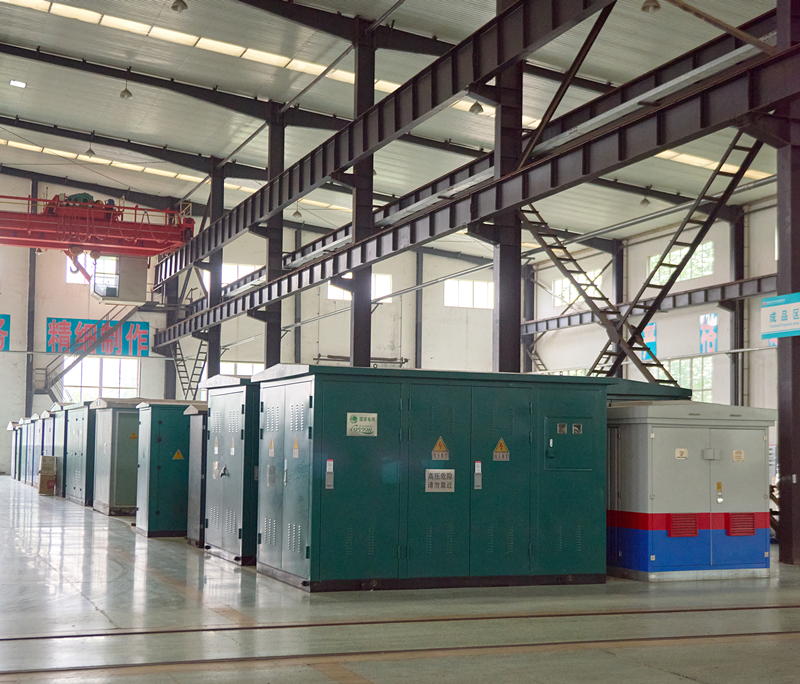

Substation Detail 1

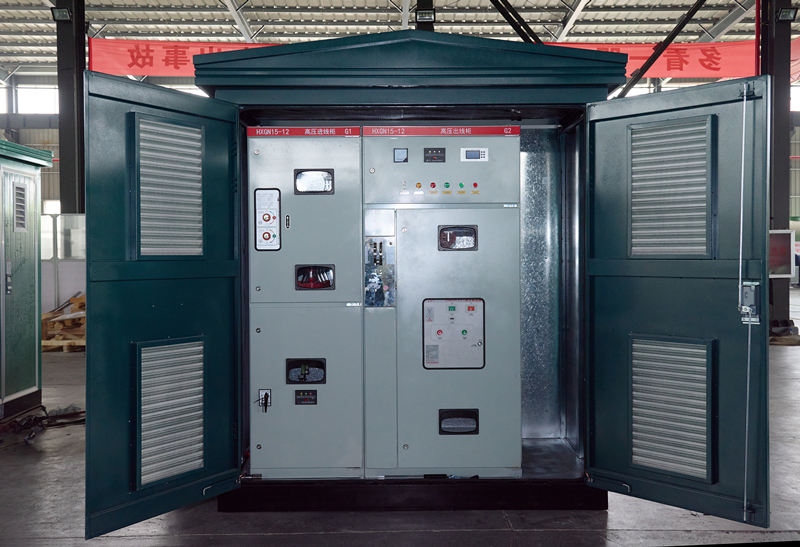

Substation Detail 2
Product Parameters
Capacity (KVA) Rated Power (KVA) HV (V) LV (V) Rated Frequency (HZ) No-load Current (%)
304006, 6.3, 6.6, 10, 10.5, 11, 13.8, 15, 330.450/600.18 - 0.63
505000.4
636300.4
808000.4
10010000.4
12512500.4
16016000.4
20020000.4
25025000.4
31531500.4

Note: Custom specifications and requirements can be designed and manufactured upon request.

Production Capability
Factory Overview
Production Line
Workforce

Our production base is a leading enterprise engaged in power transformers and power distribution equipment. Covering an area of 128,000 square meters with more than 260 employees, our annual output value reaches 500 million. Main products include Oil Immersed Transformers, Dry Type Transformers, Transformer Substations, High and Low Voltage Switchgear, and Special Transformers. All products have passed CSEI European Quality Certification, KEMA Quality Certification, and ISO Quality System Certification.

Product Packaging & Installation
Product Packaging
Installation Case
Frequently Asked Questions
Q: What are your major products? A: Our main range includes oil immersed transformers, dry type transformers, transformer substations, and high/low voltage switchgear.
Q: Can your products be customized? A: Yes! All products can be customized according to your specific technical requirements and site conditions.
Q: What is the typical lead or shipping time? A: The lead time depends on the order quantity, generally within 15 days upon receipt of advance payment.
Q: Do you offer a guarantee for the products? A: Yes, we offer at least a one-year guarantee for all of our transformers and equipment.
Q: What are your core advantages? A: With over 10 years of experience, we provide advanced production equipment, stable quality, fast delivery, and professional prompt service.
Q: Is shipping price fixed? A: No, the price varies depending upon the port of delivery and current logistics rates.
