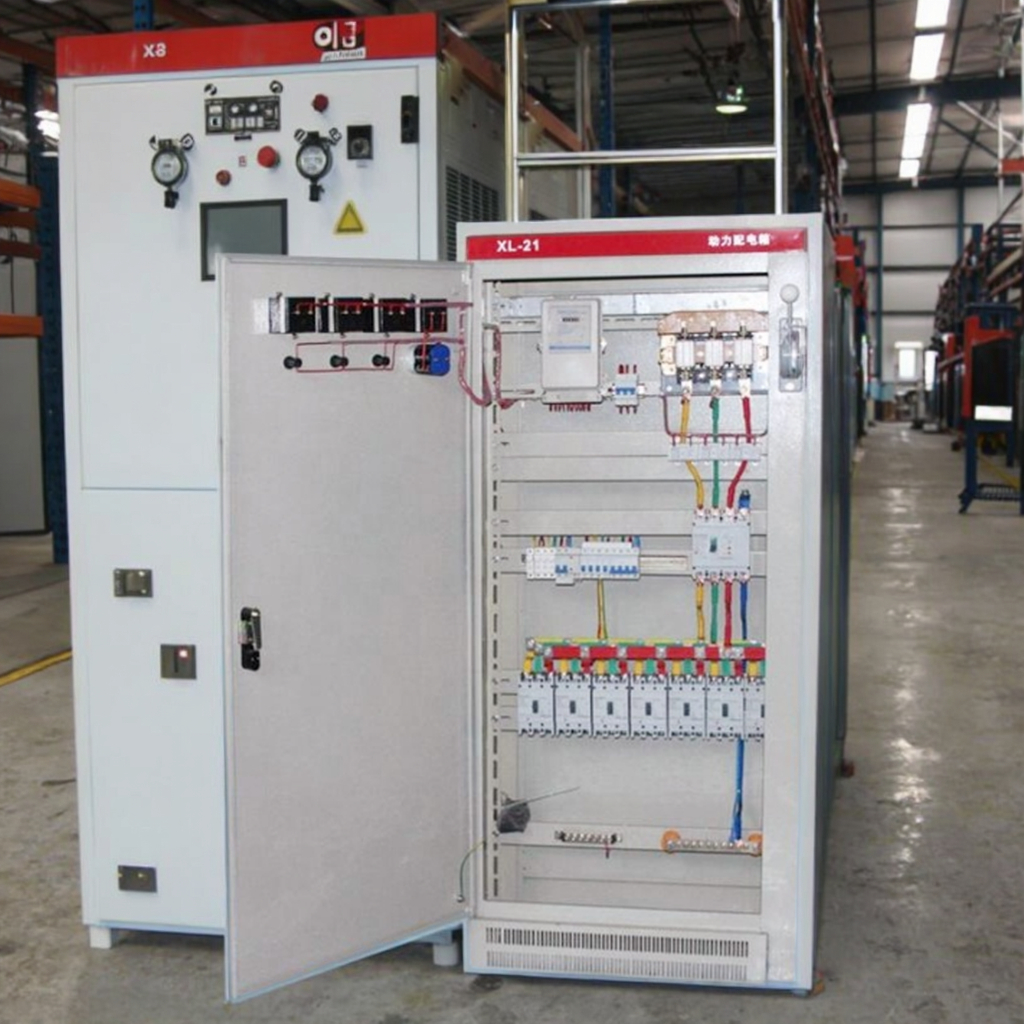

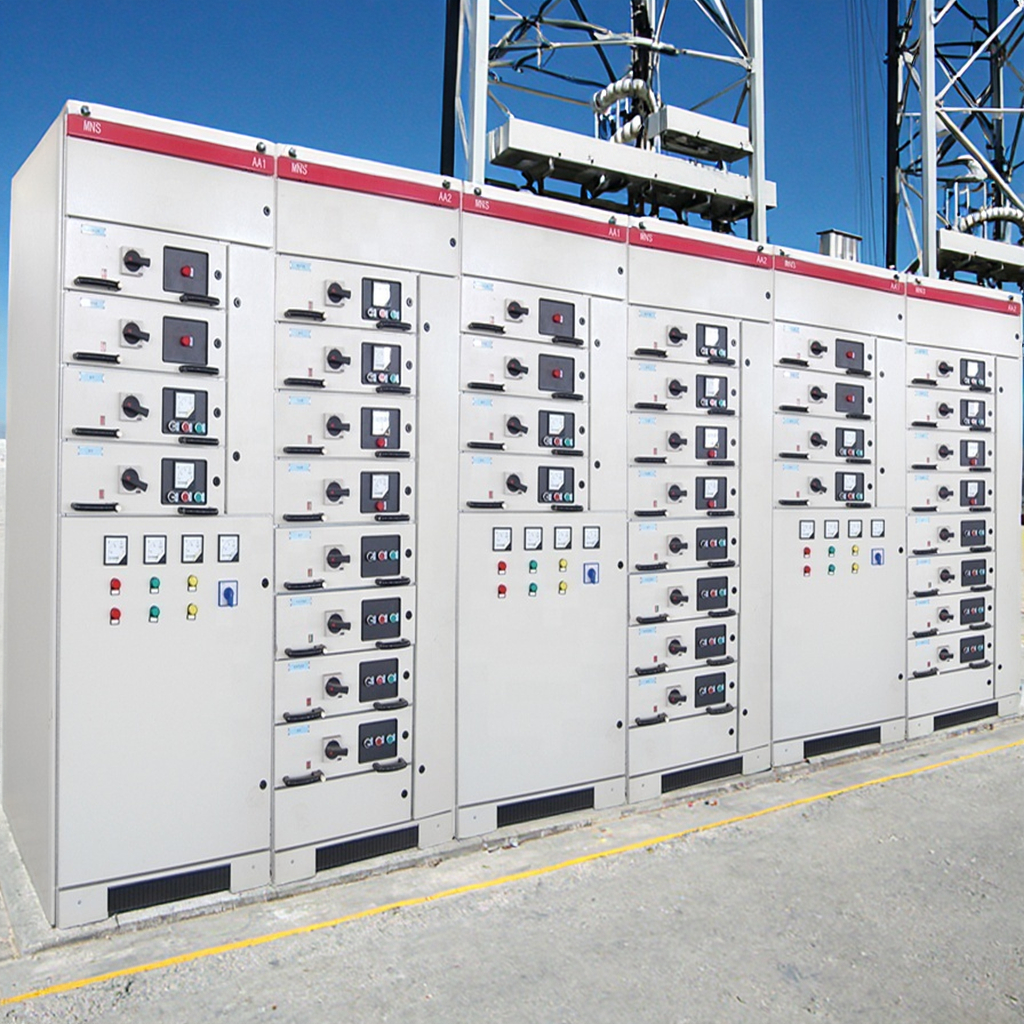

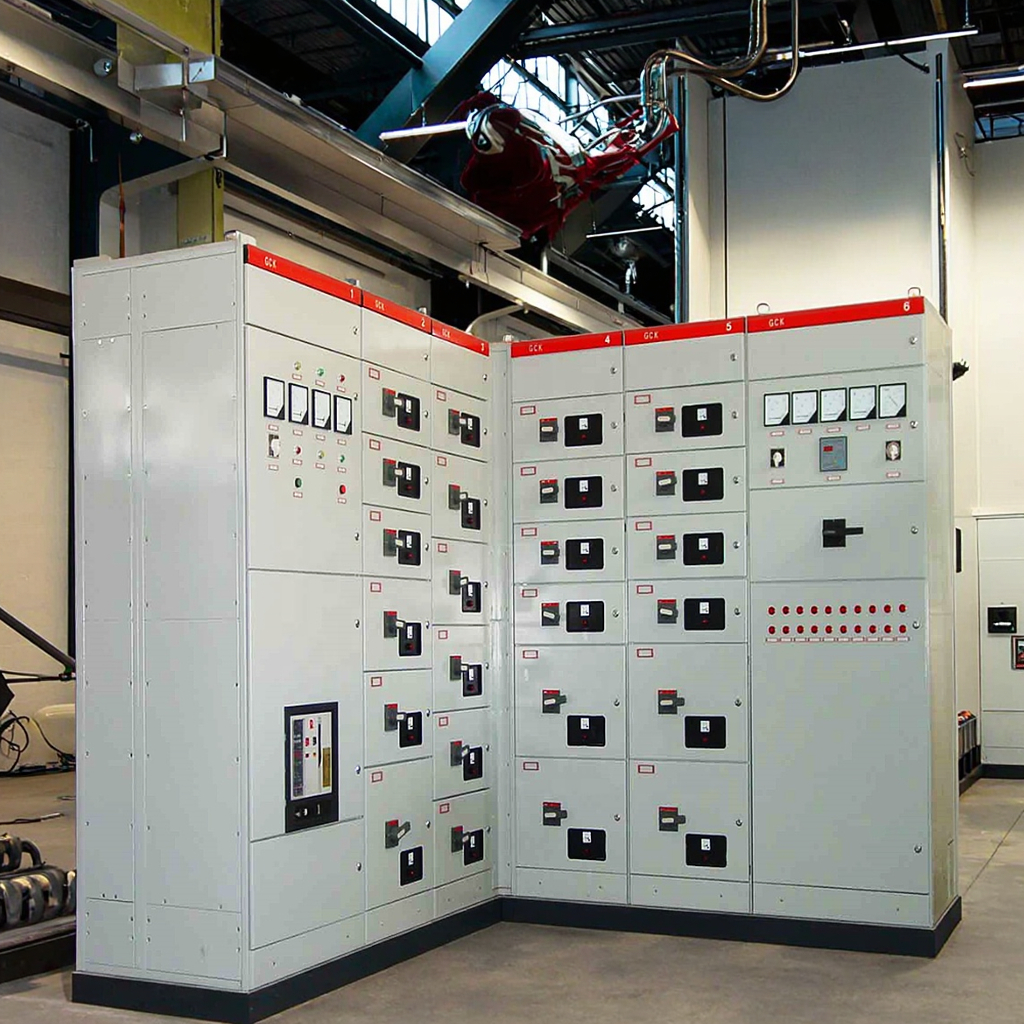

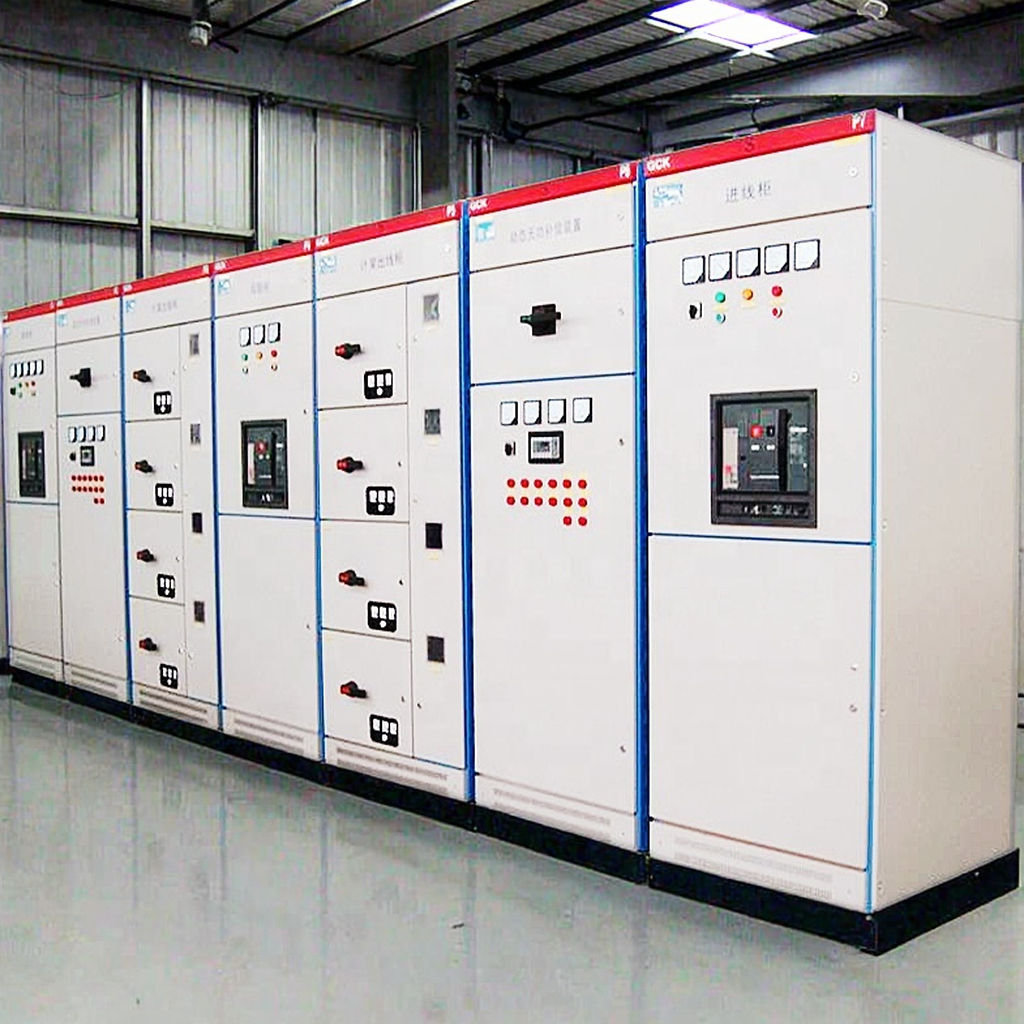

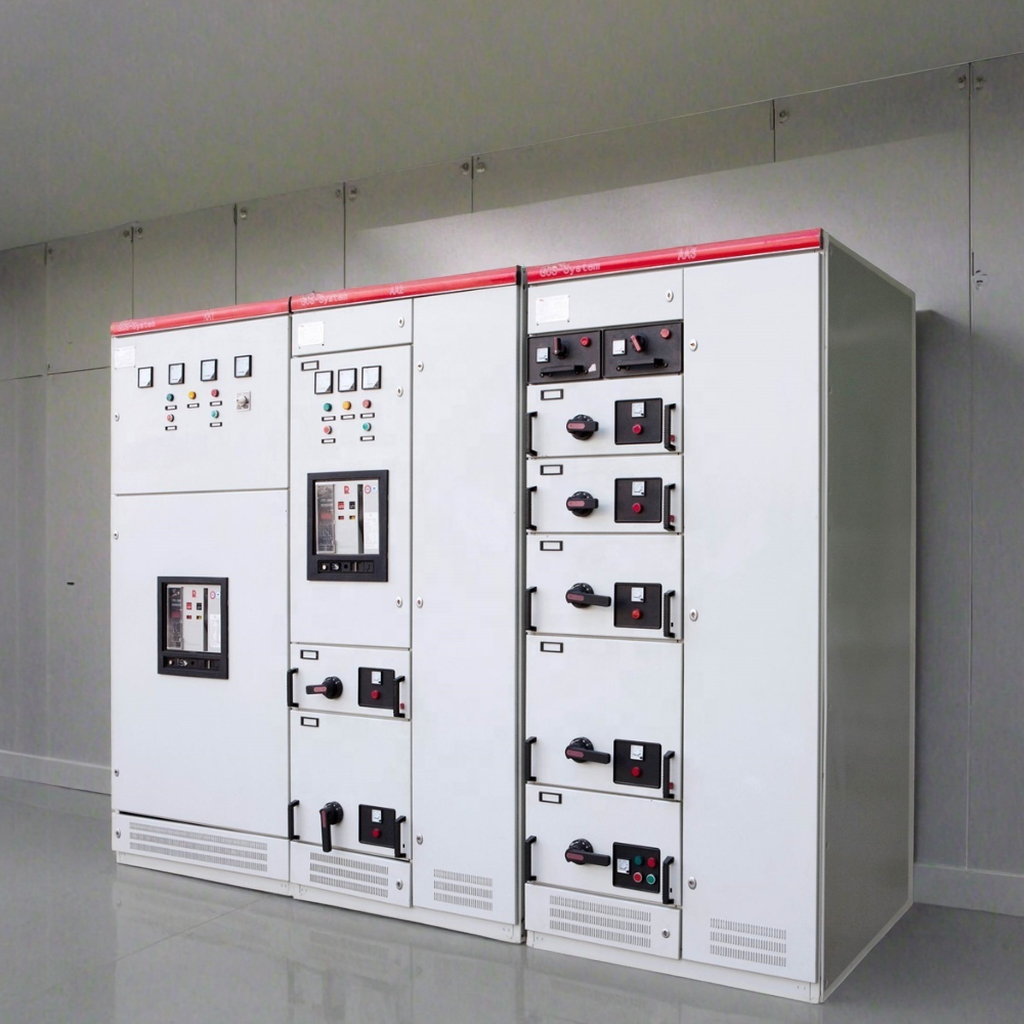

The High and low voltage switchgear is a device connected to high voltage or low voltage cable. General power supply bureaus and substations use high-voltage cabinets, and thru the power transformer for step down to low-voltage cabinets, then thru low-voltage cabinets to each power distribution box. It Is an electric equipment assembled of some switchgear, circuit breakers, protection devices and circuit breakers etc. The high and low voltage switchgear is an electrical equipment. The outside line firstly enters to the main control switch in the cabinet, and then enters to the sub-control switch. Each branch is set according to its needs Such as the instrument, automatic control, motor magnetic switch, various AC contactors, high voltage bus, high voltage room and low voltage room switch cabinet, etc.
❓ Frequently Asked Questions
What is the primary function of high and low voltage switchgear?
It serves as an integrated electrical equipment connected to power cables, facilitating the distribution and control of electricity from power bureaus and substations to individual distribution boxes.
How does the power transformation process work within these cabinets?
Power supply bureaus utilize high-voltage cabinets, which then pass through a power transformer to step down the voltage for low-voltage cabinets, making it safe for local distribution.

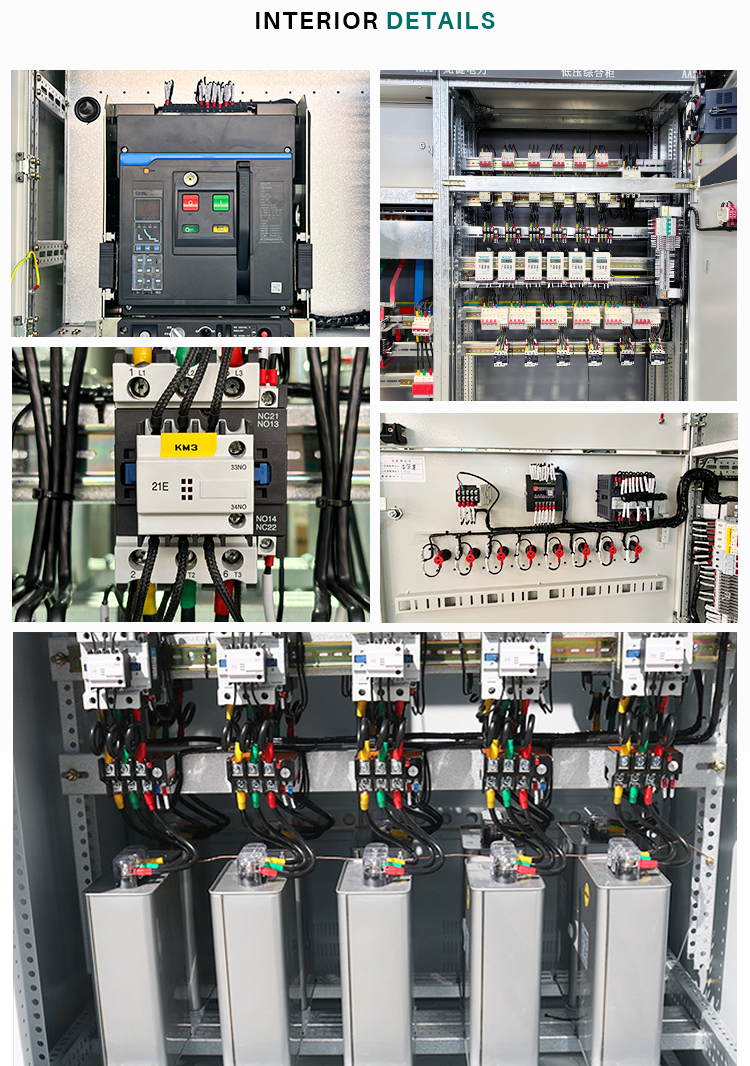

What components are typically assembled inside a switchgear cabinet?
A standard cabinet includes switchgear, circuit breakers, protection devices, instruments, automatic control systems, and various AC contactors.
How is the electricity flow regulated within the system?
The external line enters a main control switch in the cabinet first, and then it is distributed through sub-control switches to different branches based on specific operational needs.
What specific rooms or sections are found in a switch cabinet setup?
A comprehensive setup typically includes a high voltage bus area, a high voltage room, and a low voltage room to ensure proper isolation and safety.
Can switchgear support automated motor controls?
Yes, they are designed to accommodate motor magnetic switches and automatic control devices to manage industrial equipment efficiently.
